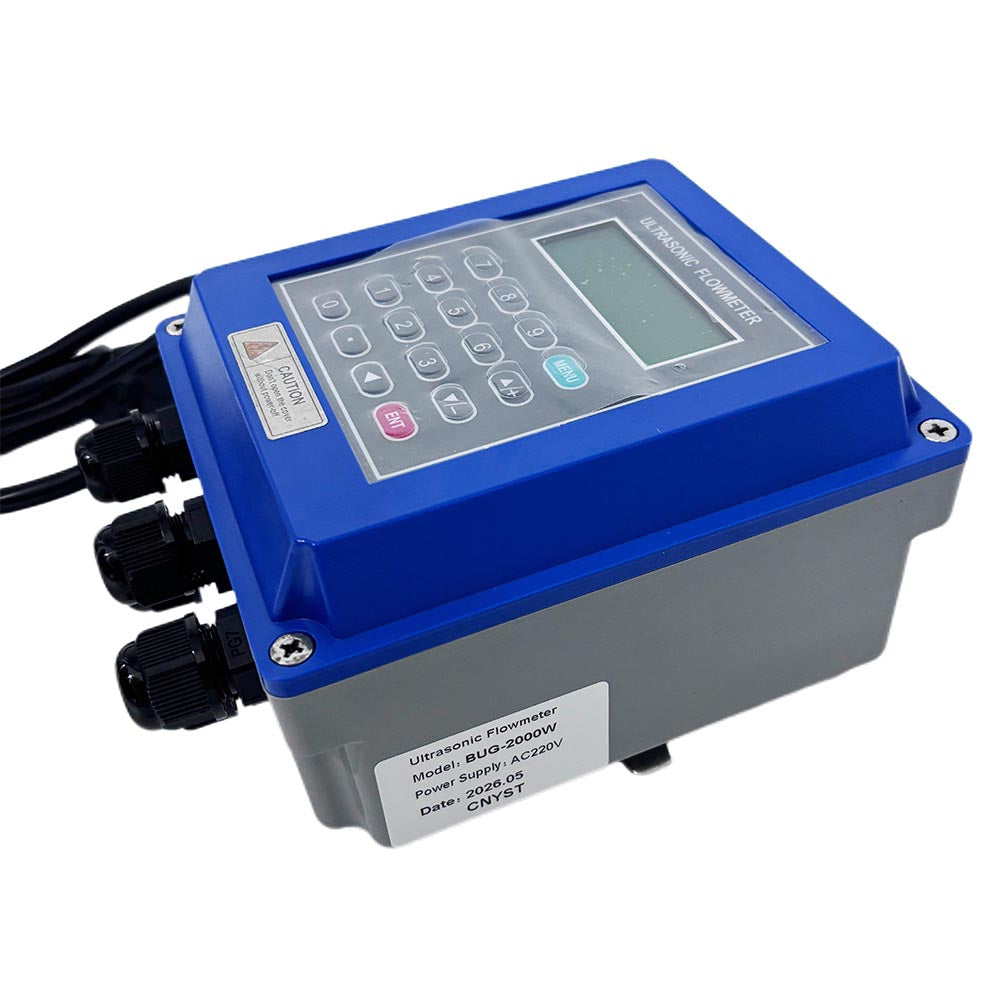

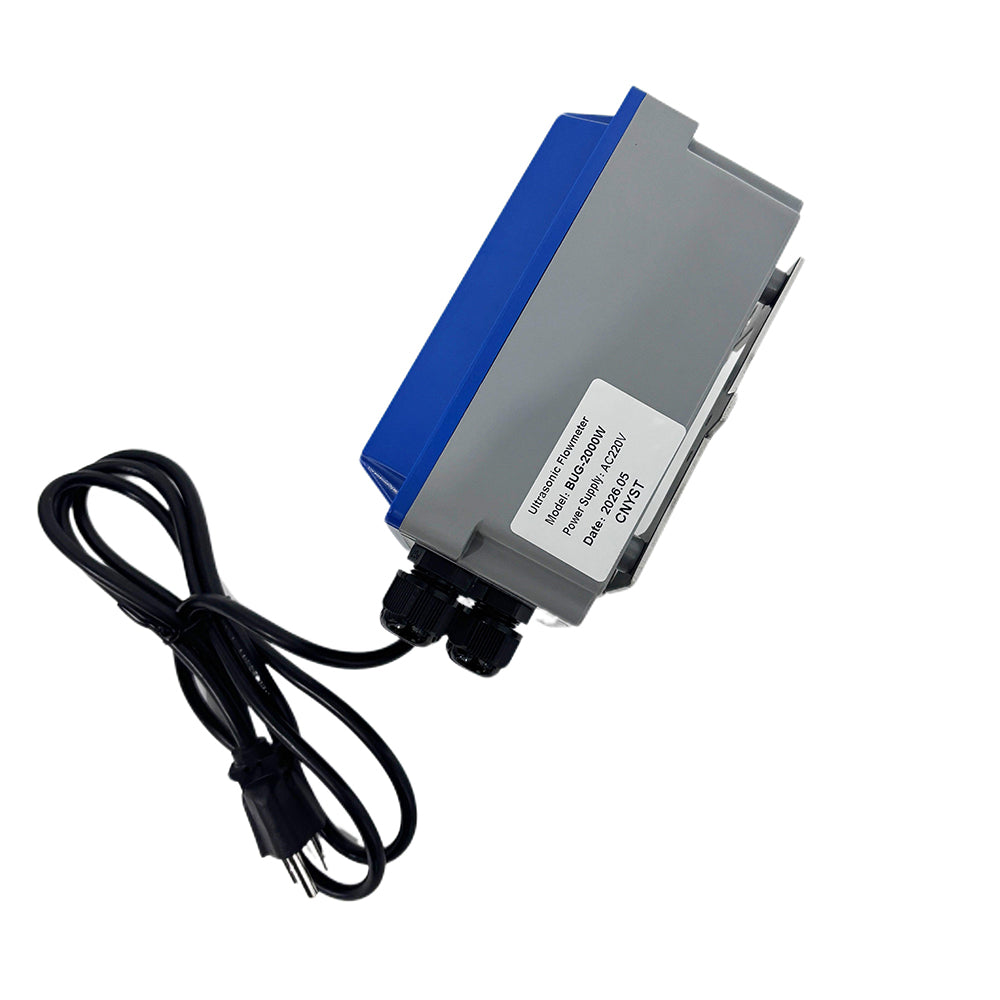

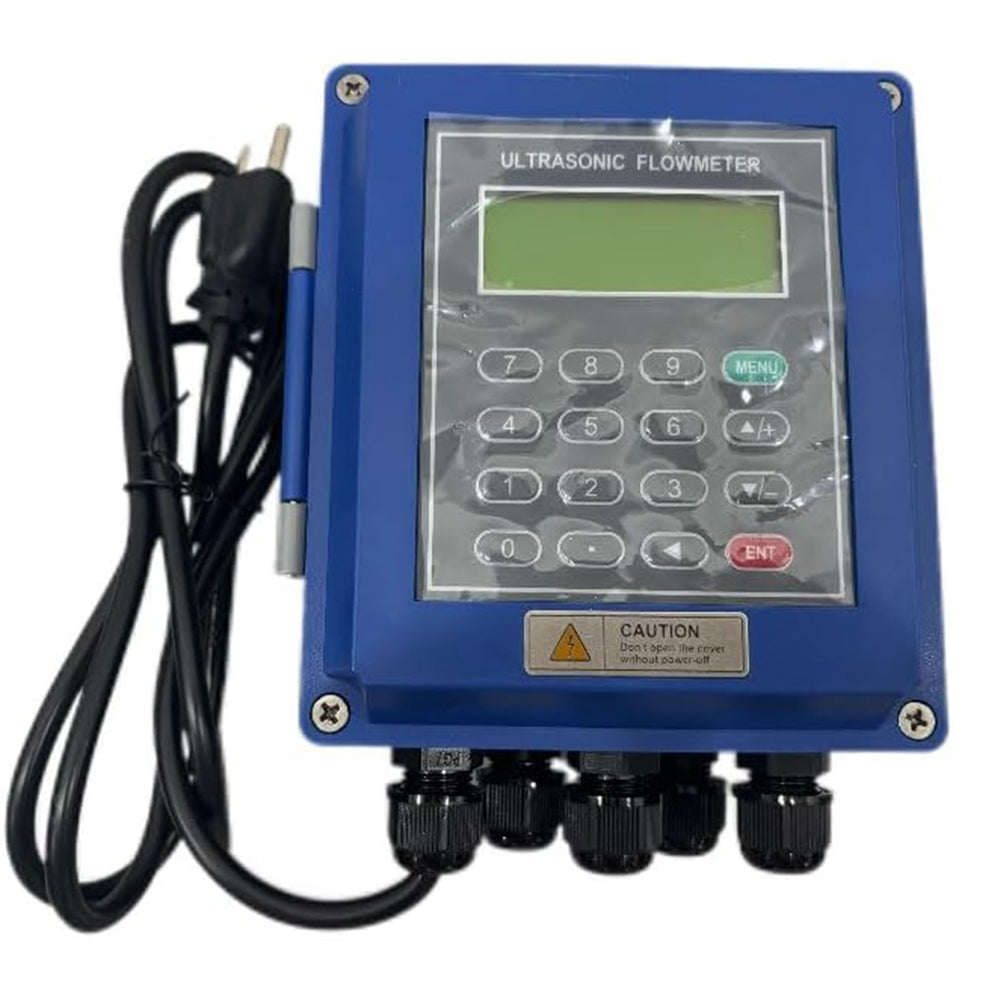

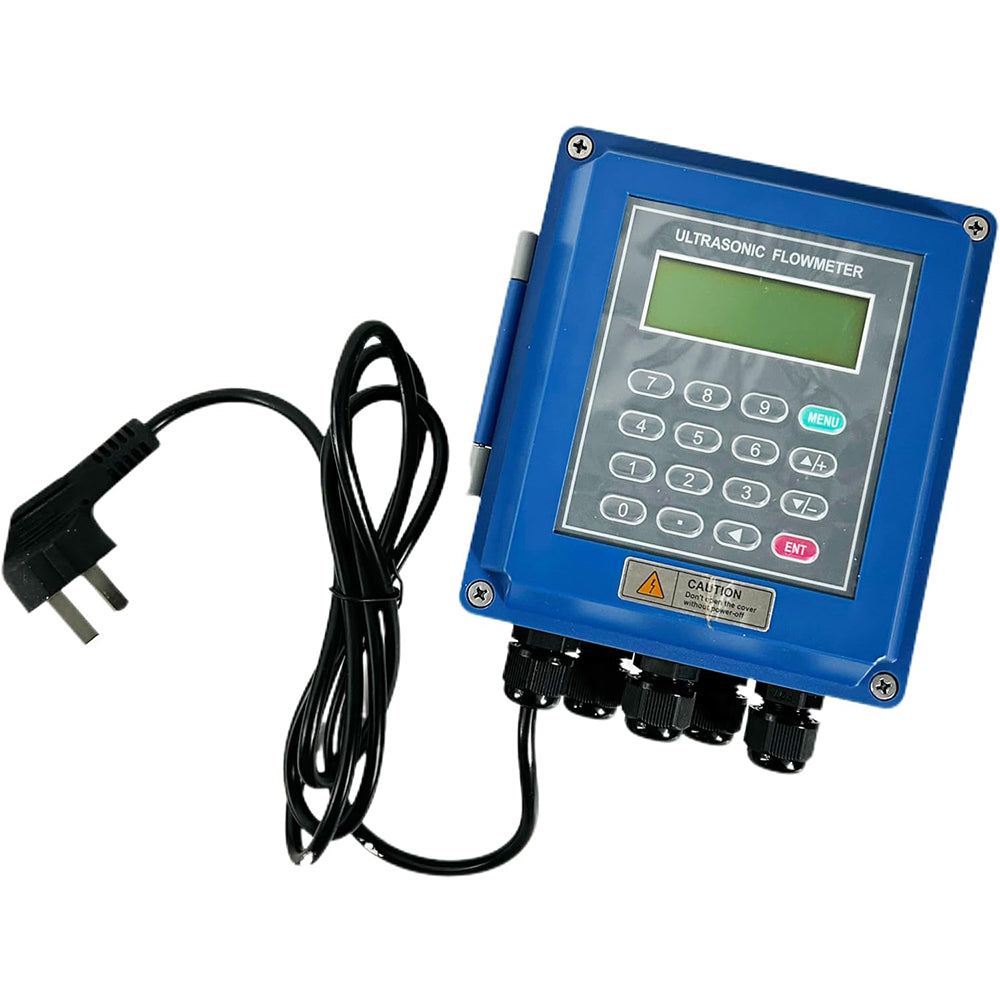

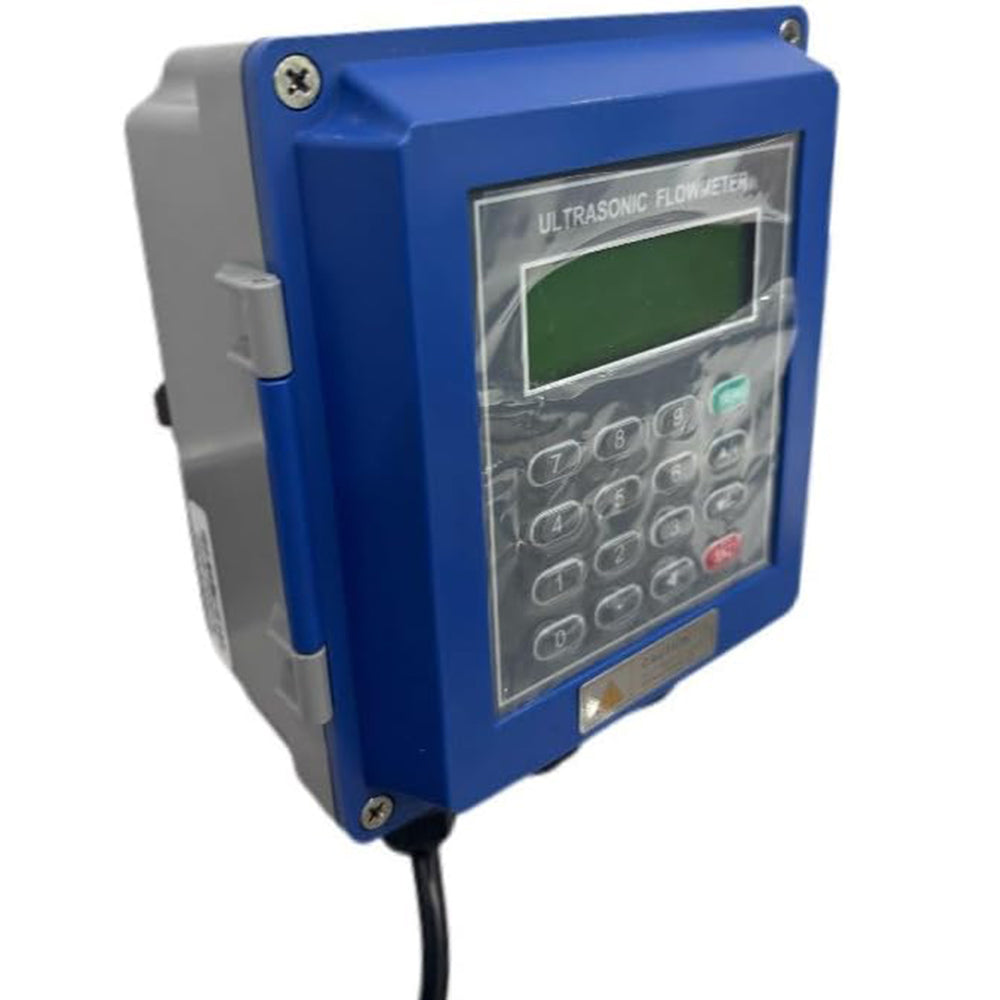

CNYST Wall Mounted Ultrasonic Flow Meter Ultrasonic Clamp-on Flow Meter with TM-1 Medium Transducer Accuracy ±1% Flow Transducer -30~90°C Flow Rate 0-±7m/s 2x20 Character LCD with Backlight

$329.00

About this item:

◆ This type of Ultrasonic flow meter package with Transducer TM-1 Medium Clip(size: 64*39*44mm) for Pipe Diameter DN50 to 700mm, Temperature : -30~90°C

◆ High Accuracy: 1% ; High Reliability Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.

◆ Strong Anti-interference: Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.

◆ Working Environment, Temperature: Convertor; -20-60℃; Flow Transducer: -30~90°C; Humidity: Convertor: 85%RH; Flow Transducer: can measure under water, water depth≤2m

◆Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc.

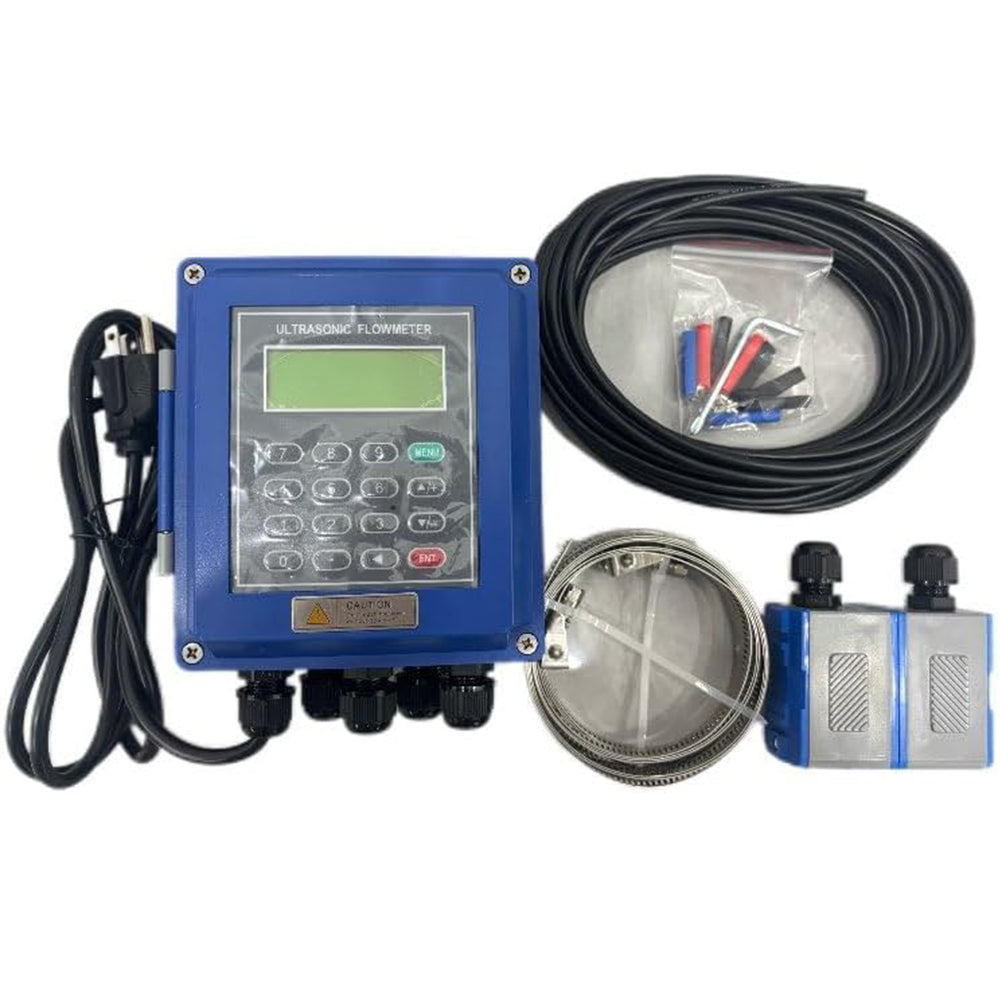

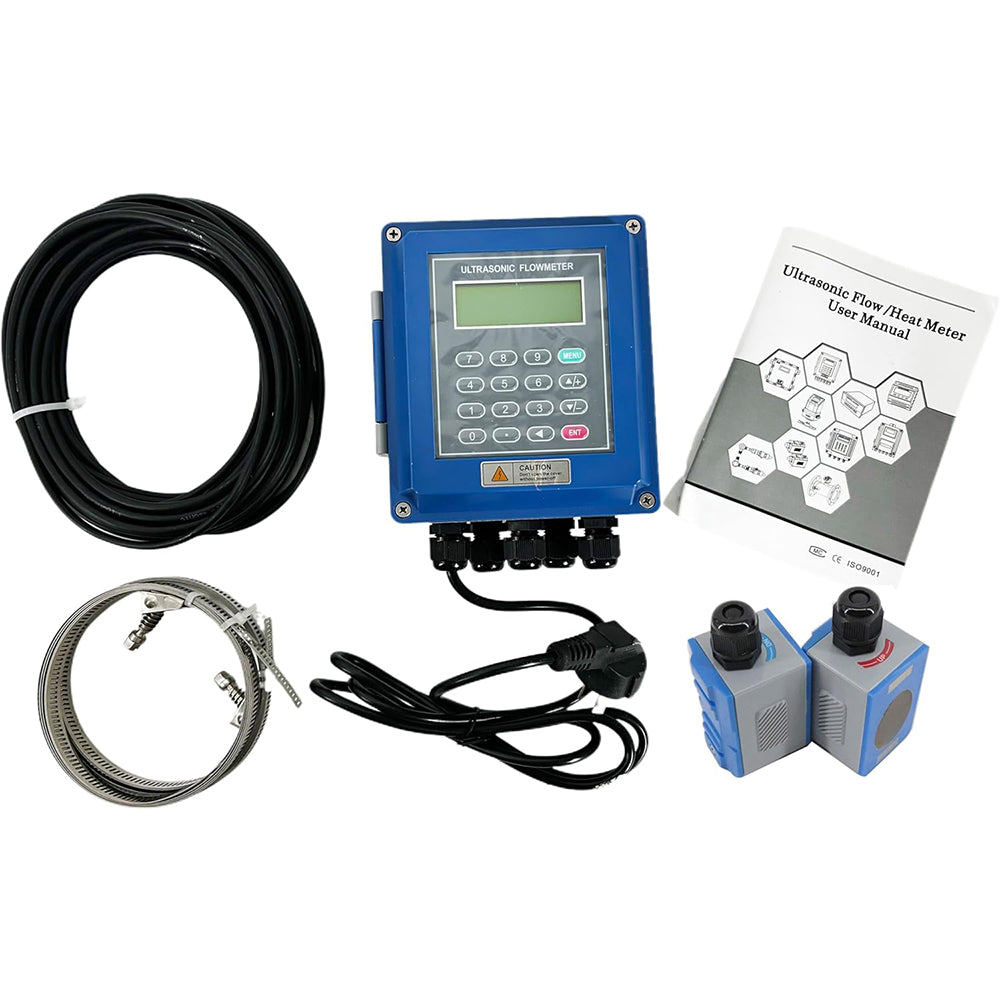

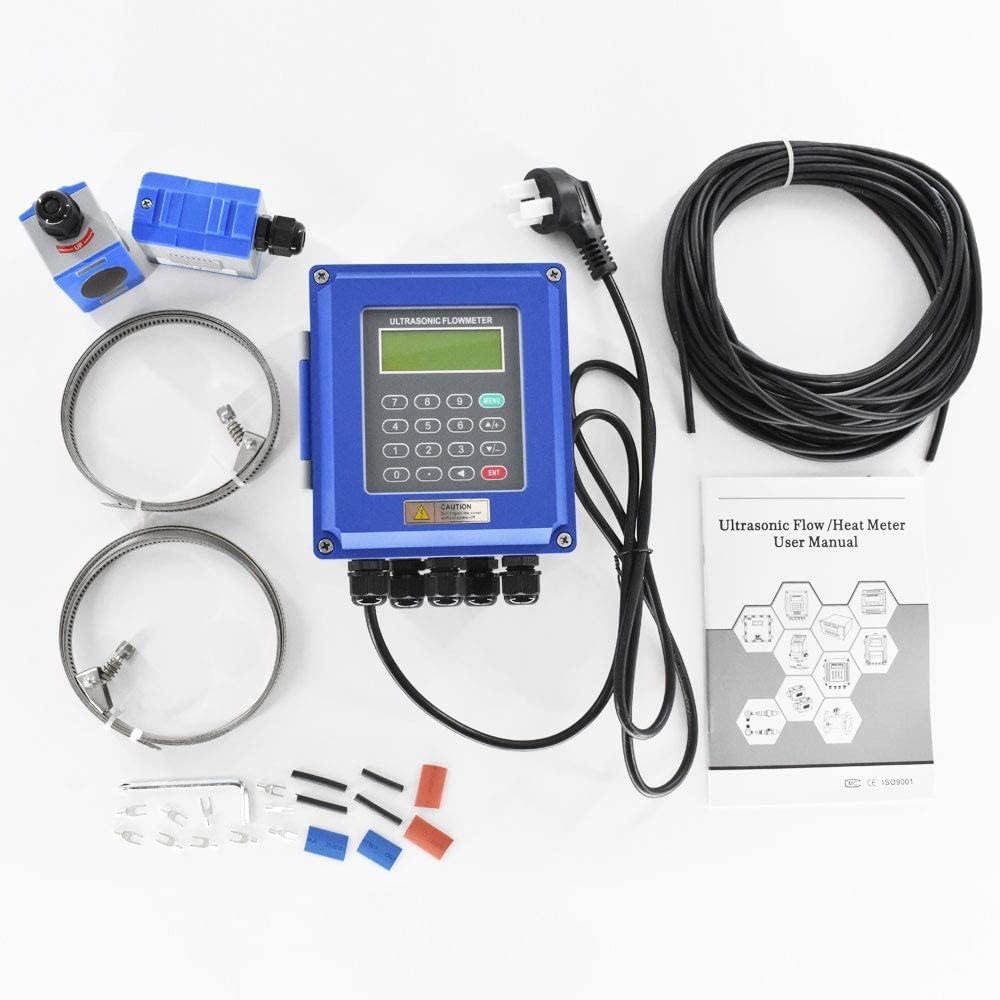

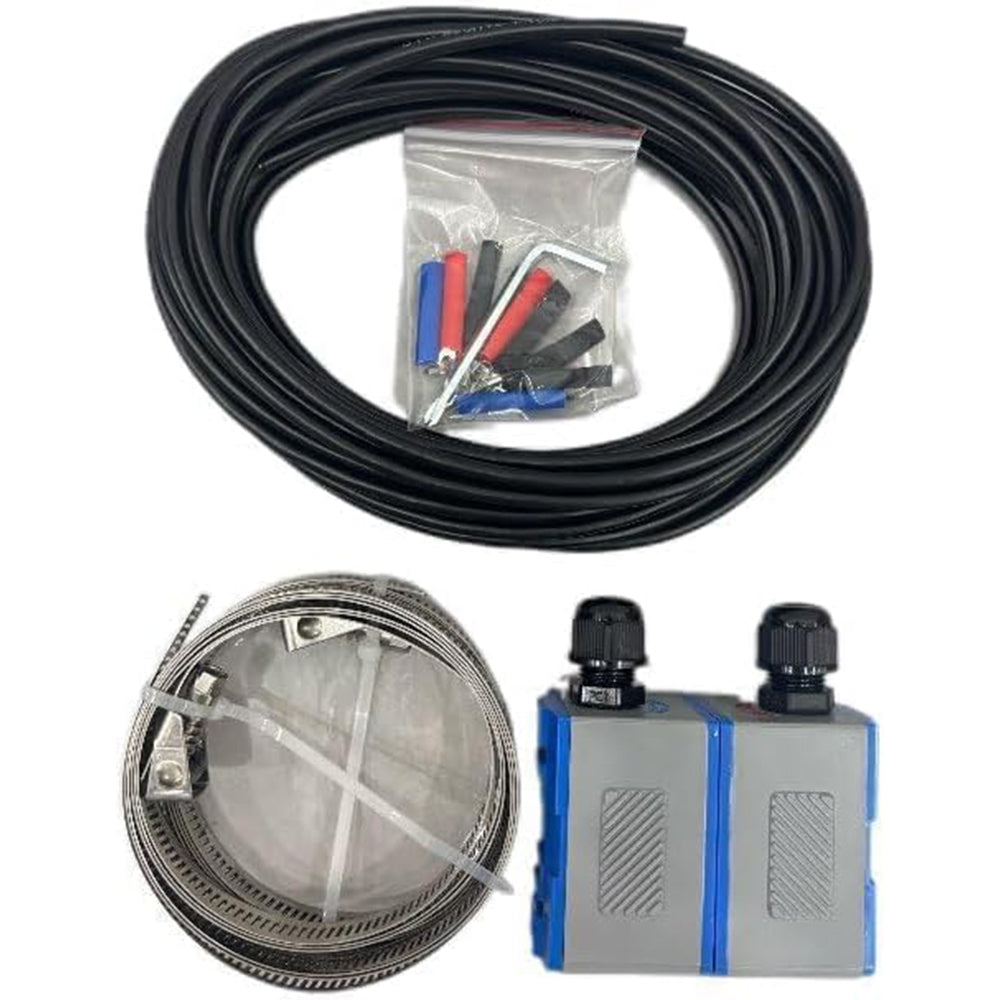

This type of Ultrasonic flow meter Package with

Transducer M-1 Medium Clip(size: 64*39*44mm)

For Pipe Diameter DN50 to 700mm

Temperature : -30~90°C

Specification:

* Principle: Transit-time ultrasonic flowmeter

* Accuracy: ±1%

* Display: 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish

* Signal output:

1way 4-20mA output, electric resistance 0-1K, accuracy0.1%

1 way OCT pulse output(Pulse width-1000ms, default is 200ms))

1 way Relay output

* Signal input:

3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level

Connect the temperature transducer P100, can finish the heat/energy measurement.

Data Interface:Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.

* Special Cable:Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m

* Pipe Installation Condition

* Pipe material:Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed

* Pipe diameter:DN50 to 700mm

* Straight pipe:Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.

Measuring Medium

Type of liquid:

* Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc);

chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc * Temperature: -30~90°C

* Turbidity: No more than 10000ppm and less bubble

* Flow rate: 0-±7m/s

* Temperature: Convertor; -20-60℃; Flow Transducer: -30~90°C

* Humidity: Convertor: 85%RH; Flow Transducer: can measure under water, water depth≤2m

* Power Supply: DC8-36V or AC85-264V(Optional)

* Power Consumption: 1.5W

* Dimension: 132*150*85mm(convertor)
