CNYST

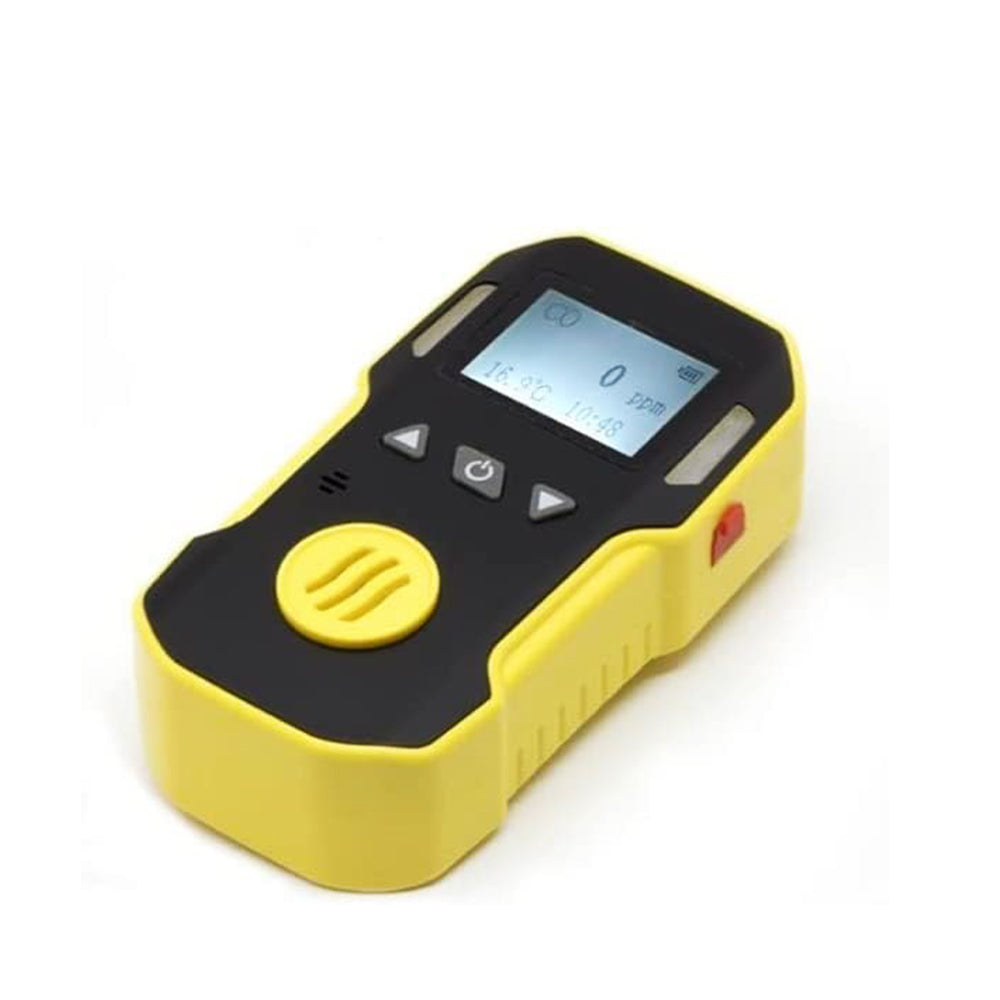

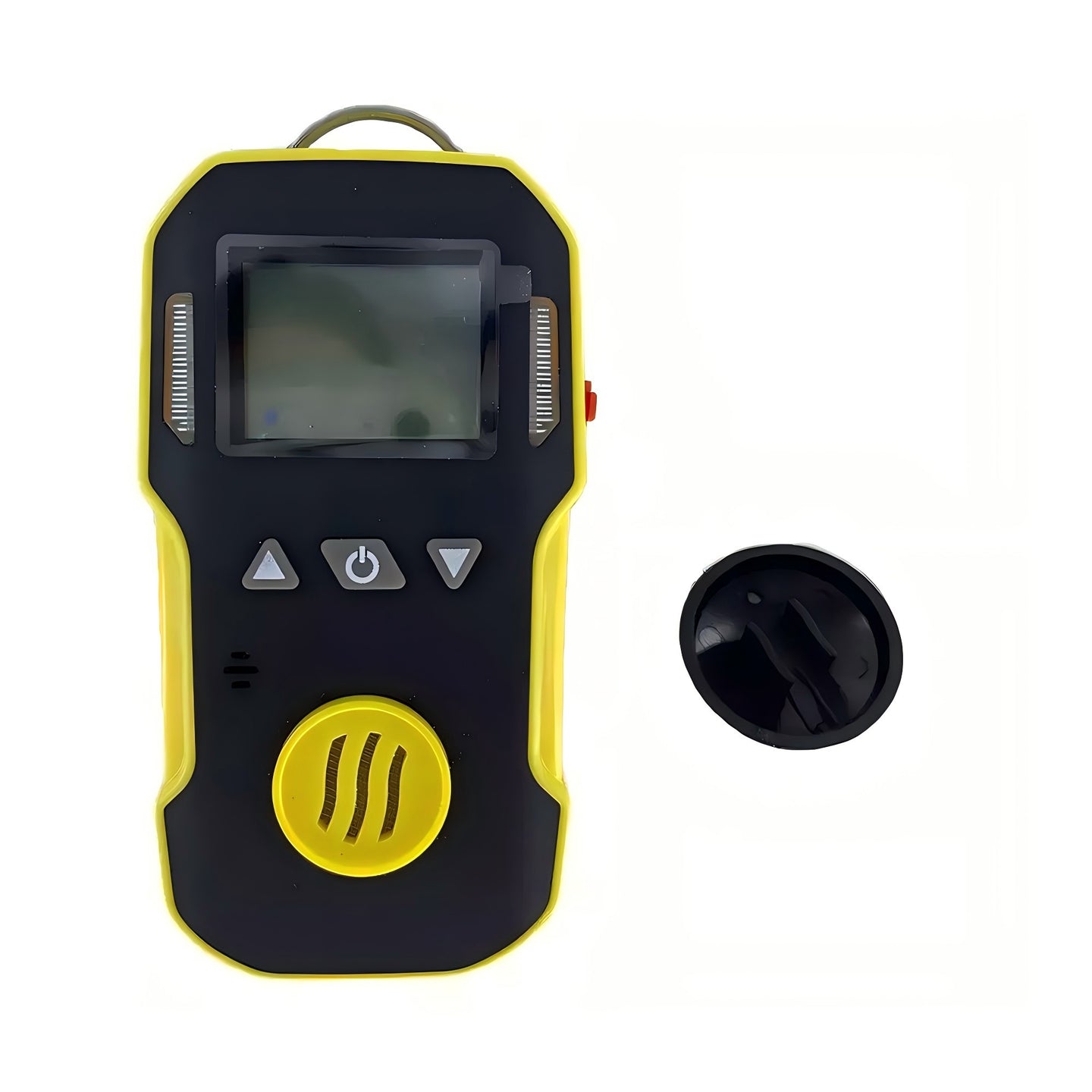

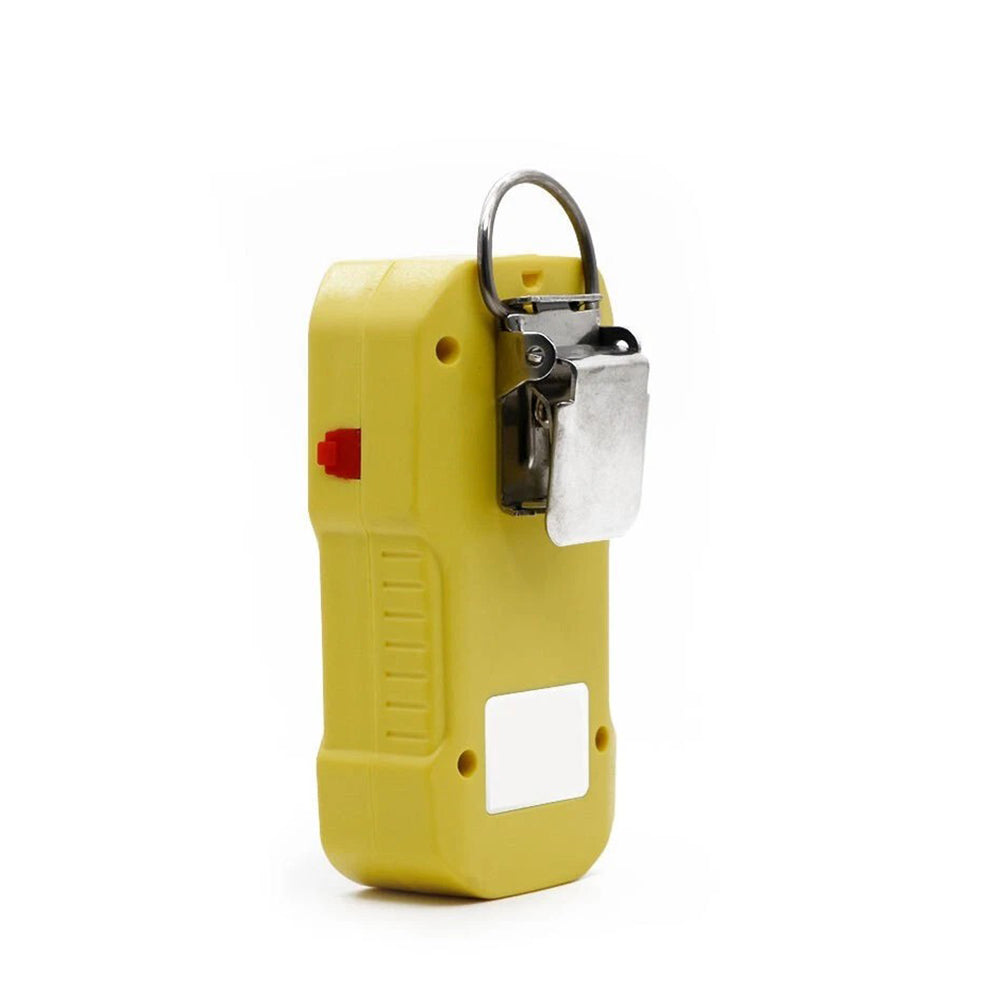

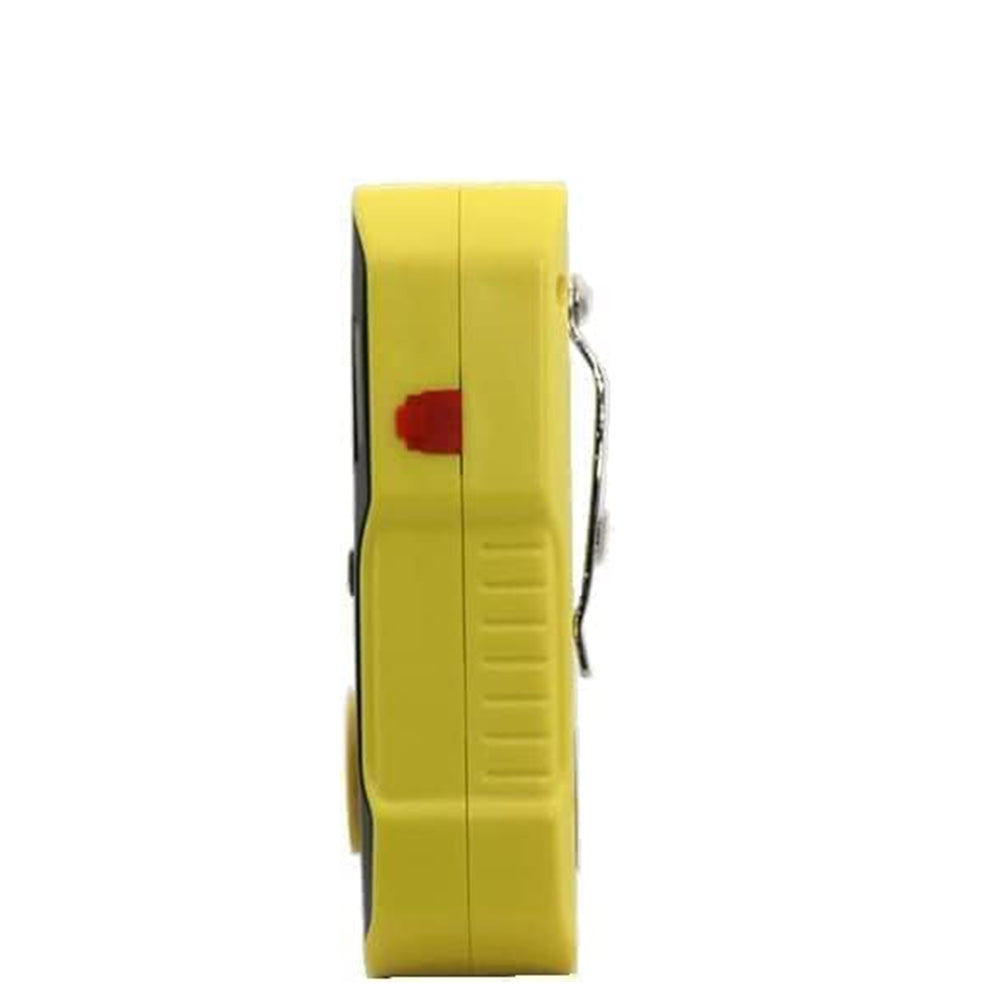

CNYST CL2 Gas Detector Chlorine Detectors Chlorine Gas Leak Detector with Measuring Range 0 to 50ppm Resolution 0.1ppm L-Alarm 5ppm H-Alarm 10ppm Visual Audible Alarm for CL2 Gas Leakage Detection

$399.00

About this item:

Range:0-50ppm

Resolution:0.1ppm

L-alarm:5ppm ; H-alarm:10ppm

Output current:4-20mA

It is used to detect the concentration of flammable gas or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value, the controller will sound and light an alarm to promptly remind to take safety measures to prevent explosion and poisoning accidents, so as to protect life and property.

Features:

Advanced MCU control with low power consumption;

Adjustable low and high alarm level;

Adjustable calibrating level;

High concentration protection for combustible gas;

Self test for the combustible gas sensor;

Low battery indication;

Self-adjustment function

Visual and audible alarm with vibration;

Advanced self-examination and self-renovation function

Password management to avoid wrong operation;

Explosive proof housing.

Specifications:

Accuracy

≦ 5% F.S.

Response time

T＜30s

Indication

LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration

Operating Environment

Operating temperature -40℃～70℃ (for combustible gas)

Operating temperature: -20℃～50℃ (for toxic gas)

Humidity

＜95%RH non-condensing

Operating voltage

DC3.7V Li battery 1500mAh

Working time

≧8h continuously

Charging time

4h～6h

Sensor life

2 years

Weight

about 130g (including battery but without accessories)

Explosion proof

Ex ib llB T3 Gb

Dimension

100mm×60mm×30mm
