CNYST 3-axis Fluxgate Magnetometer Triaxial Fluxgate Magnetometer with Accuracy 2% Range 0~2000μT Unit Switch μT MG Alarm Function Of Exceeding The Upper/Lower Limit USB Interface Max. Hold Function

$2,090.00
$2,090.00

Introduction:

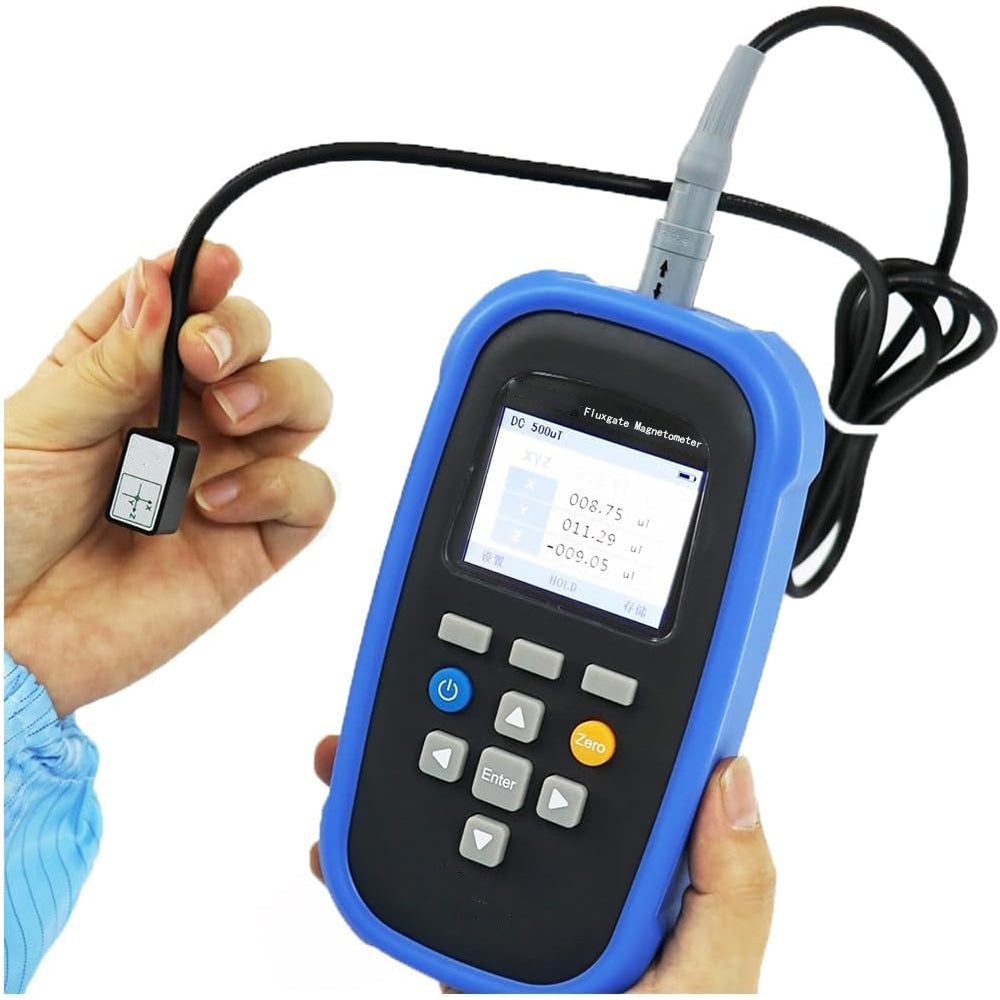

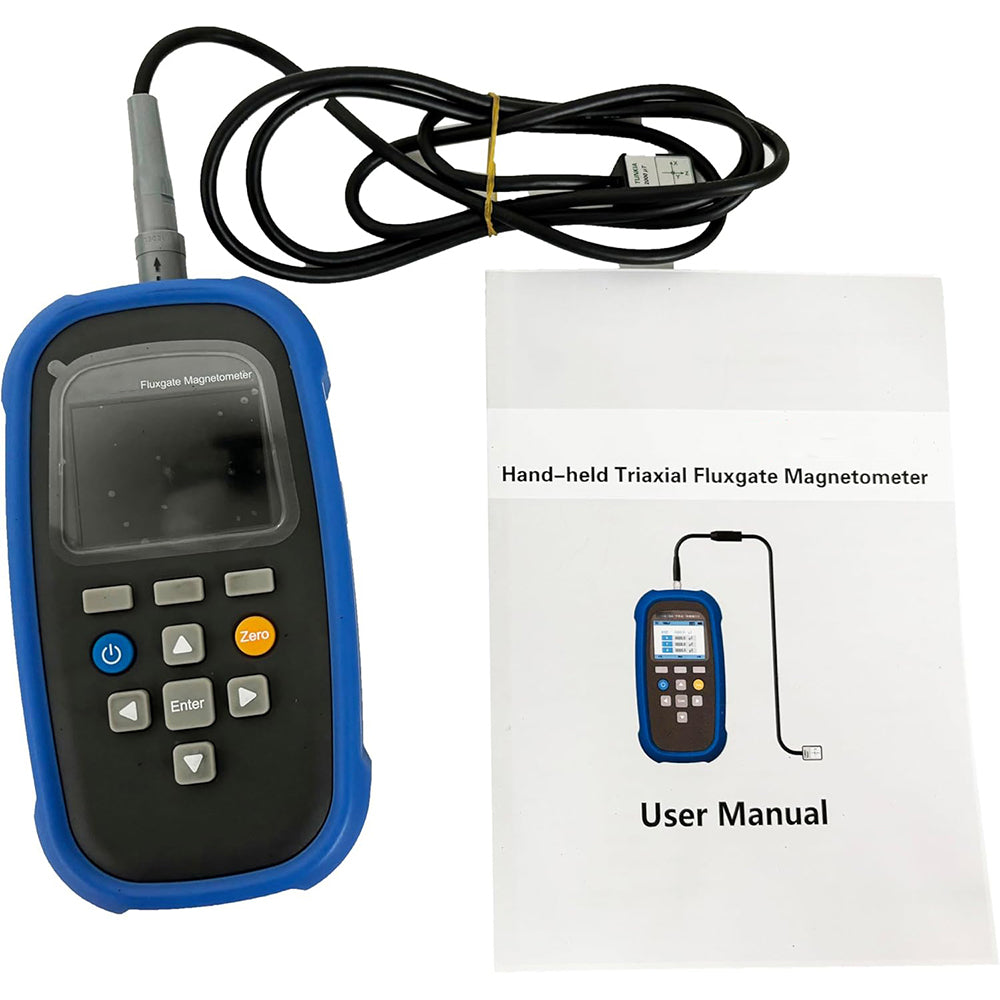

  • The handheld tri-axis fluxgate magnetometer is a portable, multi-functional weak magnetic measurement instrument equipped with a high sensitivity, high linearity, and low drift tri-axis fluxgate sensor for more accurate and convenient measurement of weak magnetic fields in space compared to Hall effect type magnetic measurement instruments.

Features:

  • Unit switch: μT, mG.
  • +/- polarity display.
  • Relative measurement mode.
  • Max. hold function.

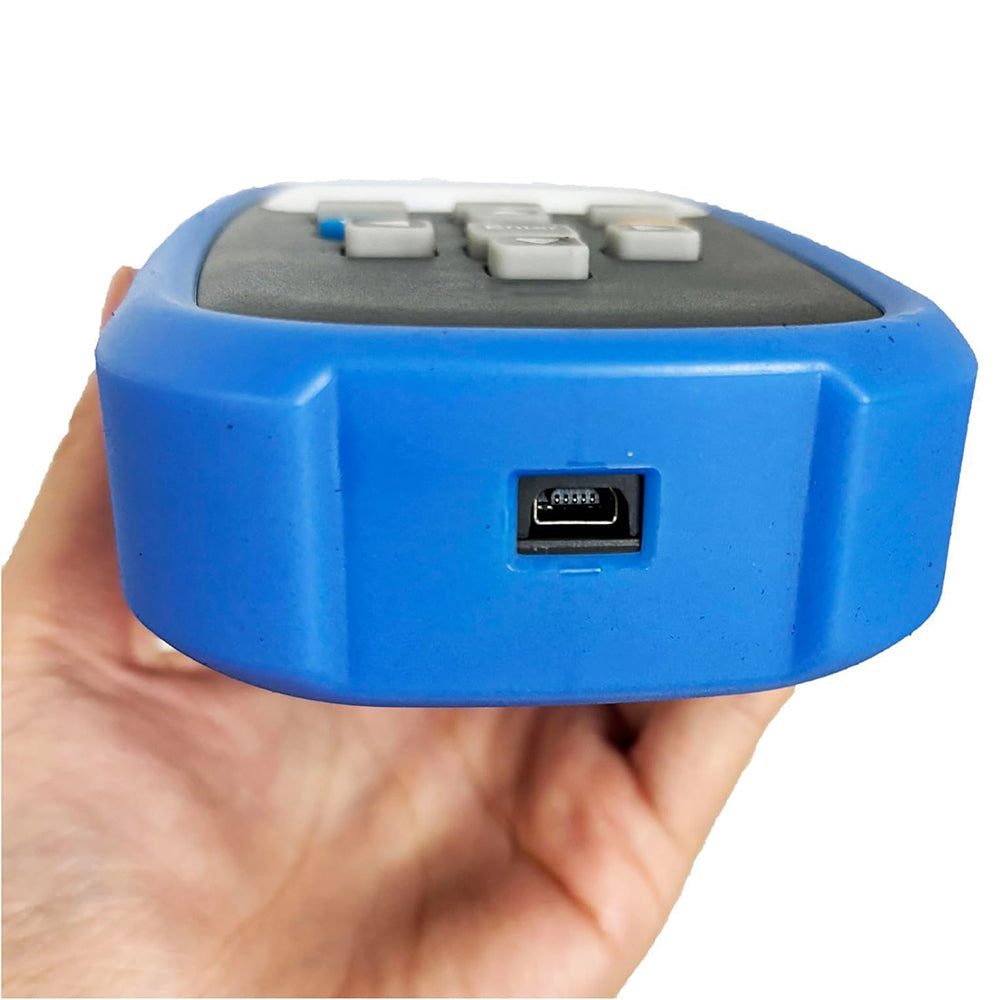

  • USB interface.

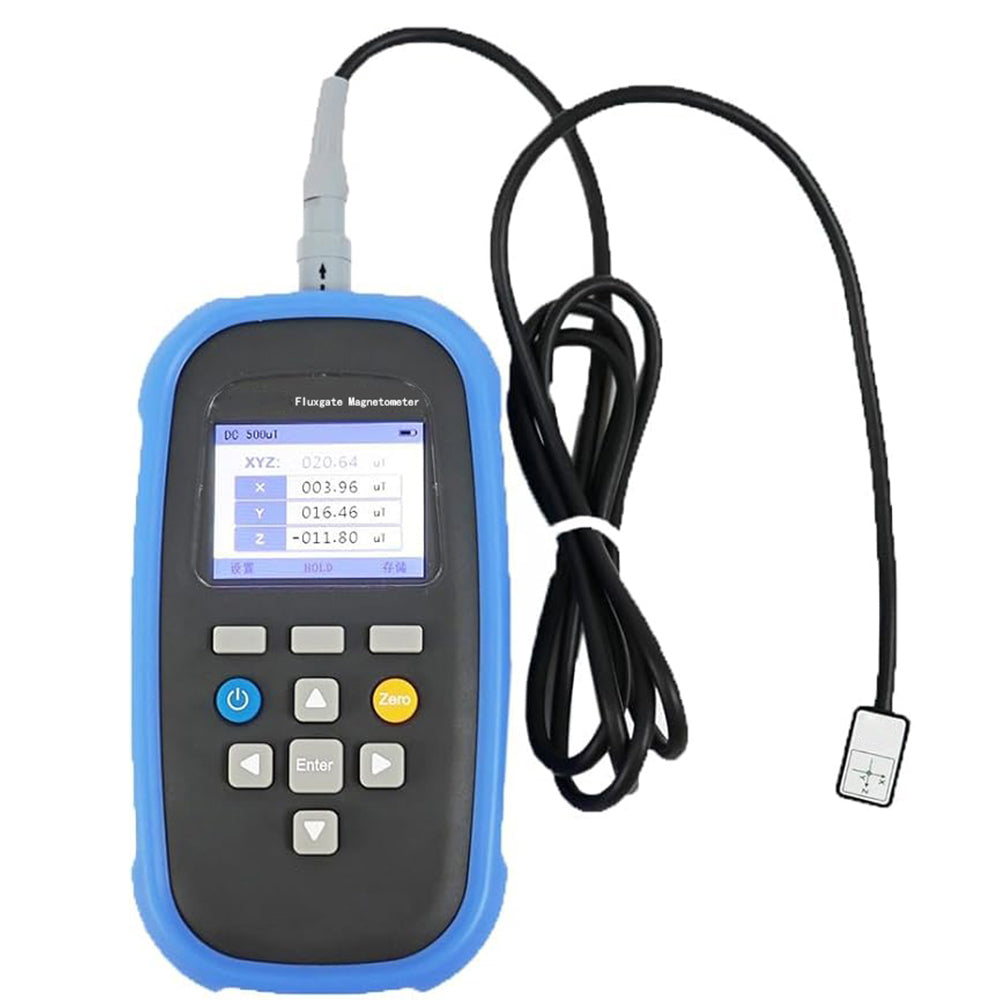

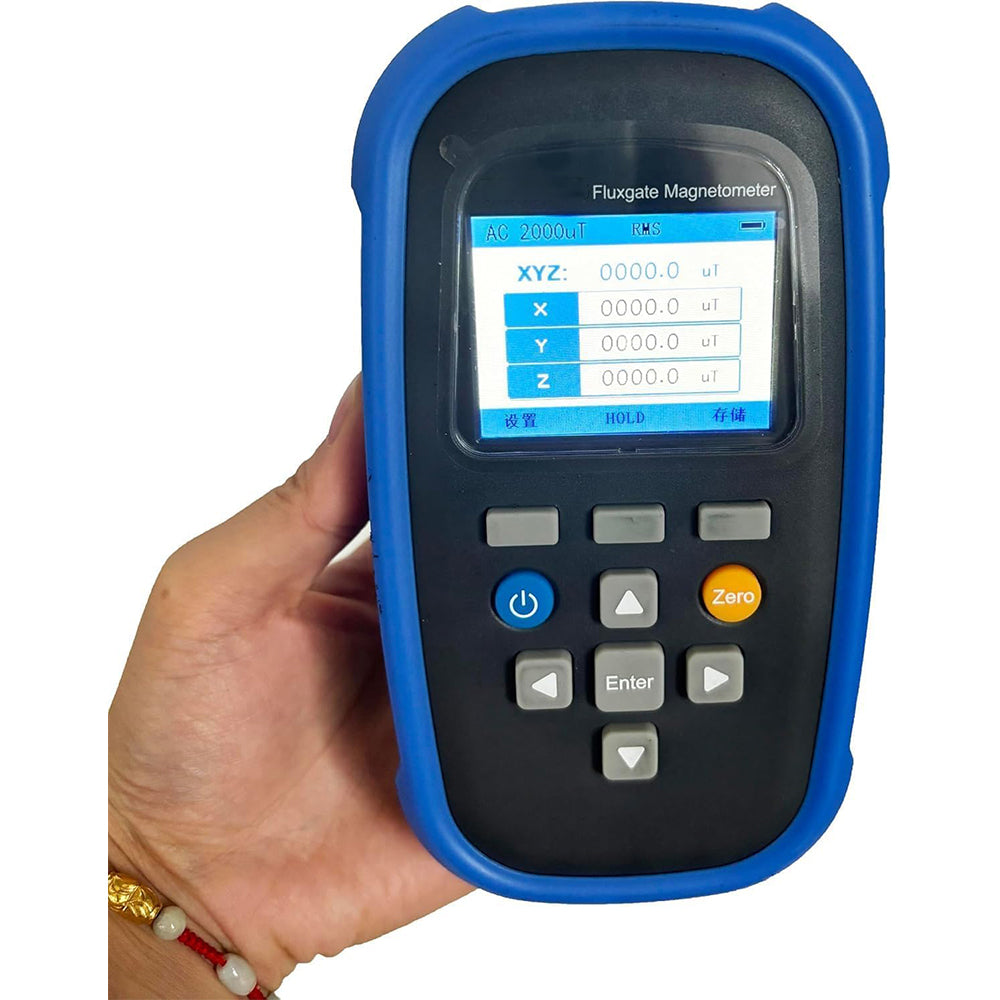

  • Measuring XYZ component, vector synthetic value.
  • Alarm function of exceeding the upper / lower limit.
  • Display support backlight and battery power.
  • Magnetic measurement data storage.
  • Lithium battery, remaining power display.

Application:

  • Measuring low magnetic field.
  • Geological prospecting.
  • Fragmentation processing, security check.
  • Fault location, research experiment.
  • Magnetic shielding evaluation.
  • Calibrating low magnetic field sources.
  • Detecting magnetic resonance meter.
  • Detecting electron microscope.
  • Detecting Magnetic field drift.

Technical Specifications:

  • Range: (μT):2000
  • Resolution (nT):100
  • Accuracy(k=2):2%.
  • Temperature coefficient (%/°C):0.1
  • Noise: <20nTrms @ 1Hz
  • Power supply: 4000 mAh lithium battery power, USB charging
  • Operating temperature: 0°C~45°C; Storage temperature: -20°C~70°C
  • Operating humidity: 20%~80% R. H non-condensing
  • Storage humidity: <85% R.H, non-condensing
  • Weight: approx. 500 g
  • Communication interface: Magnetic fluxgate probe input interface, USB interface
  • Dimension: 90 mm(W) X 40 mm(D) X 165 mm(H)

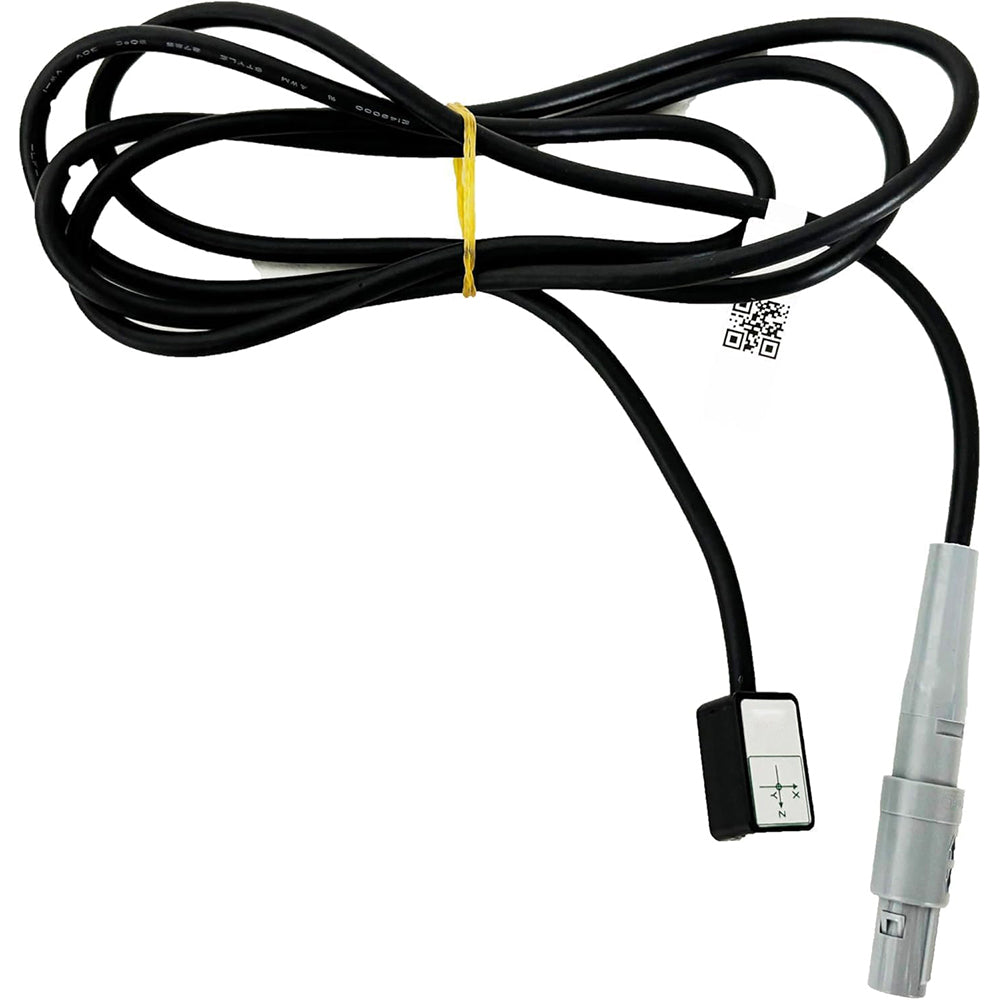

  • Probe size: 20 mm(L) X 14 mm(W) X 12 mm(H)
