CNYST 8‑Channel AC/DC Hipot Insulation Resistance Meter Multi Channel AC DC IR Hipot Tester with AC 5kV/10mA DC 6kV/5mA Insulation Resistance Rate Output DC 1kV/10GΩ 2U Standard Chassis

CNYST 8‑Channel AC/DC Hipot Insulation Resistance Meter Multi Channel AC DC IR Hipot Tester with AC 5kV/10mA DC 6kV/5mA Insulation Resistance Rate Output DC 1kV/10GΩ 2U Standard Chassis

About this item:

• Can provide 8-channel 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance testing.
• Three in one AC withstand voltage, DC withstand voltage, and insulation resistance testing
• 2U standard chassis
• Floating test
• Enhance anti-interference capability
• It can independently conduct AC withstand voltage testing, DC withstand voltage testing, and insulation resistance testing, and can also perform multi item sequential testing through the project settings of the testing plan.

OVERVIEW:

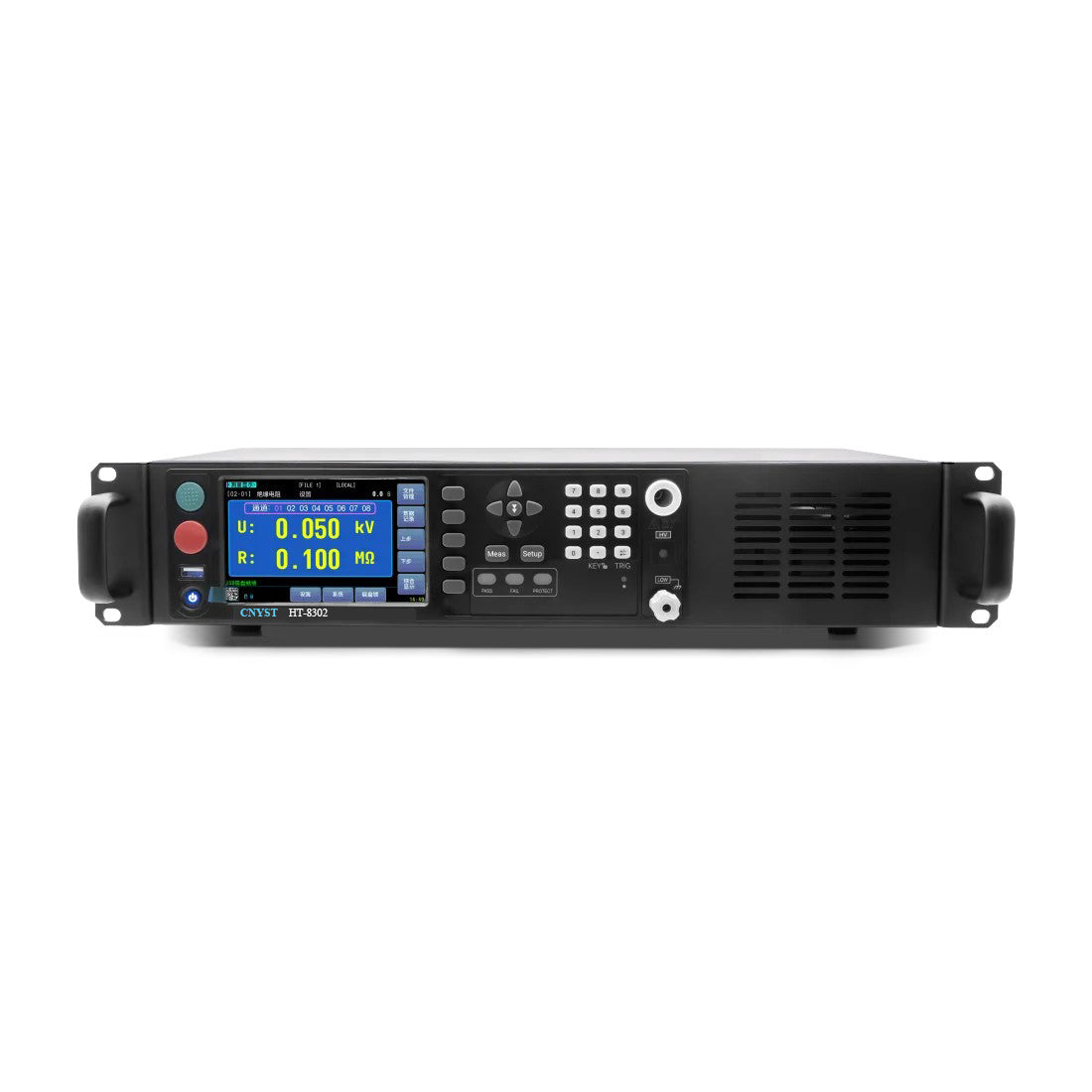

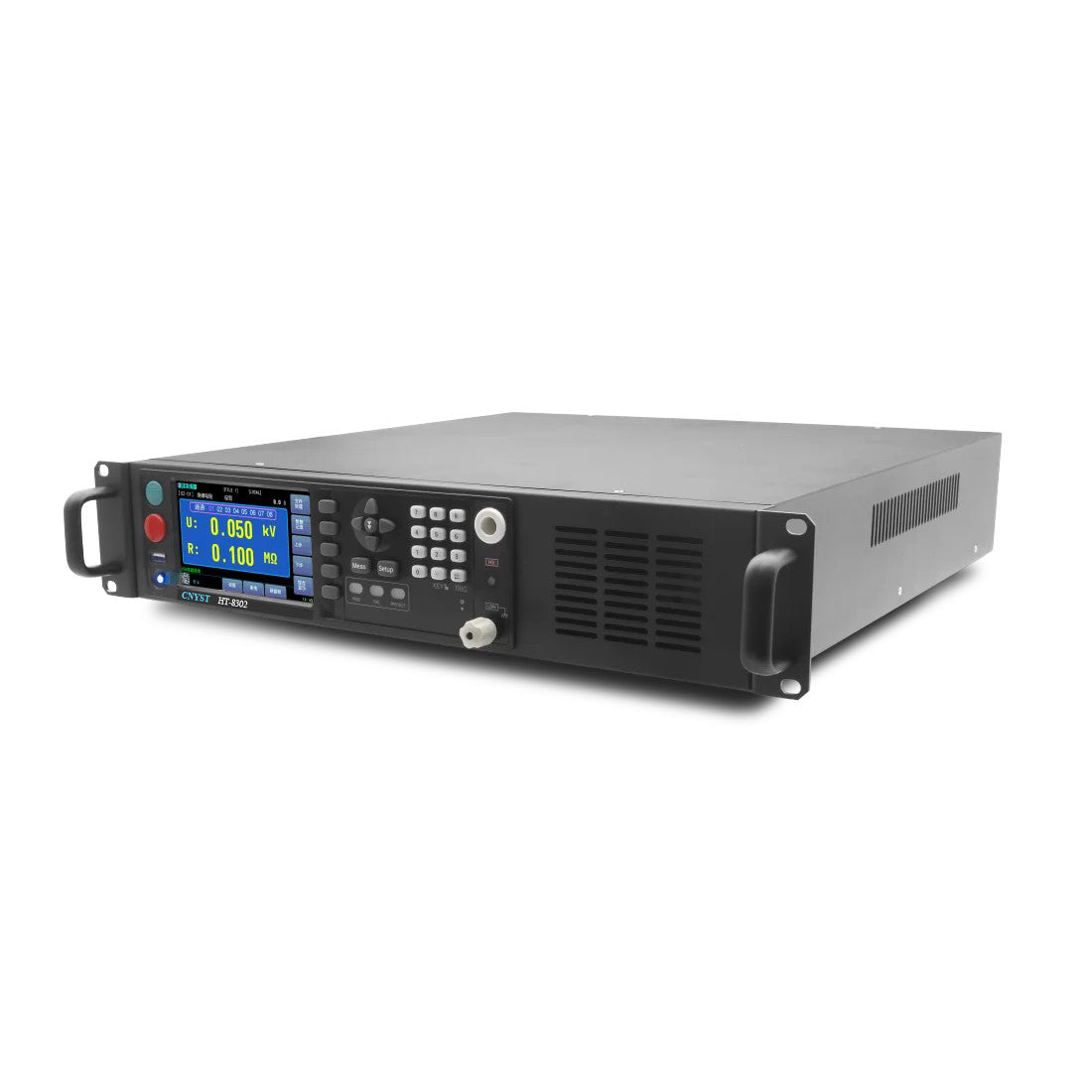

• The HT-8302 eight channel series AC/DC withstand voltage tester adopts a 5‑inch color LCD display screen and is equipped with a mainstream high‑performance ARM processor. The standard 2U chassis has a compact structure that does not take up space, ultra‑high performance, and easy operation. New floating ground testing has been added. The high‑voltage module of the instrument adopts a DA reference, controllable sine generator, AB class power amplifier, 40‑600Hz high‑voltage transformer for boosting, and output voltage closed‑loop control to enhance anti‑interference ability.

FEATURES:

• HT-8302 can provide 8-channel 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance testing.
• Three in one AC withstand voltage, DC withstand voltage, and insulation resistance testing
• 2U standard chassis
• Floating test
• Enhance anti-interference capability
• It can independently conduct AC withstand voltage testing, DC withstand voltage testing, and insulation resistance testing, and can also perform multi item sequential testing through the project settings of the testing plan.

SPECIFICATIONS:

• Passageway：8 channels
• Test function： Ac voltage, DC voltage, insulation resistance

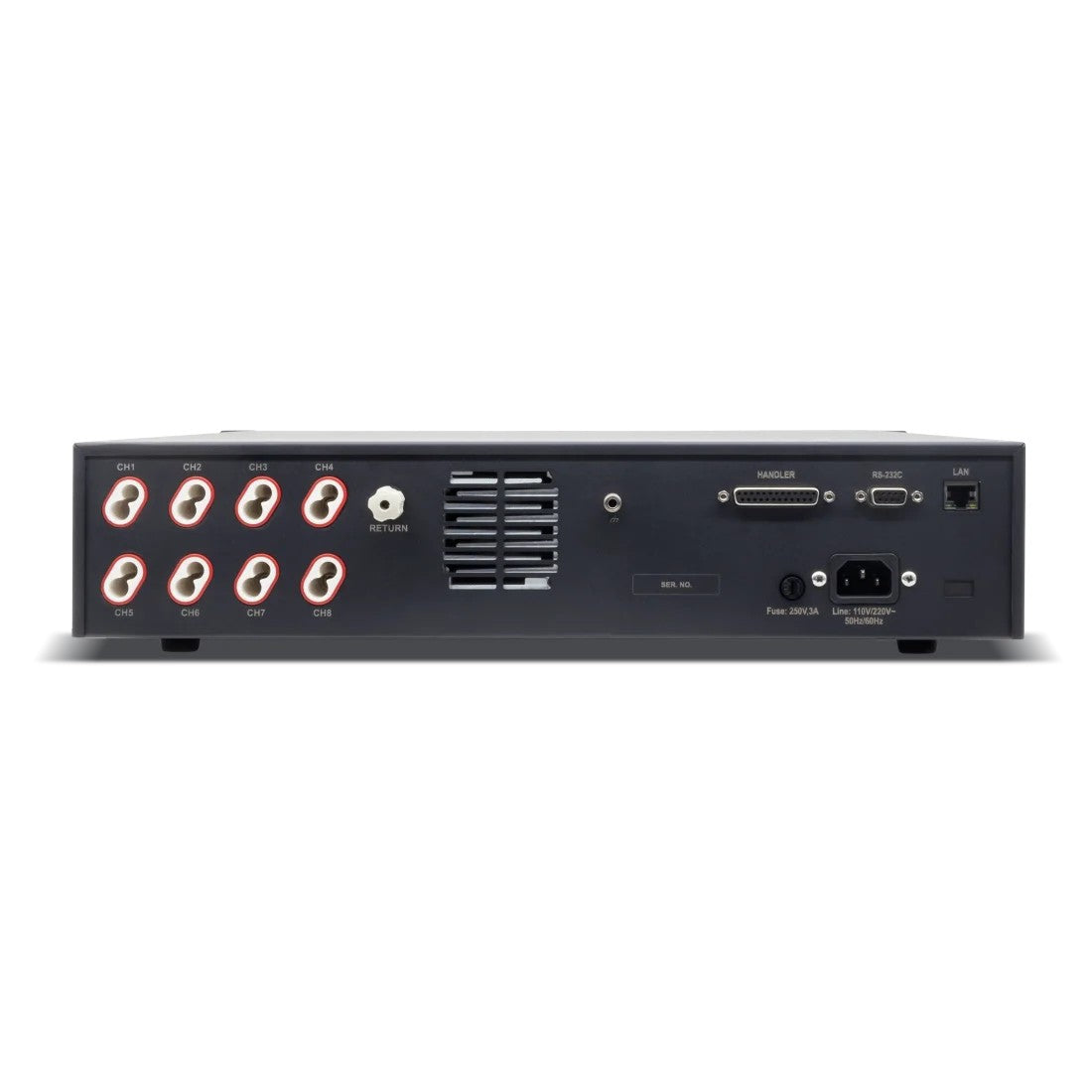

• Interface： RS232/Handler/ Network port /USB port
• Arc detection： Level 9 (AC/DC)
• Other functions： List setting, discharge function, 5inch true color LCD+ touch screen
• AC Withstand Voltage:
• Rate Ouput: AC 5.000kV/10mA
• Output Voltage: 0.050kV-5.000KV AC;Resolution: 1V
• Voltage Accuracy: 2% of reading + 5 digits
• Output Regulation: 2% of reading +5V
• Output Frequency: 50Hz/60Hz
• Measurement Current: 0.001mA-10.00mA;Resolution: 0.001 / 0.01
• Current Accuracy: 2% of reading + 5 digits
• Rising Time: 0.1s-999.9s
• Testing Time: 0.2s-999.9s
• Falling Time: 0.1s-999.9s
• DC Withstand Voltage :
• Rate Output: DC 6kV/5mA
• Output Voltage: 0.050kV-6.000kV DC;Resolution: 1V
• Voltage Accuracy: 2% of reading + 5 digits
• Output Regulation: 2% of reading +5V
• Current Measurement: 0.1μA-5.000mA
• Current Accuracy: 2% of reading +5 digits
• Rising Time: 0.1s-999.9s
• Testing Time: 0.2s-999.9s
• Falling Time: 0.1s-999.9s
• Insulation Resistance：
• Rate Output: DC 1kV/10GΩ
• Output Voltage: 0.050kV-1.000kV DC；Resolution： 1V
• Voltage Accuracy: 1% of reading + 2 digits
• Measurement Range: 0.1MΩ-10GΩ
• IR Accuracy: <500V：0.1MΩ-1GΩ， Accuracy：±(10% of reading +5 digits )；1GΩ-10GΩ , For reference only, no accuracy requirement
• ≥ 500V：1MΩ-1GΩ， Accuracy：±（5% of reading +5 digits）；1GΩ-10GΩ， Accuracy：±（10% of reading +5 digits）
• Testing Time: 0.2s-999.9s
• Power Supply 198V ~ 242V 50/60Hz 400VA
• Dimension & Weight 428mm( W )x89mm( H )x470mm ( D )；14kg
• Accessories:High voltage test rod;Withstand voltage test line; RS232 Communication
