CNYST AC DC Handheld Teslameter Magnetic Field Gaussmeter with DC Accuary ±2% AC Accuary ±5% Range 2mT ~ 3000 mT Switching AC or DC Mode Unit switch G mT A/m N/S Polarity Display Max. Hold Function

$665.00

About this item:

(1)【2% Accuracy】: please note that of this Handheld Tesla Meter measurement accuracies is Class 2, DC：±2%，AC：±5%

(2)【Range Switch】: You can Choose G, mT, A/m..

(3)【Wide Range of Application】:◆Magnetic Material ◆Machine Components ◆DC Constant Magnetic Field ◆Space AC Magnetic Field ◆Do-ironing Separator ◆Environment Magnetic Field

(4)【USB interface】: USB charging AND Communication interface

(5)【N/S polarity display】:Alarm of exceeding the upper / lower limit.

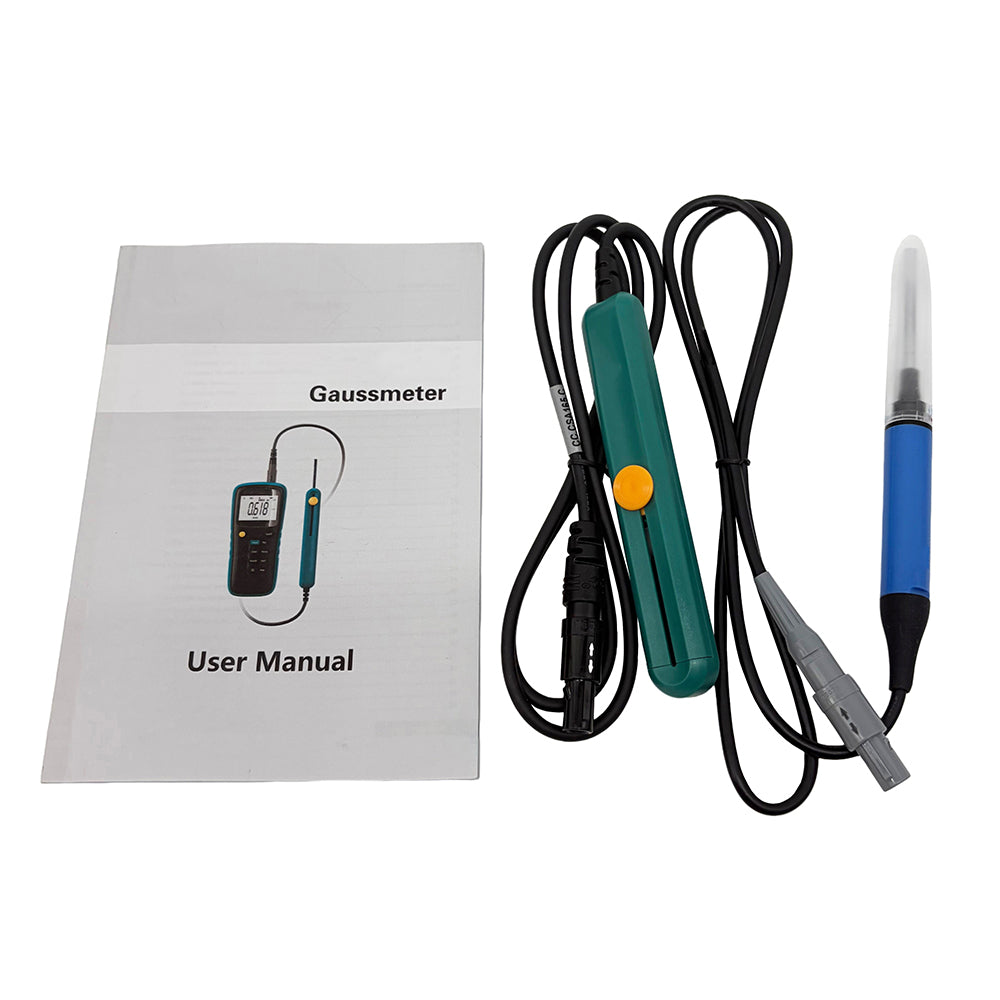

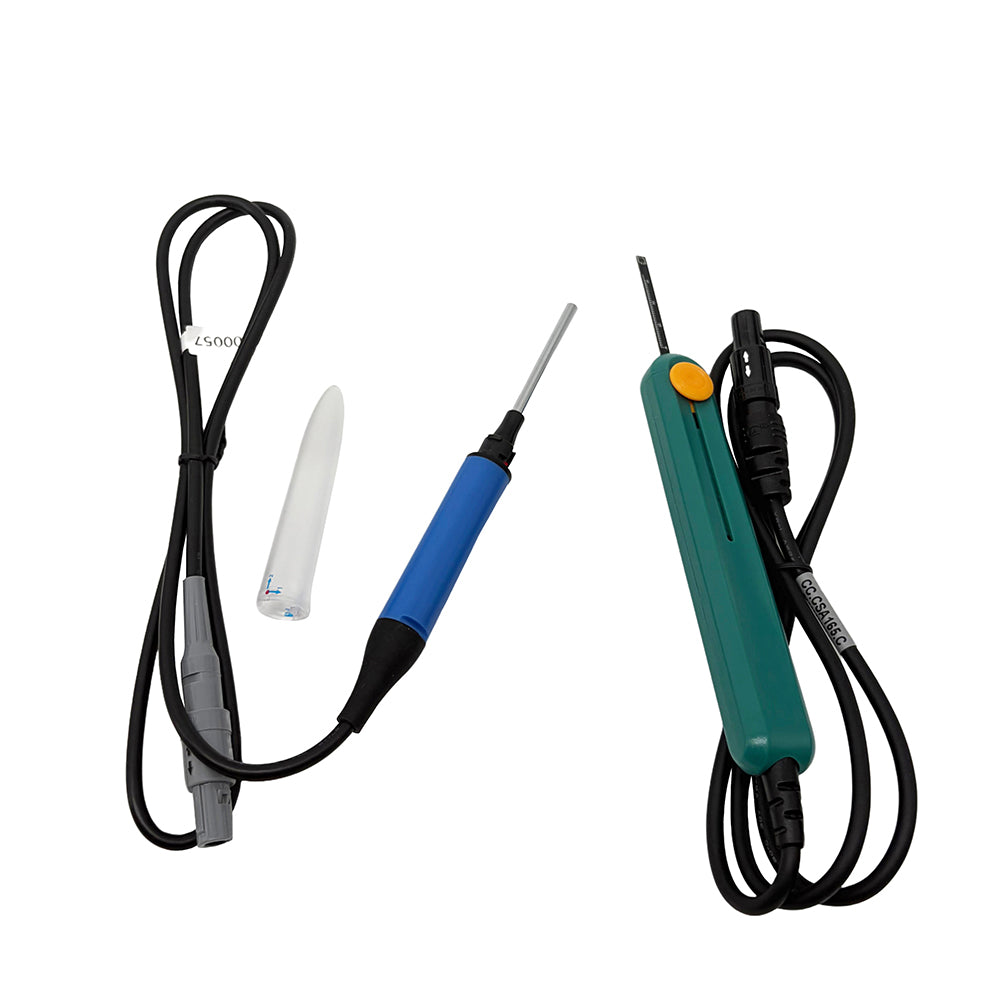

(6)【Two probes】:Hall Axial probe and Hall Radial probe

Introduction:

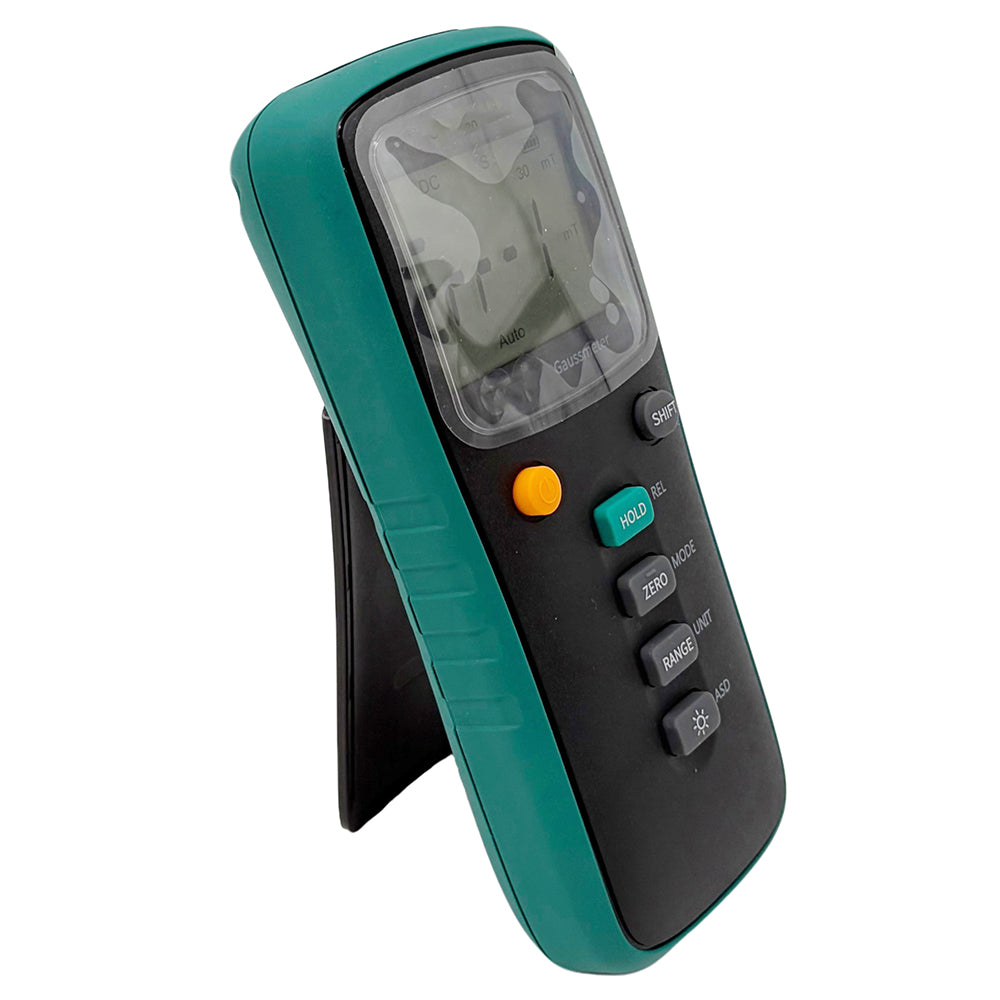

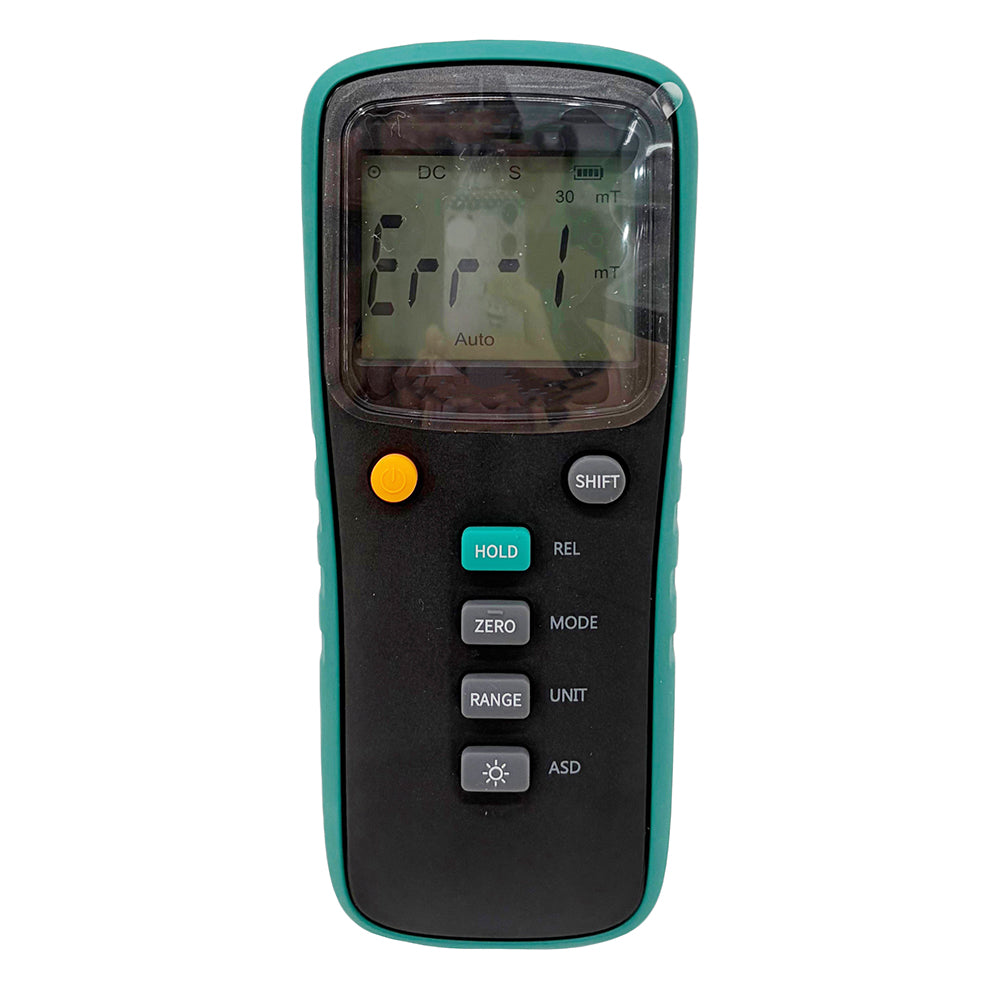

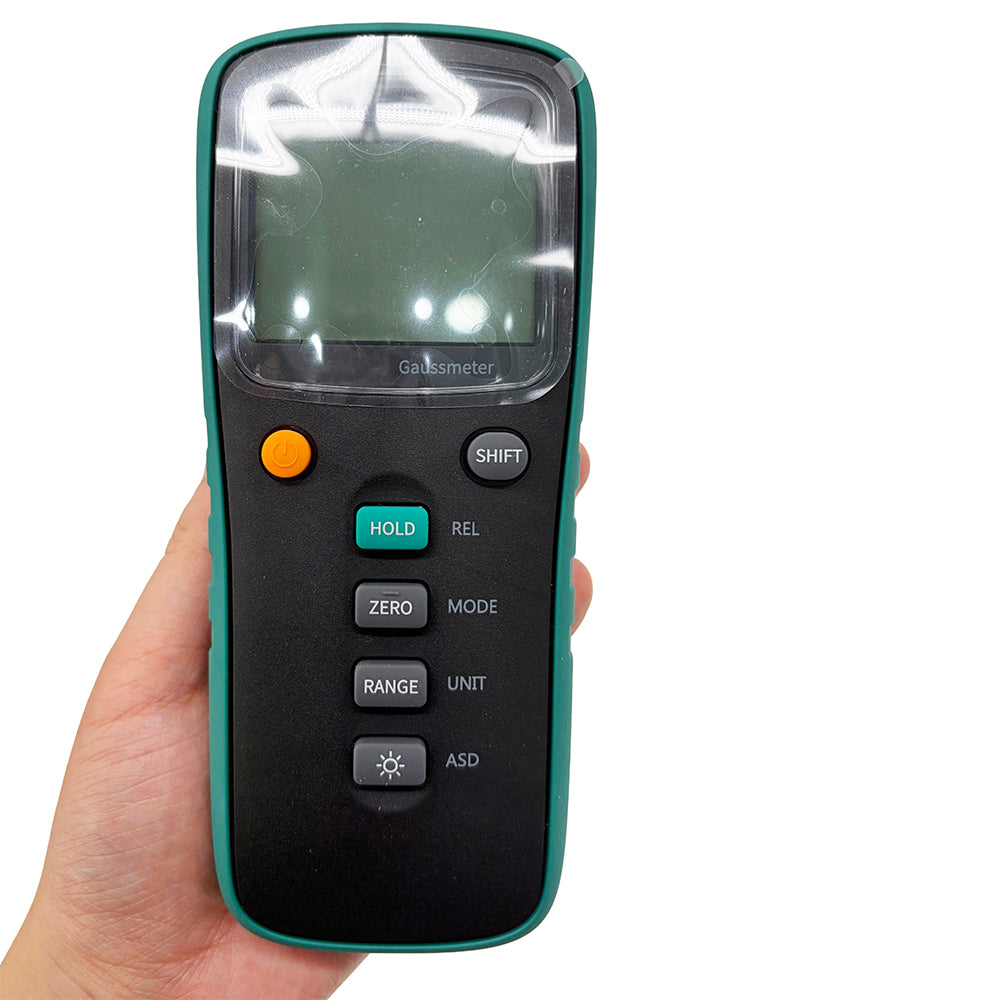

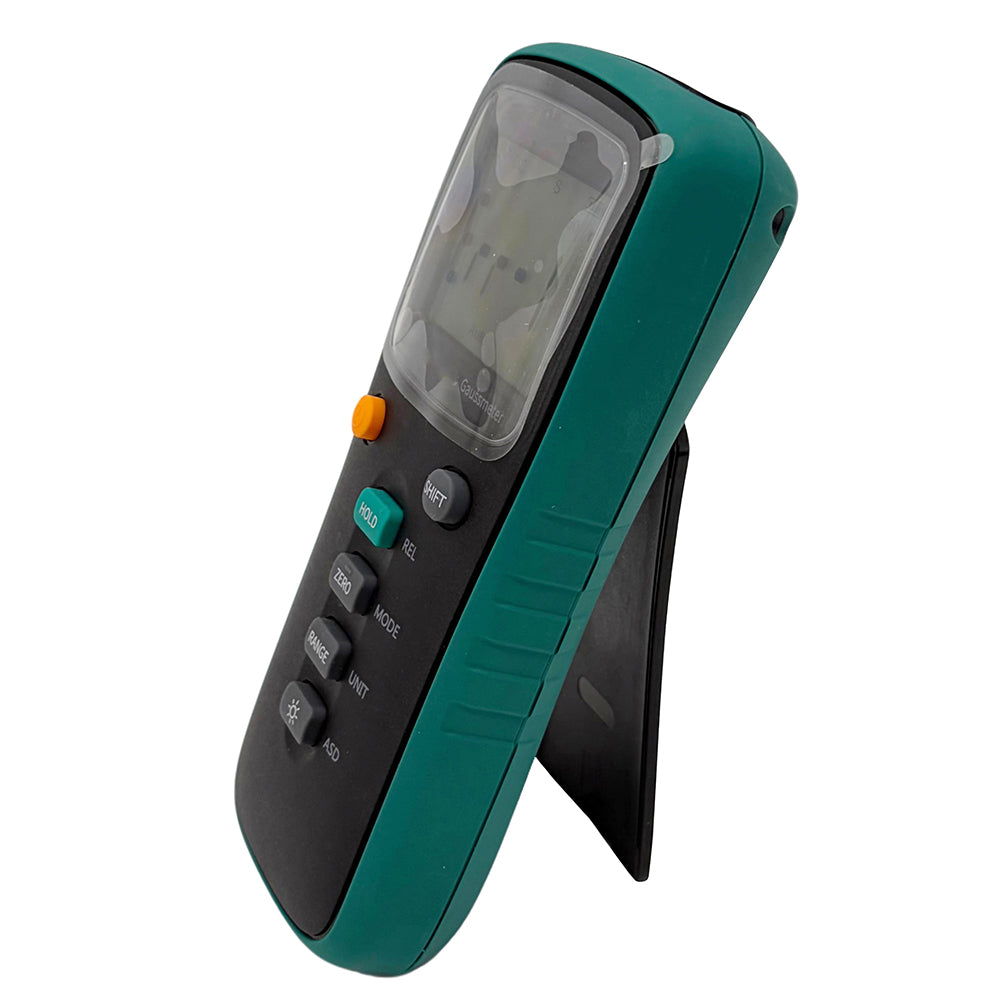

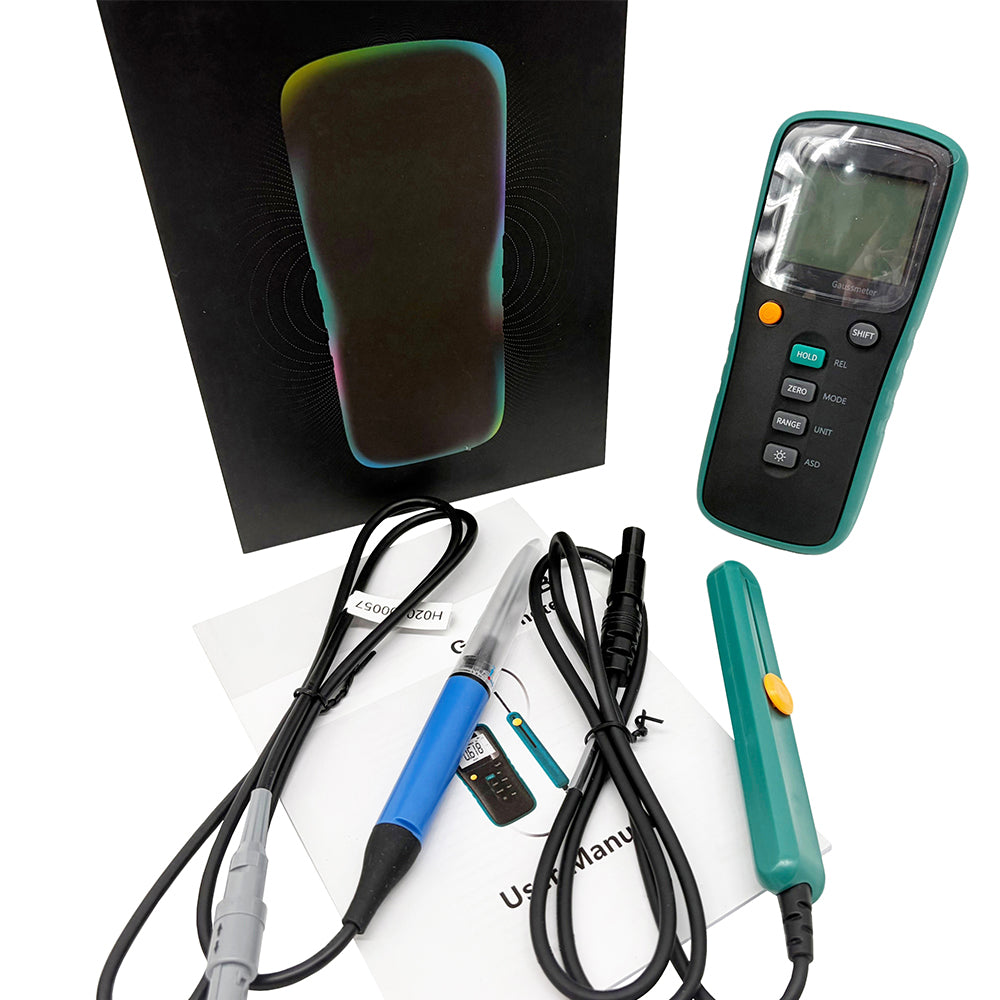

This Gaussmeter is a portable and multifunctional magnetic field measuring instrument，equipped with a Hall sensor with high sensitivity and low drift. It is applied for measuring the flux density of DC constant magnetic field and AC magnetic field.

Features:

Range: 2mT ~ 3000 mT.

Accuracy:2%.

Switching AC or DC mode

Unit switch: G, mT, A/m.

N/S polarity display.

Relative measurement mode.

Max. hold function.

Alarm of exceeding the upper / lower limit.

Supporting backlight.

Battery remaining power display.

Axial probe and Radial probe

USB interface.

Technical Specifications:

Measuring Range : 2mT～3000mT
Range: (mT):30 Resolution (μT): 1
Range: (mT):300 Resolution (μT): 10
Range: (mT):3000 Resolution (mT): 0.1
Accuracy:Class 2 DC：±2%，AC：±5%
Frequency Range: DC，40Hz~500Hz
Temperature Coefficient: ± 0.1% / K
Zero Drift : ± 0.1 mT/h
Display Digit: 5
Remark: 1 Calibration only covers 2.5T
Power Supply: 3 AA batteries(NOT INCLUDED) or USB charging
Temperature Performance: Operating temperature: 0~50℃; Storage temperature: -20°C～70°C
Humidity Performance: Operating humidity: 40%～80% R·H, non-condensing； Storage humidity: <95% R·H, non-condensing
Weight About: 350 g

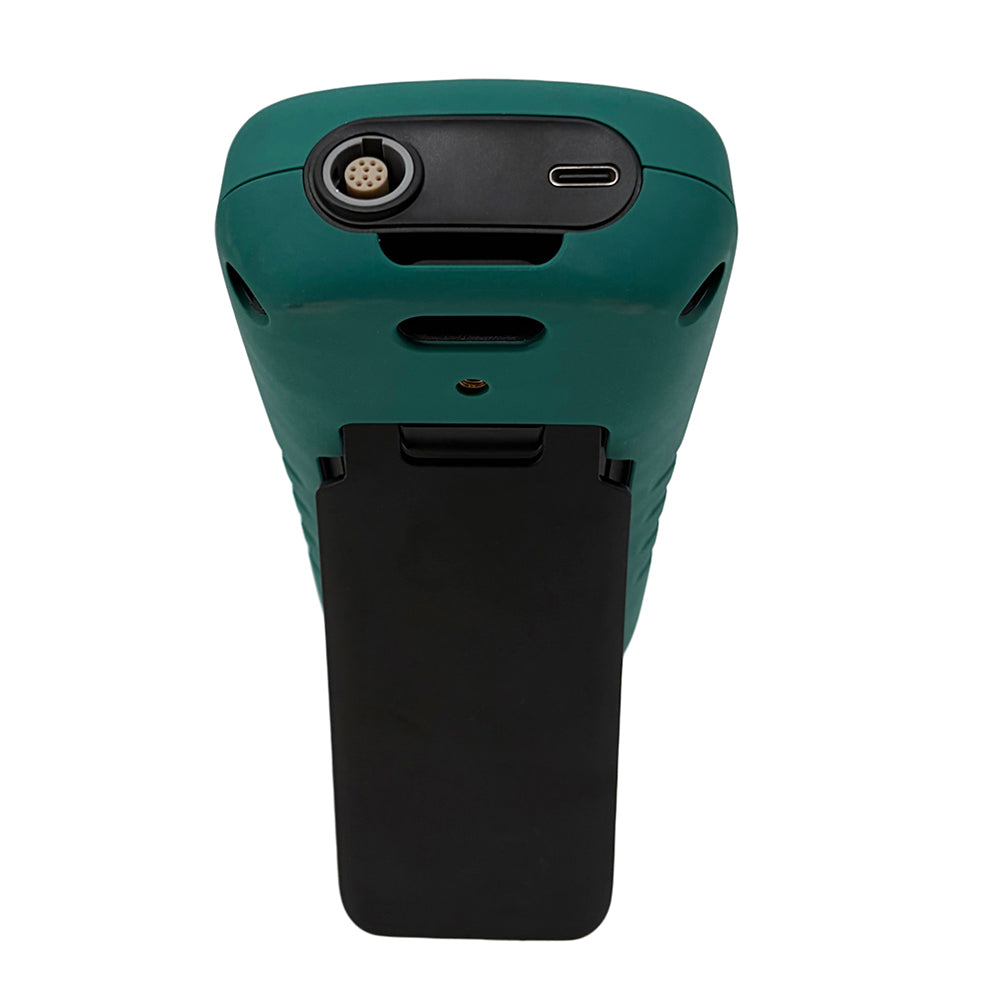

Interface: Hall probe input interface, USB interface
Overall Dimensions: 90mm(W) ×40 mm(D) × 165 mm(H)
