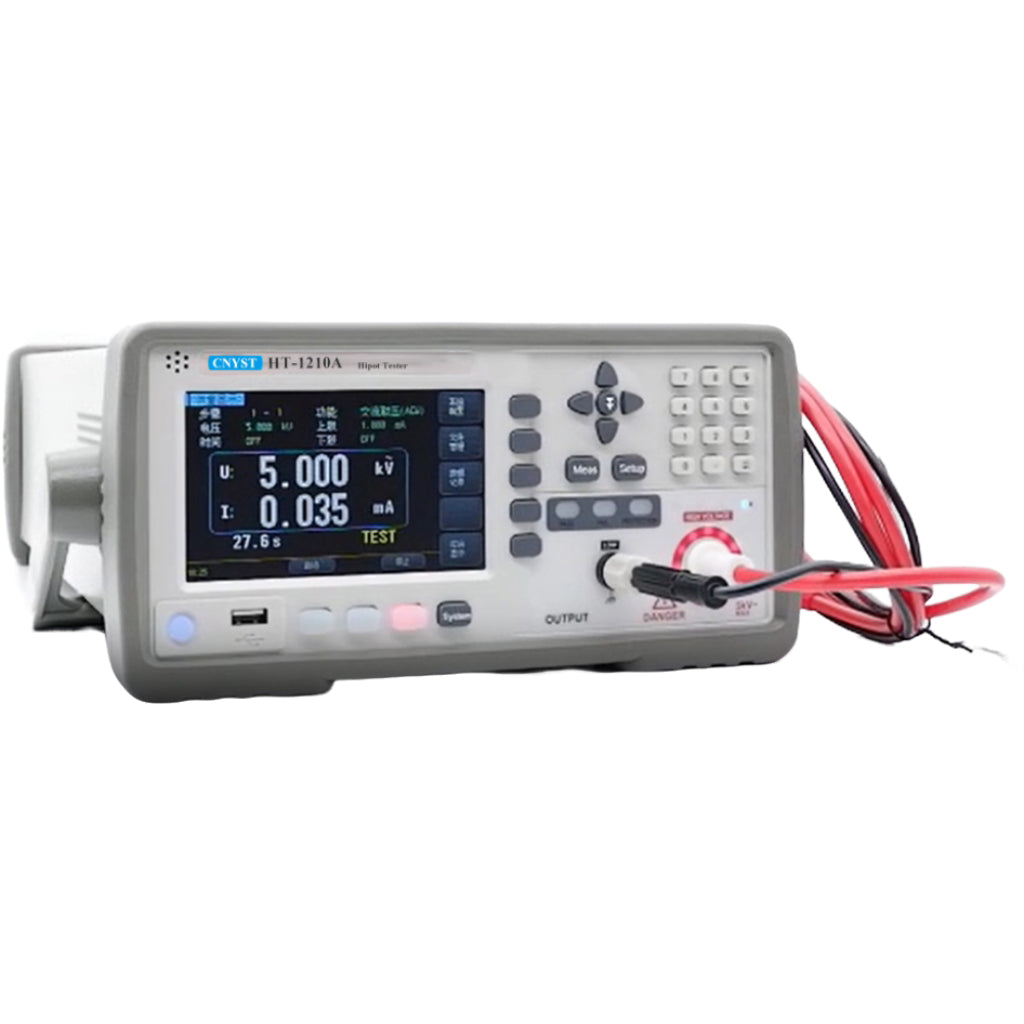

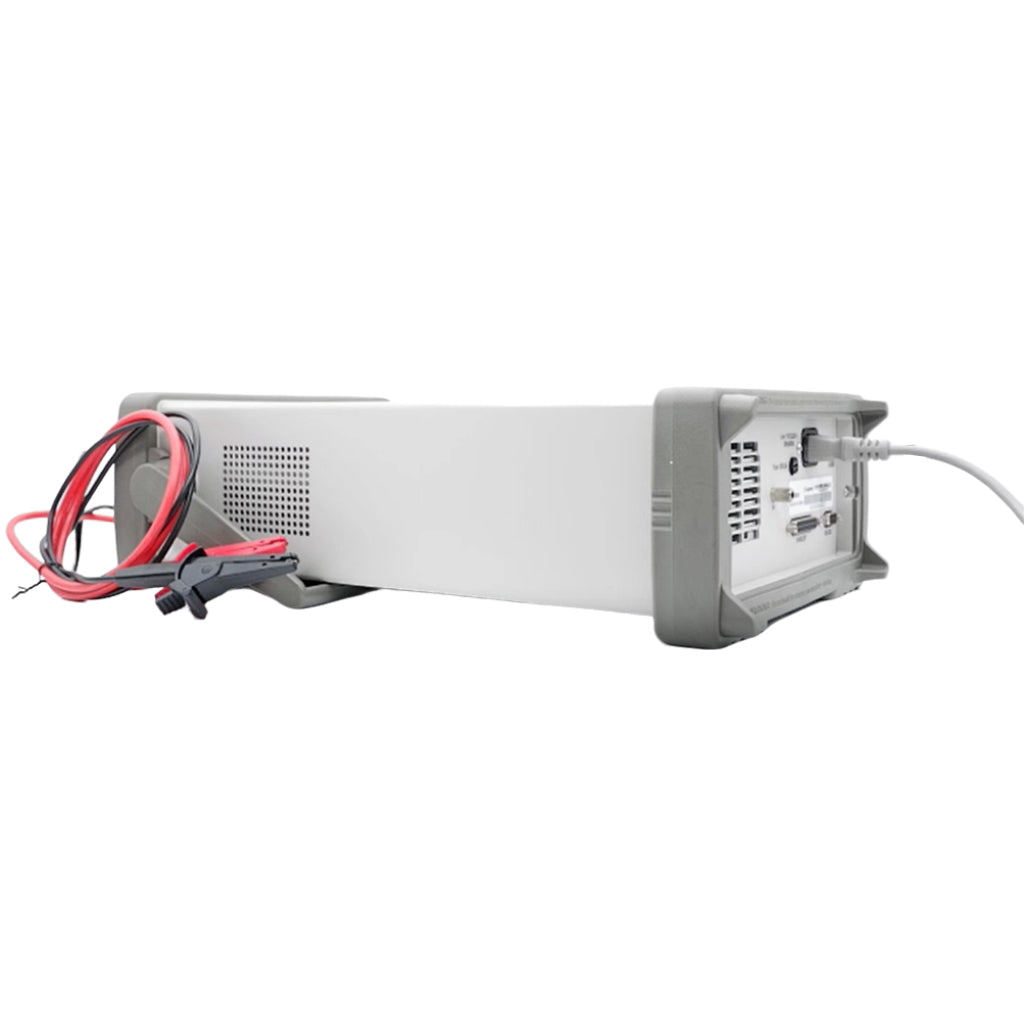

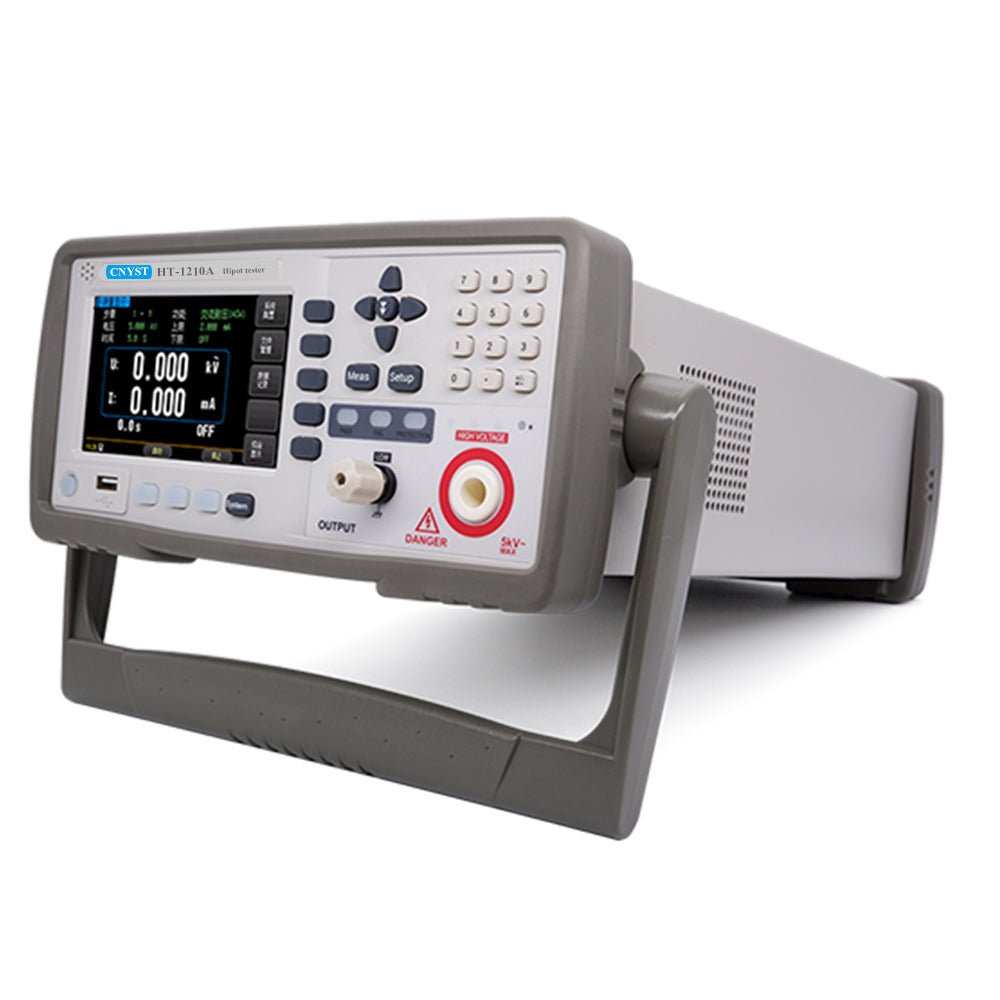

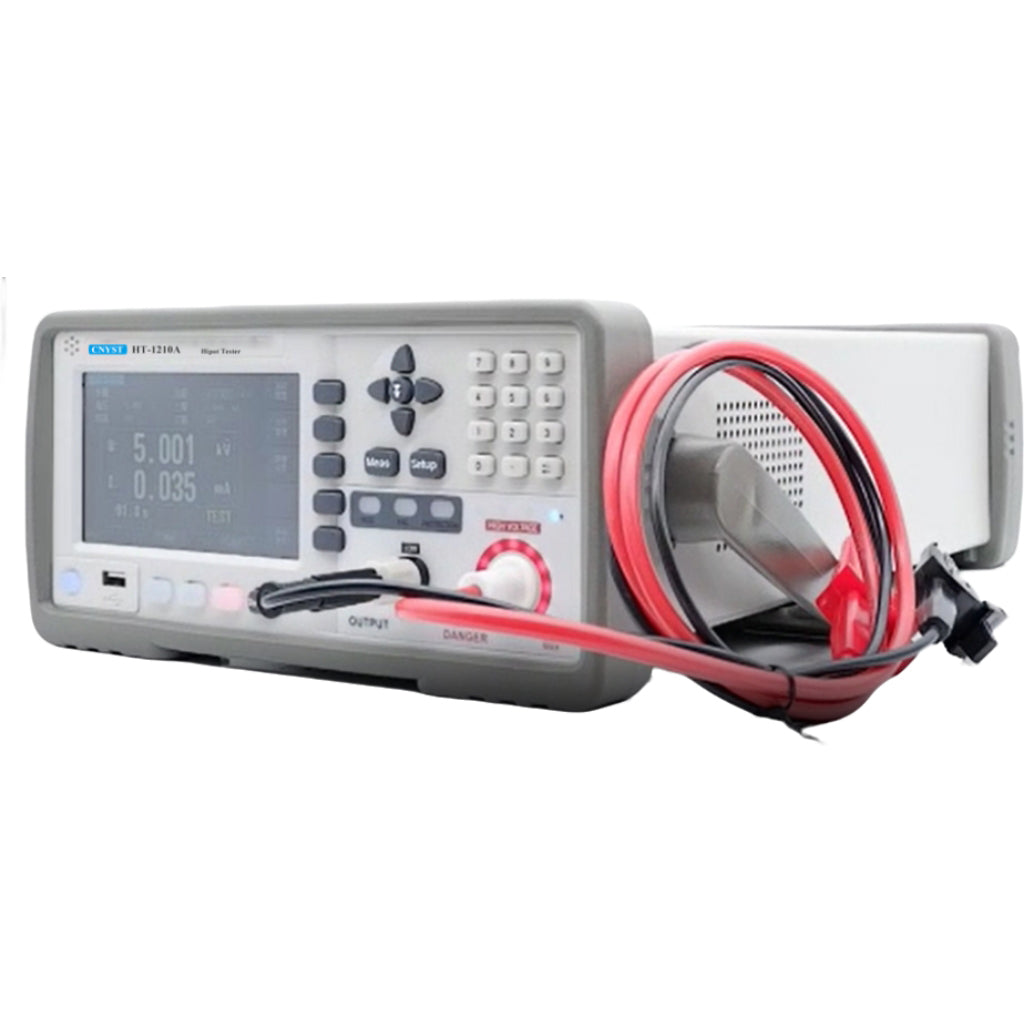

CNYST AC DC Hi-Pot Test Benchtop AC/DC/IR Hipot Tester with AC 0.050kV-5.000KV DC 0.050kV-6.000kV for Safety Performance Inspection Of Household Appliances Transformers Electrical Equipment And Components

$1,415.00
$1,415.00

OVERVIEW:

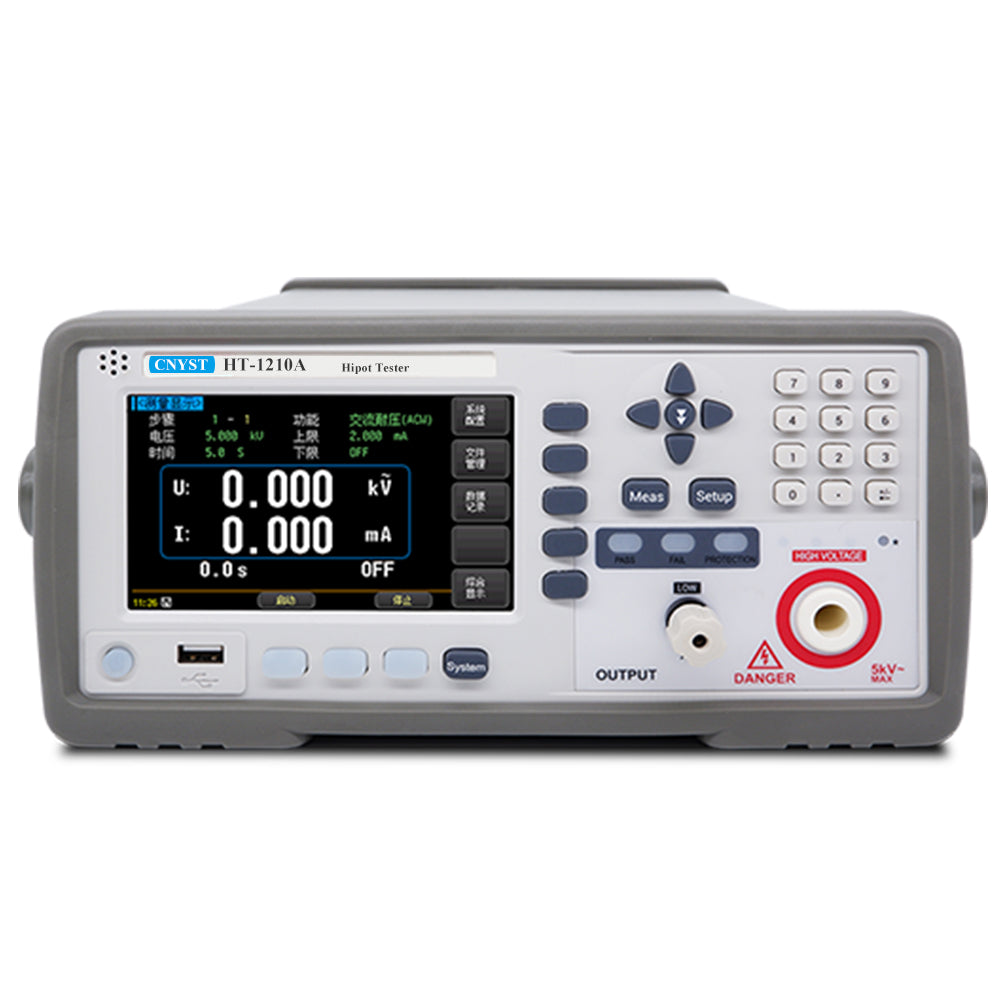

HT-1210A AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

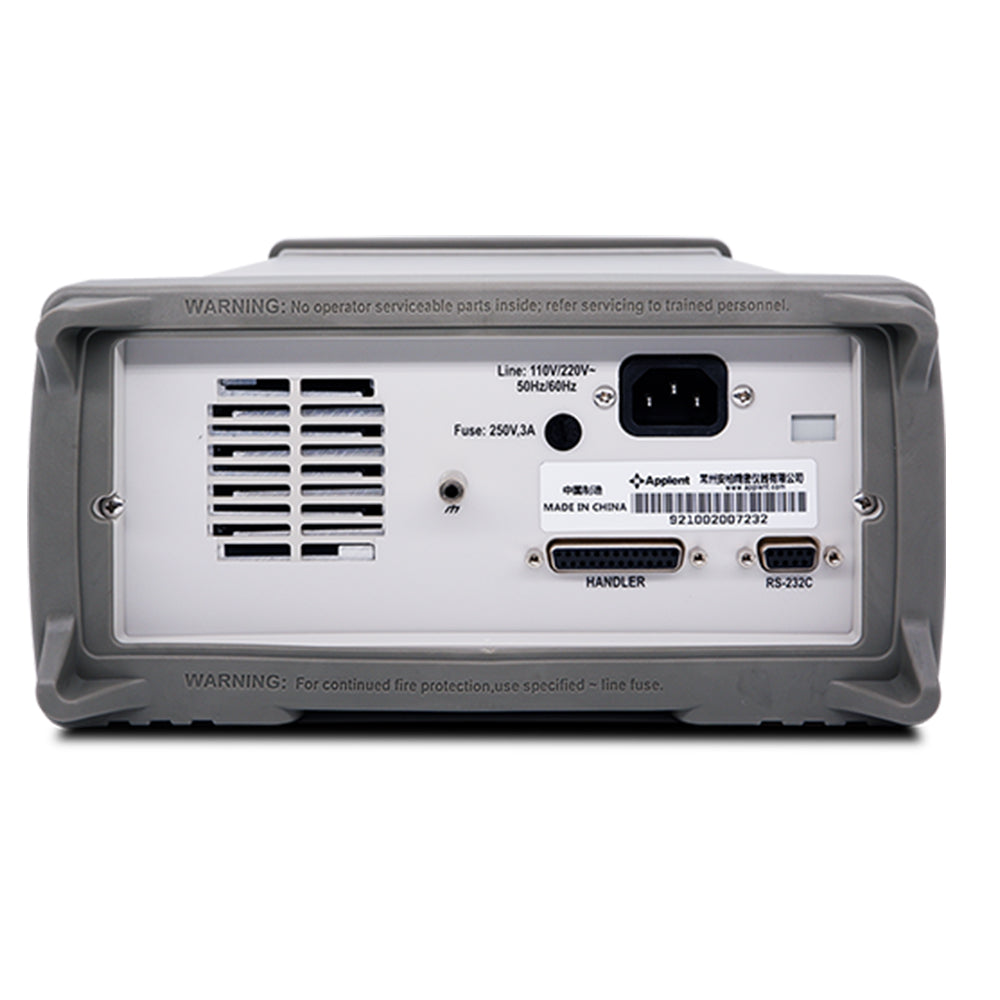

HT-1210A equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.

FEATURES:
  • AC：0.050kV-5.000KV
  • DC: 0.050kV-6.000kV
  • Touch screen +Button control
  • Large screen display
  • Chinese and English operation interface
  • Standard RS232, Handler interface

SPECIFICATIONS:

Measurement Functions

AC/DC Withstanding Voltage

Interface

RS232/Handler

Standard Configuration

AC 5V/20mA
DC 6kV/10mA

Arc Detection

9 Levels (AC/DC)

Other Functions

LIST Edit
Discharge Function
5“ LCD + Touch panel

AC Withstand Voltage

●

Rate Ouput

AC 5.000kV/20mA

Output Voltage

0.050kV-5.000KV AC
Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Output Regulation

2% of reading +5V

Output Frequency

50Hz/60Hz

Measurement Current

0.001mA-20.00mA
Resolution: 0.001 / 0.01

Current Accuracy

2% of reading + 5 digits

Rising Time

0.1s-999.9s

Testing Time

0.2s-999.9s

Falling Time

0.1s-999.9s

DC Withstand Voltage

●

Rate Output

DC 6kV/5mA

Output Voltage

0.050kV-6.000kV DC
Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Output Regulation

2% of reading +5V

Current Measurement

0.1μA-10.000mA

Current Accuracy

2% of reading +5 digits

Rising Time

0.1s-999.9s

Testing Time

0.2s-999.9s

Falling Time

0.1s-999.9s

Power Supply

110VAC~220VAC 47Hz~63Hz 300VA

Dimension & Weight

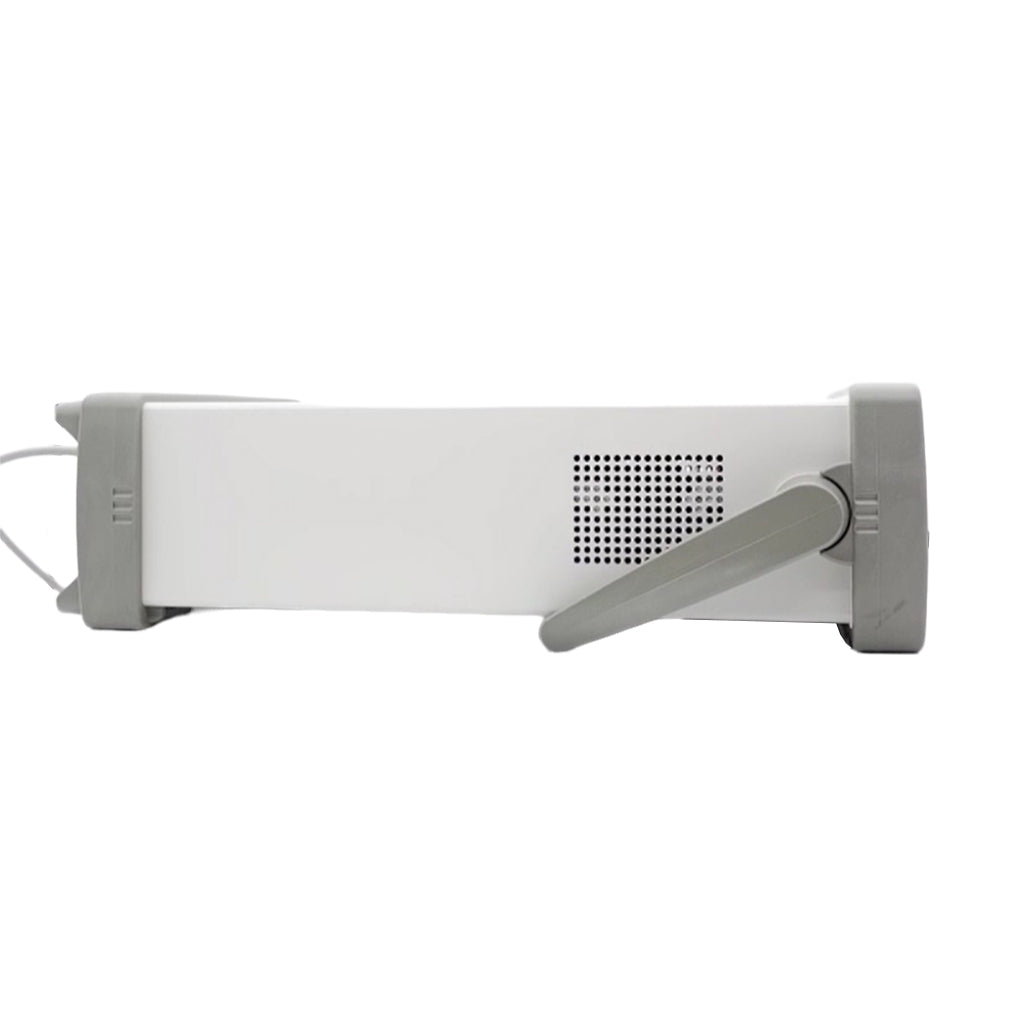

270mm( W )x130mm( H )x450mm ( D )
8kg

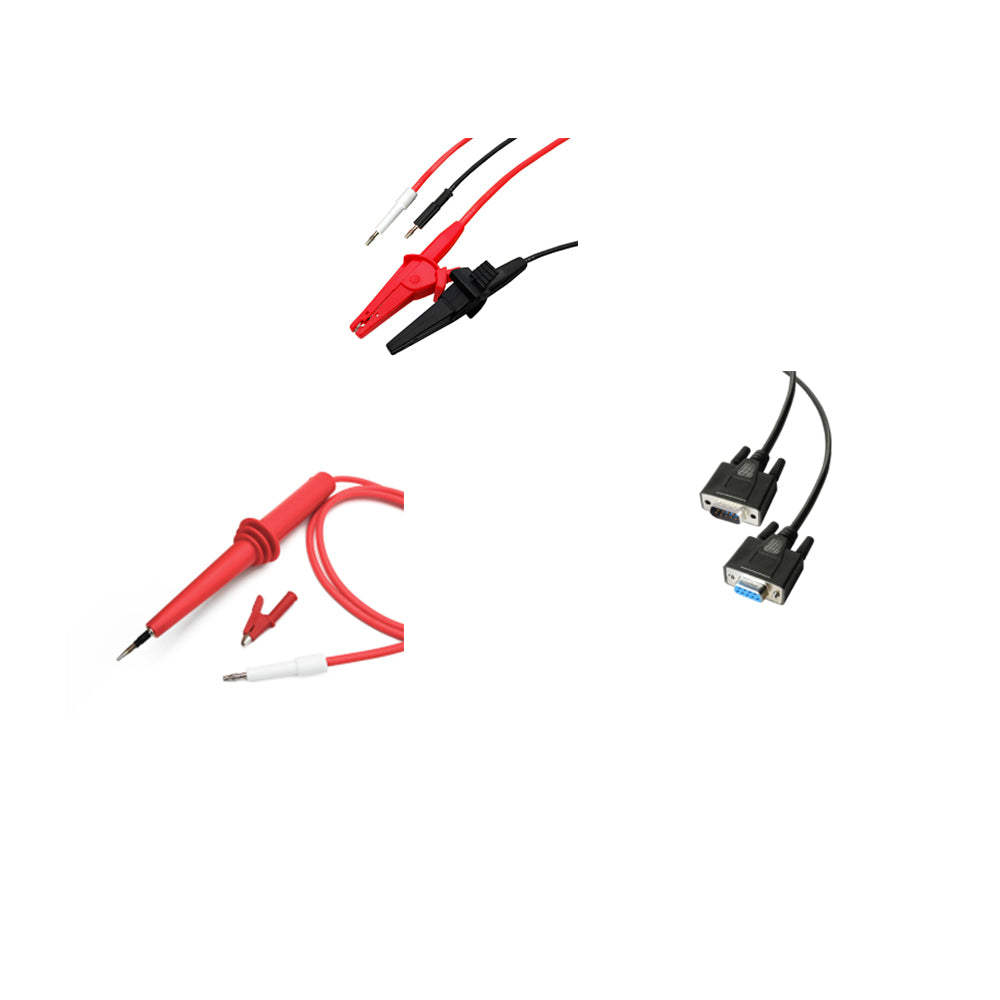

Accessories

ATL900E-1 High voltage test rod
ATL900E Withstand voltage test line
ATL108 RS232 Communication
