CNYST AC/DC Hipot and Insulation Resistance Tester with RS232/Handler/LAN/USB Interface 5kVAC/10mA 6kVDC/5mA Withstand Voltage Insulation Resistance Rate Output DC 1kV/10GΩ IR Measurement Range 0.1MΩ-10GΩ

CNYST AC/DC Hipot and Insulation Resistance Tester with RS232/Handler/LAN/USB Interface 5kVAC/10mA 6kVDC/5mA Withstand Voltage Insulation Resistance Rate Output DC 1kV/10GΩ IR Measurement Range 0.1MΩ-10GΩ

About this item:

• Can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance testing.
• Three in one AC withstand voltage, DC withstand voltage, and insulation resistance testing
• 2U standard chassis
• Floating test
• Enhance anti-interference capability
• It can independently conduct AC withstand voltage testing, DC withstand voltage testing, and insulation resistance testing, and can also perform multi item sequential testing through the project settings of the testing plan.

OVERVIEW

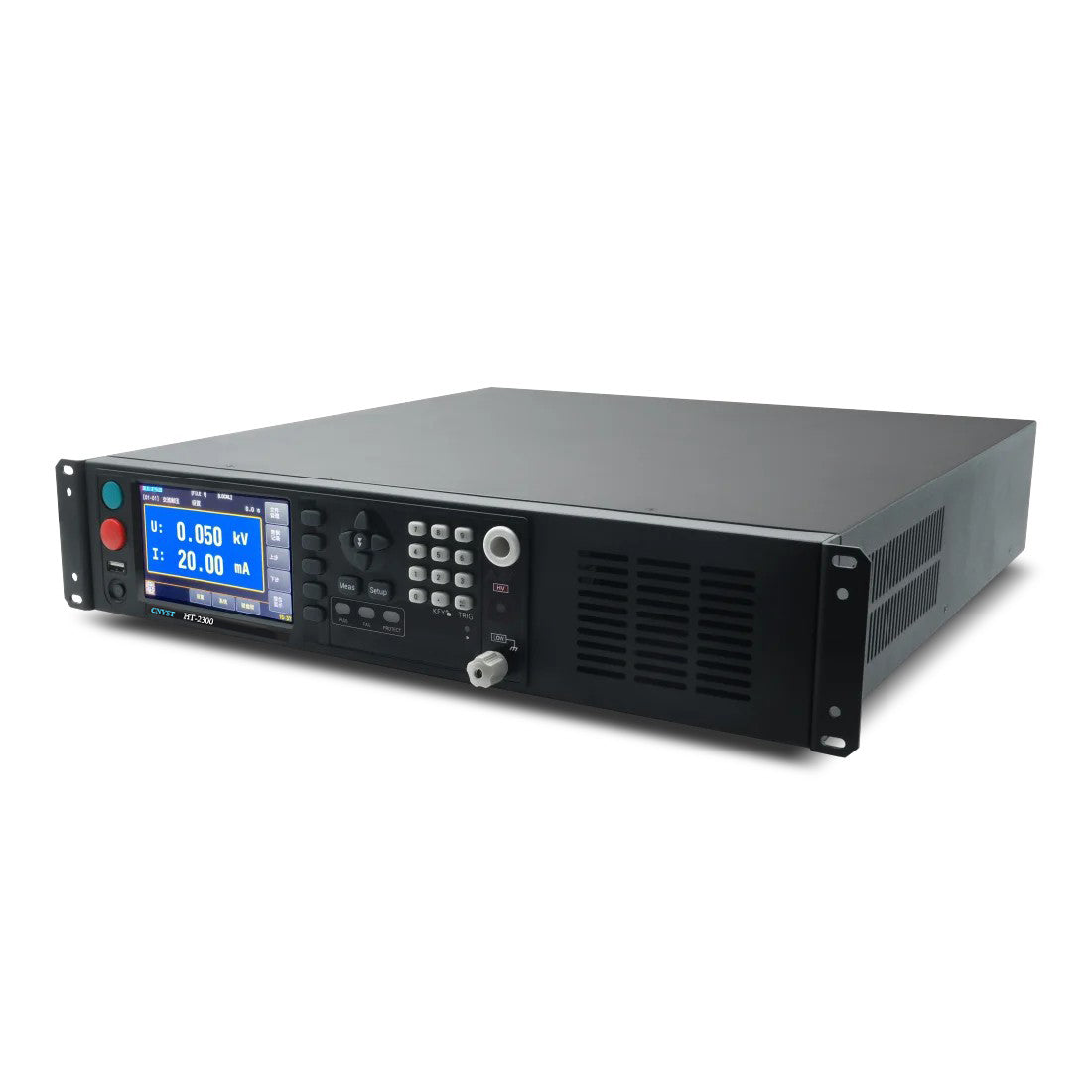

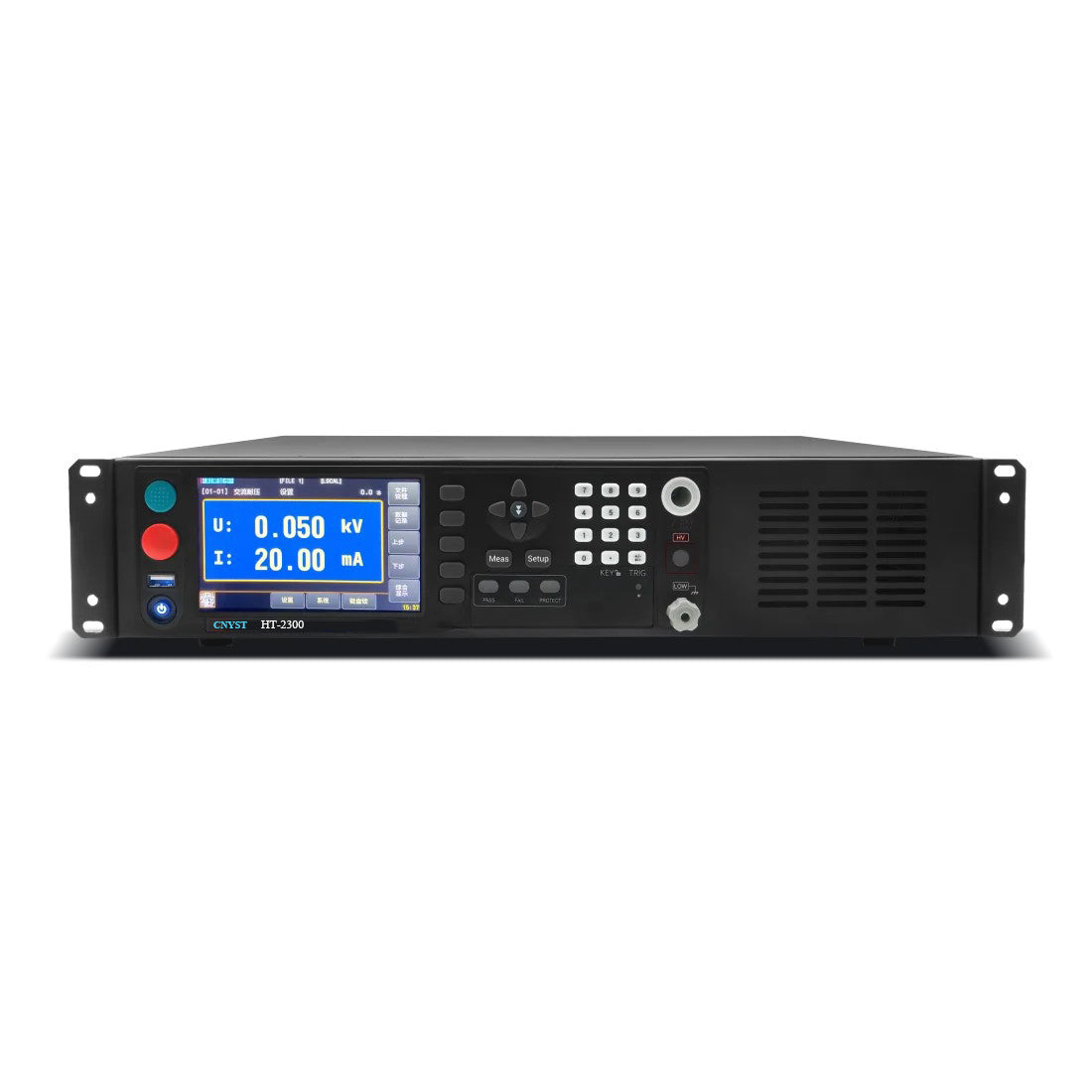

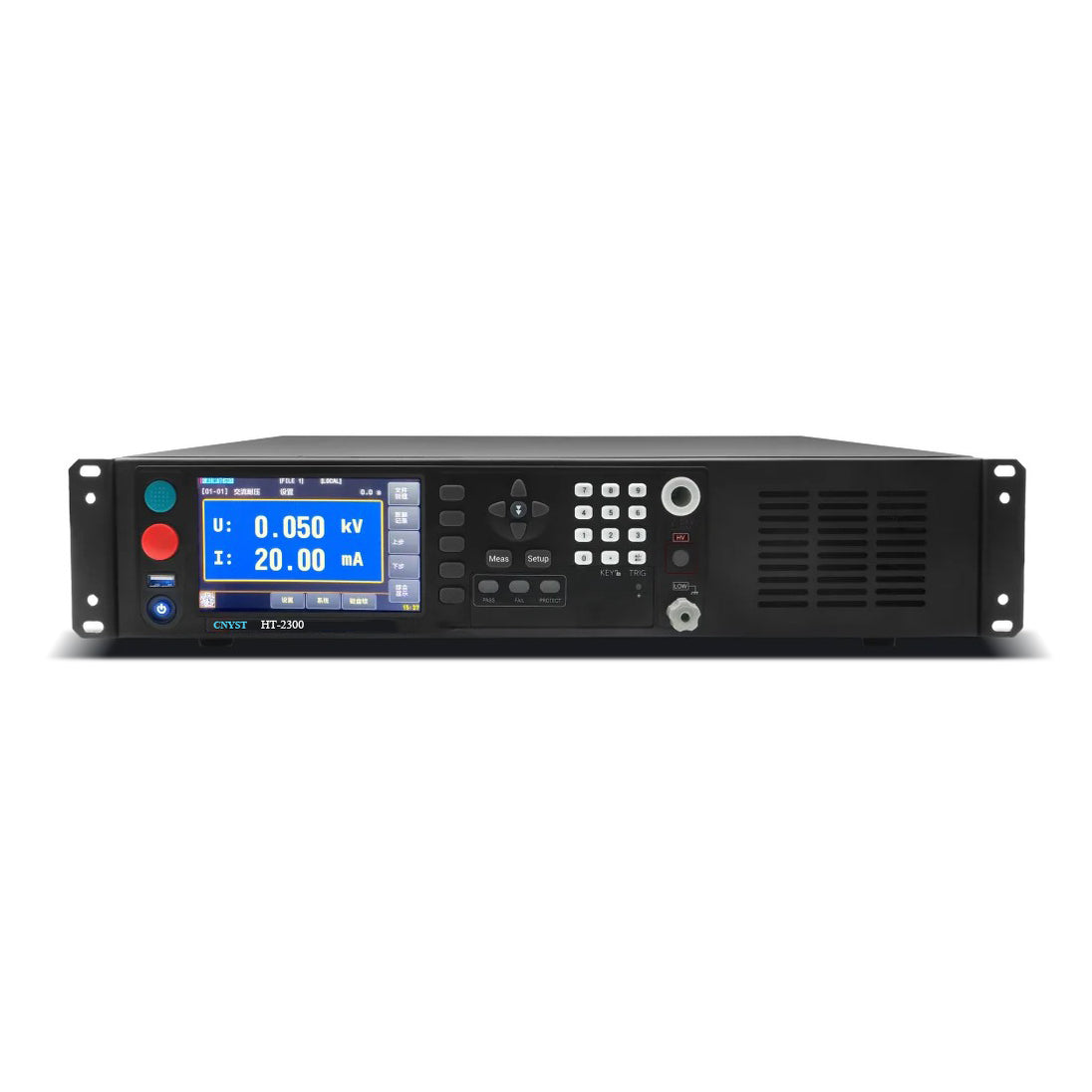

• The HT-2300 series multi-channel AC/DC withstand voltage tester adopts a 5-inch color LCD display screen and is equipped with a mainstream high-performance ARM processor, which has stable performance and easy operation. The standard 2U chassis structure is compact and does not take up space, making it suitable for equipment development. Fully isolated design and floating output enhance anti-interference capability!

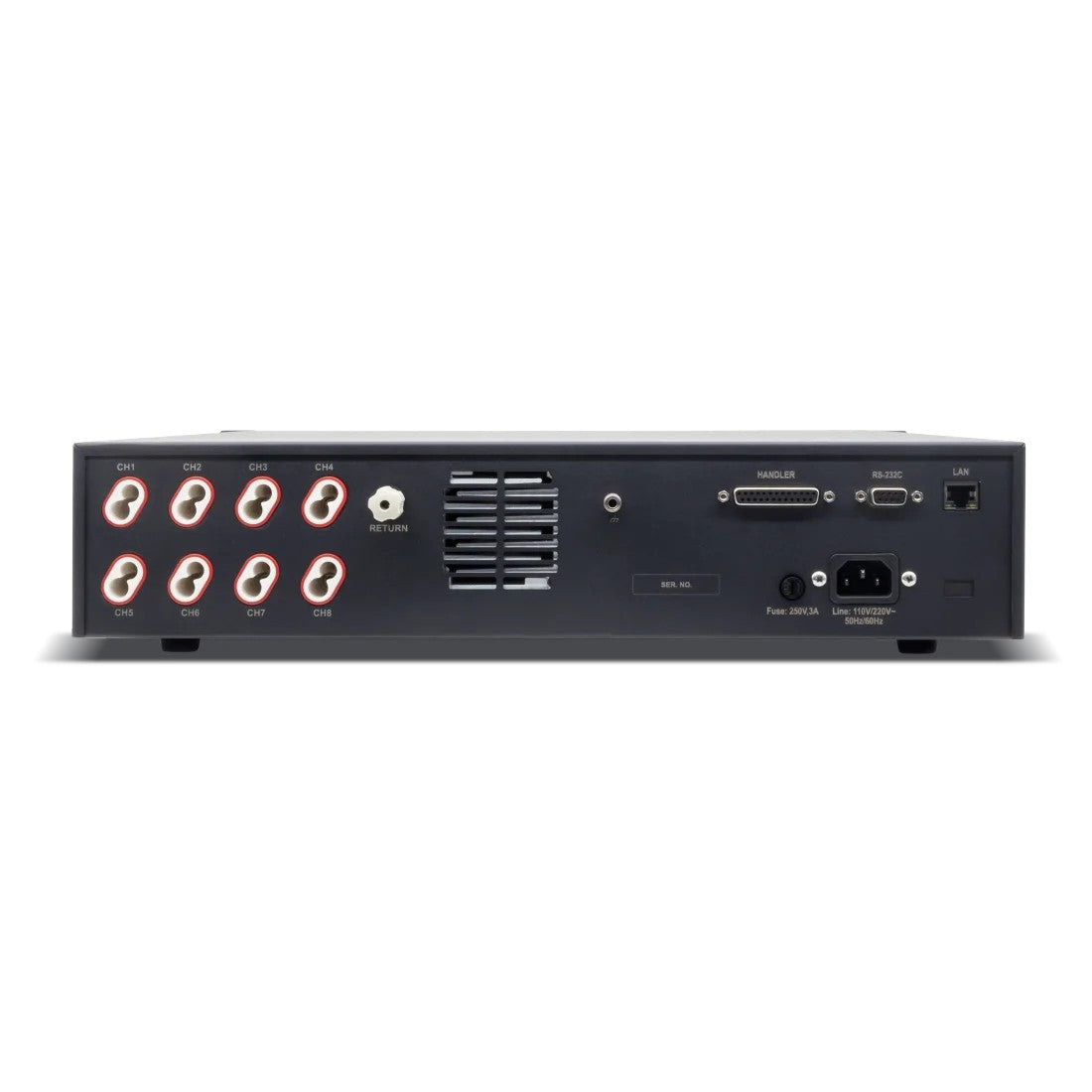

• The HT-2300 is equipped with a Handler (PLC), RS232C interface, and network port, which can facilitate data communication and remote control with a PC, meeting the requirements of automated testing and improving production efficiency.

FEATURES

• HT-2300 can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance testing.
• Three in one AC withstand voltage, DC withstand voltage, and insulation resistance testing
• 2U standard chassis
• Floating test
• Enhance anti-interference capability
• It can independently conduct AC withstand voltage testing, DC withstand voltage testing, and insulation resistance testing, and can also perform multi item sequential testing through the project settings of the testing plan.

SPECIFICATIONS:

• Measurement Functions:AC/DC Withstanding Voltage & IR Insulation Resistance
• Interface: RS232/Handler/LAN/USB
• Arc Detection: 9 Levels (AC/DC)
• Other Functions: LIST Edit;Discharge Function;5“ LCD
• AC Withstand Voltage:
• Rate Ouput: AC 5.000kV/10mA
• Output Voltage: 0.050kV-5.000KV AC;Resolution: 1V
• Voltage Accuracy: 2% of reading + 5 digits
• Output Regulation: 2% of reading +5V
• Output Frequency: 50Hz/60Hz
• Measurement Current: 0.001mA-10.00mA;Resolution: 0.001 / 0.01
• Current Accuracy: 2% of reading + 5 digits
• Rising Time: 0.1s-999.9s
• Testing Time: 0.2s-999.9s
• Falling Time: 0.1s-999.9s
• DC Withstand Voltage :
• Rate Output: DC 6kV/5mA
• Output Voltage: 0.050kV-6.000kV DC;Resolution: 1V
• Voltage Accuracy: 2% of reading + 5 digits
• Output Regulation: 2% of reading +5V
• Current Measurement: 0.1μA-5.000mA
• Current Accuracy: 2% of reading +5 digits
• Rising Time: 0.1s-999.9s
• Testing Time: 0.2s-999.9s
• Falling Time: 0.1s-999.9s
• Insulation Resistance：
• Rate Output: DC 1kV/10GΩ
• Output Voltage: 0.050kV-1.000kV DC；Resolution： 1V
• Voltage Accuracy: 1% of reading + 2 digits
• Measurement Range: 0.1MΩ-10GΩ
• IR Accuracy: <500V：0.1MΩ-1GΩ， Accuracy：±(10% of reading +5 digits )；1GΩ-10GΩ , For reference only, no accuracy requirement
• ≥ 500V：1MΩ-1GΩ， Accuracy：±（5% of reading +5 digits）；1GΩ-10GΩ， Accuracy：±（10% of reading +5 digits）
• Testing Time: 0.2s-999.9s
• Power Supply 110VAC~220VAC 47Hz~63Hz 300VA
• Dimension & Weight 270mm( W )x130mm( H )x450mm ( D )；8kg
• Accessories:High voltage test rod;Withstand voltage test line; RS232 Communication
