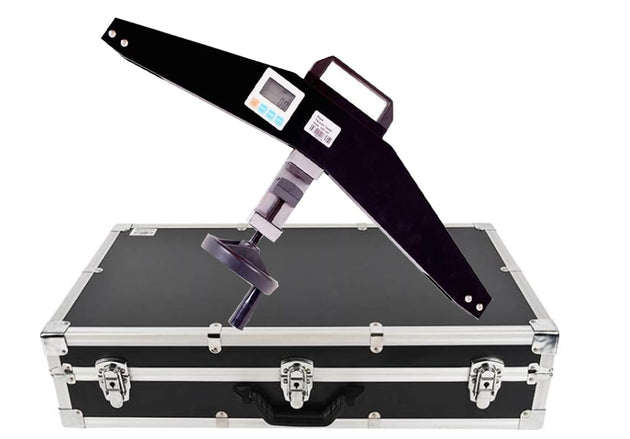

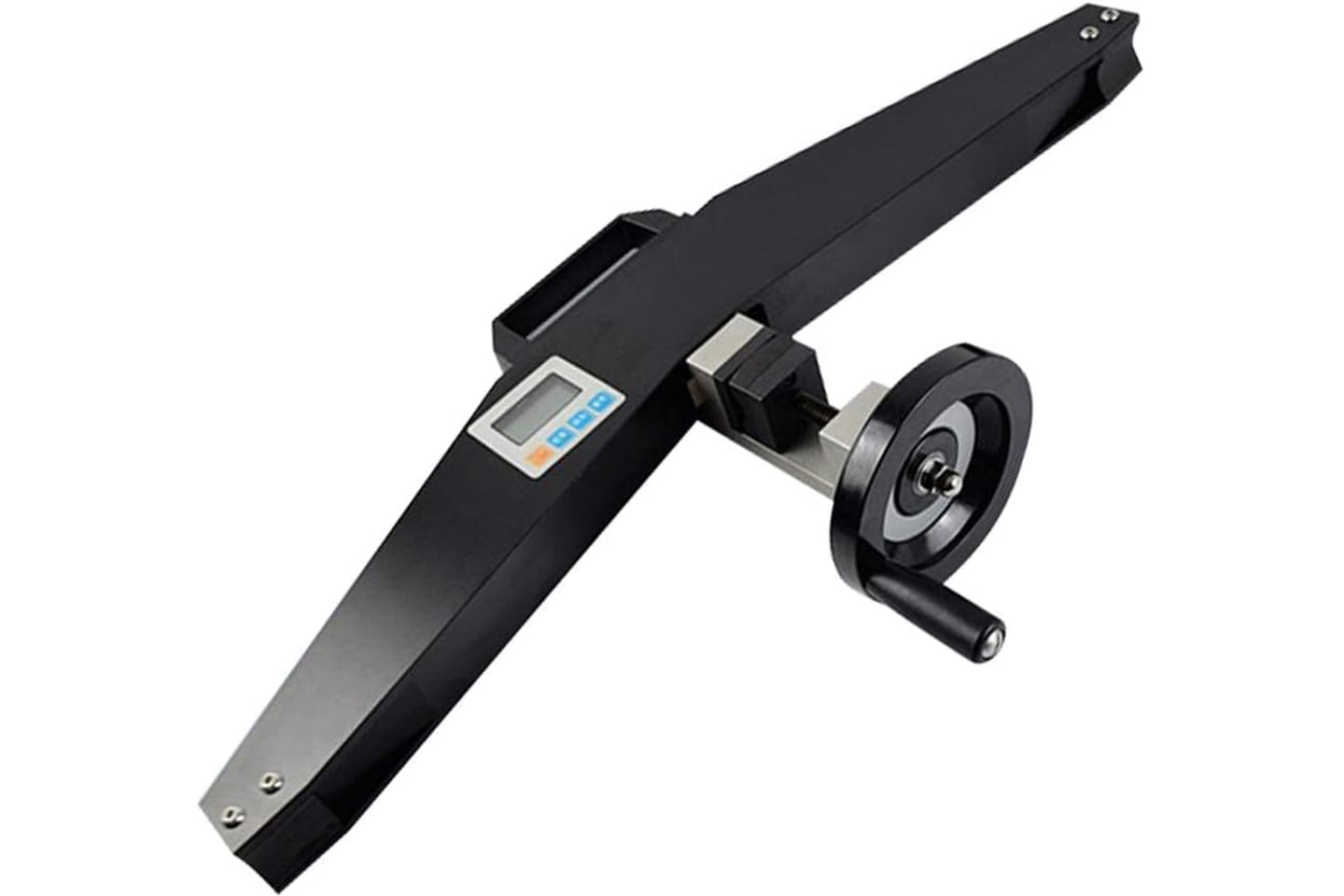

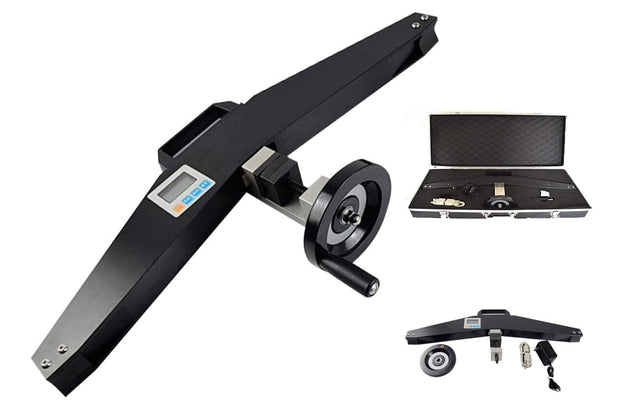

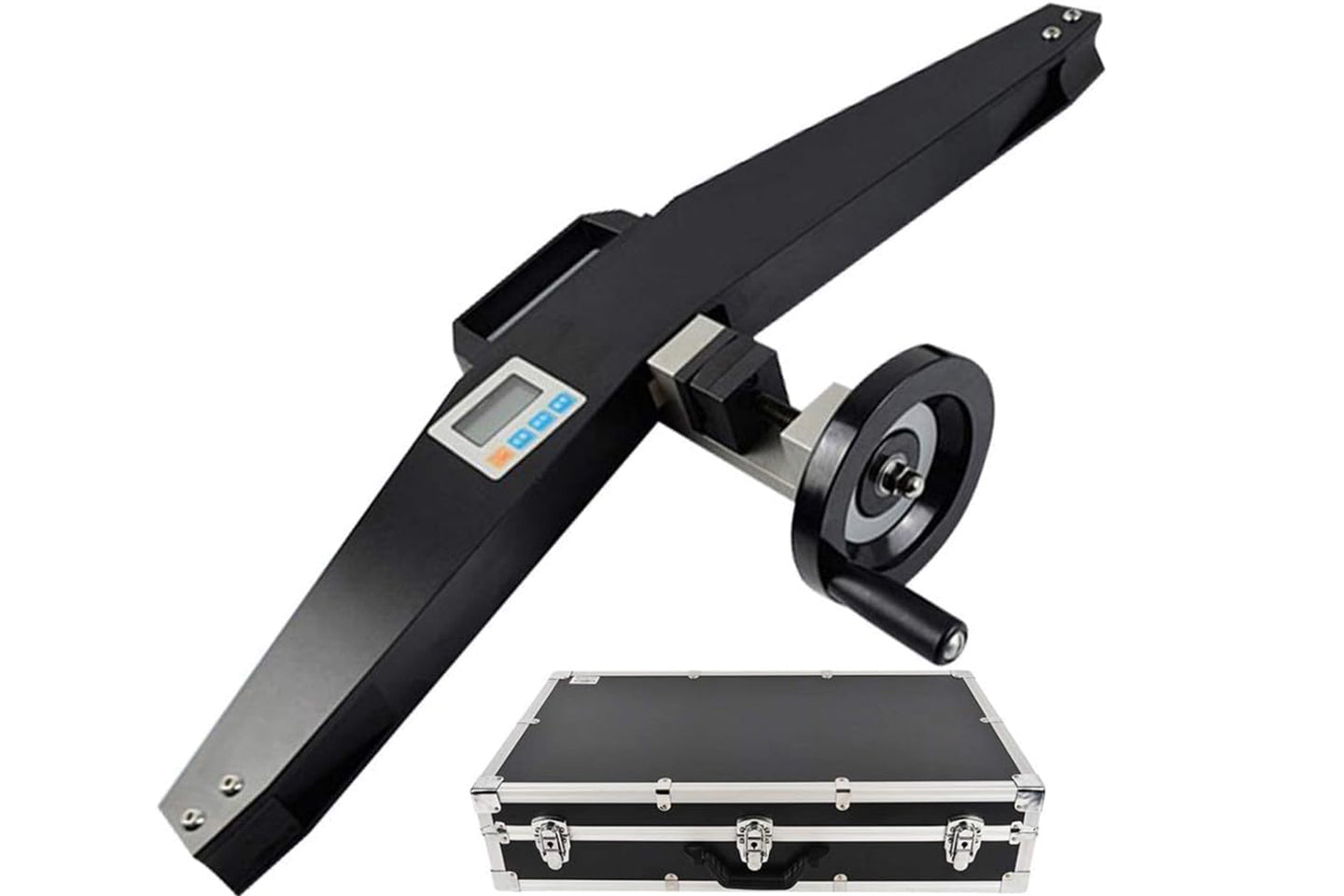

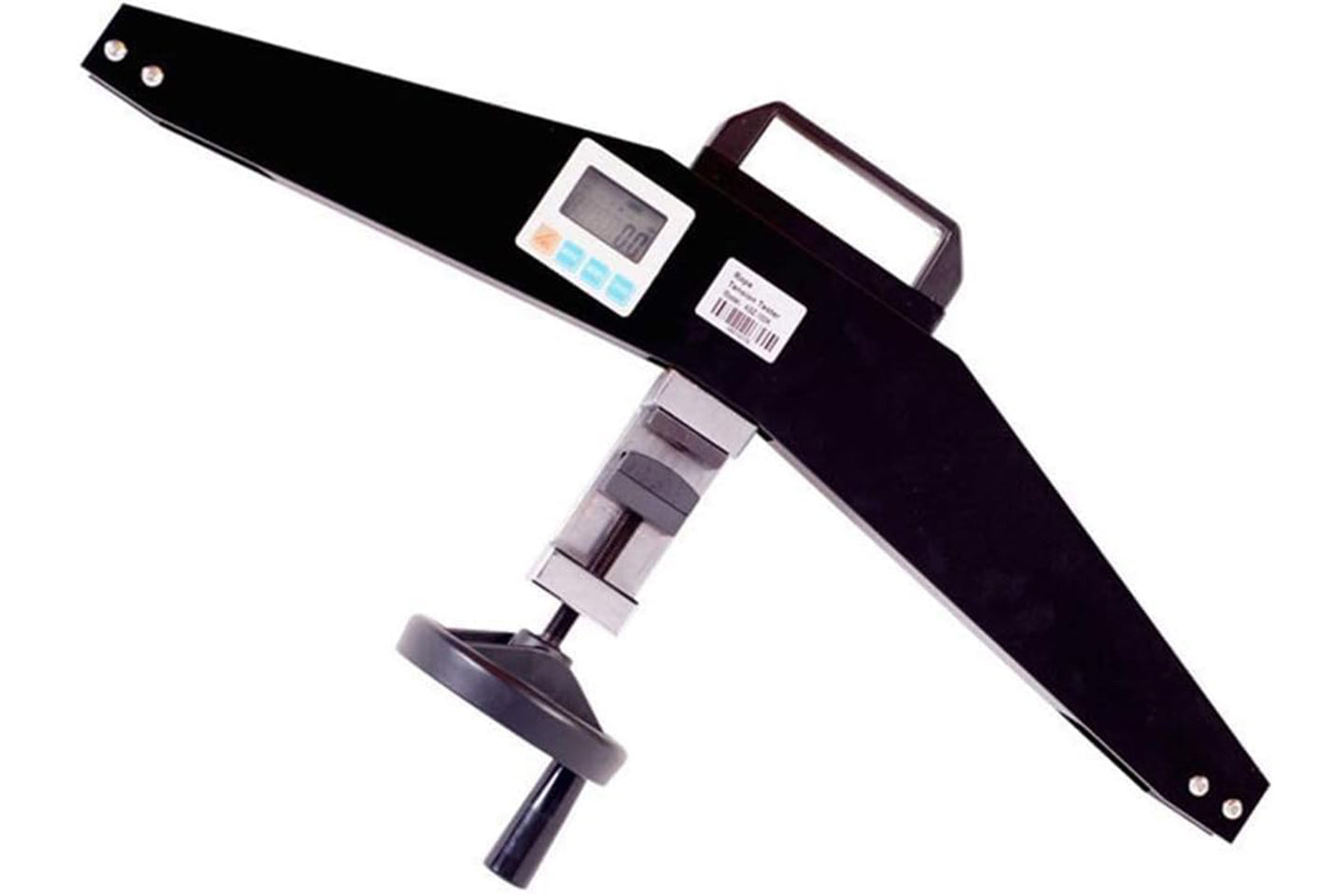

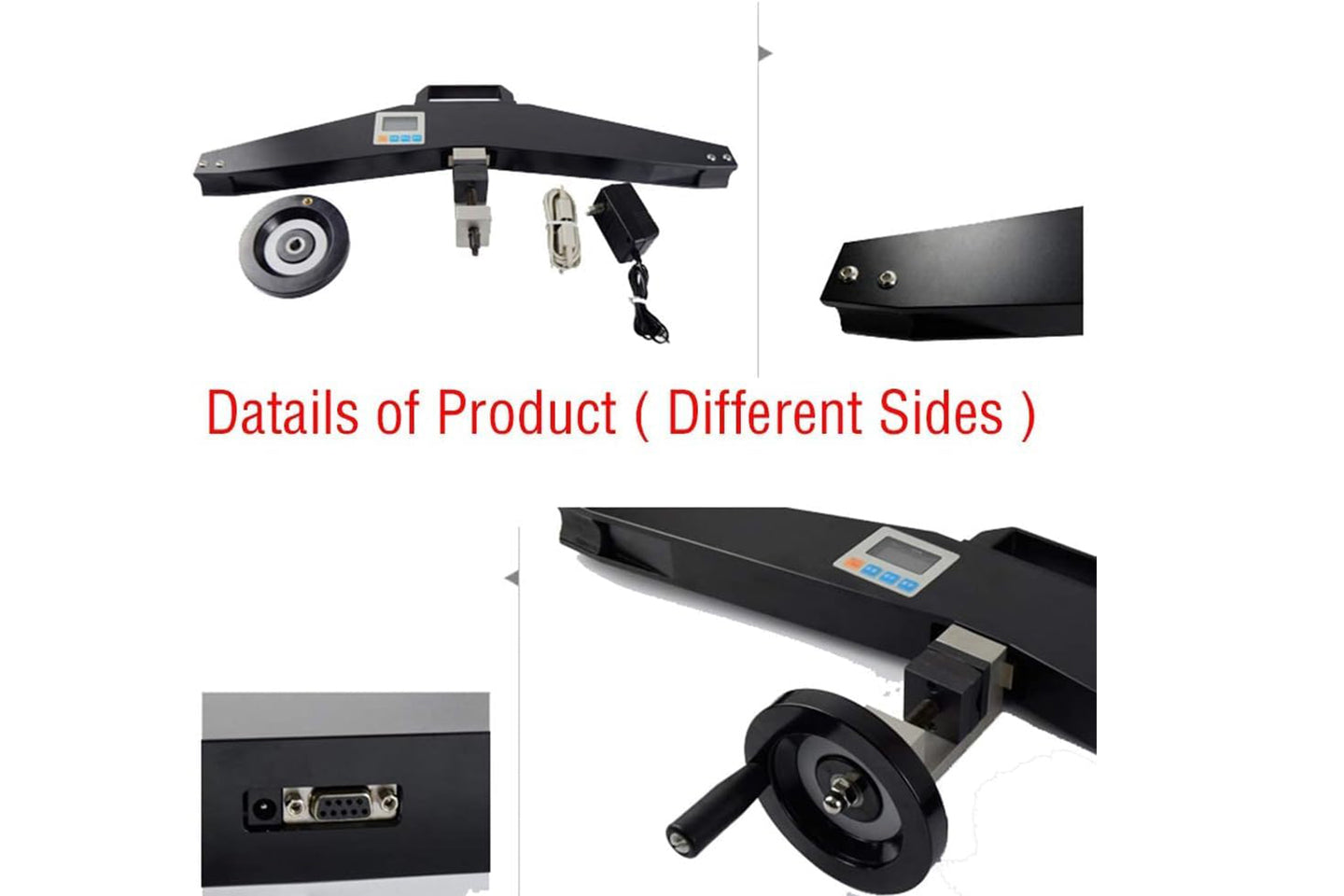

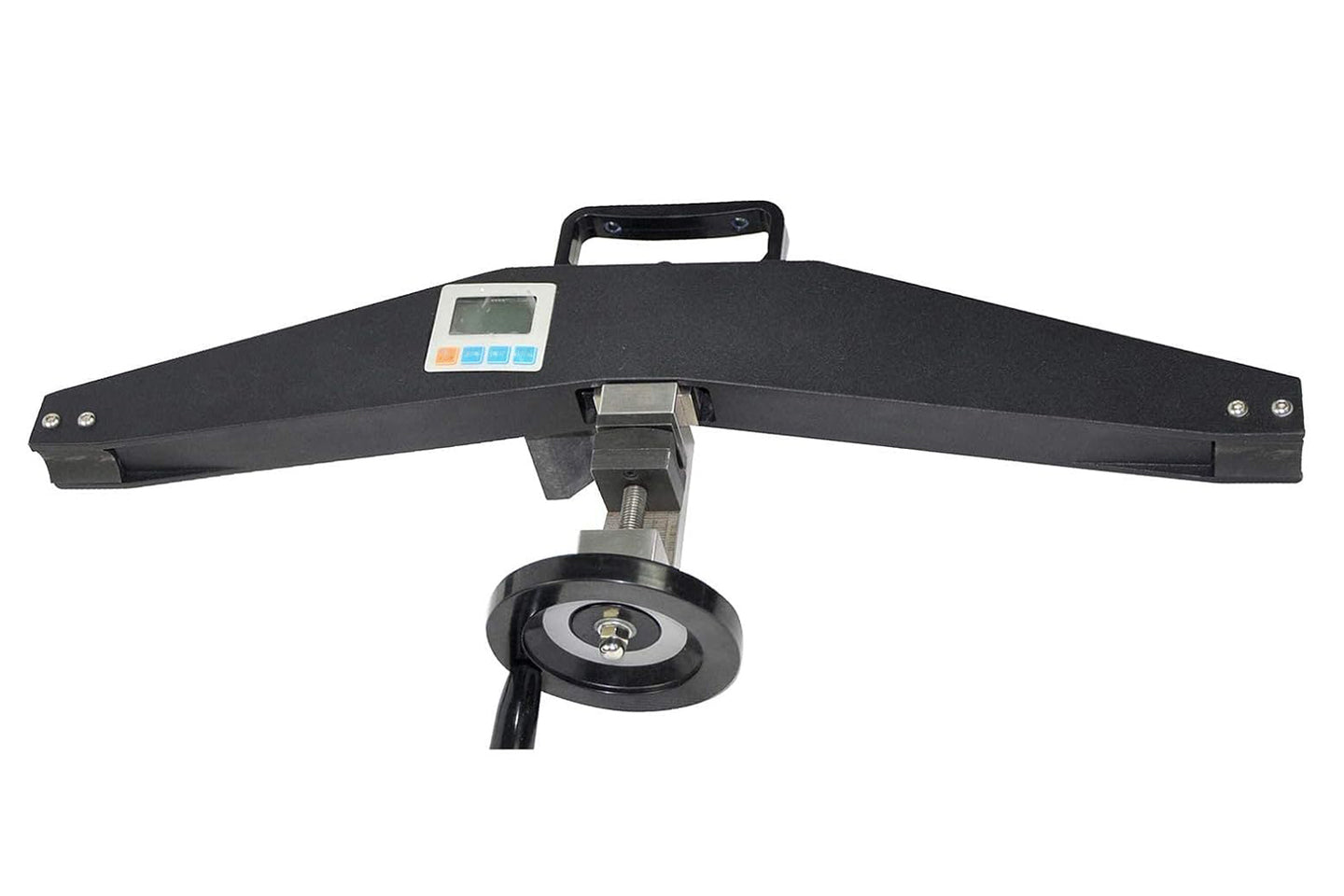

CNYST Cable Tension Tester Wire Rope Tension Meter with Divided load value 0.01KN Maximum Load Value 50KN Rs232 9-hole Socket Output Connector for Steel Ropes High Strength Ropes etc

Applicable occasions

rope tension meter is suitable for electric power industry, communication industry, transportation industry, glass curtain wall decoration industry, ropeway operation industry, construction industry, playground, tunnel construction, fishing and major scientific research institutes and teaching institutions, testing agenciesAnd related to rope and wire rope tension.

Functional characteristics

* The rope structure with tensioning force can be directly measured without disassembly.

* Light weight, simple structure, easy operation, suitable for any occasion.

* Stable performance, high measurement accuracy, with automatic system compensation, when the measured cable specifications and dynamometer cable specifications are the same, the accuracy within the rated range of up to 2%.

* With 15 kinds of wire diameter measurement function, a wider measurement range.

* The use of: suitable for flexible, stretched cable.Such as various steel ropes, high strength ropes and so on.

* Accuracy level: 2 to 6% of the maximum function (depending on the rope form and characteristics).

Technical Specifications

Model: Rope tension meter 50KN

Maximum Load Value (KN): 50

Divided load value (KN): 0.01

Measuring range(mm): Φ12~Φ26

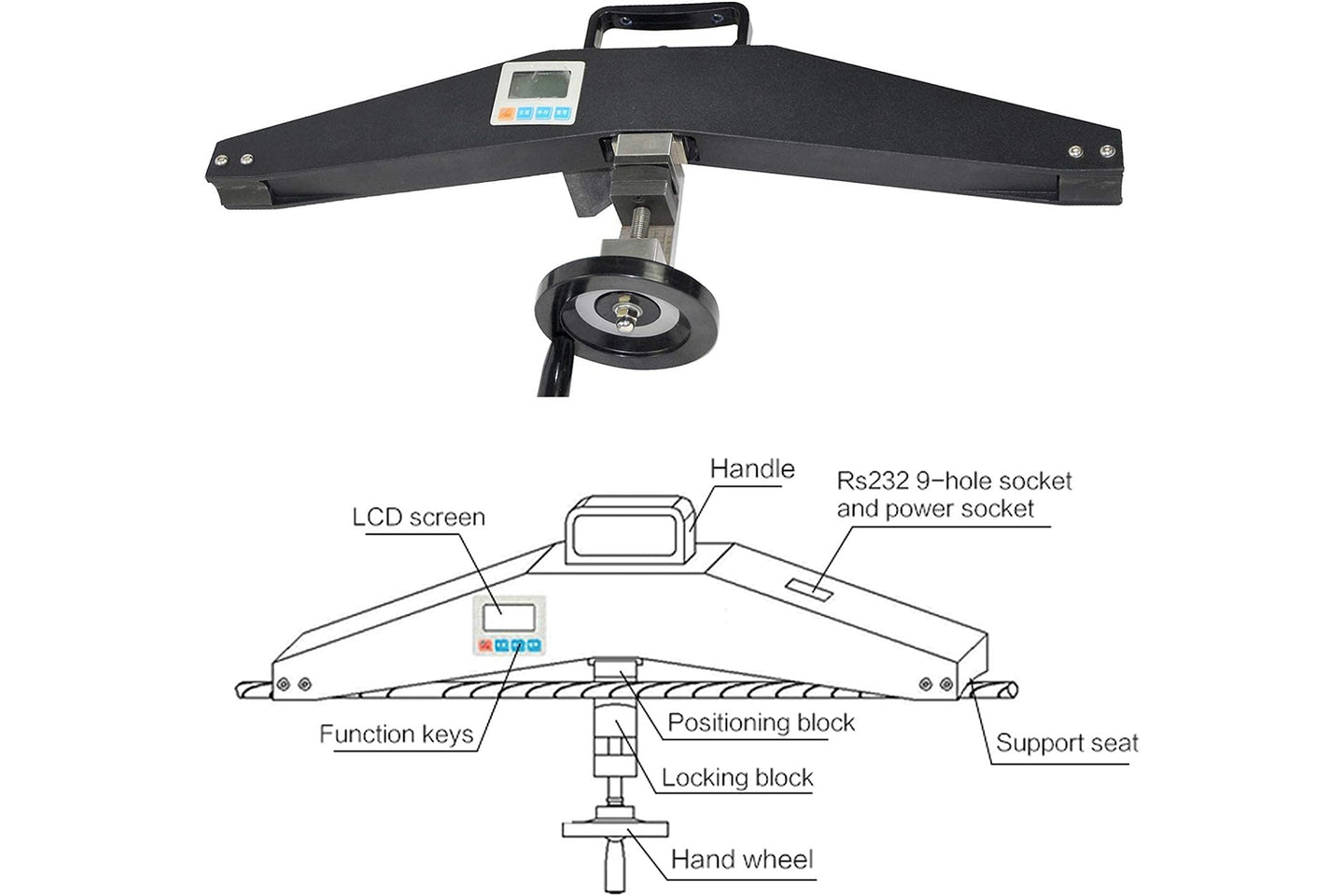

Output connector: Rs232 9-hole socket

Power: rechargeable battery charger (charging voltage 100V~240V)

Operating temperature: 5~35;

Transport temperature,-10~60;

Relative humidity: 15%~80%RH

Operation: No vibration focus and corrosive media around

Net weight: 5kg

Dimensions:650×375×100mm
