CNYST Chlorine Detector Portable Cl2 Gas Detectors with Measurement Range 0-50ppm Resolution 0.1ppm L-Alarm 5ppm H-Alarm 10ppm Explosion Proof Ex ib llB T3 Gb Advanced MCU Control with Low Oower Consumption Accuracy≦5% F.S.

About this Item：

Detection gas: Chlorine CL2

Measuring Range: 0-50ppm

Resolution: 0.1ppm; Accuracy: ≦ 5% F.S.

L-alarm: 5ppm; H-alarm: 10ppm

Overview:

The portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate.

The shell adopts special high strength material and anti-smooth rubber, with the characters of water-proof and dust-proof.

Features:

Range:0-50ppm

Resolution:0.1ppm

L-alarm:5ppm

H-alarm:10ppm

Accuracy:≦ 5% F.S.

Response time:T＜30s

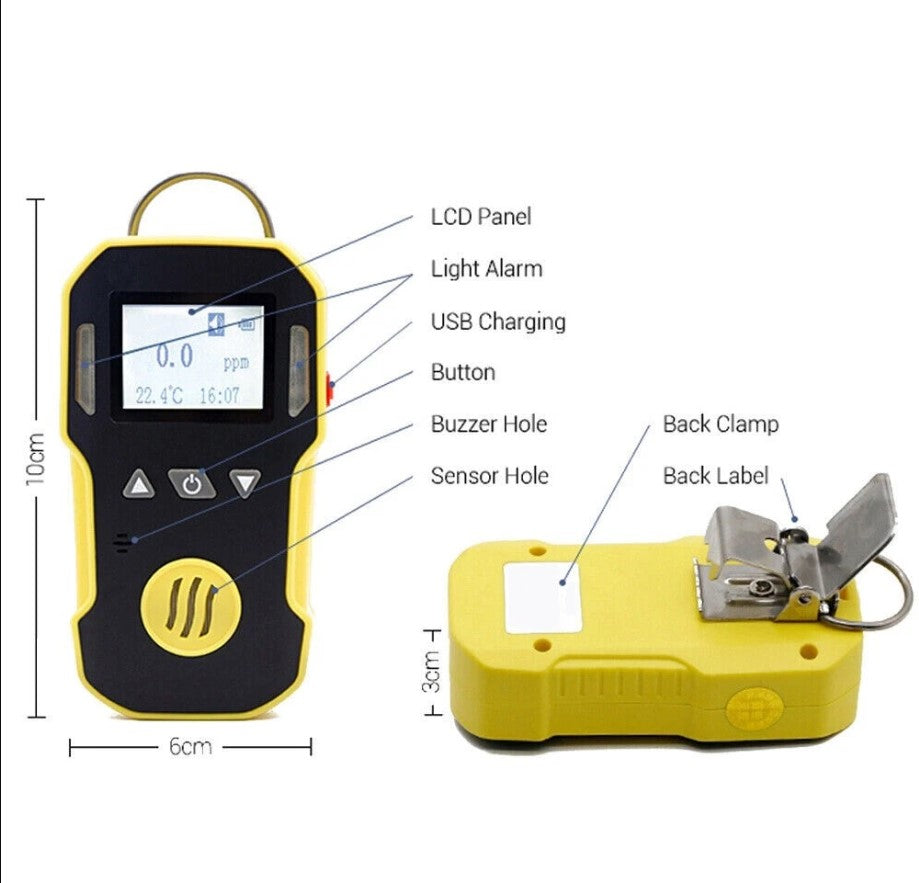

Indication:LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration

Operating Environment:

Operating temperature -40℃～70℃ (for combustible gas)

Operating temperature: -20℃～50℃ (for toxic gas)

Humidity:＜95%RH non-condensing

Operating voltage:DC3.7V Li battery 1500mAh

Working time:≧8h continuously

Charging time:4h～6h

Sensor life:2 years

Protection category:IP65

Weight:about 130g

Shell material: ABS

Dimension: 109x60x30mm (LxWxH)
