CNYST CNYST Lab Spectrophotometers Digital Spectrophotometer with Display Accuracy 0.01 Measurement Repeatability ΔE*ab≤ 0.03 Measuring Aperture Φ11mm Φ6mm Φ3mm ▽11mm ▽6mm ▽3mm Intelligent Automatic Calibration

Introduction

This series spectrophotometer is a powerful color measuring instrument. In order to meet the general color measurement needs, this series spectrophotometer still maintains excellent repetition accuracy, repeatability dE*ab≤0.03.

Feature

● Ultra-high repeatability accuracy：dE*ab≤0.03

● More than 30 measurement parameters

● Evaluate whether the color is jumping light, providing nearly 40 evaluation light sources

● The calibration base and the zirconium reference of MoHS hardness 9 calibrate the instrument to ensure the long-term stability of the instrument

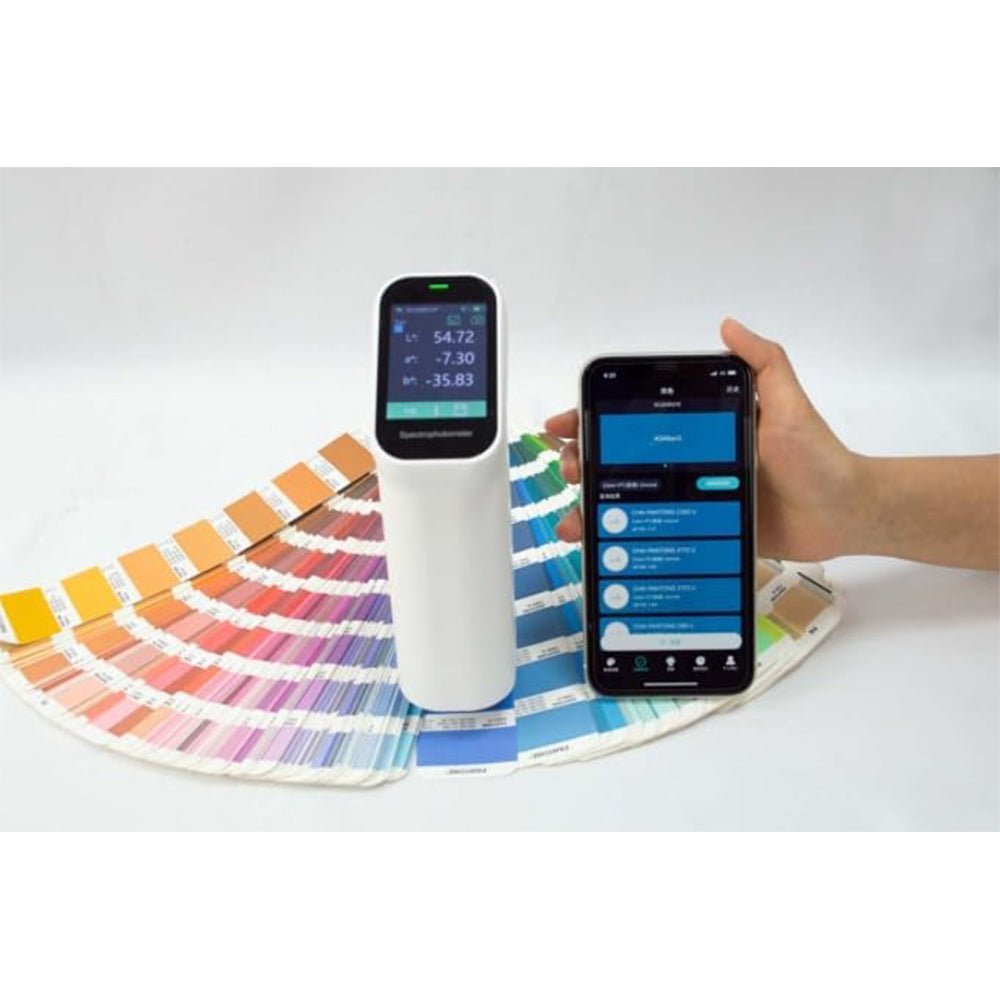

● Support wechat mini program, Android, Apple, Hongmeng mobile APP

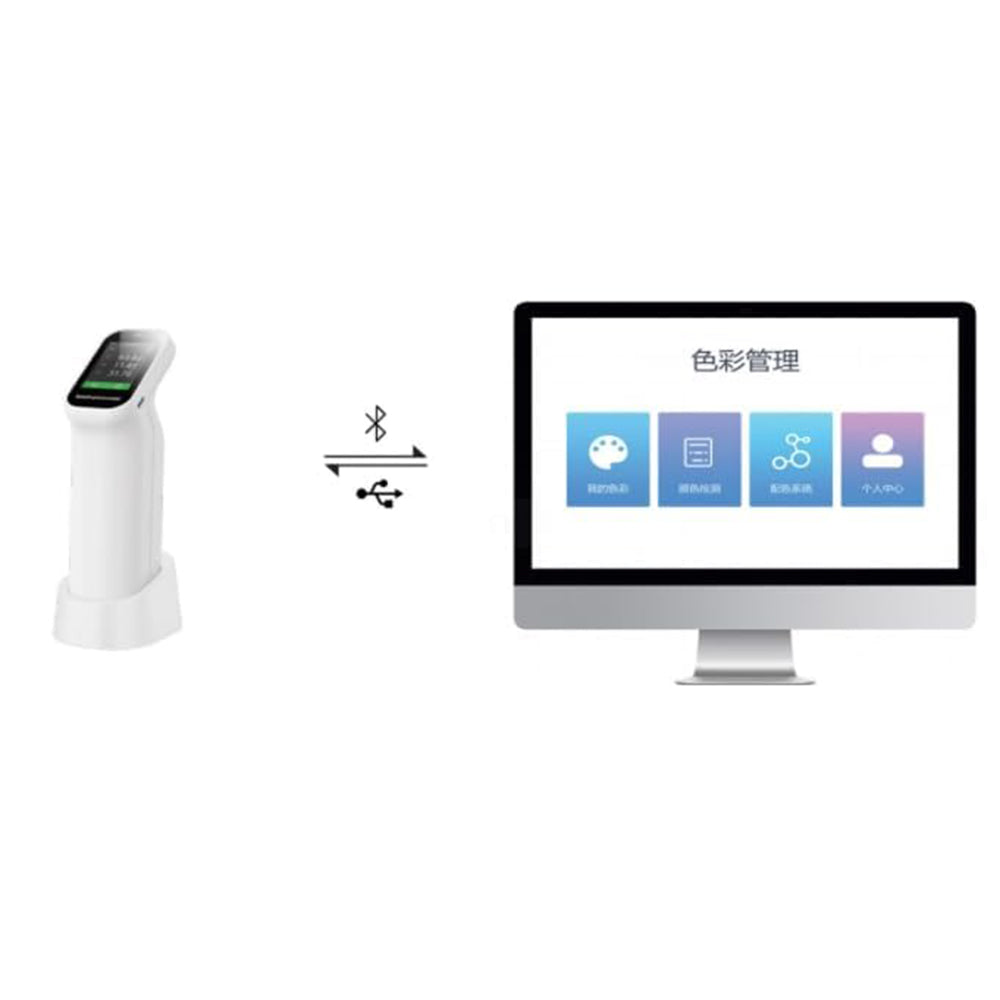

● Use the powerful PC-side color management system ColorExpert

Technical parameter

Measurement structure:D/8，SCI/SCE

Measurement repeatability:ΔE*ab≤ 0.03

Display accuracy:0.01

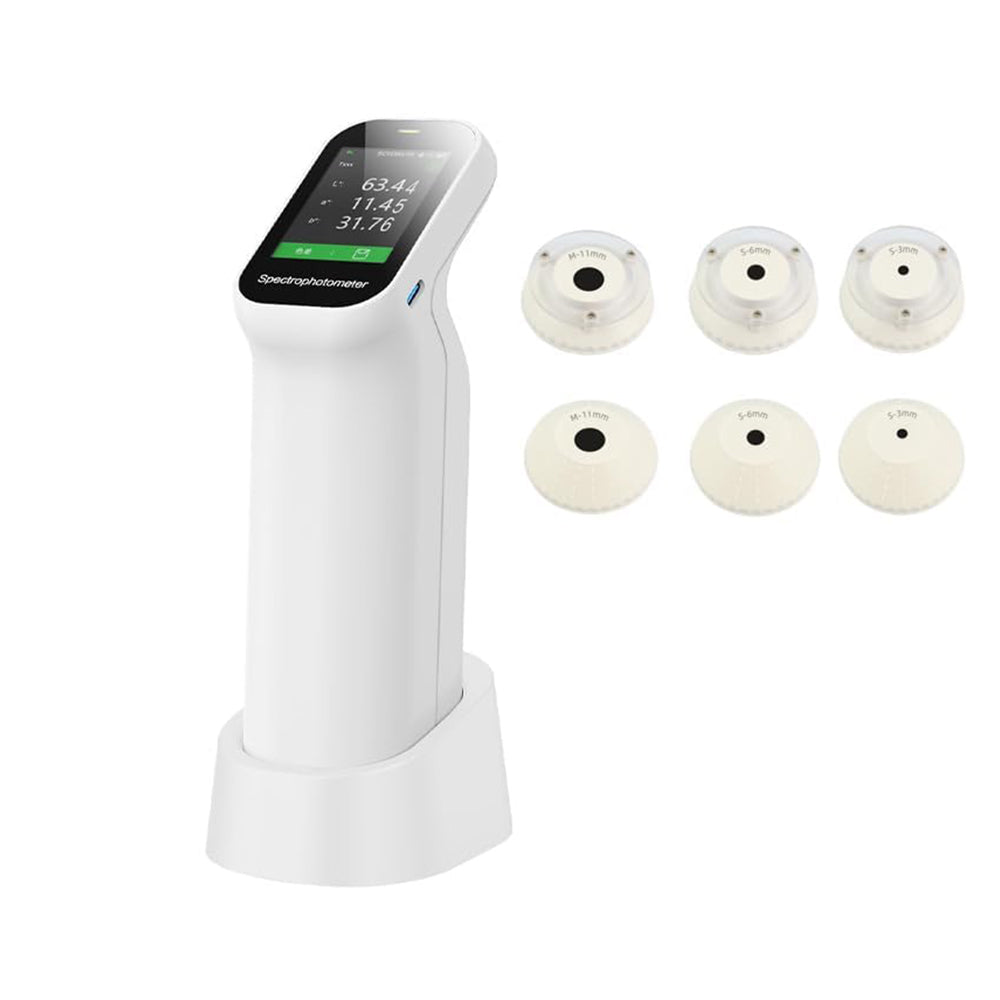

Measuring aperture:There are 6 stable and smart types: Φ11mm，Φ6mm，Φ3mm, ▽11mm，▽6mm，▽3mm

Measurement index:Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Chromatic Aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00), Whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness (My,dM), color fastness, color fastness,Tint(ASTM E313-00),Colour densityCMYK(A,T,E,M),Isochromatic index Milm, Munsell, covering power, force (dye strength, coloring power)

Light source condition:A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Lighting source:All-band equalizationLED light source

Field Angle:2°，10°

Integrating sphere diameter:40mm

Meet the standard:Andriod,iOS,Windows,Wechat mini program

Field Angle:2°，10°

Integrating sphere diameter:40mm

Meet the standard:CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectroscopic method:Nano integrated spectral device

Inductor:Silicon photodiode array Double16 groups

Wavelength interval:10nm

Wavelength range:400-700nm(Users can view the reflectivity of 31 wavelengths)

Reflectance measurement range:0-200%

Reflectance resolution:0.01%

Measurement mode:Single measurement, average measurement（2~99 times）

Measuring time:About1s

Measurement and observation mode:Camera

Calibrate:Intelligent automatic calibration

Software support:Andriod,iOS,Windows,Wechat mini program

Port:USB，Bluetooth

Screen:Full color screen, 2.4 inches

Battery capacity:8000 continuous measurements in a single charge, 3.7V/3000mAh

Light source lifetime:1 million times in 10 years

Language:Simplified Chinese, English

Store:Instrument: 10,000 data; APP: Mass storage
