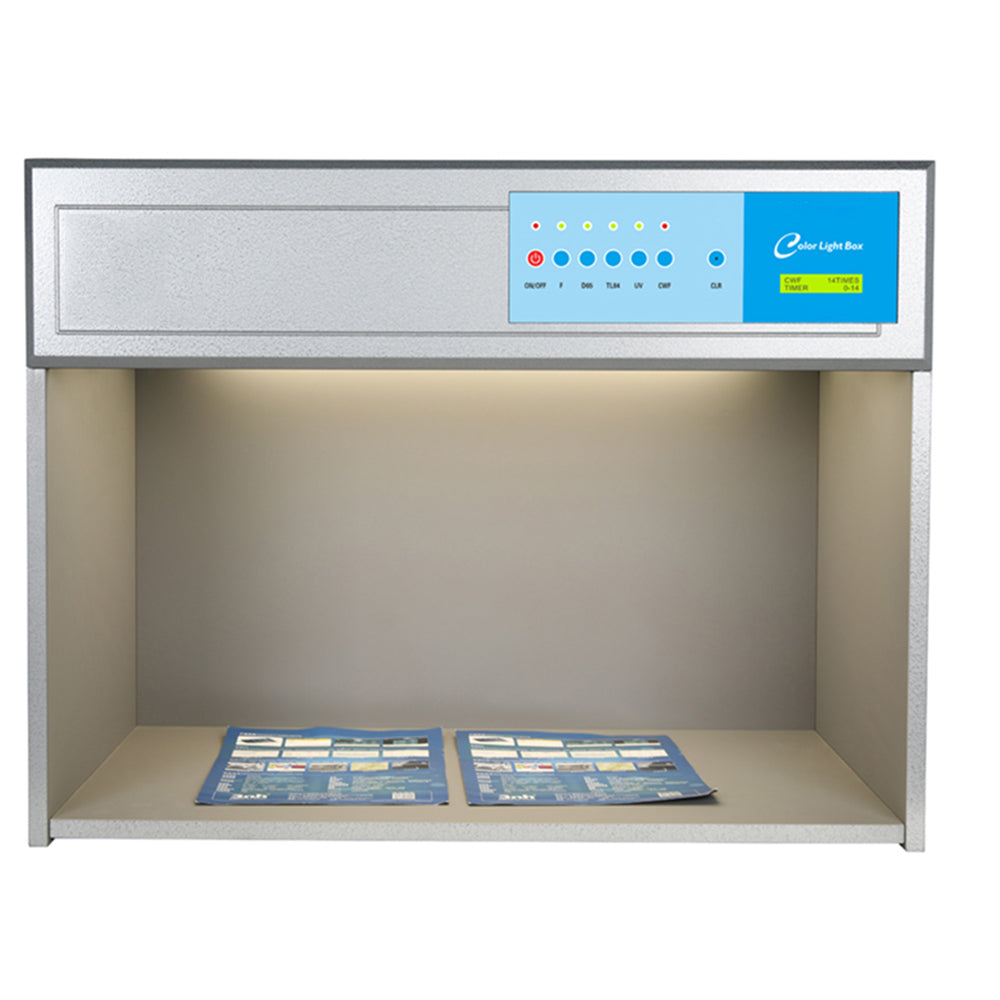

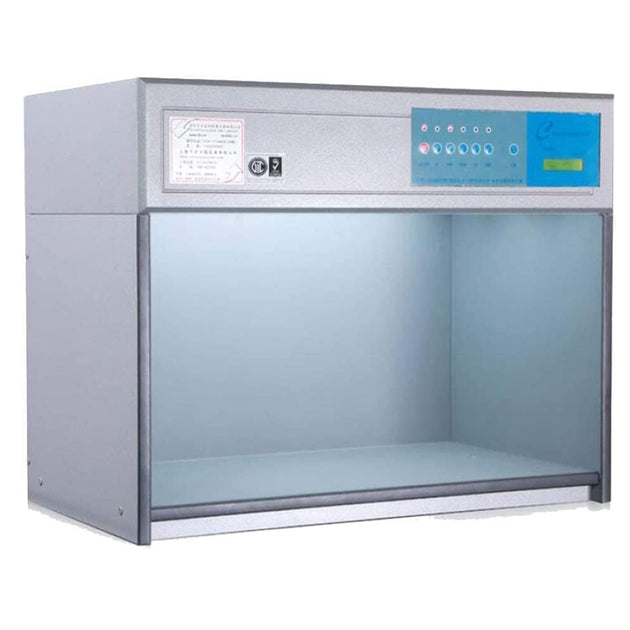

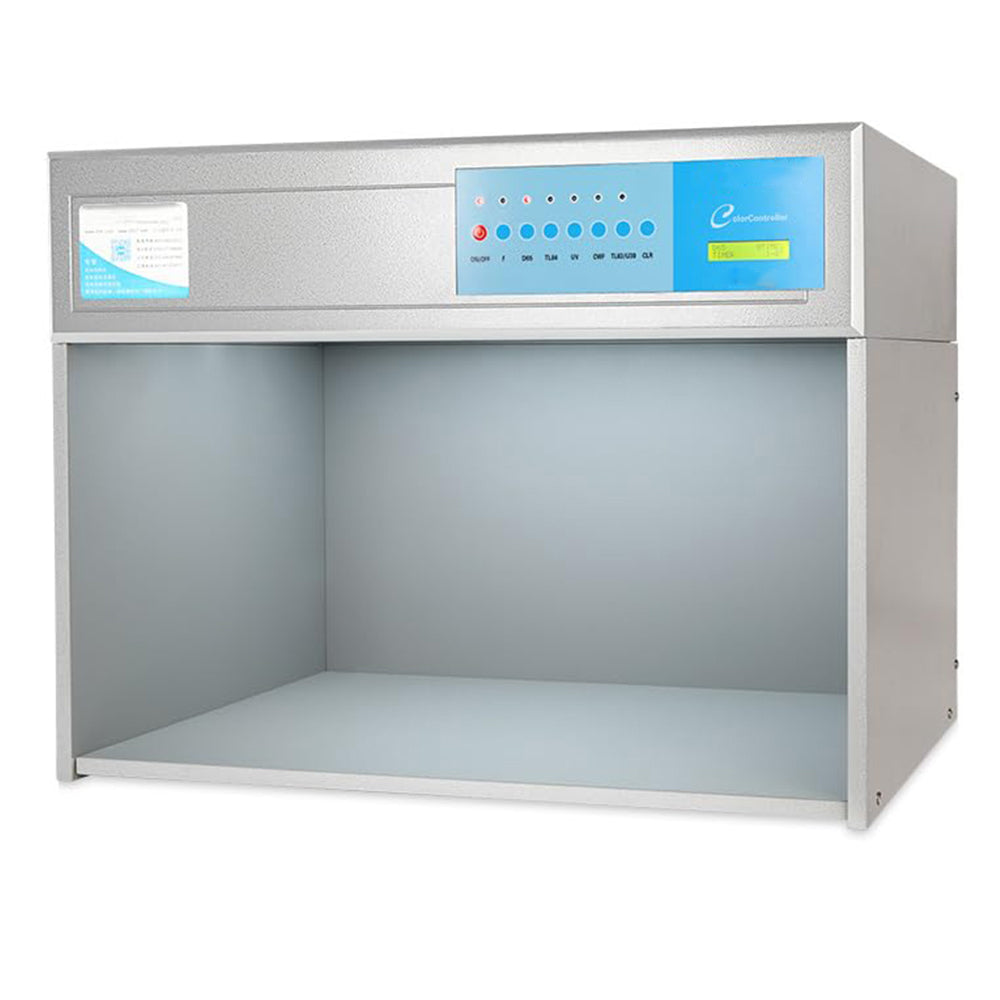

CNYST Color Assessment Cabinet 5 Color Assessment Cabinet Box with D65 TL84 CWF F UV Five Light Sources ASTM D1729 ISO3664 DIN ANSI BSI Standard for The Graphic Arts Photographic Textile Dyeing Packaging

$1,570.00

About this item

◆ color light box can accommodate up to 5 light sources(D65，TL84，F，UV，CWF). Colors appear differently under different lighting sources.

◆ Economic power consumption and low heat generation for high light efficiency.

◆ With 5 different light source which can detect the metamerism. Easy to operate by using individual switches for each light source.

◆ Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

◆ The Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries

Product description

====Please Kindly Notice that This Color Assessment Cabinet has 2 Voltages for choosing 110V or 220V. By Default We will Ship According to the Voltage of Your Country====

Introduction

* Color light box can accommodate up to 5 light sources(D65，TL84，F，UV，CWF). Colors appear differently under different lighting sources.

* To avoid/reduce the assessment error when performing color contrast, we can make use of Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

Color matching light box Application:

The Color matching booths / Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts,Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

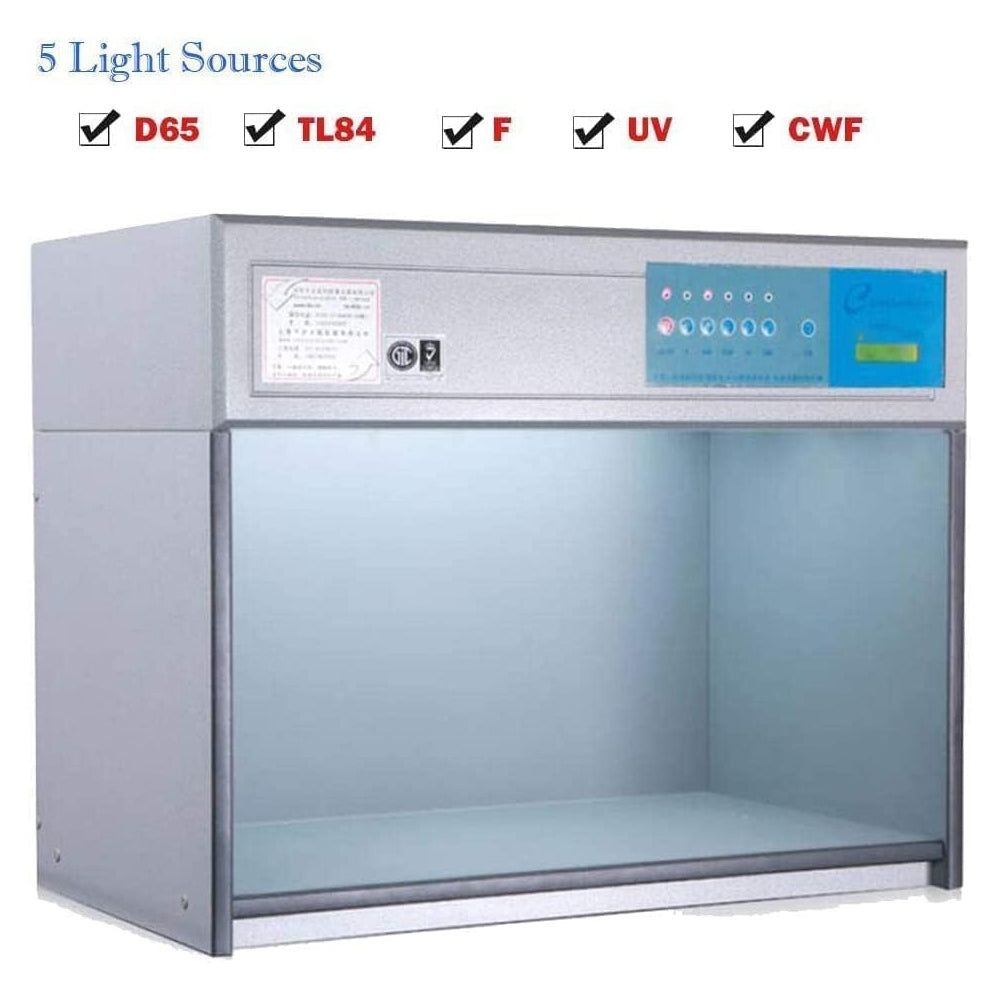

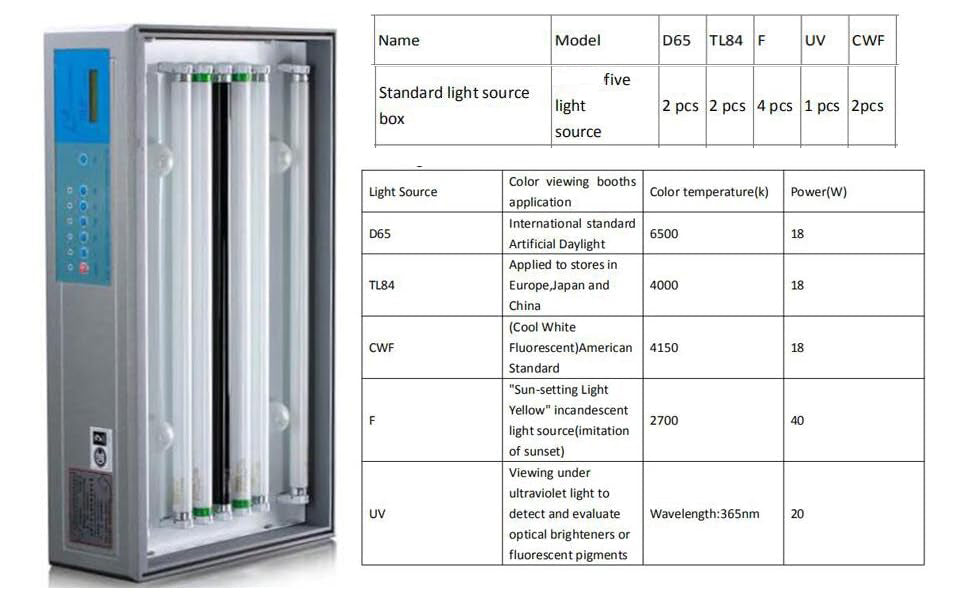

5 Light Sources

====D65:====

International Standard Artificial Daylight with 2 pcs Lamps; Power, 18W; Color Temperature, 6500K;

====TL84====

:Europe Japan commercial source with 2 pcs Lamps; Power, 18W; Color Temperature, 4000K;

====UV:=====

Ultraviolet light source with 1 pcs Lamps; Power, 18W;

====F:======

F Yellow light"Sun-setting Light Yellow" incandescent light source(imitation of sunset), colorimetric reference source with 4 pcs Lamps; Power, 40W; Color Temperature, 2700K;

====CWF:====

The United States store light (Cool White Fluorescent)American Standard with 2 pcs Lamps; Power, 18W ; Color Temperature, 4150K;

* Weight: 23Kg

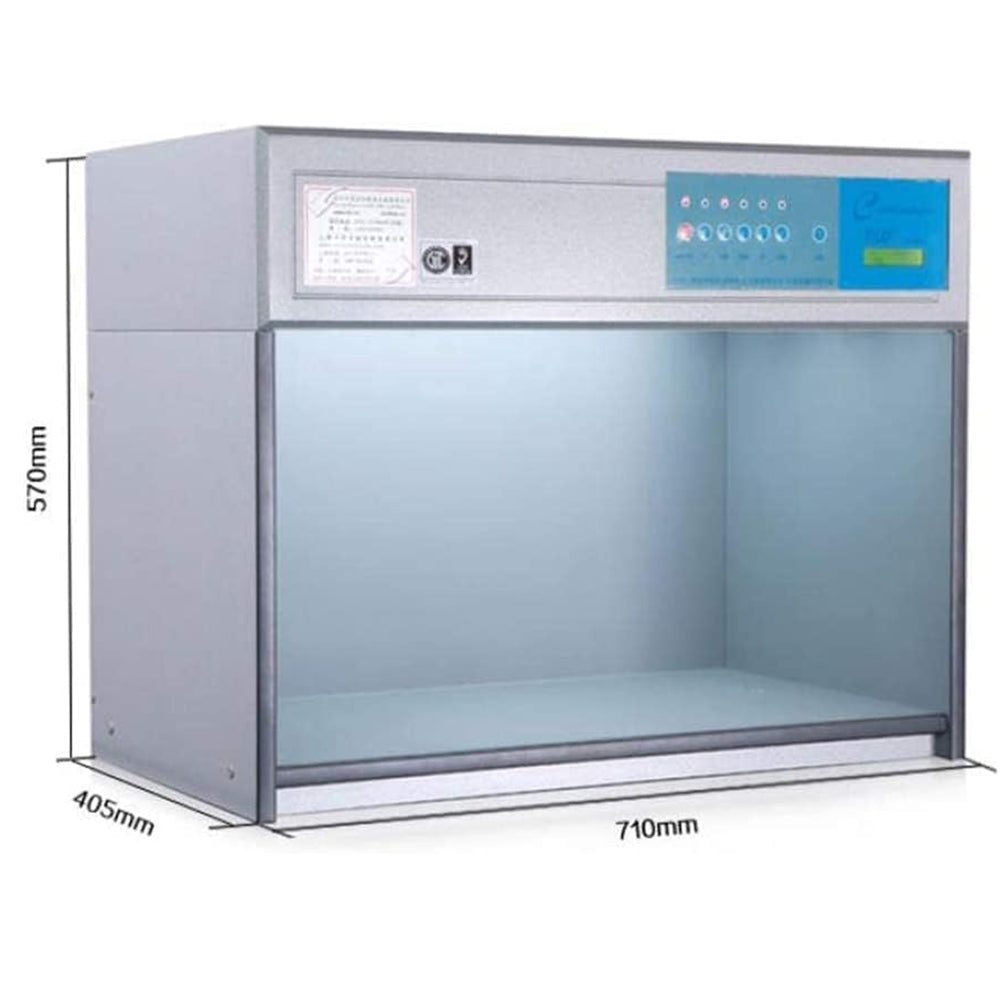

* Dimensions(WxDxH): 710x405x570 mm

* Automatically alternating among light sources.

* No warm-up time or flickering which insures quick and reliable color judgment.

* Economic power consumption and low heat generation for high light efficiency.
