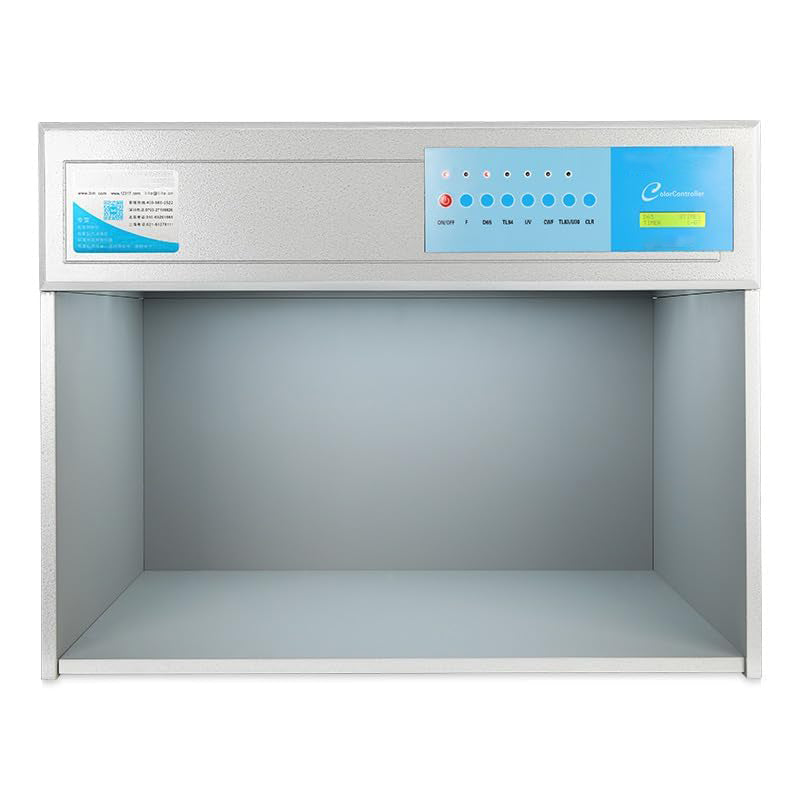

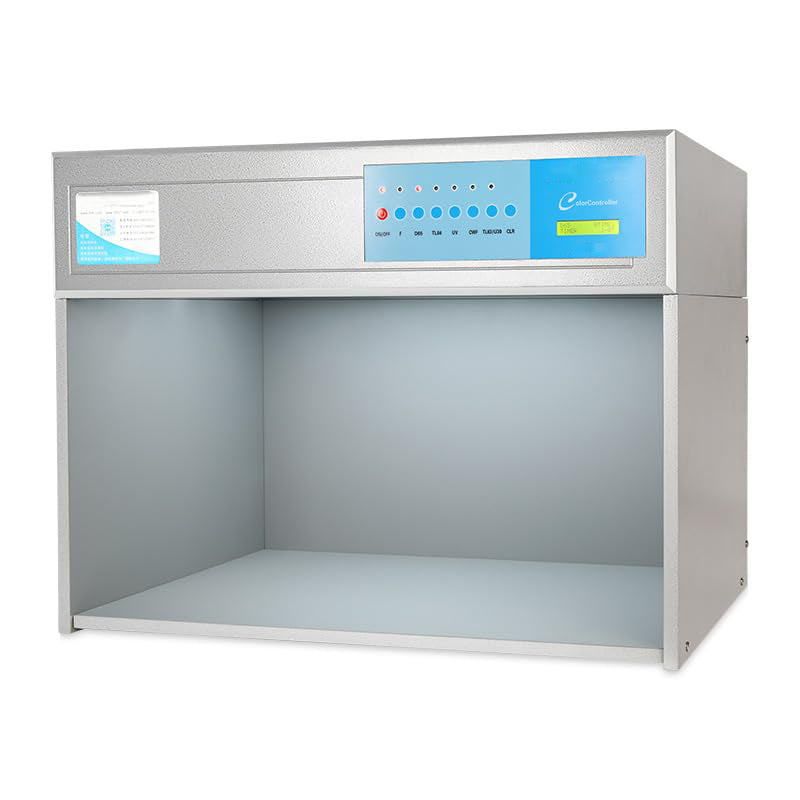

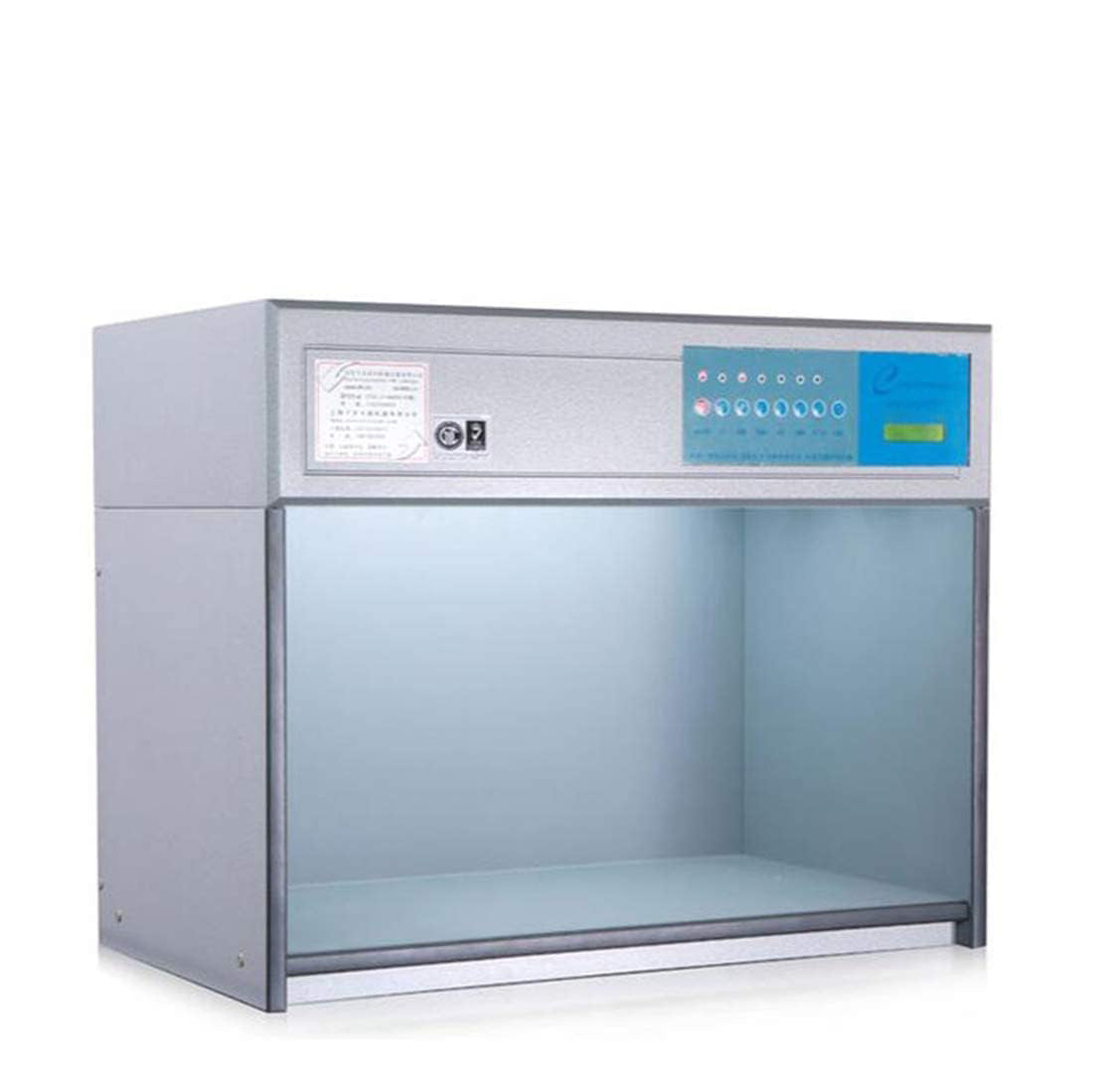

CNYST Color Viewing Light Booth 6 Color Assessment Cabinet Box with 6 Light Sources D65 TL84 F UV CWF U30 No Warm-up Time Or Flickering Meet ASTM D1729 ISO3664 DIN ANSI And BSI Standard Easy to Operate

About this item:

◆Color light box can accommodate up to 6 light sources(Configuration: D65, TL84, F, UV,CWF,U30 six light sources). Colors appear differently under different lighting sources.

◆ Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

◆ Color Viewing Cabinet render color more accurately. With 6 different light sourceswhich can detect the metamerism; Easy to operate by using individual switches for each light source.

◆ Economic power consumption and low heat generation for high light efficiency.

◆ The Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries

====This Color Assessment Cabinet has 2 Voltages for choosing 110V or 220V. By Default We will Ship According to the Voltage of Your Country.====

Product Introduction

Color light box can accommodate up to 6 light sources(Configuration: D65, TL84, F, UV,CWF,U30 six light sources). Colors appear differently under different lighting sources.

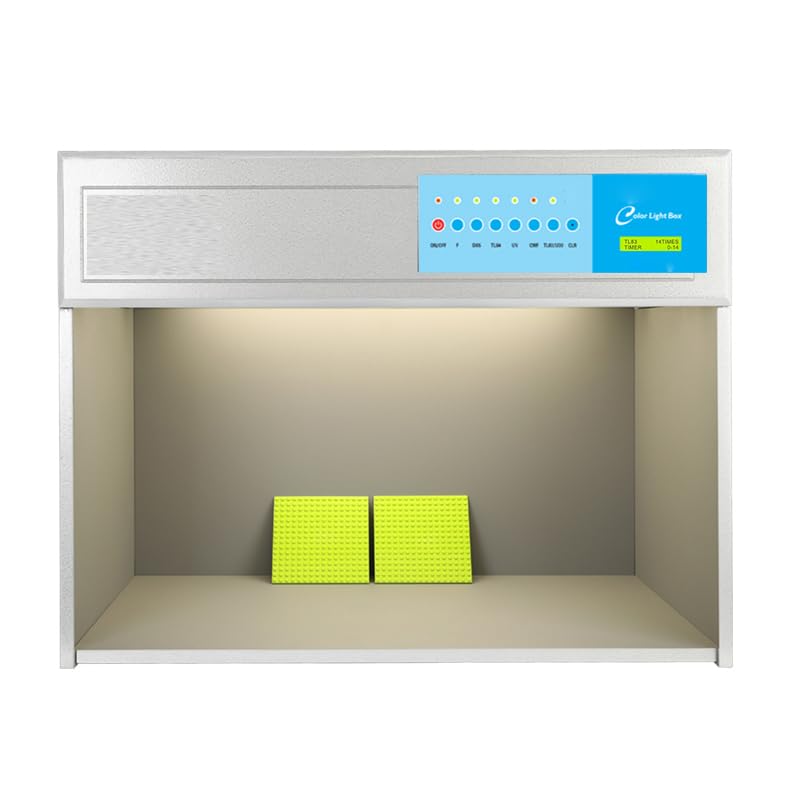

To avoid/reduce the assessment error when performing color contrast, we can make use of Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

Color matching light box Application:

The Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Color viewing box Features:

* Elapsed time meter for tracking optimal lamp replacement.

* Automatically alternating among light sources.

* No warm-up time or flickering which insures quick and reliable color judgment.

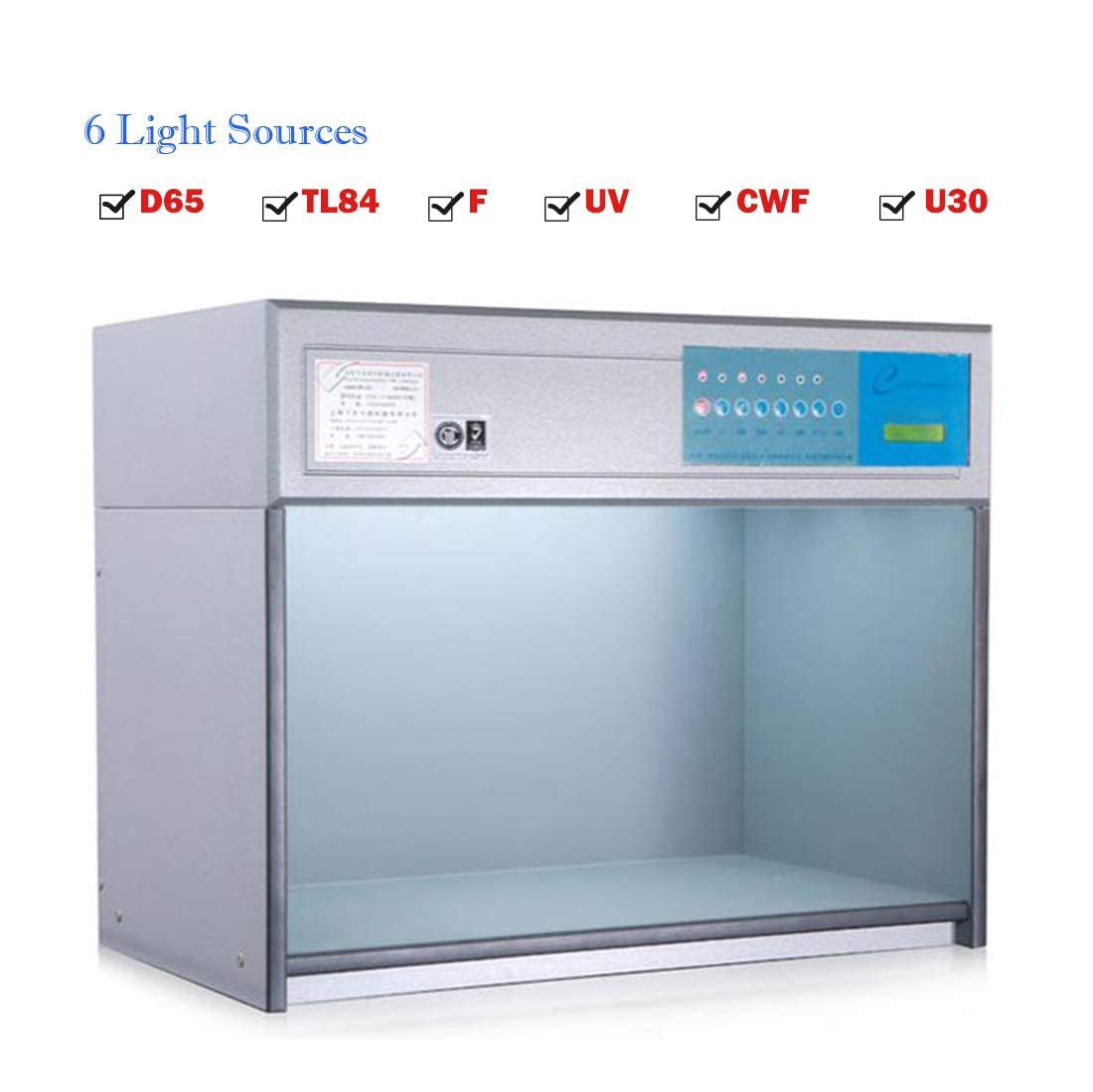

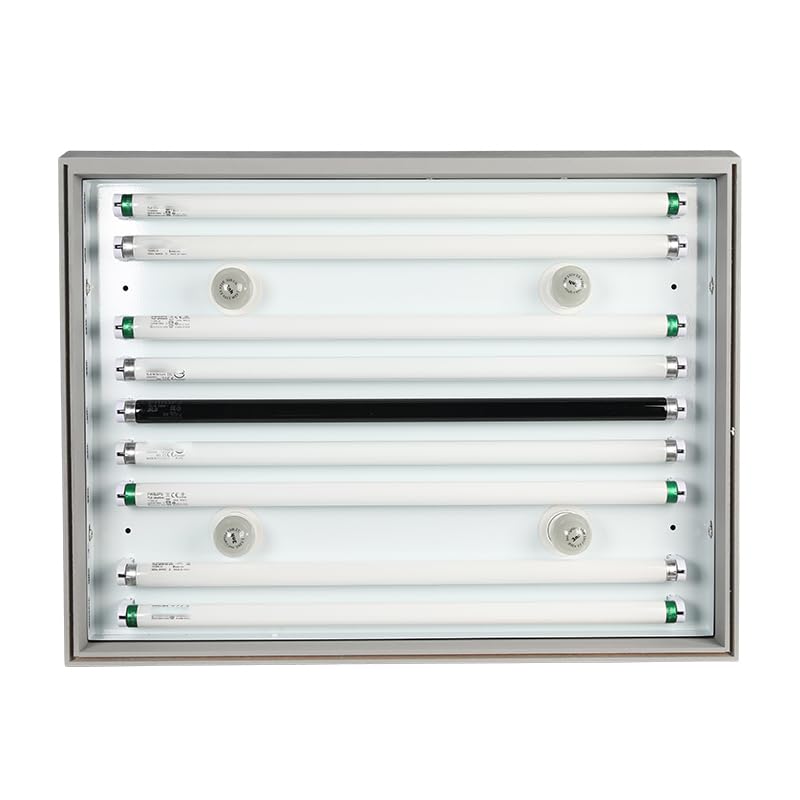

6 Light Sources:

====D65:====

International Standard Artificial Daylight with 2 pcs Lamps; Power, 18W; Color Temperature, 6500K;

====TL84:====

Applied to stores in Europe,Japan and China with 2 pcs Lamps; Power, 18W; Color Temperature, 4000K;

====UV:=====

Ultraviolet light source with 1 pcs Lamps; Power, 18W;

====F:======

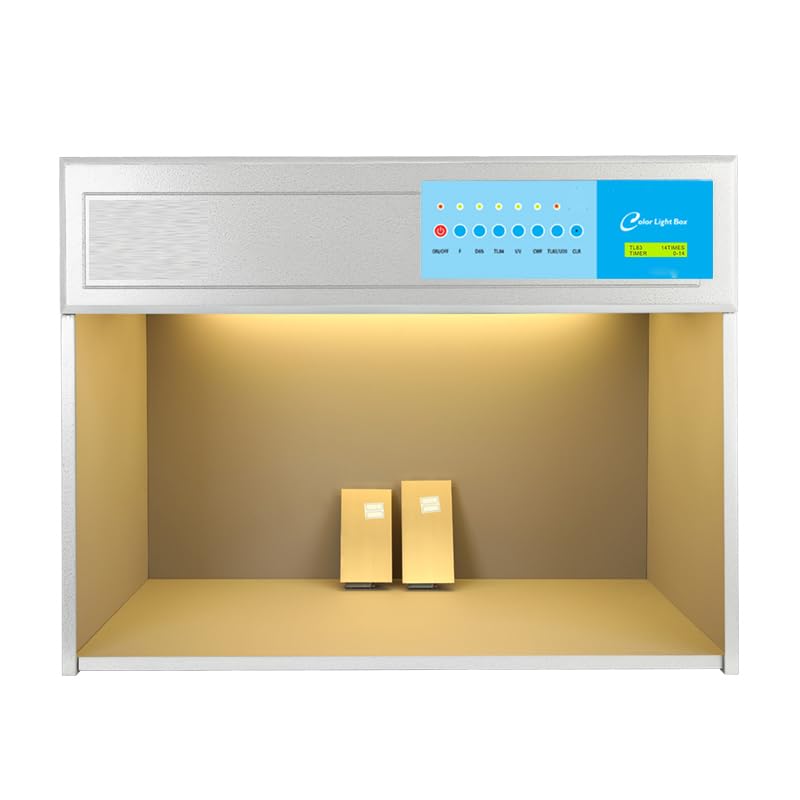

F Yellow light, "Sun-setting Light Yellow" incandescent light source(imitation of sunset) colorimetric reference source with 4 pcs Lamps; Power, 40W ; Color Temperature, 2700K;

====CWF:====

(Cool White Fluorescent)American Standard with 2 pcs Lamps; Power, 18W; Color Temperature, 4200K;

====U30:=====

Warm White Fluorescent, American store light source with 2 pcs Lamps; Power, 18W; Color Temperature, 3000K;

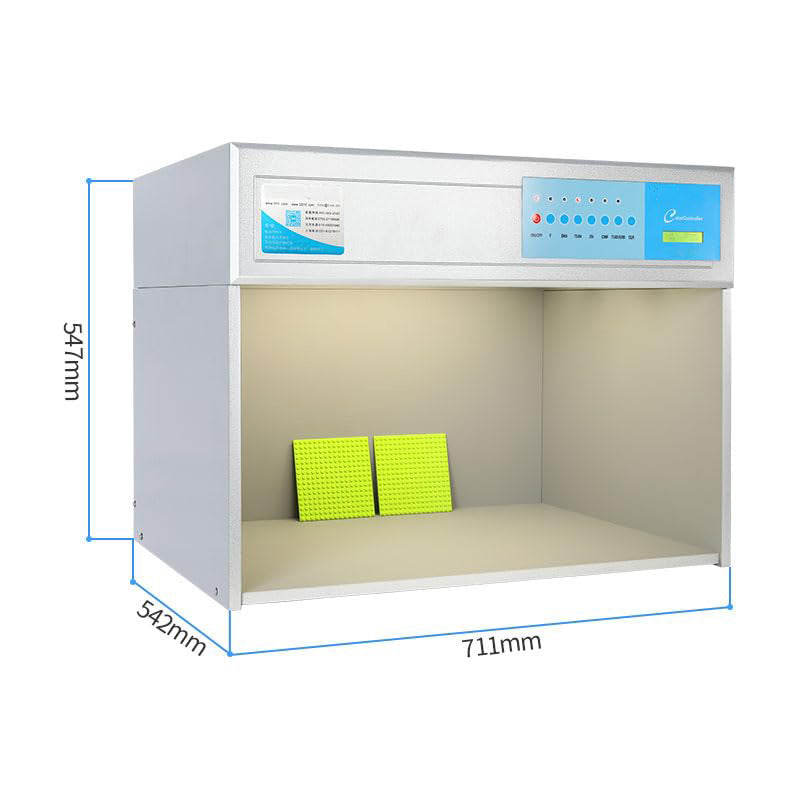

Color Assessment Cabinet External size: 710 * 530 * 570mm

Color Assessment Cabinet Internal size: 680 * 510 * 355mm

Color Assessment Cabinet Packing size: 790 * 620 * 310mm
