OVERVIEW:

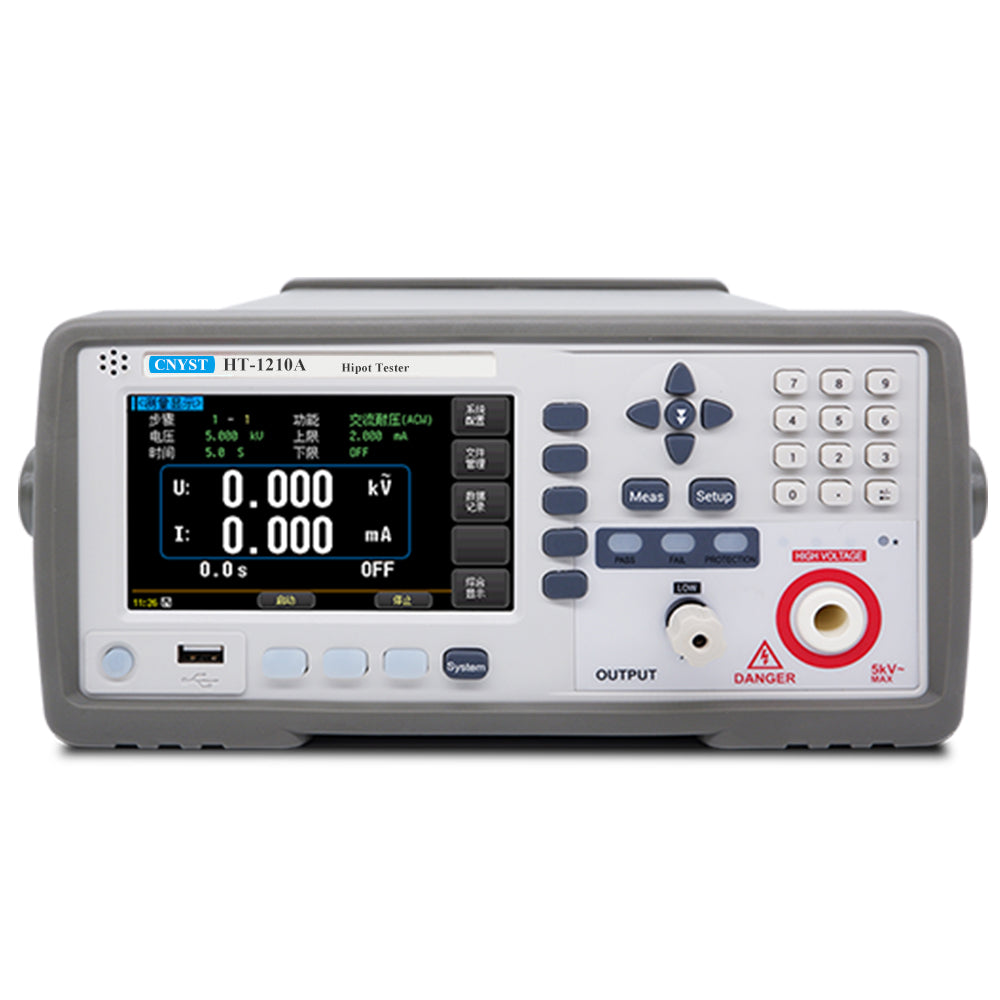

HT-1210A AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.
HT-1210A equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.
- AC：0.050kV-5.000KV
- DC: 0.050kV-6.000kV
- Touch screen +Button control
- Large screen display
- Chinese and English operation interface

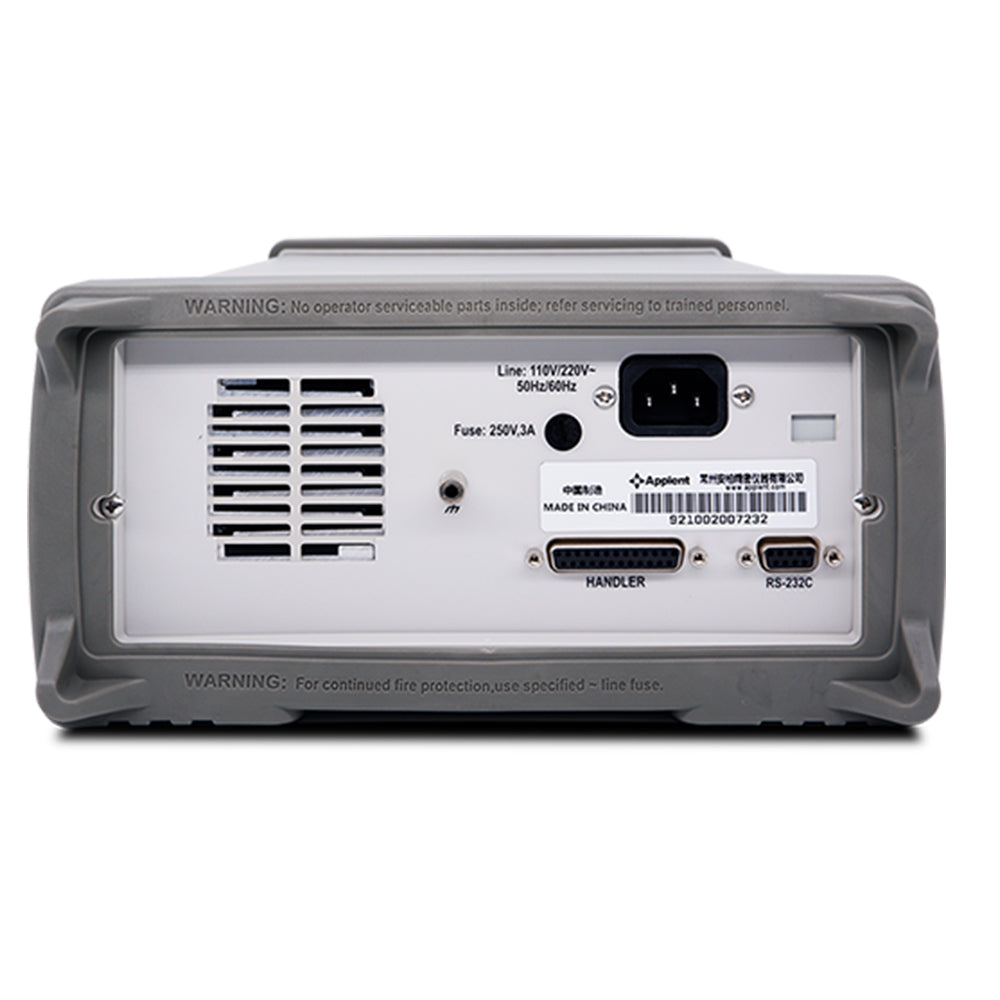

- Standard RS232, Handler interface
SPECIFICATIONS:
|
Measurement Functions |
AC/DC Withstanding Voltage |
|
Interface |
RS232/Handler |
|
Standard Configuration |
AC 5V/20mA |
|
Arc Detection |
9 Levels (AC/DC) |
|
Other Functions |
LIST Edit |
|
AC Withstand Voltage |
● |
|
Rate Ouput |
AC 5.000kV/20mA |
|
Output Voltage |
0.050kV-5.000KV AC |
|
Voltage Accuracy |
2% of reading + 5 digits |
|
Output Regulation |
2% of reading +5V |
|
Output Frequency |
50Hz/60Hz |
|
Measurement Current |
0.001mA-20.00mA |
|
Current Accuracy |
2% of reading + 5 digits |
|
Rising Time |
0.1s-999.9s |
|
Testing Time |
0.2s-999.9s |
|
Falling Time |
0.1s-999.9s |
|
DC Withstand Voltage |
● |
|
Rate Output |
DC 6kV/5mA |
|
Output Voltage |
0.050kV-6.000kV DC |
|
Voltage Accuracy |
2% of reading + 5 digits |
|
Output Regulation |
2% of reading +5V |
|
Current Measurement |
0.1μA-10.000mA |
|
Current Accuracy |
2% of reading +5 digits |
|
Rising Time |
0.1s-999.9s |
|
Testing Time |
0.2s-999.9s |
|
Falling Time |
0.1s-999.9s |
|
Power Supply |
110VAC~220VAC 47Hz~63Hz 300VA |
|
Dimension & Weight |
270mm( W )x130mm( H )x450mm ( D ) |
|

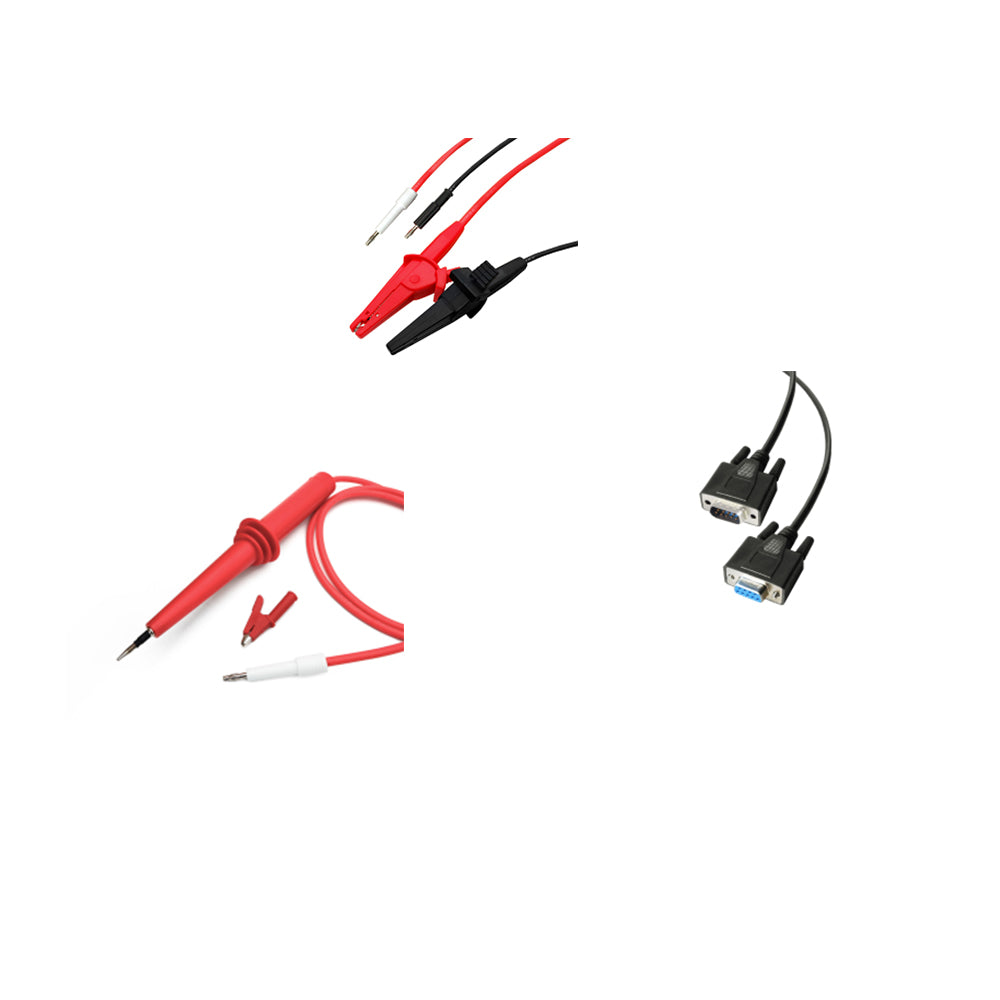

Accessories |
ATL900E-1 High voltage test rod |
-
