CNYST Digital AC/DC Magnetic Field Meter AC DC Magnetometer with DC Accuary ±1% AC Accuary ±5% Range 2mT ~ 3000 mT Relative Measurement Mode Max. Hold Function Battery Remaining Power Display Radial Probe

About this item:

● Class 1 DC: Accuary ±2% AC Accuary: ±5% ; Measuring Range 2～3000mT.

● One-touch switching between AC and DC modes.

● Magnetic field units selectable: G, mT, A/m.

● N and S indicate magnetic field polarity.

● Built-in USB port for power supply and data communication.

Introduction:

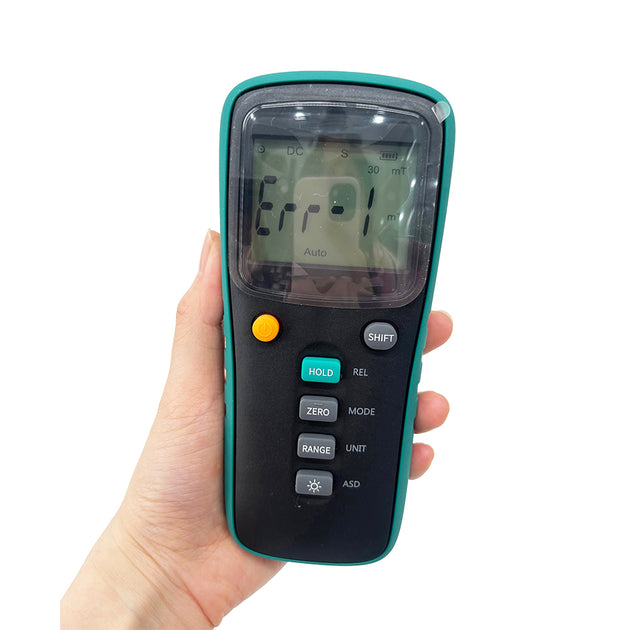

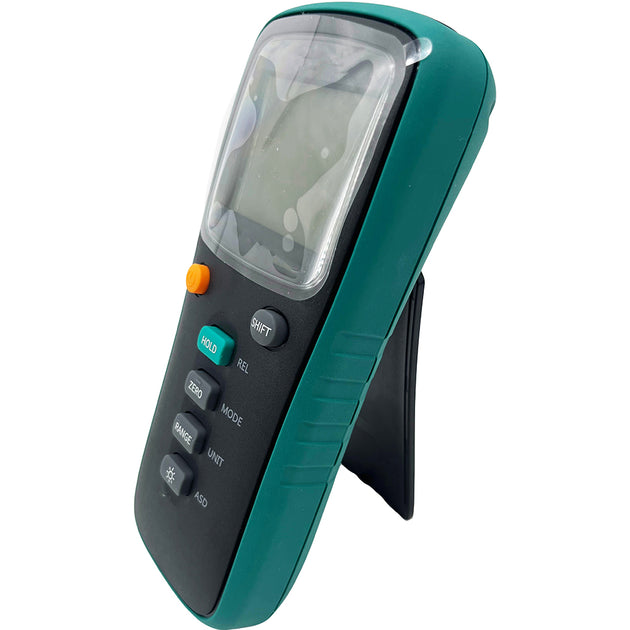

This Gaussmeter is a portable and multifunctional magnetic field measuring instrument，equipped with a Hall sensor with high sensitivity and low drift. It is applied for measuring the flux density of DC constant magnetic field and AC magnetic field.

Features:

Range: 2mT ~ 3000 mT.

Accuracy:1%.

Switching AC or DC mode

Unit switch: G, mT, A/m.

N/S polarity display.

Relative measurement mode.

Max. hold function.

Alarm of exceeding the upper / lower limit.

Supporting backlight.

Battery remaining power display.

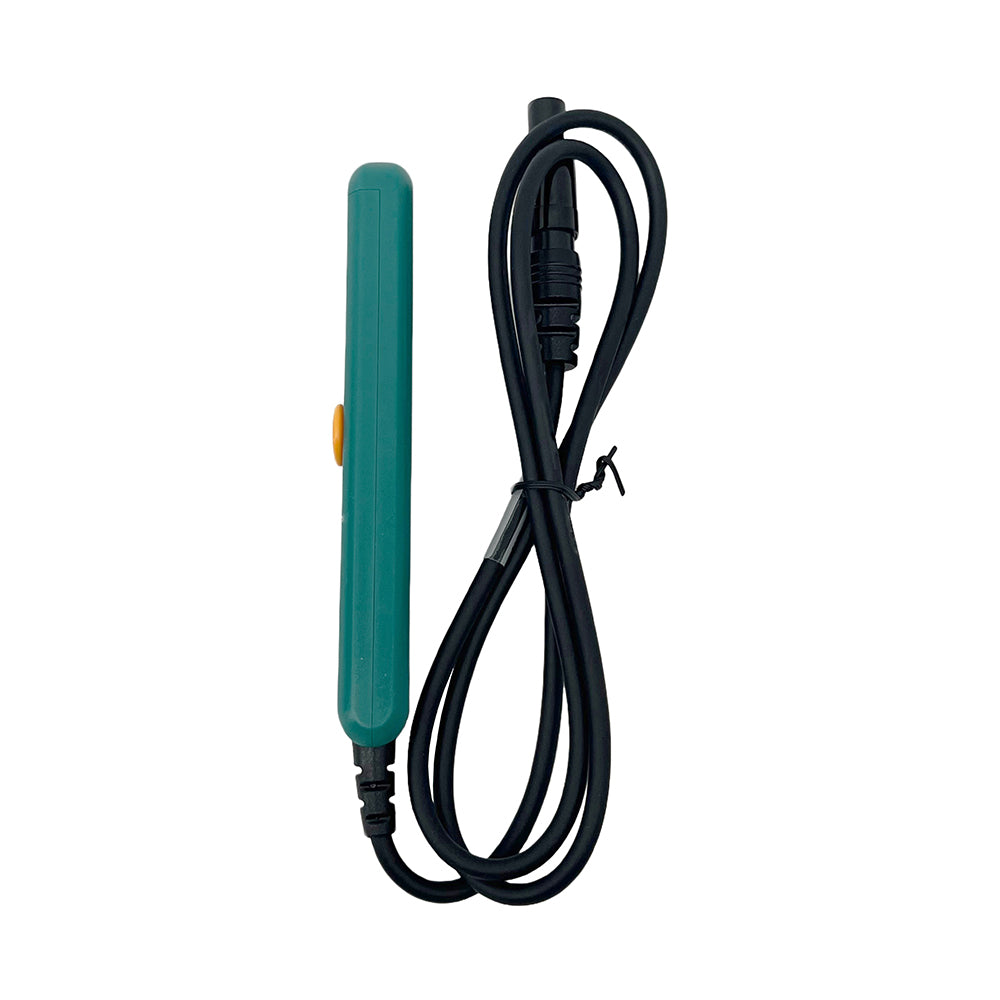

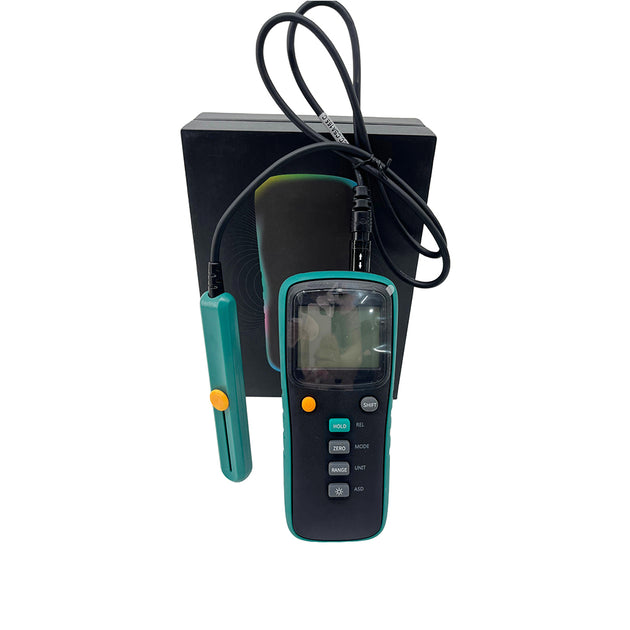

Radial probe

USB interface.

Technical Specifications:

Measuring Range : 2mT～3000mT

Range: (mT):30 Resolution (μT): 1

Range: (mT):300 Resolution (μT): 10

Range: (mT):3000 Resolution (mT): 0.1

Accuracy:Class 1 DC：±1%，AC：±5%

Frequency Range: DC，40Hz~500Hz

Temperature Coefficient: ± 0.1% / K

Zero Drift : ± 0.1 mT/h

Display Digit: 5

Remark: 1 Calibration only covers 2.5T

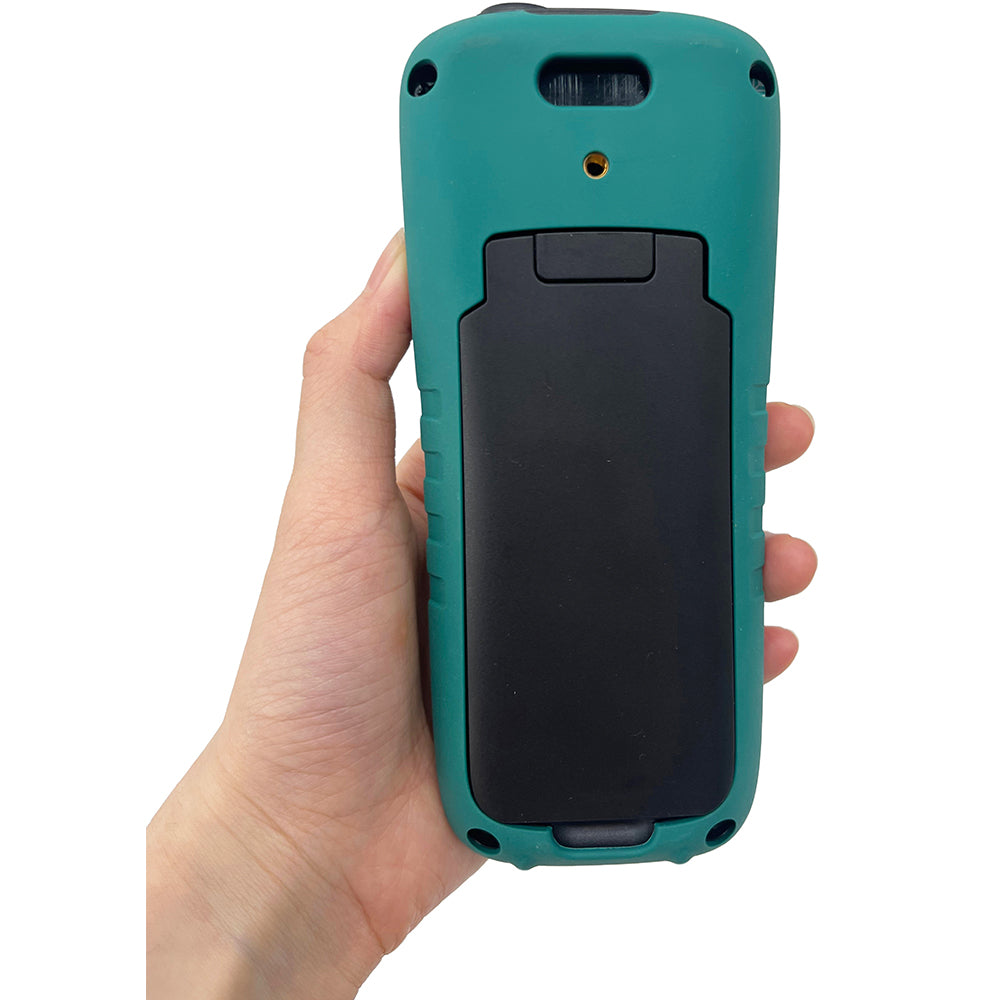

Power Supply: 3 AA batteries(NOT INCLUDED) or USB charging

Temperature Performance: Operating temperature: 0~50℃; Storage temperature: -20°C～70°C

Humidity Performance: Operating humidity: 40%～80% R·H, non-condensing； Storage humidity: <95% R·H, non-condensing

Weight About: 350 g

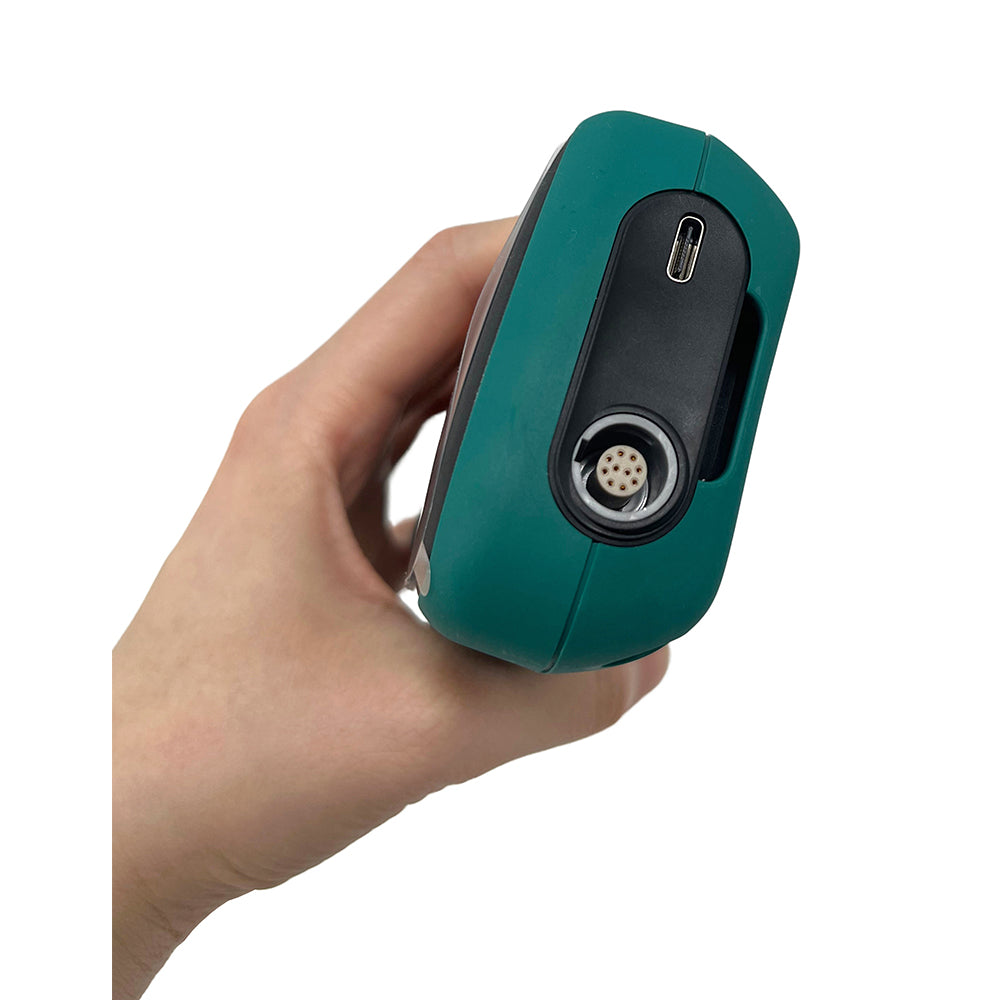

Interface: Hall probe input interface, USB interface

Overall Dimensions: 90mm(W) ×40 mm(D) × 165 mm(H)
