About this item:

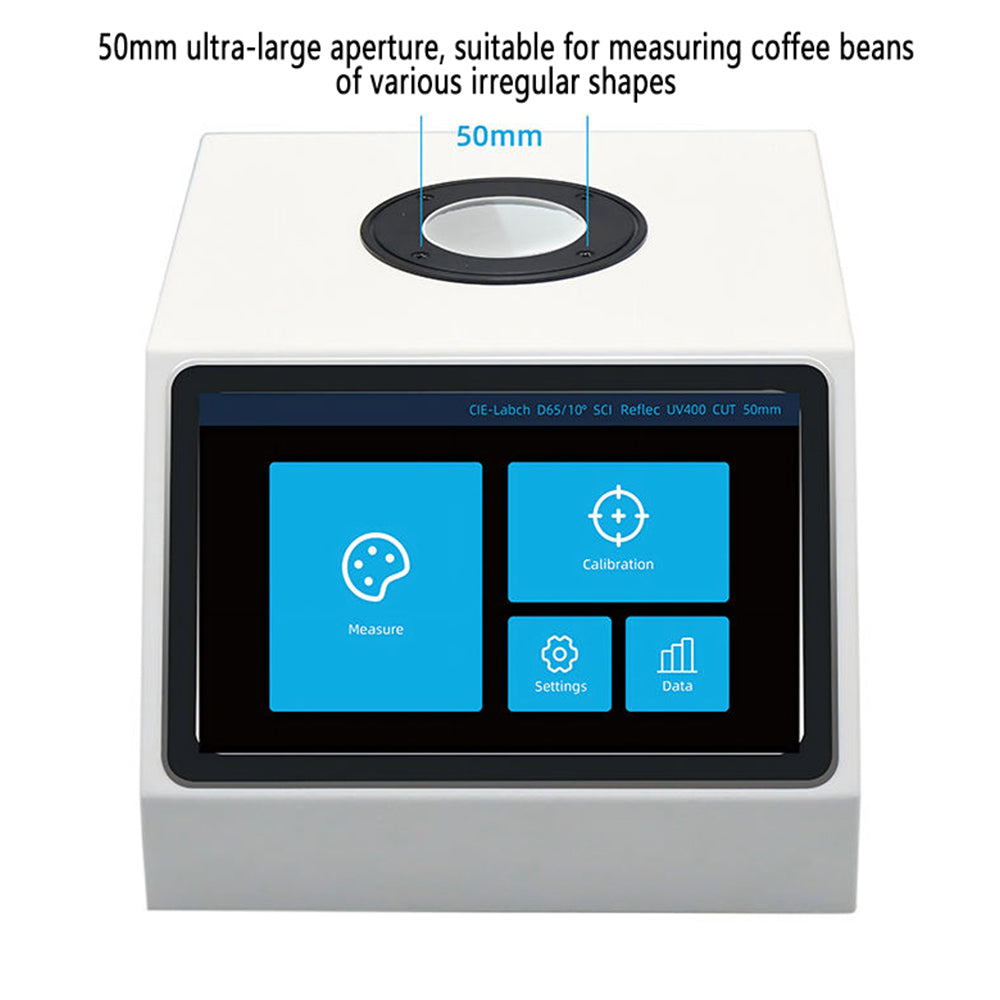

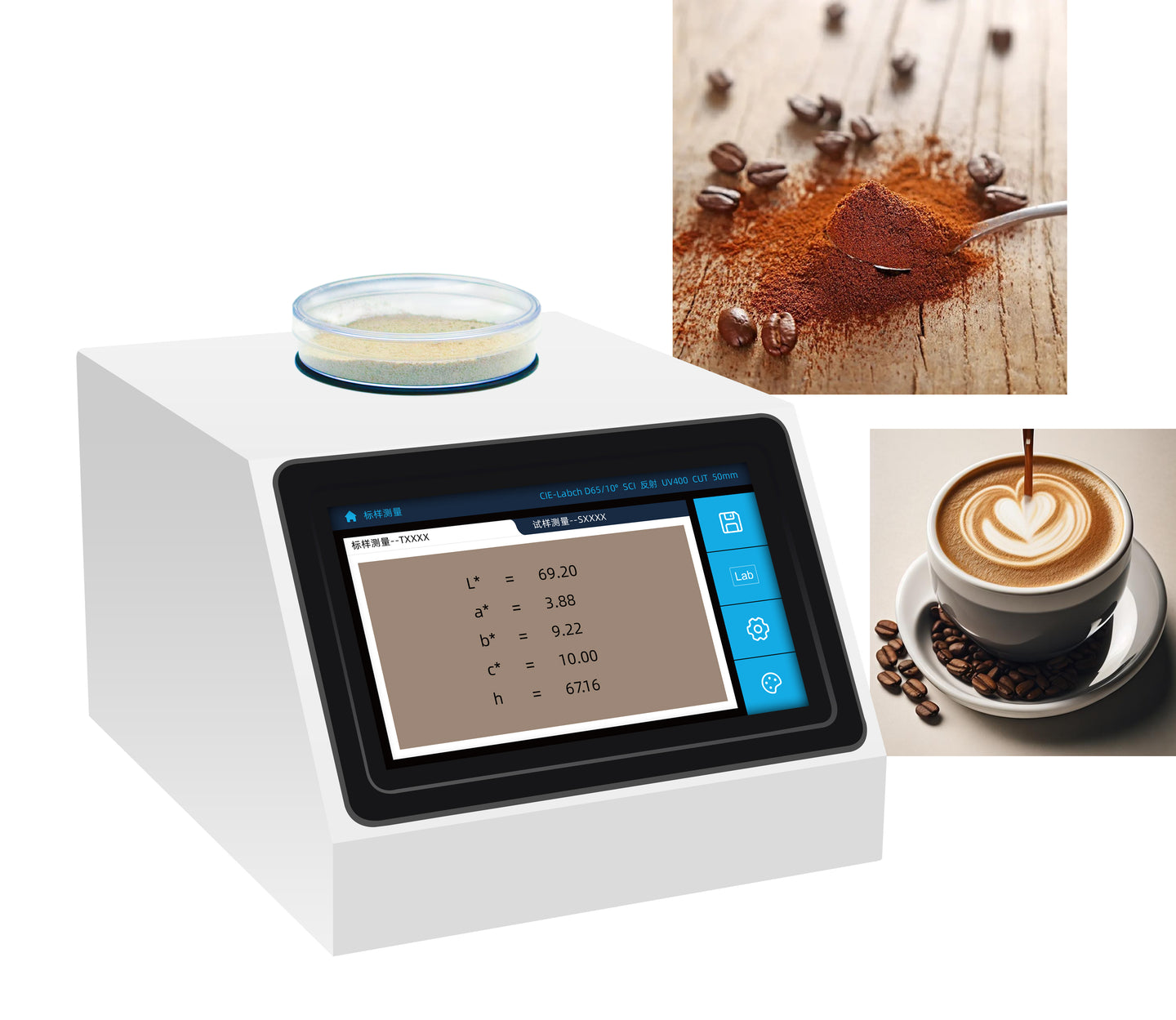

50mm ultra-large aperture, suitable for measuring coffee beans of various irregular shapes. It also be used to measure coffee liquid and coffee grounds.

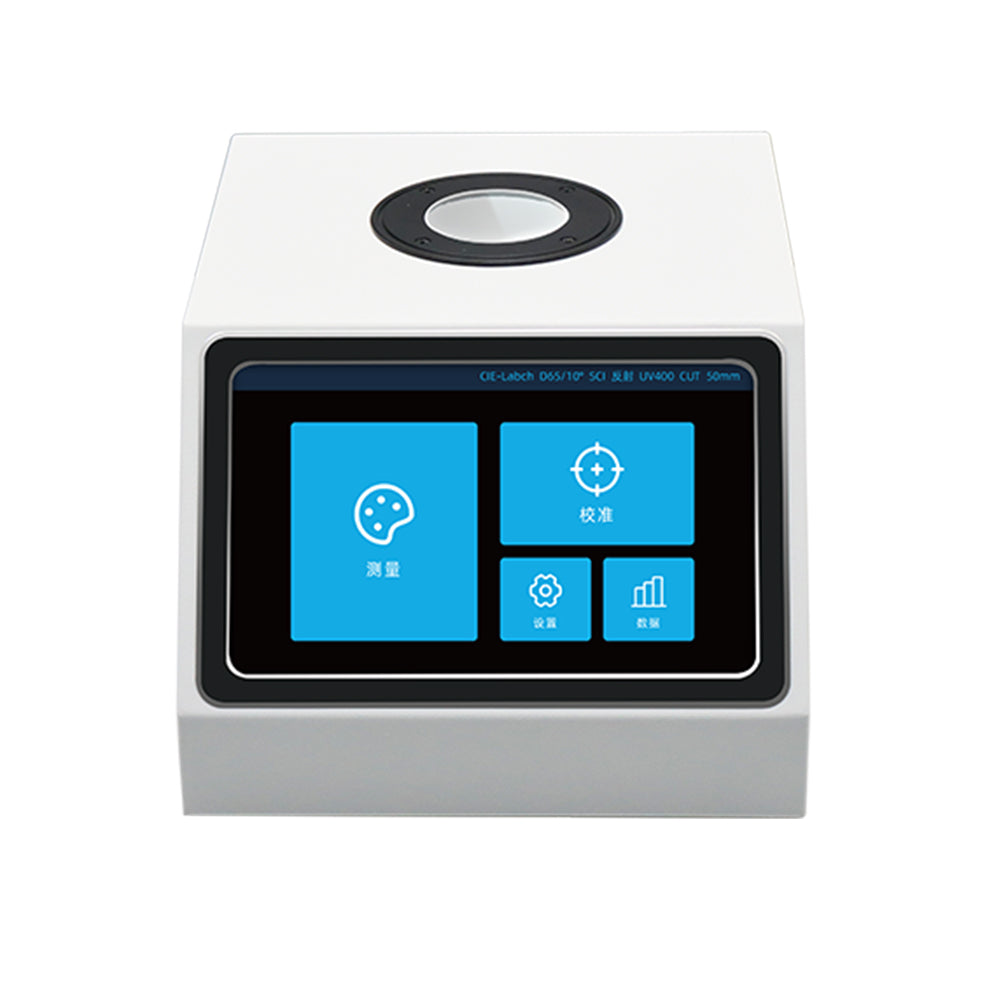

7-inch touchscreen, simple and user-friendly operation.
One-click measurement of SCAA, HCCI, and roasting degree.

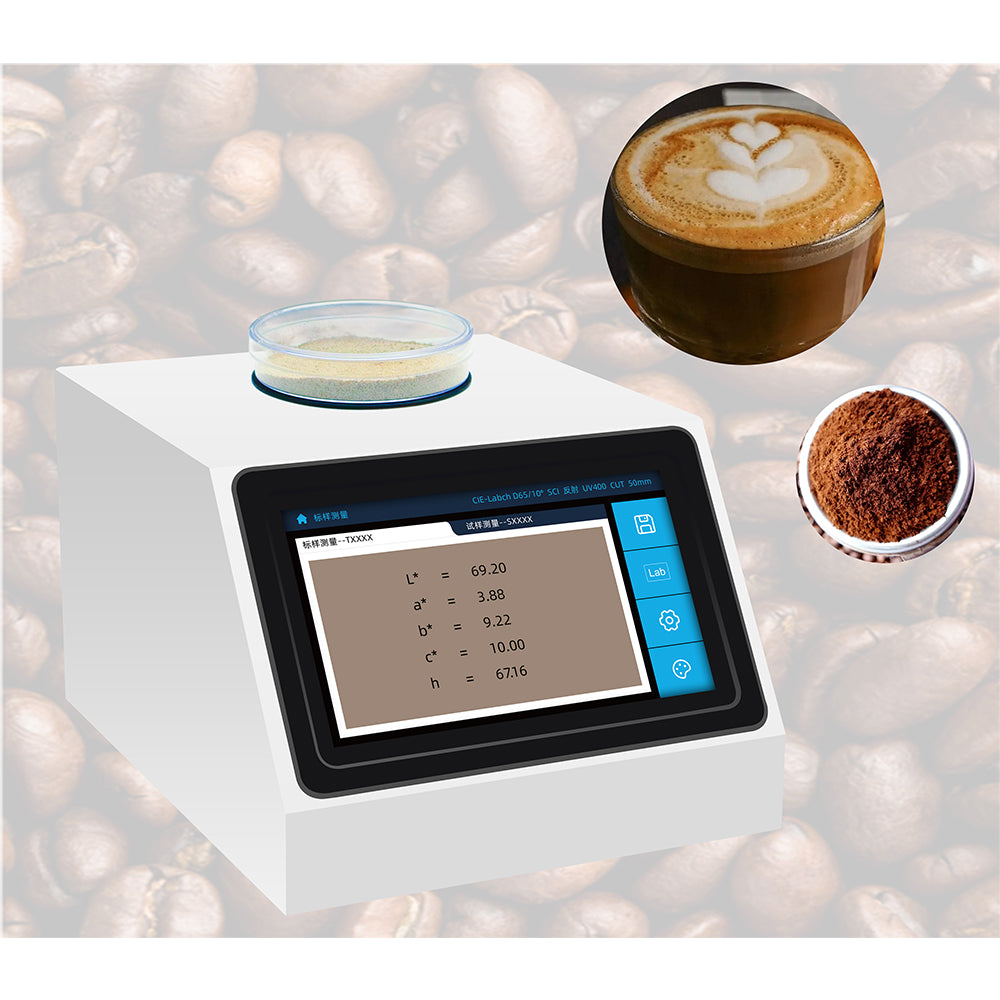

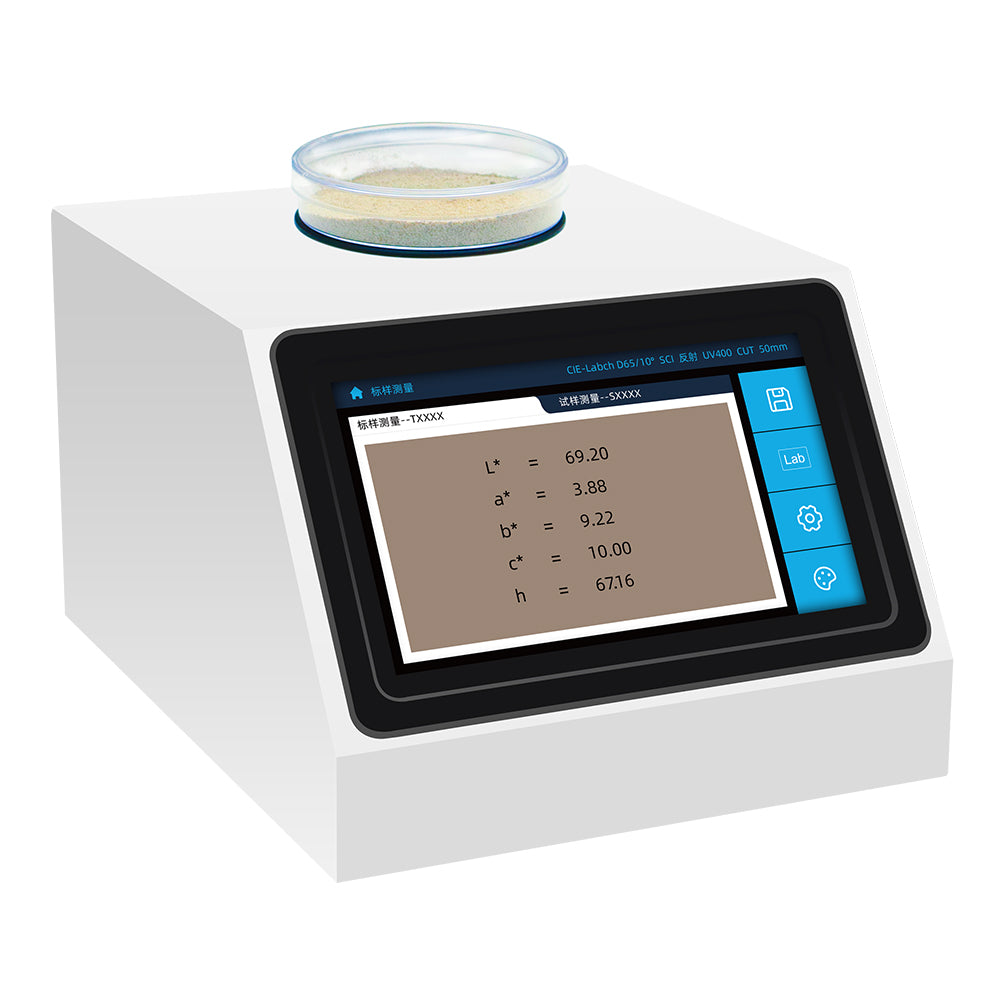

Capable of measuring color values and performing color difference comparison for coffee beans.
Features:
50mm ultra-large aperture, suitable for measuring coffee beans of various irregular shapes
7-inch touchscreen, simple and user-friendly operation
One-click measurement of SCAA, HCCI, and roasting degree
Capable of measuring color values and performing color difference comparison for coffee beans
Technical Parameters:
Illumination Method: D/8, including specular reflection light (SCI)
Integrating Sphere Diameter: 100mm
Light Source: Full-spectrum balanced LED light source
Wavelength Range:400-700nm
Reflectance Measurement Range: 0–200%, resolution 0.01%
Wavelength Interval:10nm
Measurement Aperture: 50mm
Observation Light Source: D65
Observation Light Source: 10° Standard Observer
Measurement Time: Approx. 1 second
Color Space: CIE LAB
Chromaticity Indexes: SCAA value, HCCI index, Roasting Degree
Color Difference Formula: ΔE*ab
Repeatability: Standard deviation ΔE*ab within 0.03 (Condition: after calibration and warm-up, measure the white plate 30 times at 3s intervals and take the average)
Inter-instrument Error: ΔE*ab ≤ 0.4 (Based on the average value of 12 BCRA II color tiles)
Maximum Data Storage: 10,000 records
Dimensions: 202*264*152mm
Weight: Approx. 3kg
Power Supply: 100~240V 50/60HZ
Measurement Mode: Single measurement, average measurement
Light Source Lifetime: 10 years / 2 million measurements
Display: 7-inch IPS full-view LCD screen
System Languages: Simplified Chinese, English
Data Interface: USB
Operating Temperature Range: 5–40°C, relative humidity ≤80% (at 35°C), no condensation
Storage Temperature Range: -20–45°C, relative humidity ≤80% (at 35°C), no condensation
Standard Accessorise: Petri dish, black cavity, white calibration plate, data cable, power cable
-
