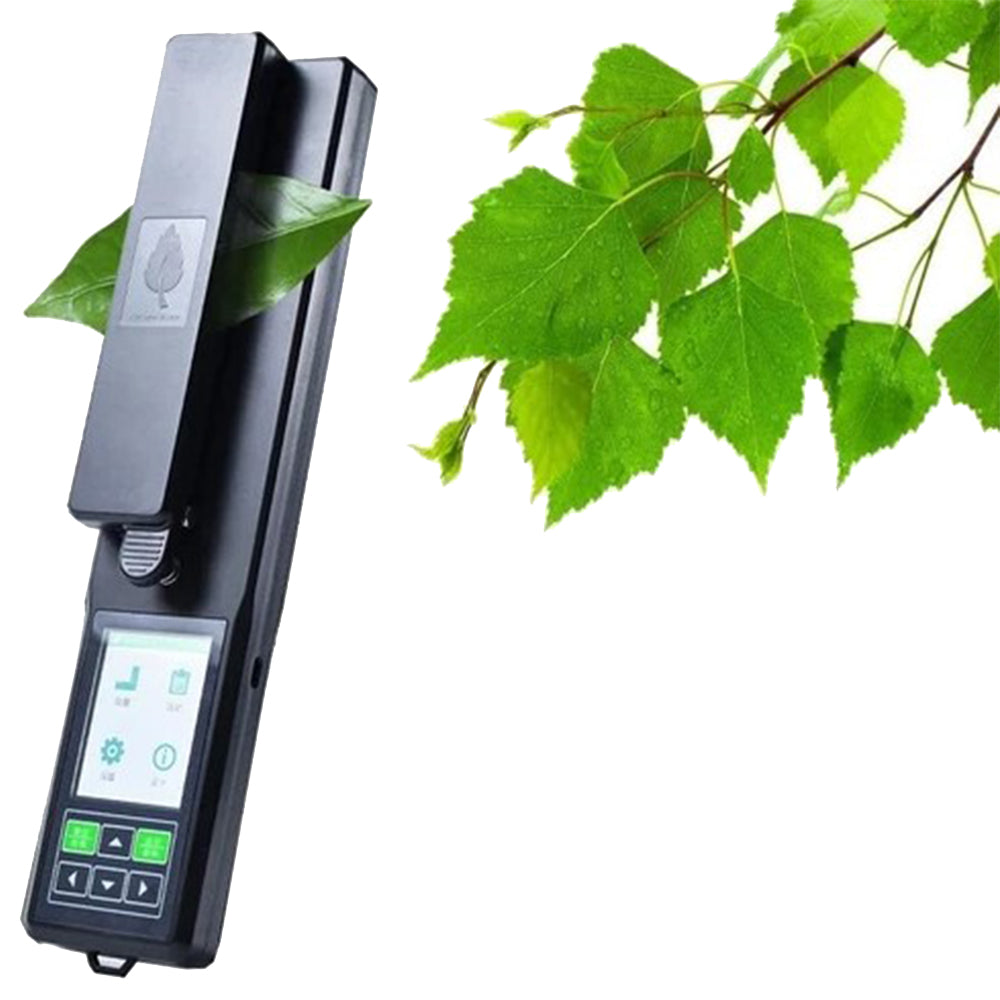

CNYST Digital Leaf Area Meter Leaf Area Meters with Length Range 0-2000mm Width Range 0-155mm Measurement Accuracy ±2% RSR232 Interface Data Can Imported into the Computer Measurement Data Recording 0 ~ 5000 Groups

About this Item：

Area unit: cm²;

 Resolution: 0.01cm²;

Measurement accuracy: ±2%;

Width range: 0-150mm;

Length range: 0～2000mm;

Data recording: 0-5000 groups

It is a portable instrument that is easy to use and can work in the field.

It can accurately, quickly and without damage to measure the leaf area and related parameters, and can also measure the area of the picked plant leaves and other sheet objects.

Widely used in agriculture, meteorology, forestry and other parts. The instrument can directly measure the length, width and area of the blade.

Communication interface: Type-C interface, which can import the data into the computer.There is a computer interface that, in addition to storing data on the host machine, can transfer data to the computer, and convert printable software to EXCEL format

Features:

It is a portable instrument that is easy to use and can work in the field.

Communication interface: Type-C interface, which can import the data into the computer.There is a computer interface that, in addition to storing data on the host machine, can transfer data to the computer, and convert printable software to EXCEL format

It can accurately, quickly and without damage to measure the leaf area and related parameters, and can also measure the area of the picked plant leaves and other sheet objects.

Widely used in agriculture, meteorology, forestry and other parts. The instrument can

directly measure the length, width and area of the blade.

integrated design of host and probe, more convenient to operate.

Using microcomputer technology, LCD large liquid crystal display.

High performance and large capacity battery, no external power supply, low voltage

display, sustainable measurement is more suitable for field measurement.

A large leaf area can be measured at one time (2000 * 155mm²)

can store 5000 sets of data (leaf area, leaf length, leaf width).

Various parameters of leaf can be measured: leaf area, average leaf area, leaf length and leaf width.

Built-in calibration module, users can calibrate according to different use environments.

Specification:

Area unit: cm²

Resolution: 0.01cm²

Measurement accuracy: ±2%

Width range: 0～155mm

Length range: 0～2000mm

Data recording: 0～5000 groups

Power supply: lithium battery (built) 3200 mA + (external replaceable) 1400 mA

host, aluminum box, data cable, charger, U disk (upper machine software, operation video, electronic manual) , Cable, specification, certificate
