CNYST Digital Spectrophotometers Horizontal Spectrophotometer with Φ11mm Φ6mm Φ3mm Caliber Measurement Repeatability DE*ab≤0.02 Full-band Balanced LED Light Source UV Light Source Display Accuracy 0.01

About this item

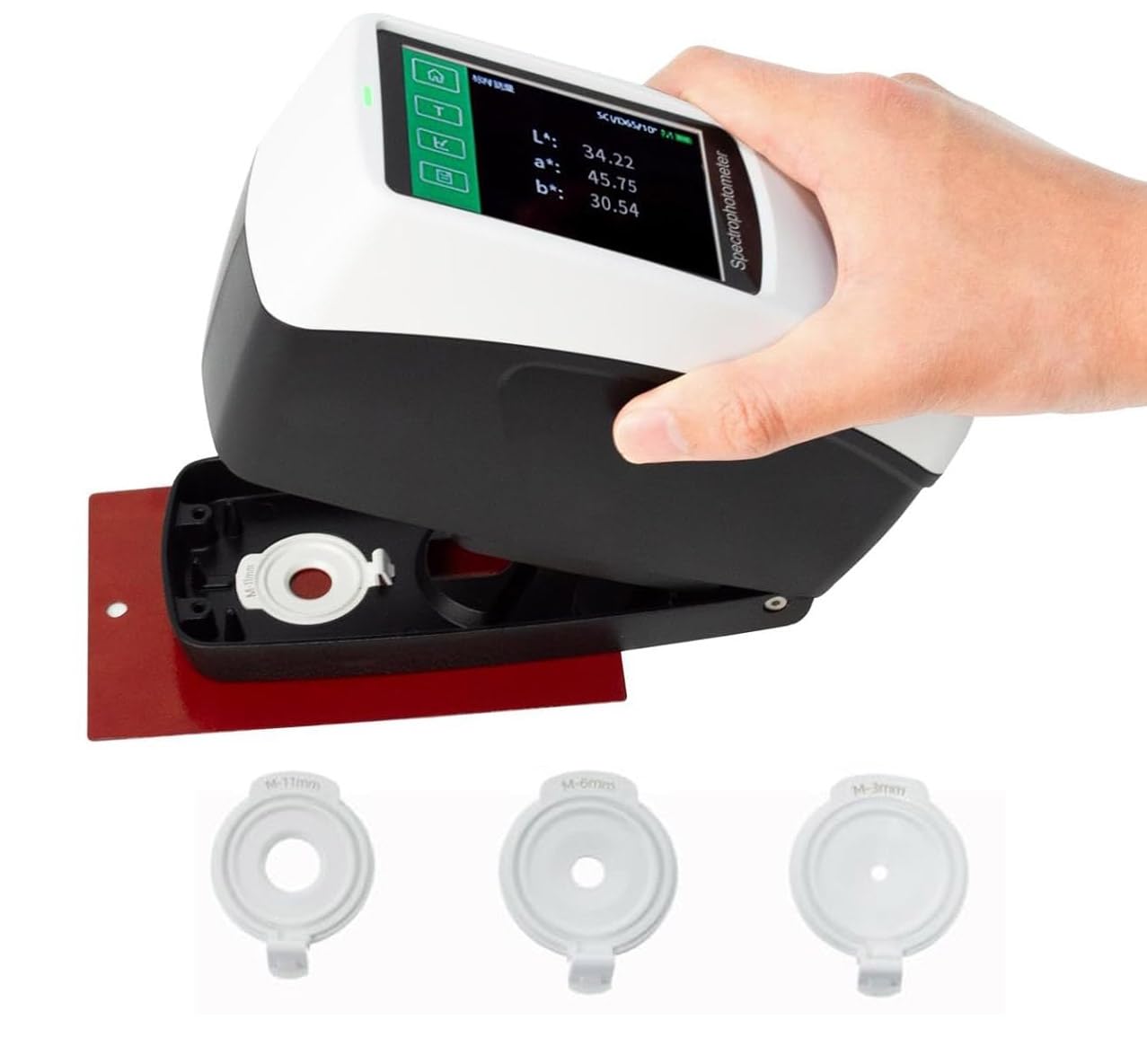

● Caliber:Φ11mm,Φ6mm,Φ3mm

● Measuring structure:D/8,SCI+SCE

● This spectrophotometric colorimeter adopts a low center of gravity horizontal design, which can be stable for the measurement of the measured surface. The measuring position can be viewed at any time during the measurement process through the observation window to avoid measuring position errors.

● The spectrophotometric colorimeter adopts high-precision nano-spectrophotometric devices, so that the repeatability accuracy of the instrument reaches the water dE*ab ≤ 0.02, which is difficult to compare with similar products.

● The spectrophotometer provides 30+ measurement indexes such as spectral reflectance, CIE-Lab, CIE-LCh, ΔE*ab, hiding power, whiteness, yellowness, etc.; and nearly 40 evaluation light sources to choose from, such as A, B, C, D50, D55, D65, etc., which include almost all the color measurement indexes and light source types in the industry.

Product features

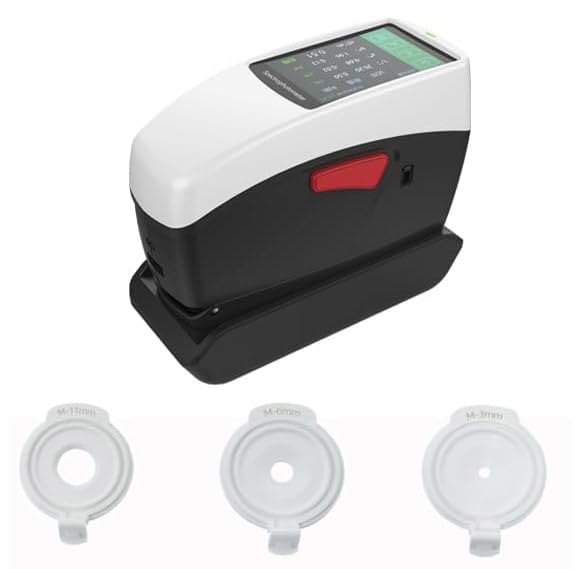

1.Horizontal compression measurement, physical positioning observation window

The spectrophotometer adopts a horizontal design with a low center of gravity, which can be stableMeasure the surface being measured. During the measurement process, you can follow the observation windowCheck the measurement position at all times to avoid measurement position errors

2.Ultra-high repeatability accuracy：dE*ab≤0.02

Repeatability accuracy is the most important indicator to describe the performance of a spectrophotometer.The spectrophotometer adoptshigh-precision nanometer spectroscopic devices, which enables the repeatability accuracy of the instrument to reach a level of dE*ab≤0.02 that is difficult to match with similar products.

3.More than 30 measurement parameters and nearly 40 evaluation light sources

The spectrophotometers provide spectral reflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power, whiteness, yellowness and other 30+ measurement indicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industries All color measurement metrics and light source types included.

4.Support WeChat applet, Android, Apple, Hongmeng, mobile APP

This series spectrophotometer can be connected to various mobile phones through rich mobile terminal programs;

Users no longer need to transfer the color value of the sample and the real object, and can easily transfer the color data through wechat;

Users can look for the closest color in multiple color cards;

Users can create a personal color database, input printing, coating, textile and other color card information, the created color library can be uploaded to the cloud, multi-device data sharing, color processing more convenient;

Enterprise users can create and manage their own color card information base and color formula in the cloud, and share the information base and color formula with their own users through a unique invitation code;

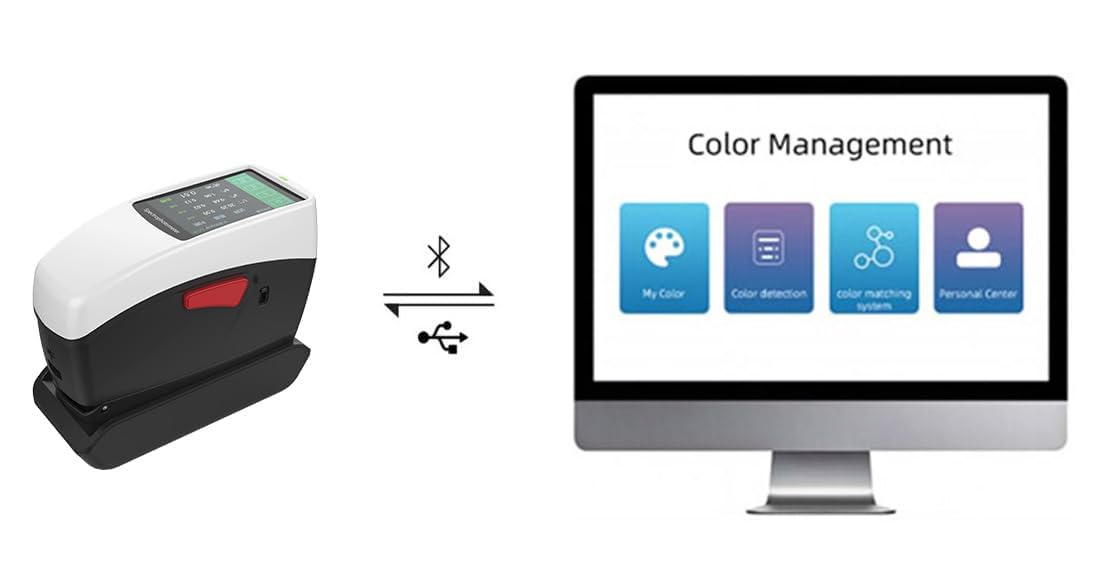

5.Use the powerful PC-side color management system ColorExpert

This Series spectrophotometer comes with the Windows color management system ColorExpert, connected to the series spectrophotometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four functional modules: My Colors, Color detection, color matching system, and Personal Center.

Technical parameter

Measuring structure:D/8,SCI+SCE

SCI+SCE simultaneous measurement:support

NetProf network calibration:/

Integrated physical positioning holes:support

Measurement repeatability:dE*ab≤0.02

Display accuracy:0.01

lighting source:Full-band balanced LED light source

UV light source:support

caliber:Φ11mm,Φ6mm,Φ3mm

measurement standard:Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTME313-00, ASTME313 -73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby) yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, color fastness, Tint (ASTM E313-00) Color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, strength (dye strength, tinting strength)

Light source conditions:A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

software support:Android, iOS, Windows, WeChat applet, Hongmeng

Accuracy guaranteed:Ensure measurement is qualified

field of view:2°，10°

follow standards:CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7

Spectral method:High-precision nano spectroscopic device

sensor:Silicon photodiode array dual 16 groups

Wavelength interval:10nm

Wavelength range:400-700nm

Reflectivity measurement range:0-200%

Reflectance resolution:0.01%

measure time:about 1 s

interface:USB, Bluetooth

Screen:Full color screen, 3.5 inches

battery capacity:Can continuously measure 8000 times on a single charge, 7.2V/3000mAh

Light source life:5 million times

language:Simplified Chinese, English

storage:Instrument: 10,000 items; APP: Mass storage
