CNYST

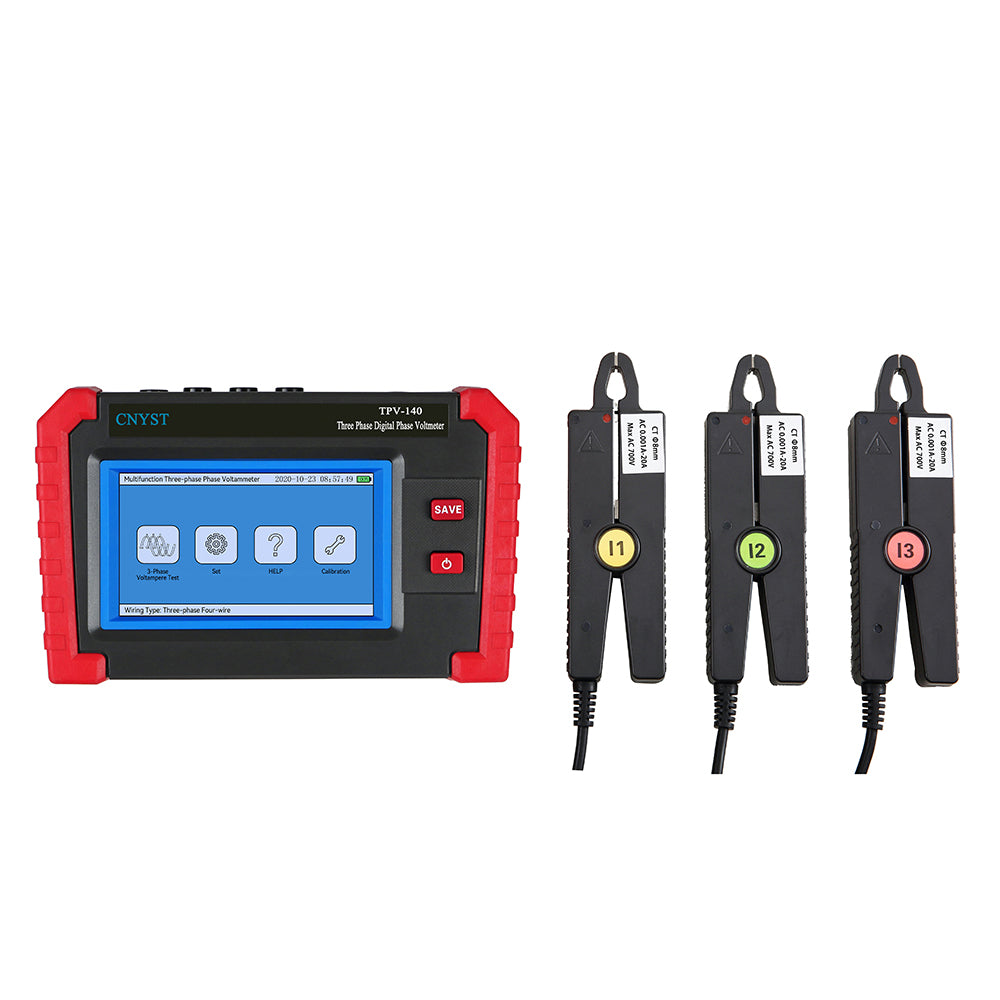

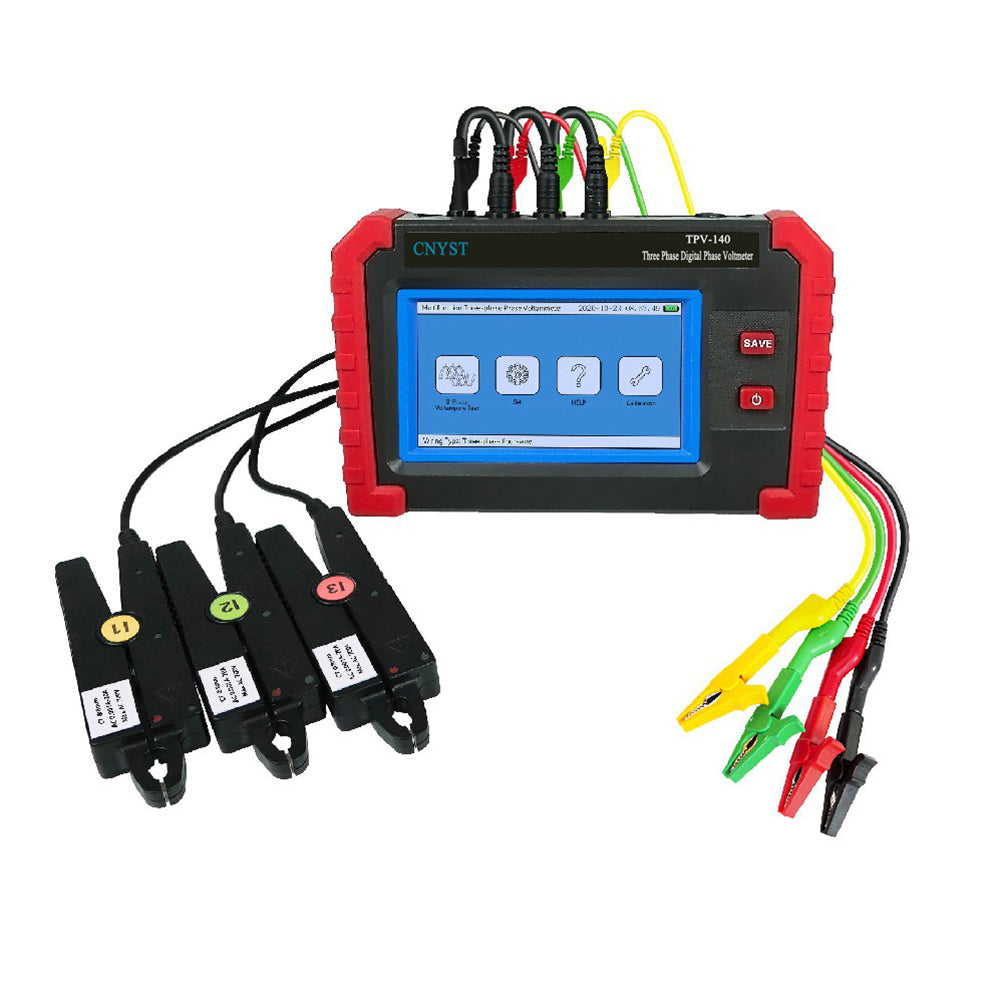

CNYST Digital Three Phase Voltmeter Multifunctional Three Phase Voltmeter with Harmonics 2 ~ 21Times Voltage Range 0V ~ 700V Current Range 0.1mA ~ 20A Frequency Range 45Hz ~ 65Hz Date Storage 1000 Groups

$945.00
$945.00

About this item

Clamp Jaw Size: Φ8mm

Voltage Range: AC 0.00V ~ 700V

Current Range: AC 0.0mA ~ 20.0A

Phase Range: 0.0° ~ 360.0°

Measure three-phase AC voltage, current, phase, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector sum, harmonics and other power parameters

Product Features:
1. High measurement accuracy, voltage and current accuracy of 0.3; phase accuracy of ±0.3°.

2. Single-phase, two-phase, and three-phase measurement modes are available; three-phase four-wire system and three-phase three-wire system measurement modes.

3. Analyze and measure the harmonics of voltage and current within 21 times.

4. The surveying personnel only need to connect the wiring to operate, the instrument automatically measures, and the data is updated in real time to facilitate on-site analysis.

5. The instrument adopts complete isolation technology to avoid safety accidents.

6. Touch color screen, Chinese interface, easy and fast operation.

7. Storage function, 1000 sets of data storage.

8. USB communication interface.

9. Rechargeable lithium battery.

Technical Specifications

Specification Name Parameters
Power Supply DC 7.4V 5200mAh rechargeable lithium battery
Display Mode 5 inch touch color screen
LCD Size 108mm x 65mm
Function Options Touch screen selection
Voltage Range 0V ~ 700V
Current Range 0.1mA ~ 20A
Phase Range 0° ~ 360°
Frequency Range 45Hz ~ 65Hz
Power Range 0W ~ 14000W
Power Factor - 1.000 ~ 1.000
Harmonics 2 ~ 21 times
Host Size 210mm x 129mm x 68mm
Weight Host: about 876g (include battery); current clamp: about 168g×3; total weight: about 4.13kg (include accessories)

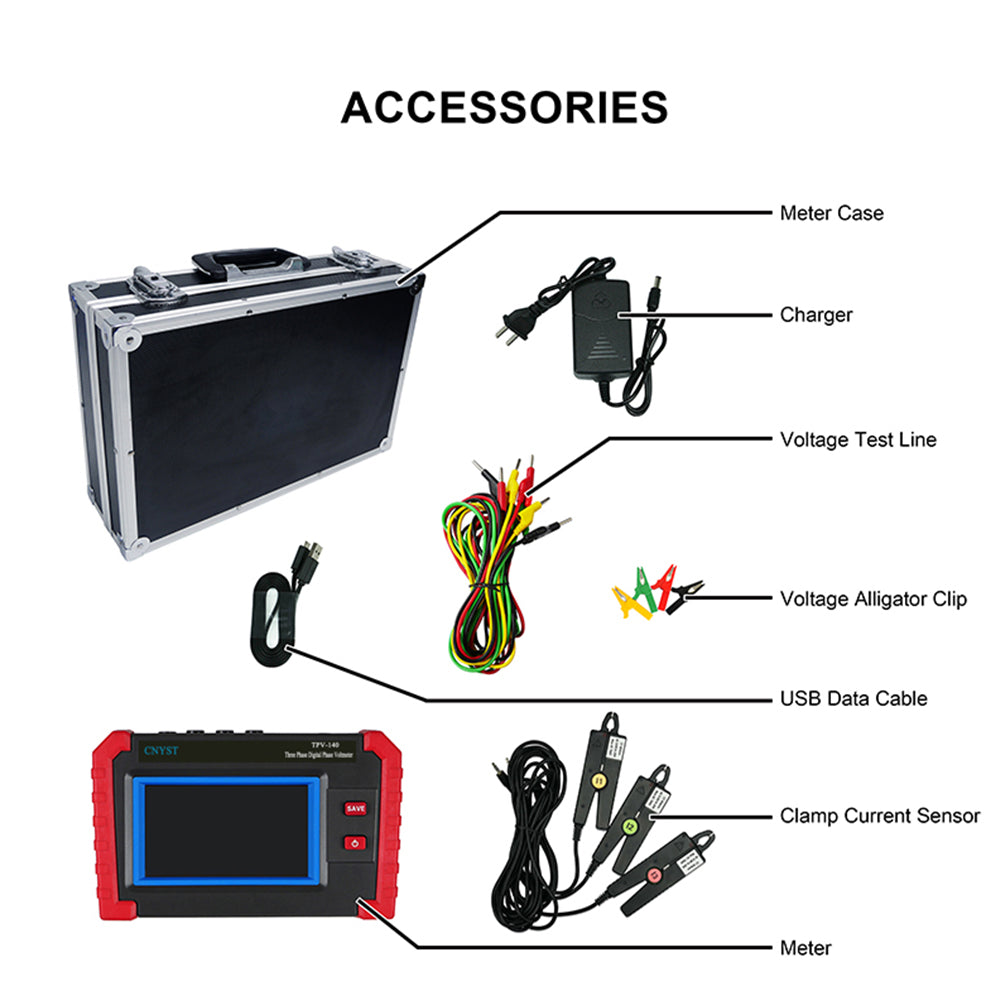

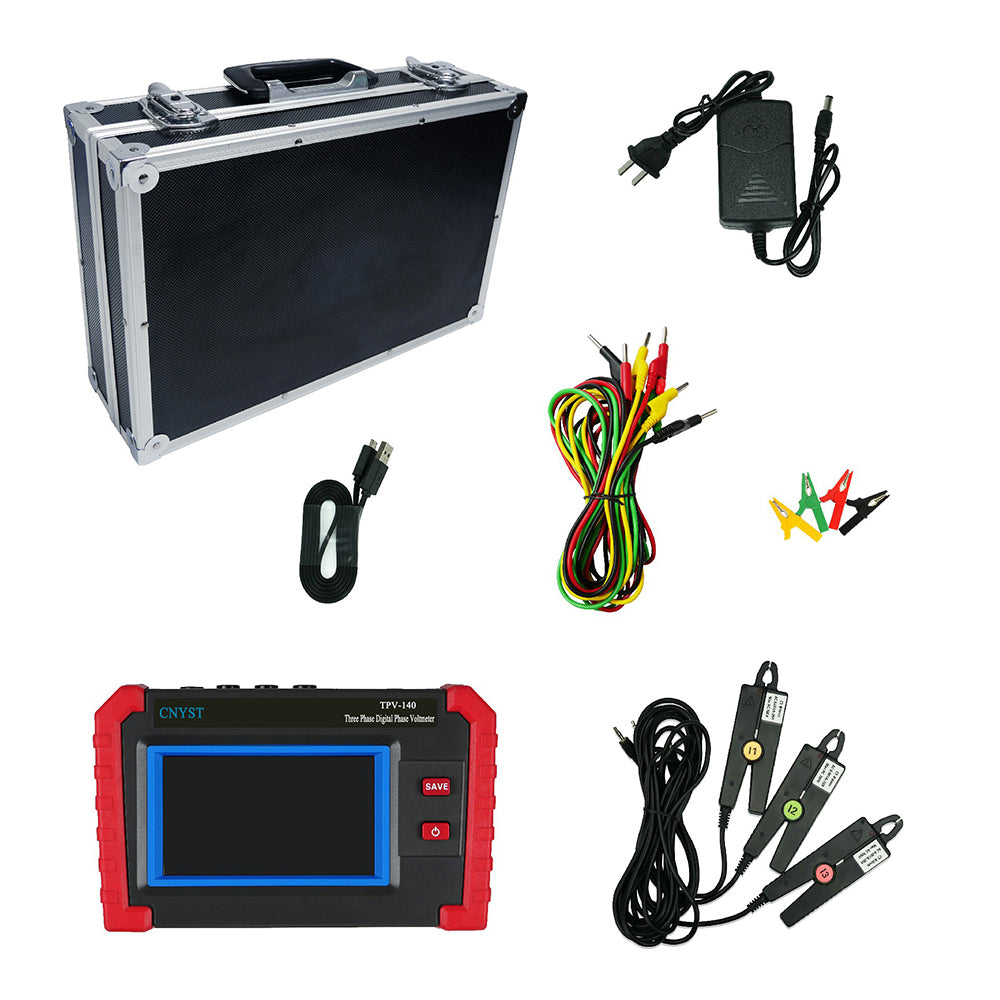

Test Line Yellow, green, red, and black voltage test lines, 1 PCS each
Clamp Jaw Size Φ8mm
Date Storage 1000 groups
Data Access Yes
Data Upload USB interface, test record data is uploaded to the computer, and can be exported to Excel format.
Battery Voltage The battery level indicator is displayed, and the battery voltage is reminded to charge in time when it is below 10%.
Automatic Shutdown Automatically shut down without operation for 15 minutes after turning on, and remind to shut down before turning off
Working Time When fully charged, the continuous working time is about 12 hours
Power Consumption Work (backlight is 50): 320mA
Input Impedance The input impedance of the test voltage is: 1MΩ
Withstand Voltage The sine wave AC voltage of 1000V/50Hz is tolerated between the instrument line and the housing for 1 minute
Insulation ≥100MW between the instrument circuit and the sheathed housing
Structure Double insulation, with insulated anti-vibration sheath
Suitable Safety Standard IEC61010-1 CAT Ⅲ600V, IEC61010-031, IEC61326, pollution level 2
Working Conditions Temperature: - 20 ~ 50℃, relative humidity: 0 ~ 95% HR non-condensing
Storage Conditions Temperature: - 30 ~ 60℃, relative humidity: 0 ~ 75% HR
