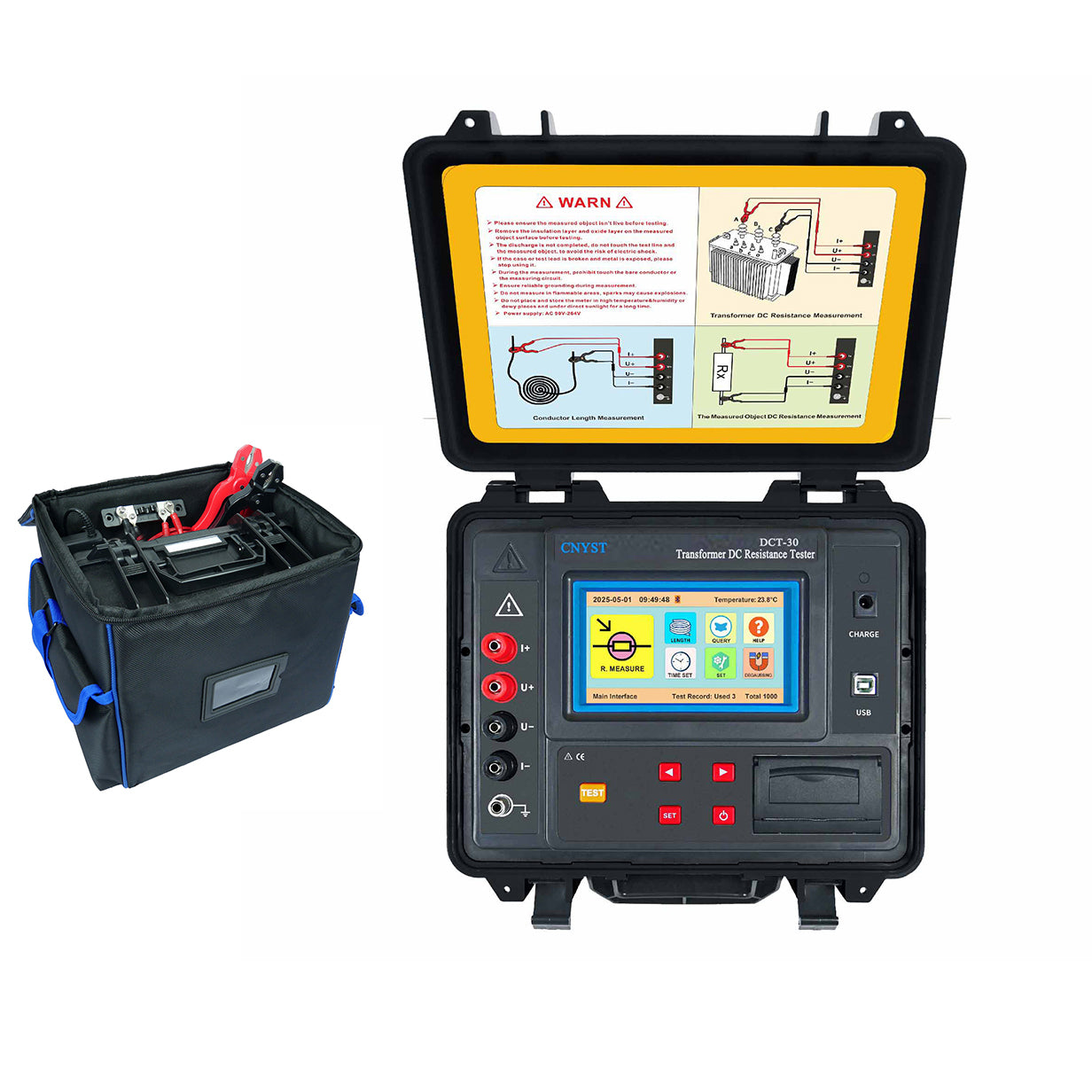

CNYST Digital Transformer Winding DC Resistance Tester Transformer DC Resistance Meter with Resistance Clock Function Test Current Range Auto 10A 5A 1A 200mA 10mA Resistance Measurement Range 0.100mΩ ~ 50.00kΩ

$1,125.00
$1,125.00

About this item:

Resistance Range: 0.100mΩ ~ 50.00kΩ; Test Current Range: AUTO, 10A, 5A, 1A, 200mA, 10mA

The max. test current is 10A with fast speeds and high accuracy.

Has a quick demagnetization function, users do not need to demagnetize it after testing.

With a built-in printer for printing measurement results on-site.Bluetooth Communication: After installing the APP, you can view the test results on your mobile phone.

Transformer DC Resistance Tester is also known as transformer winding tester, DC resistance tester, which is used to quickly measure the DC resistance of various transformer windings. DC resistance is a must-test item for semi-finished and finished product factory testing, installation, handover testing and preventive testing in the power department during transformer manufacturing. The instrument can effectively detect manufacturing defects of the transformer coil such as material selection, welding, loose connection parts, missing strands, broken wires, and hidden dangers after operation.

Product Introduction



  • Transformer DC Resistance Tester is also known as transformer winding tester, DC resistance tester, which is used to quickly measure the DC resistance of various transformer windings. DC resistance is a must-test item for semi-finished and finished product factory testing, installation, handover testing and preventive testing in the power department during transformer manufacturing. The instrument can effectively detect manufacturing defects of the transformer coil such as material selection, welding, loose connection parts, missing strands, broken wires, and hidden dangers after operation.
  • Transformer DC Resistance Tester is consist of host, test line, USB communication cable, etc. The tester adopts microprocessor technology and measurement with precision 4-wire method. The maximum test current is 10A, featuring fast testing speed, wide measurement range, high precision, resolution of 1uΩ, and accurate and reliable measurement. The instrument has two measurement modes: automatic and manual measurement. The instrument adopt with fast automatic demagnetization technology, users do not need to demagnetize after testing.
  • The instrument has the function of 75℃ conversion resistance calculation, which can compensation and conversion according to the temperature and material of the tested object. The instrument adopt with 5-inch full-colorful high-resolution touch screen, which with backlight adjustment function, clearly visible under strong light. The tester also equipped with large capacity lithium battery and built-in printer, Bluetooth communication, and USB interface. The tester also has function such as automatic discharge, alarm, clock and so on. It is an ideal instrument for quickly measuring the transformer DC resistance.



Product Features



  • The tester equipped with large capacity lithium battery, which is particularly suitable for testing the DC resistance of transformers outdoors.
  • Two measurement modes: automatic measurement mode and manual measurement mode.
  • The max. test current is 10A with fast speeds and high accuracy.
  • Has a quick demagnetization function, users do not need to demagnetize it after testing.
  • Has discharge function that automatically discharges after testing. The discharge indication is clear to avoid misoperation.
  • With a 75°C conversion resistance function to compensate and convert the temperature and material of the test sample.
  • Alarm Function: Custom resistance alarm threshold.
  • Adopt 5-inch true-color LCD touchscreen so that support touchscreen and push-button operation.
  • Features an instructional button to help users quickly master operation method.
  • With a built-in printer for printing measurement results on-site.
  • Bluetooth Communication: After installing the APP, you can view the test results on your mobile phone.
  • The instrument is equipped with USB interface and an upper computer software. It can communicate with a computer, download the recorded data for management, analysis and printing.



Technical Parameters

Measurement Range & Accuracy



  • Test Current Range:Automatic ; Resistance Range:0.100mΩ～50.00kΩ ; Resolution:1uΩ ; Accurary:± 0.2% ± 5dgt
  • Test Current Range:10A ; Resistance Range:0.100mΩ～0.600Ω ; Resolution:1uΩ ; Accurary:± 0.2% ± 5dgt
  • Test Current Range:5A ; Resistance Range:0.0mΩ～1.200Ω ; Resolution:0.1mΩ ; Accurary:± 0.2% ± 5dgt
  • Test Current Range:1A ; Resistance Range:0mΩ～6.00Ω ; Resolution:1mΩ ; Accurary:± 0.2% ± 5dgt
  • Test Current Range:200mA ; Resistance Range:0.0Ω～30.0Ω ; Resolution:0.1Ω ; Accurary:± 0.2% ± 5dgt
  • Test Current Range:10mA ; Resistance Range:0.00kΩ～50.00kΩ ; Resolution:10Ω ; Accurary:± 0.2% ± 2dgt

Technical Specification

Functions For measuring transformer winding resistance and conductor DC resistance.
Power Supply DC 16.8V 2600mAh rechargeable lithium battery
Display mode 5-inch true-color LCD touchscreen, 480 x 854 resolution
Test Method Precision four-wire method, 2 channel A/D simultaneous detection.
Test Mode Automatic, manual.
Resistance Measurement Range 0.100mΩ ~ 50.00kΩ
Test Current Range Auto, 10A, 5A, 1A, 200mA, 10mA
Wire Length Test L: ≤ 9999m
Standard Wire Length Setting range: 1m ~ 200m
Temperature Measurement Range - 55°C ~ 125°C
Temperature Accuracy ± 0.5°C
Measurement Time AD sampling rate: 1 second/time
Alarm Setting Range: 1mΩ ~ 30Ω; 0Ω disables the alarm function.
Alarm Prompt A buzzer sounds when the test value exceeds the set alarm value.
Overflow Indication Overrange overflow function: Digital 999kΩ over-limit display.
Data Storage 1000 groups (data is not lost during power failure or battery replacement).
Data Hold Automatically displays the measured results after each test.
Clock Function 24-hour format, displays hours, minutes, and seconds.
Degaussing Function Yes.
Conversion Resistance Calculation：Conversion according to the tested samples temperature and material
Discharge Function After testing discharge automatic, discharge indication clear and avoid incorrect operation
Printer Built-in printer, printing the measurement result on site
Bluetooth Communication Yes; test records can be viewed on a mobile phone after installing the app.
USB Interface With USB interface, the stored data can upload to computer
Host Dimensions 280mm × 260mm × 160mm
Weight Meter: Approx. 4520g (including battery); Total weight: Approx. 8.92kg (including accessories)
Working Temperature & Humidity - 10°C ~ 40°C; below 80% RH
Storage Temperature & Humidity - 10°C ~ 60°C; below 70% RH
Withstand Voltage AC 3700V/rms (between housing and screws)
Safety Standards IEC61010-1, CAT III 600V, Pollution Degree 2, JJG724-1991 Verification Procedure for DC Digital Ohmmeters, JJG166-1993 Verification Procedure for DC Resistors, DL/T967-2005 Verification Procedure for Loop Resistance Testers and DC Resistance Rapid Testers
