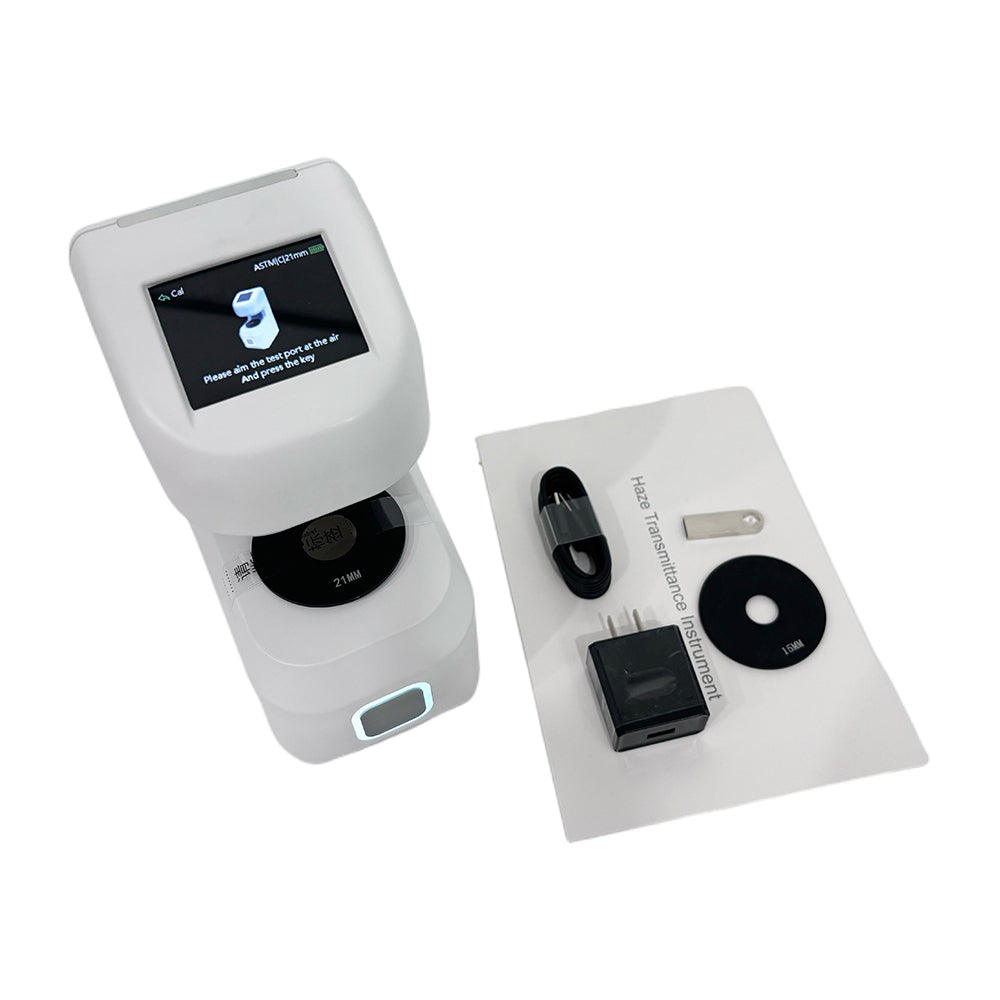

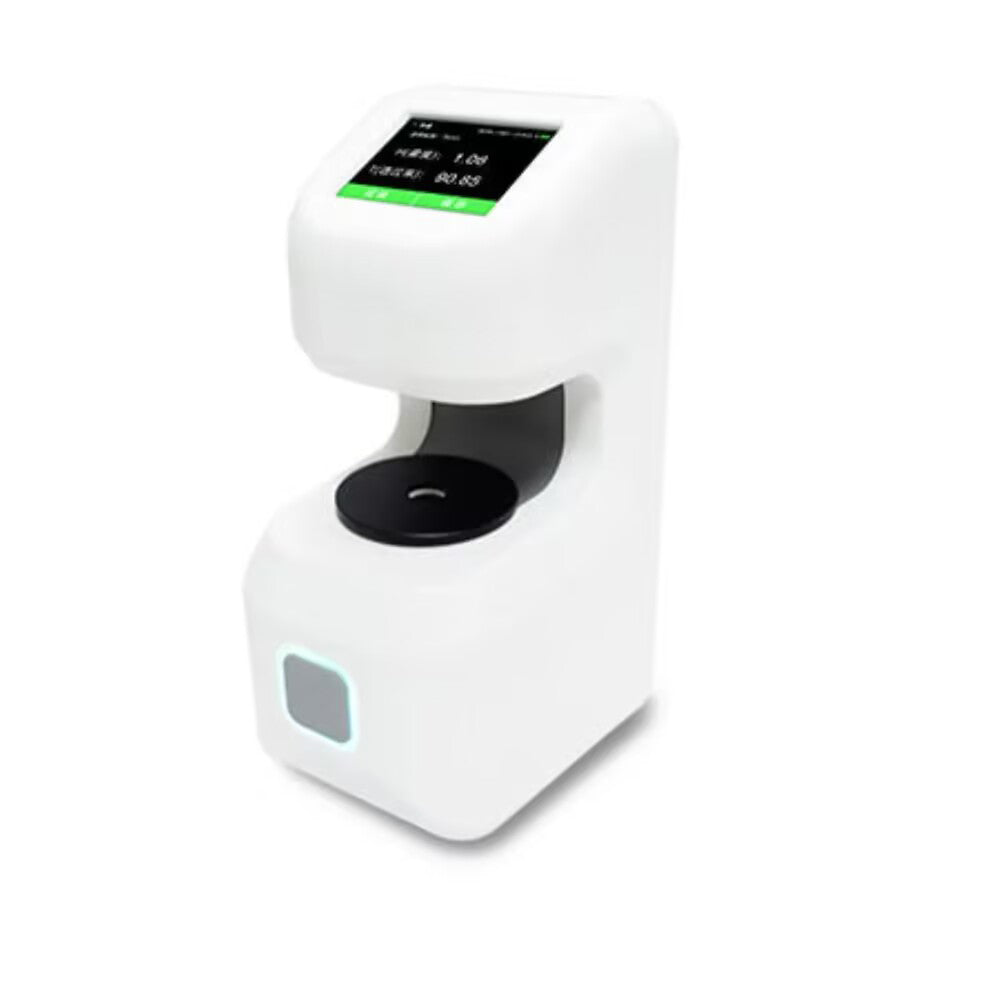

CNYST Digital Transmittance Haze Meter Two Apertures Haze Meter with Test Range 0-100% Aperture 21mm 15mm Resolution 0.01% Repeatability 0.05 USB Interface ASTM and ISO Standard Geometry 0/d

About this item

1) The instrument is compact and easy to carry, allowing you to measure haze and transmittance anytime and anywhere

2) High accuracy, resolution 0.01%; high stability, repeatability up to ≤0.05

3) Support connecting cell phone applet "HazeMeter", data follow the account, cloud storage, not lost

4) Comply with the following test standards: GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361, JIS K 7136

5) Meet the CIE-A, CIE-C, CIE-D65 three standard lighting source haze and transmittance measurement

I. Product features

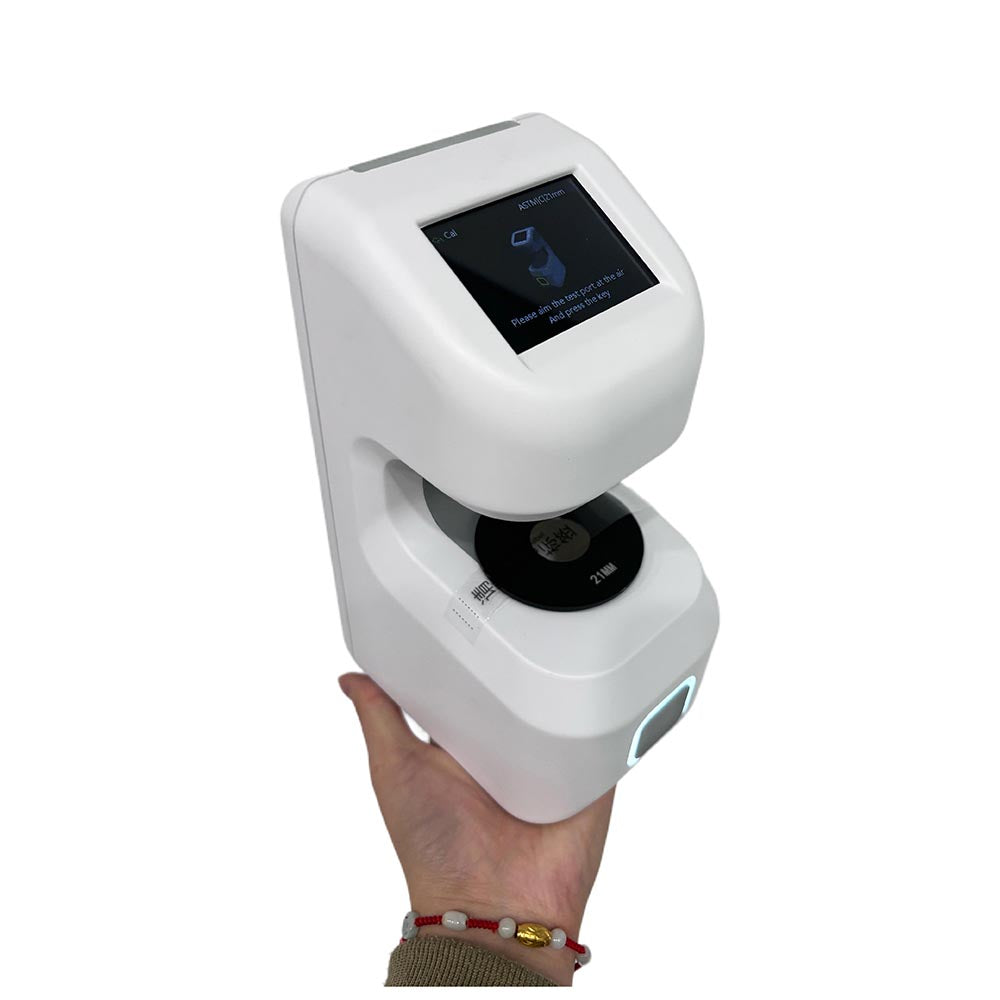

1)The instrument is compact and portable, allowing you to measure haze and transmittance anytime and anywhere

2) High accuracy, resolution 0.01; high stability, repeatability up to ≤ 0.05

3) instrument long-term stability , the instrument standby state regular self-test, dual optical path design

4) Support the connection of mobile app "HazeMeter", data follow the account, cloud storage, not lost

5) Support up to three measurement apertures to meet a variety of sample size measurement (other sizes can be customized)

6)Conform to the following test standards: GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361, JIS K 7136

7) to meet the CIE-A, CIE-C, CIE-D65 three standard lighting source haze and transmittance measurement

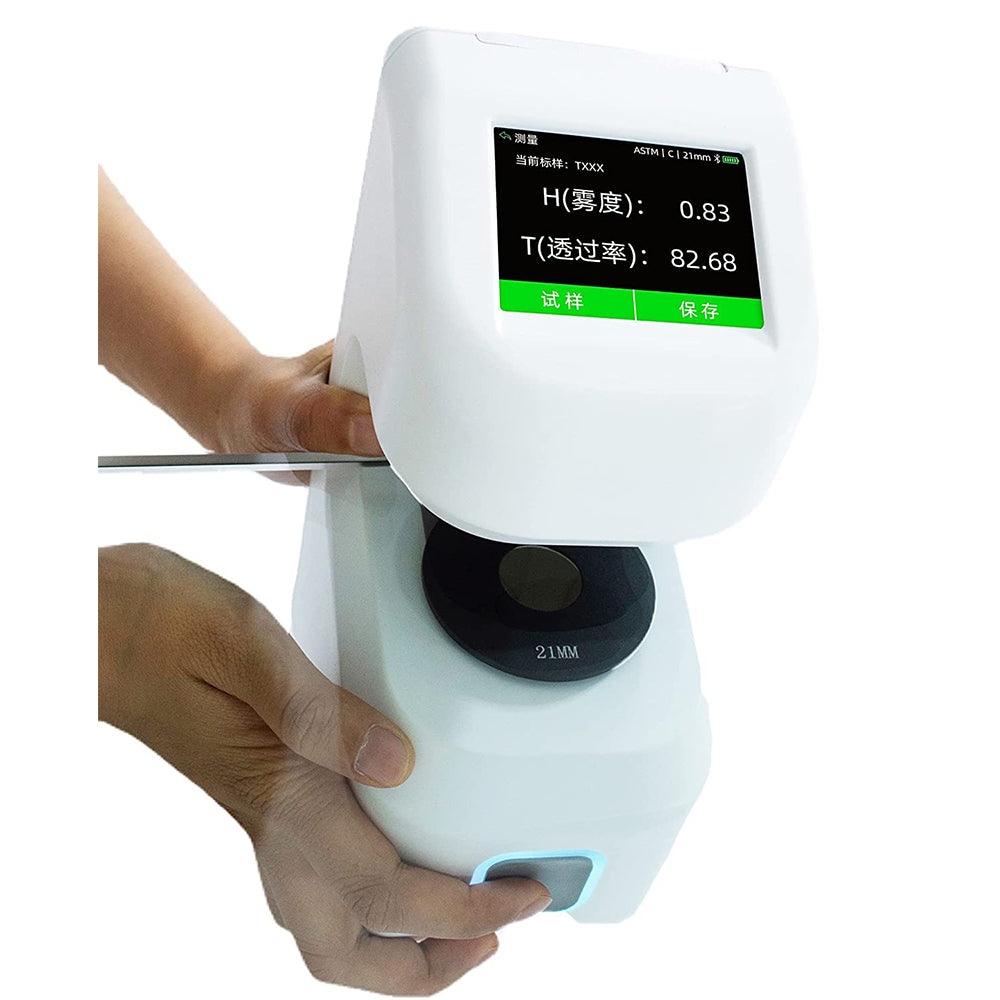

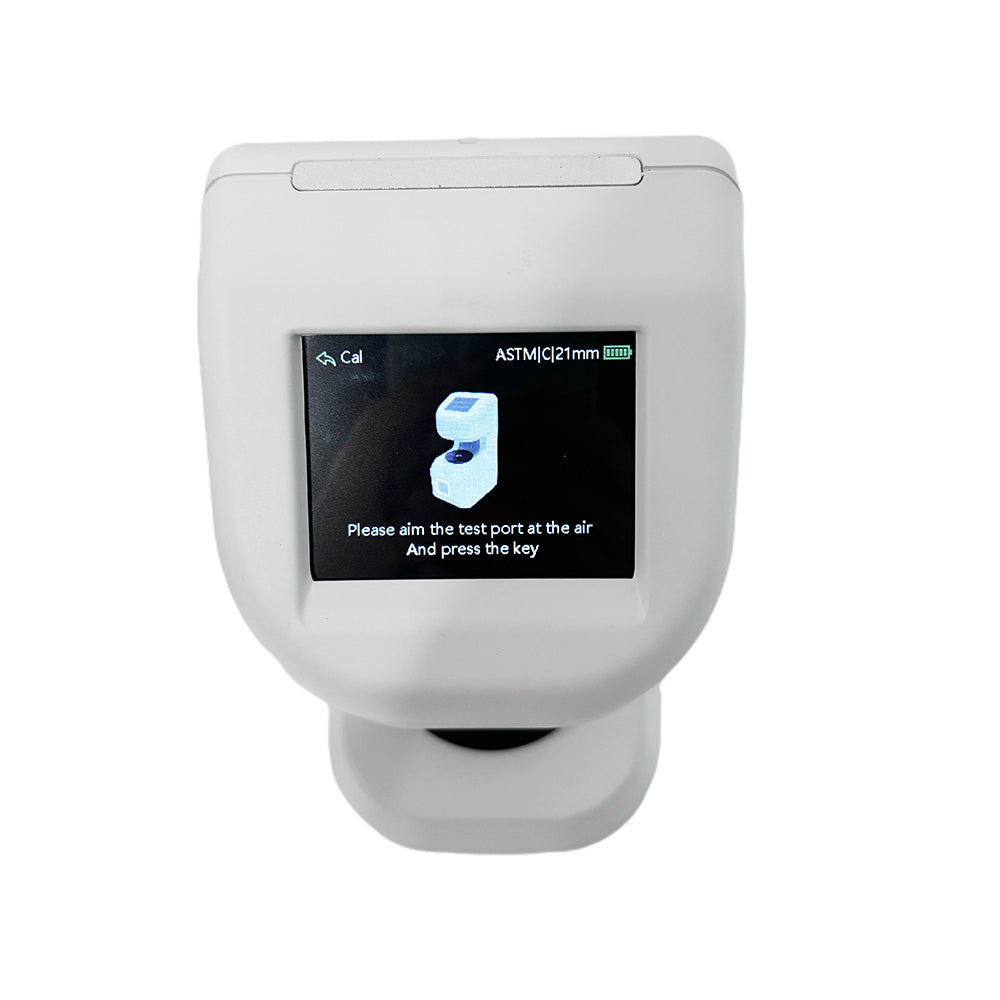

8)Operated by 2.8-inch touch screen

II. Technical parameters

Light source ：CIE-A,CIE-C,CIE-D65

Standard：ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

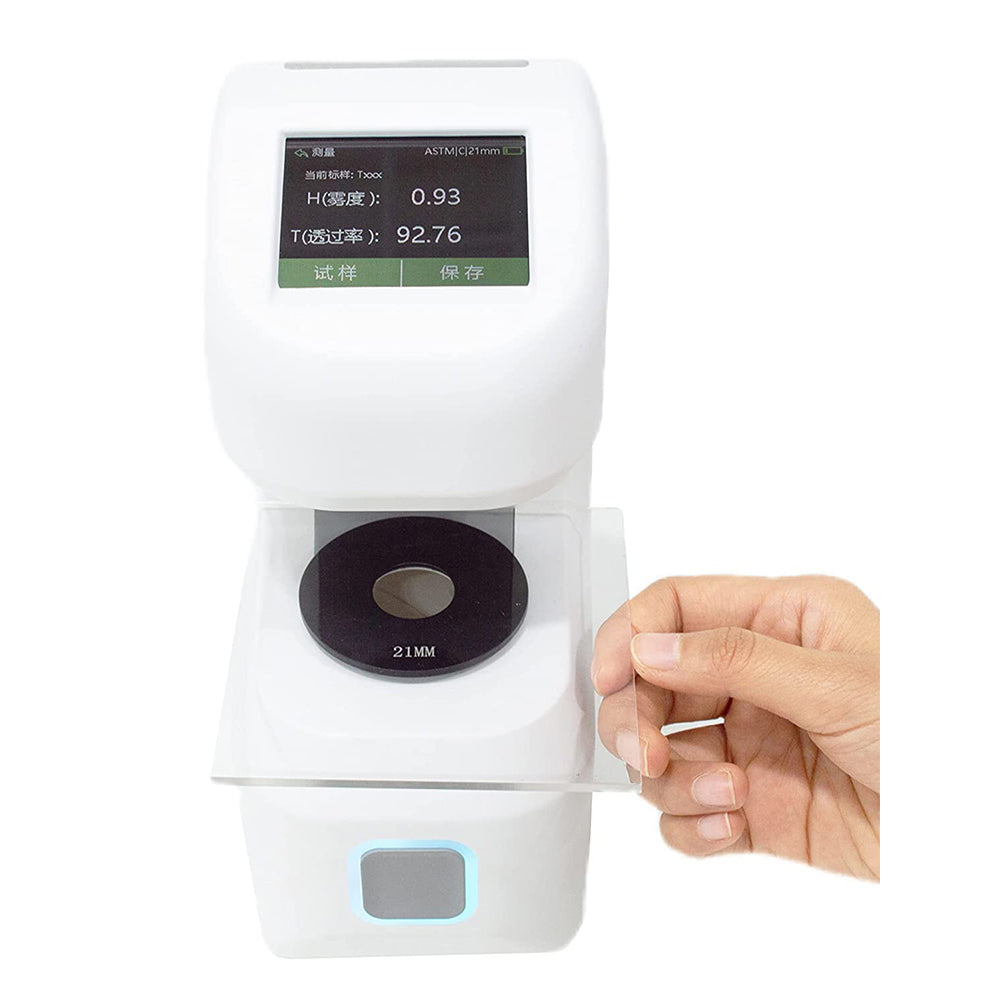

Measurement parameters: Haze, transmittance under ASTM and ISO double standard

Spectral response: CIE spectral function Y/V(λ)

Optical path structure: 0/d

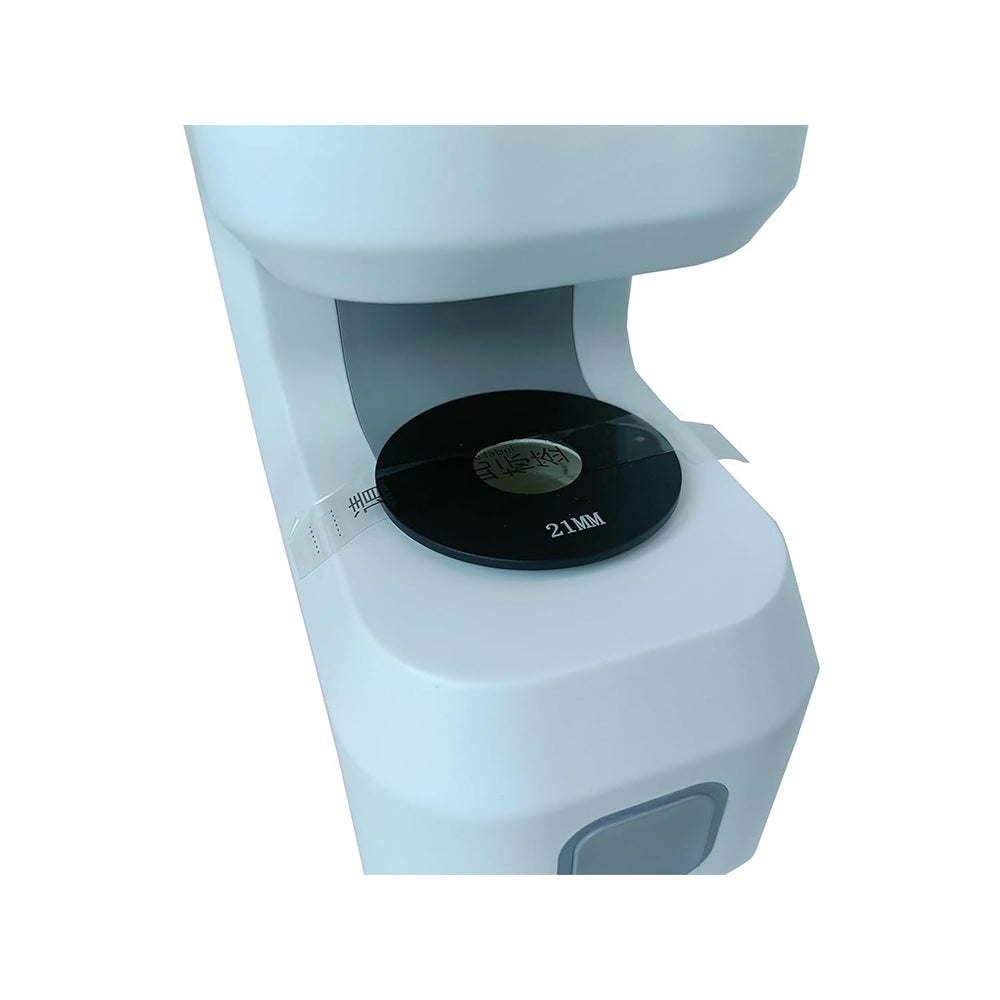

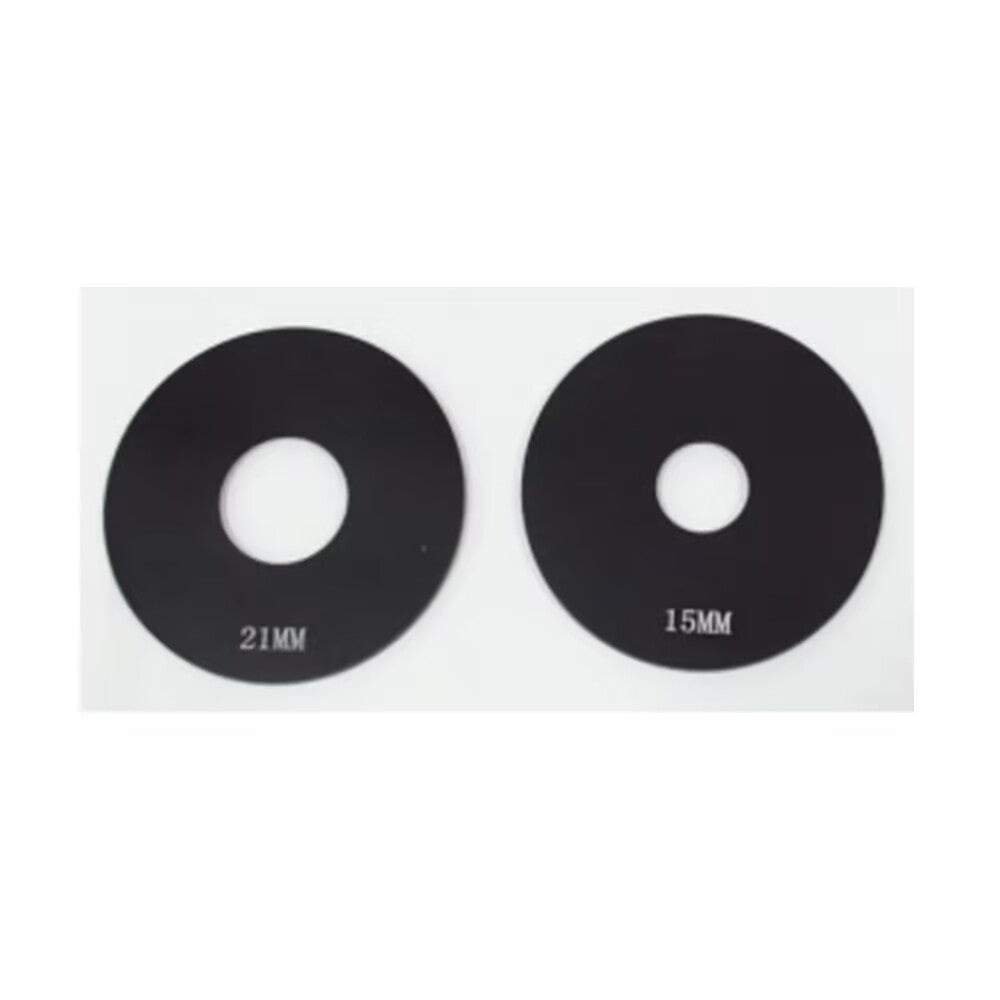

Measuring aperture: 21mm，15mm

Measurement range: 0-100%

Resolution: 0.01%

Repeatability: 0.05

Sample size: Thickness ≤ 40mm

Display: 2.8 inch touch screen

Storage data: massive storage

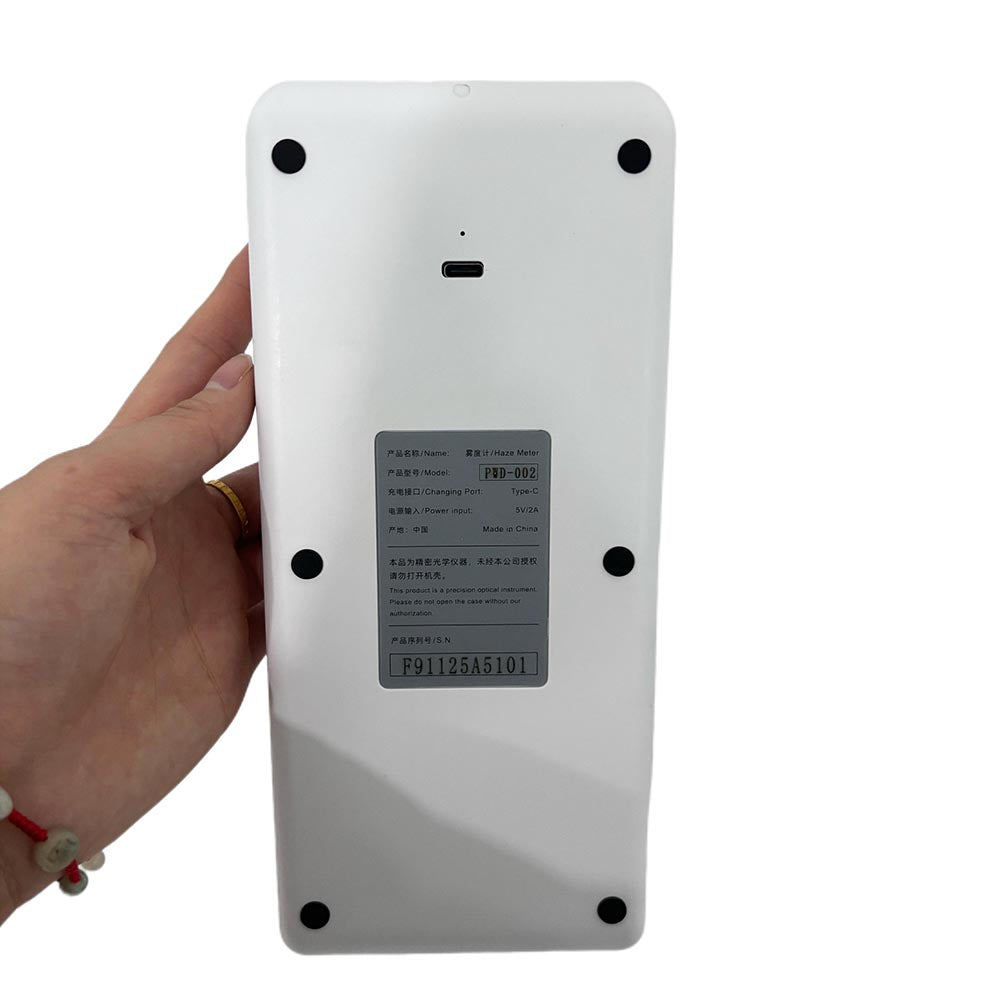

Interface: USB interface

Power supply: Lithium battery powered

Operating temperature: 5~40℃, relative humidity 80% or lower (at 35℃), no moisture condensation

Storage temperature: -20 ℃ ~ 45 ℃, 80% relative humidity or lower (at 35 ℃), no moisture condensation

Volume: LxWxH: 133mmX99mmX224mm

Weight : 1.13kg
