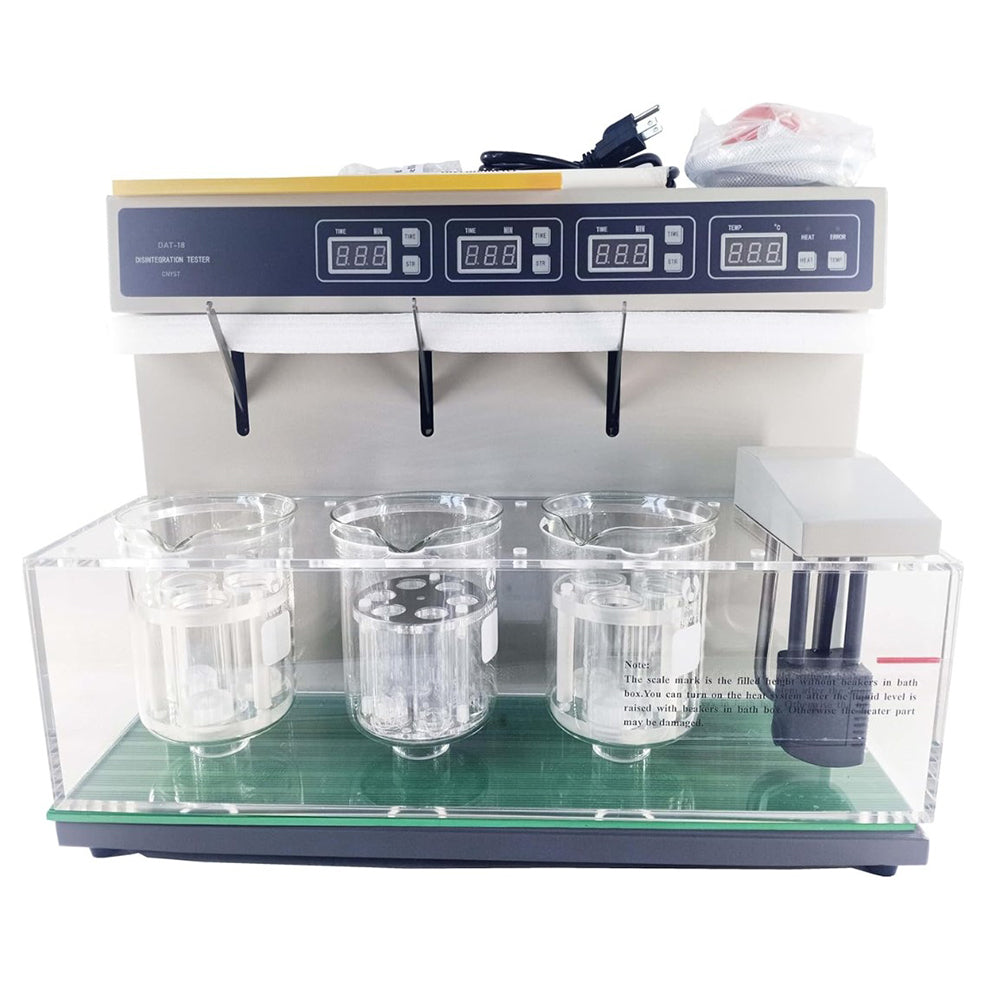

CNYST Disintegration Apparatus Automatic Disintegration Tester with Three Cups and Three Channels Basket Assembly 3 Number of Hanging Glass Tubes 18 Flat Bottom Beaker Volume 1000ml Basket Round-Trip Frequency (30～32) Times/min Basket Round Trip (55±1)mm

About this Item：

Three cups and three channels, each channel runs independently and can be controlled separately; automatic timing shutdown.

Automatic temperature control, high temperature control accuracy.

Using a micro water pump circulating water flow uniform heating system, the temperature of the water bath is uniform.

Automatic and intelligent control of three parameters: temperature, time and round-trip frequency.

You can preset time parameters at will; display preset value and real-time value in time division.

application:

Disintegration time limit tester is used to check the disintegration of solid preparations under specified conditions.

Features:

Three cups, eighteen tubes.
Three cups and three channels, each channel runs independently and can be controlled separately; automatic timing shutdown.
Automatic temperature control, high temperature control accuracy.
The hanging blue and the hanging rod are made of imported stainless steel.
Using a micro water pump circulating water flow uniform heating system, the temperature of the water bath is uniform.
Automatic and intelligent control of three parameters: temperature, time and round-trip frequency.
You can preset time parameters at will; display preset value and real-time value in time division.
Automation, automatic detection, automatic diagnosis, automatic alarm.

Technical indicators:

Basket assembly: 3

Number of hanging glass tubes: 18

Flat bottom beaker volume:1000ml

Basket round-trip frequency: (30～32) times/min

Basket round trip:(55±1)mm

Minimum spacing of screen mesh:(25±2)mm

Timing range:(1 to 900) minutes

Timing accuracy:±0.5min

Temperature preset range:(20～45)℃

Automatic temperature control accuracy:±0.5℃

Heater power:500W

Continuous working time: more than 24 hours

Power supply:220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W

Power:600W

Overall dimensions:（５４×３０×４２）ｃｍ３

Weight:22kg
