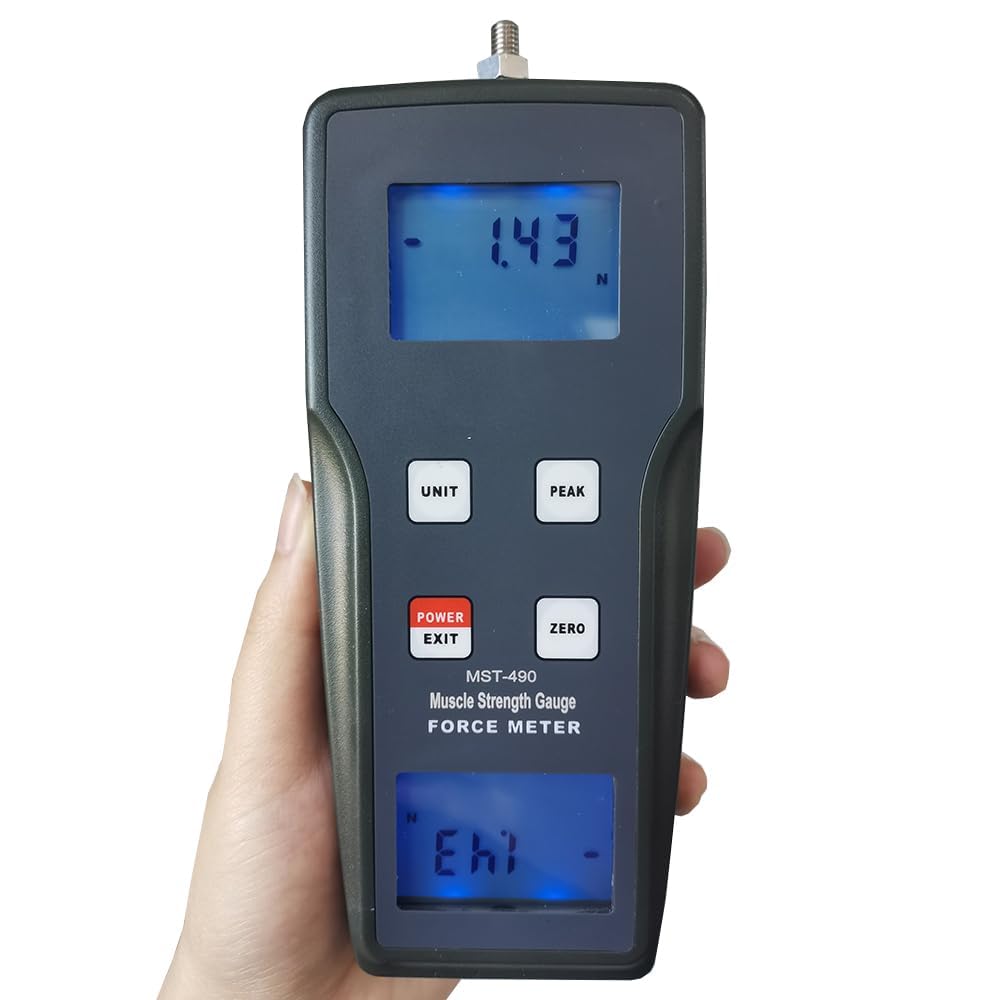

CNYST Dynamometer Muscle Testing Muscle Force Meter with Accuracy ±0.5%FS±1Digit Force Range ±50kgf/±490N/±110Lbf Backlit LCD Display for Workplace Design Strength Assessment and Ergonomic Research

About this item

◆ High precision and high resolution.

◆ N (Newton), kg (kilogram), lb (pound), g (gram) four kinds of measurement units can choose, mutual conversion.

◆Measurement range : ±50 kgf ±490 N ±110 Lbf

◆ Resolution : 0.01 kgf 0.1 N 0.1 Lbf

◆ Display: four large LCD, positive directional dual display

Product Applications.

Work task analysis and ergonomic analysis is simple and accurate, ideal for workplace design, strength assessment and ergonomic studies.

Product Details

* High precision and high resolution.

* Digital display, no parallax.

* N(Newton), kg(kilogram), lb(pound), g(gram) four measurement units can be selected and converted to each other.

* Peak hold function. Maintains peak display until manually cleared.

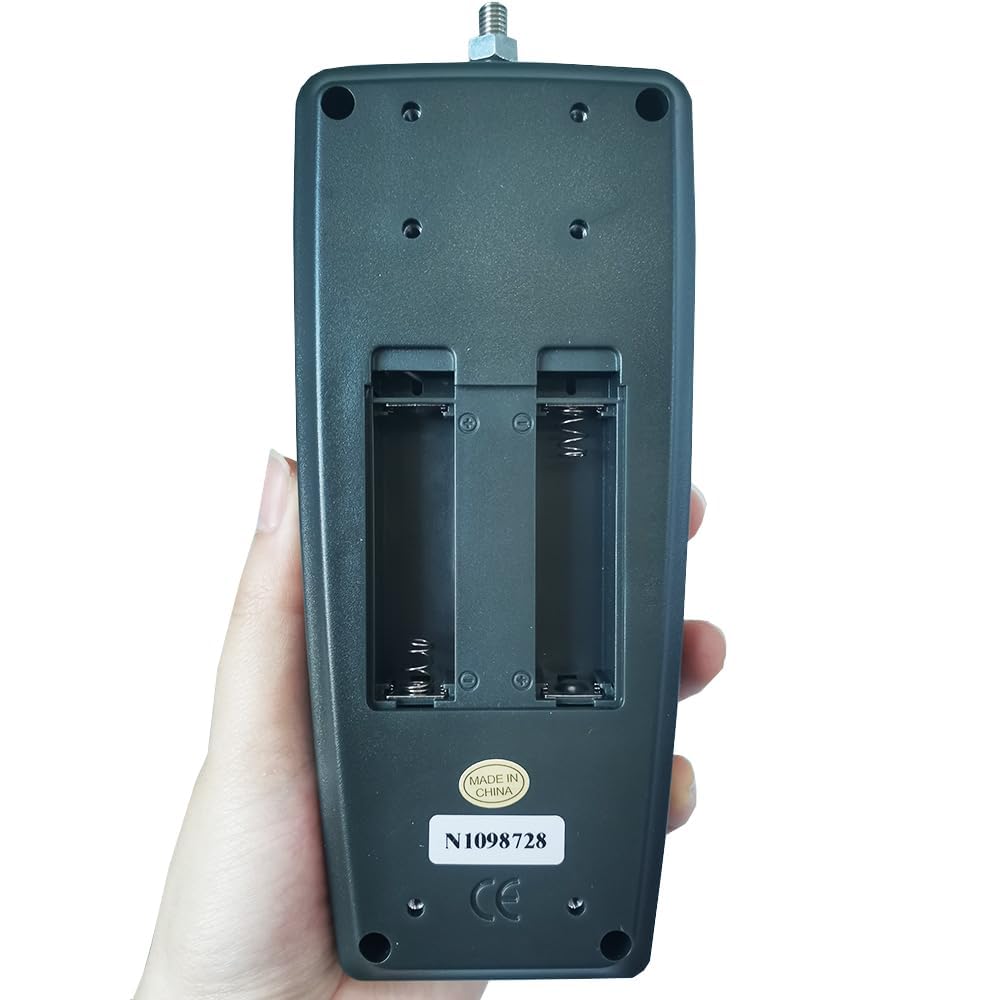

* Can be powered by alkaline battery; can also be connected to 5V DC power supply.(batteries are not included in transit)

Technical parameters

Measurement range: ±50 kgf ±490 N ±110 Lbf

Resolution: 0.01 kgf 0.1 N 0.1 Lbf

Accuracy :0.5 level

Accuracy: ±0.5% FS (range) ±1 digital peak

Units :Kgf, N, Lbf

Measurable value: Peak value, Instantaneous value

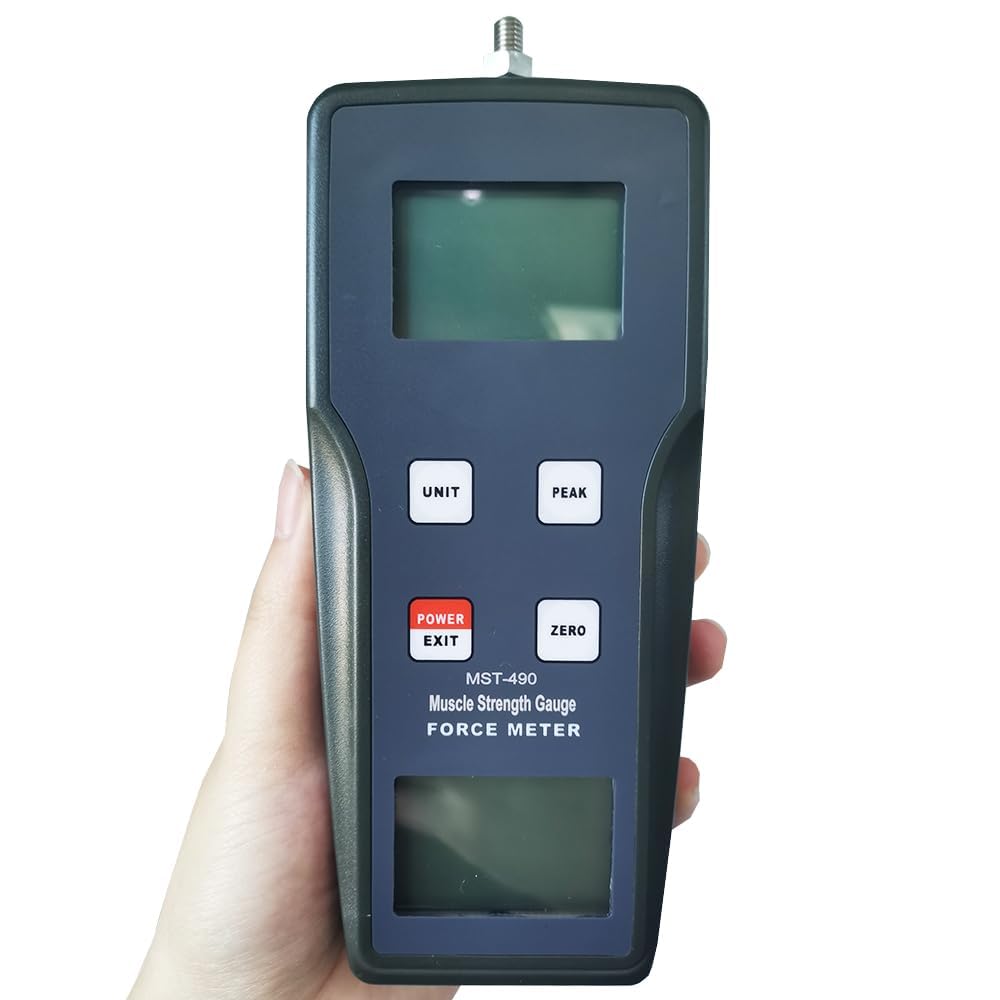

Display :Four-digit large LCD, dual display in positive direction

Backlight: Backlight

Tolerable load: 150% F.s (beeping alarm when 110% F.s is exceeded)

Power supply: 2 x 5 batteries or 5V DC current (batteries are not included in transit)

Operating temperature :0 °C~ 40°C

Working humidity: <80%

Net weight: 705g

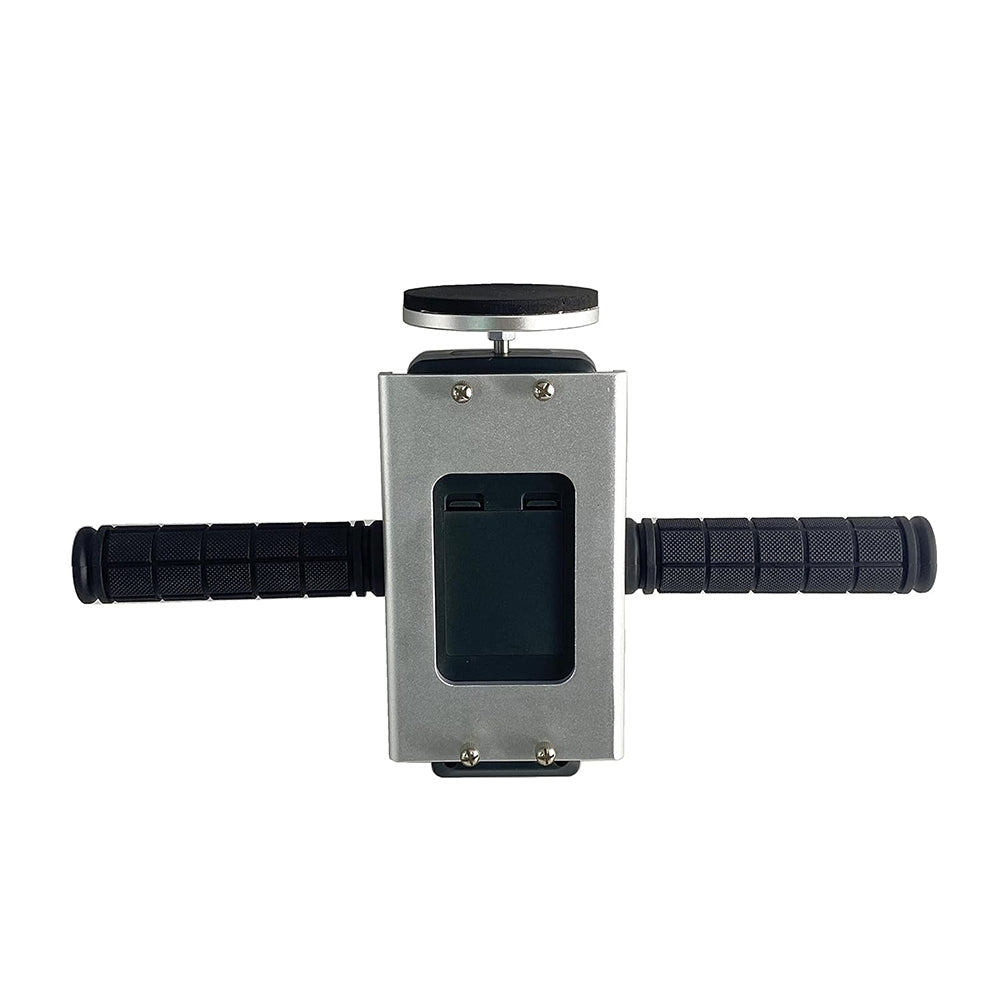

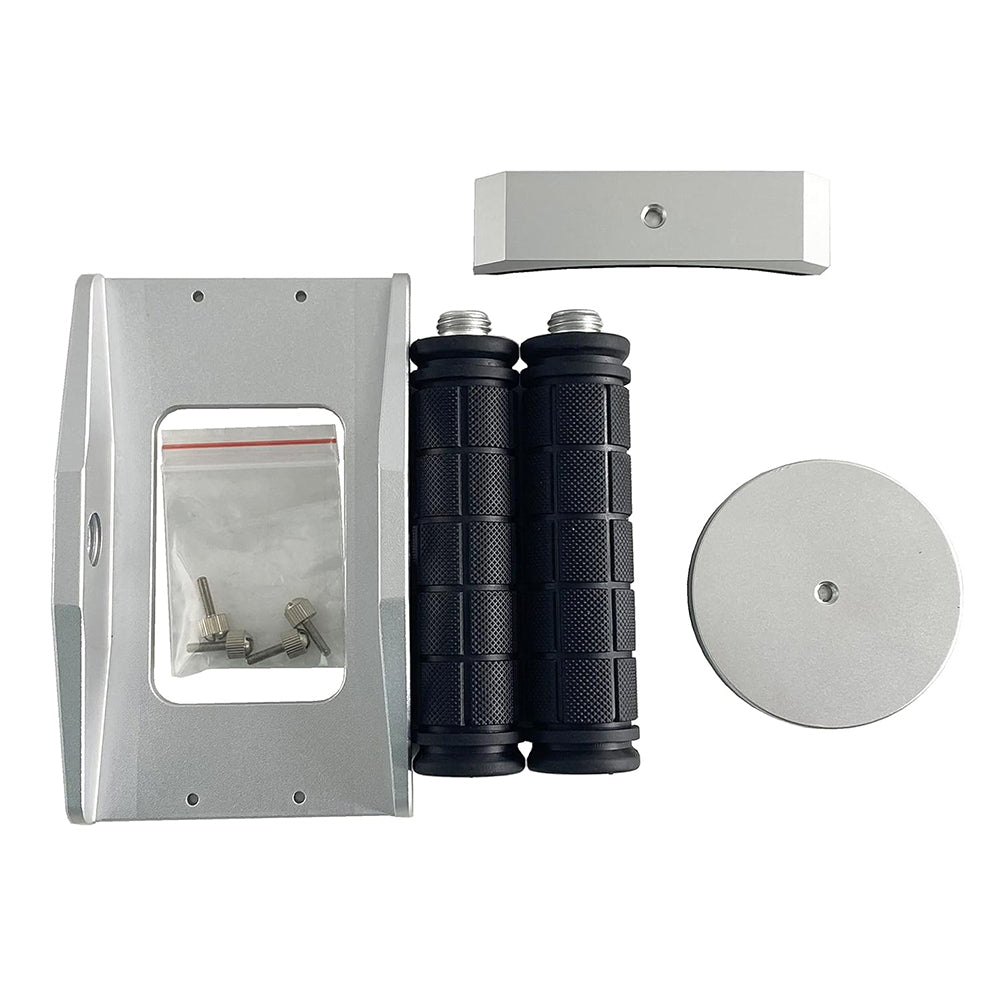

Stand size: Handlebar: 315mm*Φ30mm

Stand:155mm*95mm*35mm

Instrument size: Main body: 170mm*72mm*35mm
