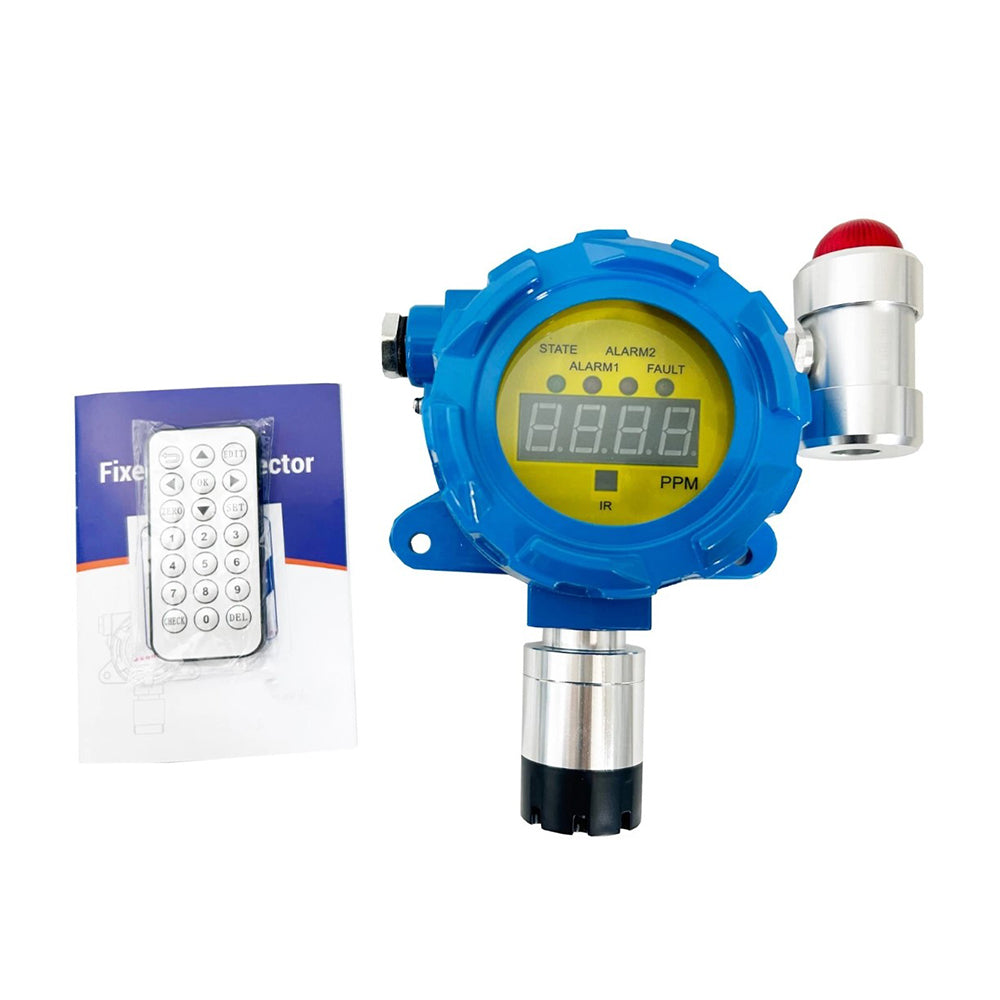

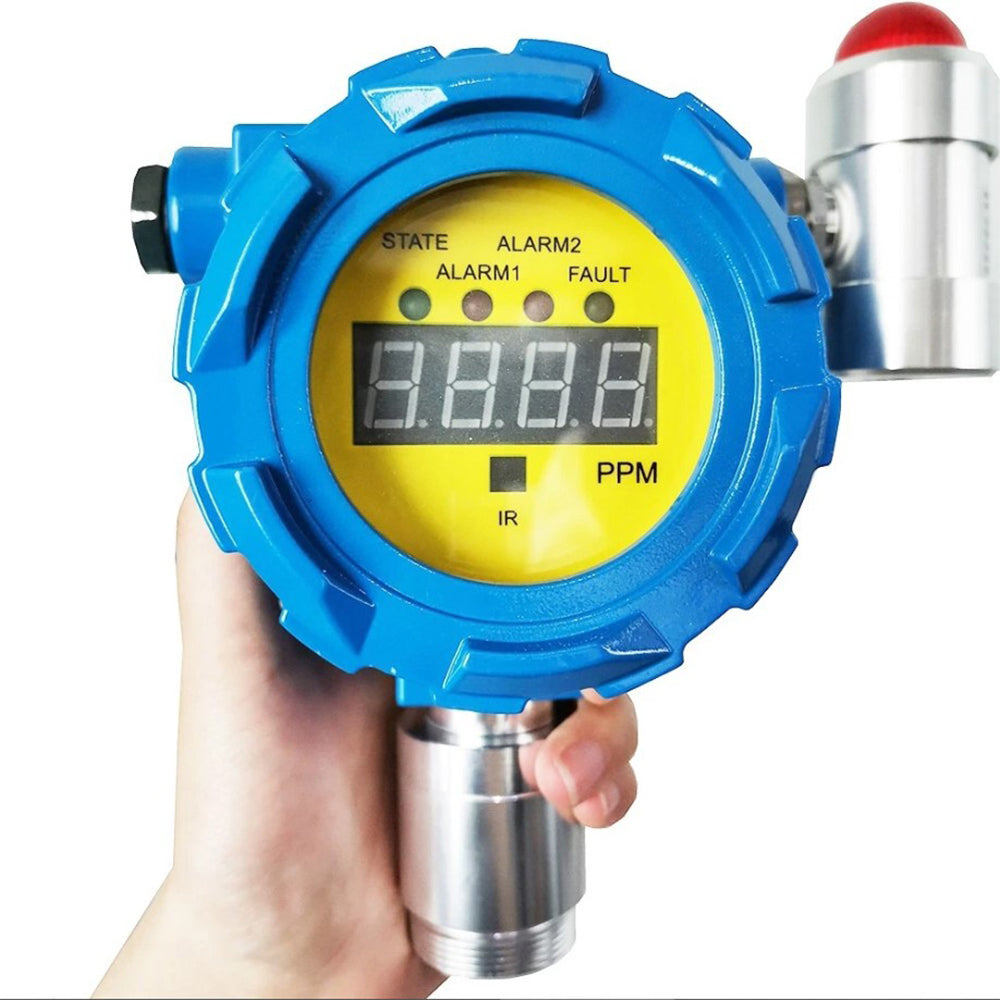

CNYST Fixed CL2 Gas Detector Chlorine Gas Detectors for CL2 Gas Detector with Range 0-50ppm Resolution 0.1ppm L-Alarm 5ppm H-Alarm 10ppm Explosion Proof Grade Ex db IIC T6 Gb Working Temperature -20℃～50℃ Working Humidity 0-95%RH

About this Item：

Range:0-50ppm

Resolution:0.1ppm

L-alarm:5ppm ; H-alarm:10ppm

Output current:4-20mA

It is used to detect the concentration of flammable gas or other toxic and harmful gases in

the air. When the concentration reaches or exceeds the preset alarm value, the controller

will sound and light an alarm to promptly remind to take safety measures to prevent

explosion and poisoning accidents, so as to protect life and property.

Overview:

It is used to detect the concentration of flammable gas or other toxic and harmful gases in

the air. When the concentration reaches or exceeds the preset alarm value, the controller

will sound and light an alarm to promptly remind to take safety measures to prevent

explosion and poisoning accidents, so as to protect life and property.

This product has the advantages of stable signal, high precision, rapid response, long life,

short polarization time, etc. It adopts industrial-grade sensor, the instrument shell is

designed with explosion-proof structure, 4-20mA standard signal or directly into the DOS

system, and can be widely used in metallurgy, petroleum, chemical, municipal and other

industries, and is in the leading level of similar products in China. The housing adopts die

casting aluminum shell with explosion-proof structure design, the groove design of the

upper cover can lock the housing, the front side of the sensor is designed with downward

structure to ensure good contact between the sensor and the gas, and the inlet port

adopts explosion-proof waterproof connector.

Features:

Measuring object: Chlorine Cl2

Range:0-50ppm

Resolution:0.1ppm

L-alarm:5ppm; H-alarm:10ppm

Product type:Fixed gas detector/transmitter

Explosion-Proof:Ex db IIC T6 Gb

Response time:<30S

Power supply:DC24V±10%

Working temperature:-10℃～55℃

Output current:4-20mA

Working humidity:0-95%RH (Non-condensing)

Contact output:Free contact output, max power 1kW

Single input:4~20mA and RS485

Installation method:Wall-mounted

Shell material:Aluminum
