CNYST

CNYST Four position Hotplate Stirrer Digital Multi Position Magnetic Stirrer with 4 Stirring Points Speed Range(rpm) 50~2000 Temperature Sensor Heating Plate Temperature≤320℃ Temperature Control RT+5~160℃

$1,737.00
$1,737.00

About this item:

4 stirring points; Speed Range(rpm): 50~2000; Single position capacity(L): 10;

PT100 temperature sensor, achieving ±1 temperature precision control;

Temperature control(℃): RT+5~160; Temperature accuracy(℃): ±1; Heating plate temperature(℃): ≤320;

Independent control for each station, can stir up to 4 stations of different samples;

Aluminium die-casting ceramic coated heating surface corrosion resistance, surface temperature up to 320 ℃; subject to corrosion.

Application:

  • The heating type multi position magnetic stirrer has novel and beautiful appearance design, fast heating, large heating area and uniform heating; it is widely used in medical, petroleum, chemical, environmental protection and other fields. Waiting for a good helper in the experiment.

Main Features：

  1. DC brushless motor, stable performance, maintenance-free;
  2. Low noise, long service life, low-speed smooth, high-speed strong;
  3. ＜30°bevelled control panel is suitable for sitting and standing view;
  4. PT100 temperature sensor, achieving ±1 temperature precision control;
  5. Rotary adjustment switch button, waterproof design, high safety factor;
  6. Independent control for each station, can stir up to 4 stations of different samples;
  7. Aluminium die-casting ceramic coated heating surface corrosion resistance, surface temperature up to 320 ℃; subject to corrosion;
  8. LCD digital display function, display heating temperature, stirring speed, convenient for experimental operation;
  9. Temperature control using PID control algorithms, self-tuning function, with high measurement accuracy, small flushing temperature;
  10. Shell using metal plate stamping and shaping injection moulding shell, high temperature resistance, anti-corrosion, and good insulation properties.

Technical Parameters：

  • Noise level(dB): ≤27
  • Stirring points: 4
  • Display mode: LCD
  • Display function: Temperature speed
  • Control mode: Independent operation
  • Arrangement: Single Row1*4
  • Speed Range(rpm): 50~2000
  • Temperature control(℃): RT+5~160
  • Temperature accuracy(℃): ±1
  • Heating plate temperature(℃): ≤320
  • Working plate diameter(mm): 135
  • Working point distance(mm): 42~175

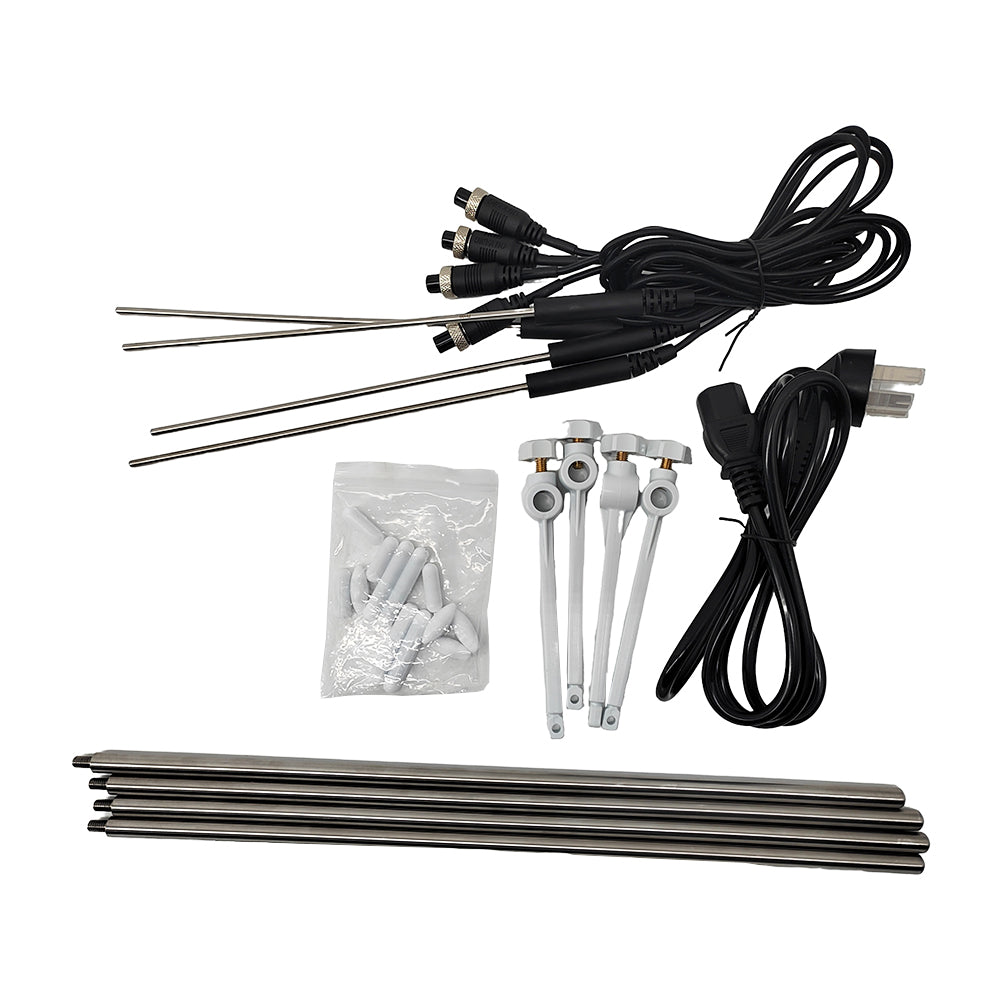

  • Stirring bars(mm): A type 9*25*4+C type 7*25*4+C type 8*45*4
  • Single position capacity(L): 10
  • Single position power (W): 10
  • Single position heating power(W): 350
  • Allowable ambient temperature(℃): 5-40
  • Allowable ambient humidity(%): 80
  • Instrument Size(mm): 713*290*110
  • Packing dimension(mm): 820*395*220
  • Instrument NW(kg): 10
  • Packing GW(kg): 14.5
