CNYST High Voltage Holiday Testing Holiday Detectors with Thickness Range 30um to 1.5mm Test Voltage Range 0.6KV to 8KV Headphone Buzzer and Light Alarm Consumption Less Than 3W 3–Digit LCD Displays

● Type holiday detector is a high-voltage special detector that is used to detect the quality of metal anti-corrosion coating. This detector can detect different thickness of coatings, such as glass lining, glass reinforced plastic, epoxy coal tar, rubber lining and so on.

The detector will emit bright sparks and with sound alarm when something is wrong with the coating, such as the emergence of pinhole, air bubbles, fissures and cracks. As powered by Ni-MH battery, and with small size and light in weight, it is especially suitable for field operation.

● The detector is the essential tool used for detecting the quality of metal anti-corrosion coating and can be used widely in many industries including chemical, petroleum, rubber and ceramic, due to its sophisticated design and stable & reliable performances.

Specification:

1. Applicable detection thickness: 30um ~1.5mm

2. Output High-voltage: 0.6kv~8kv (stepless and continually adjustable)

3. Direct indication of output high-voltage

4. Battery: 12V/2800mA

5. Power consumption: about 3W

6. Volume of main detector: 220×130×88 mm

7. Back light

8. Instantaneous boot, and automatic shutdown

9. 3–digit LCD displays output voltage, and with all-touch panel

10. Alarm: Dual alarm with earphone and buzzer

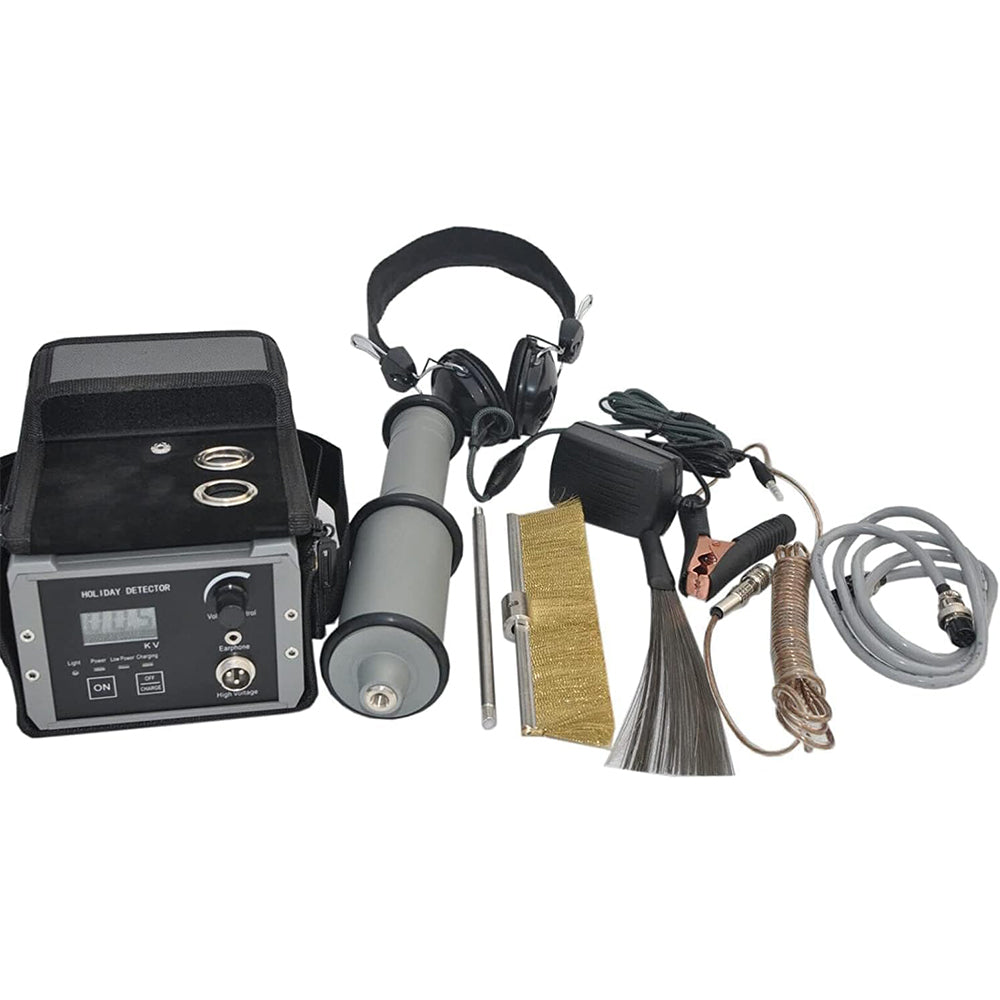

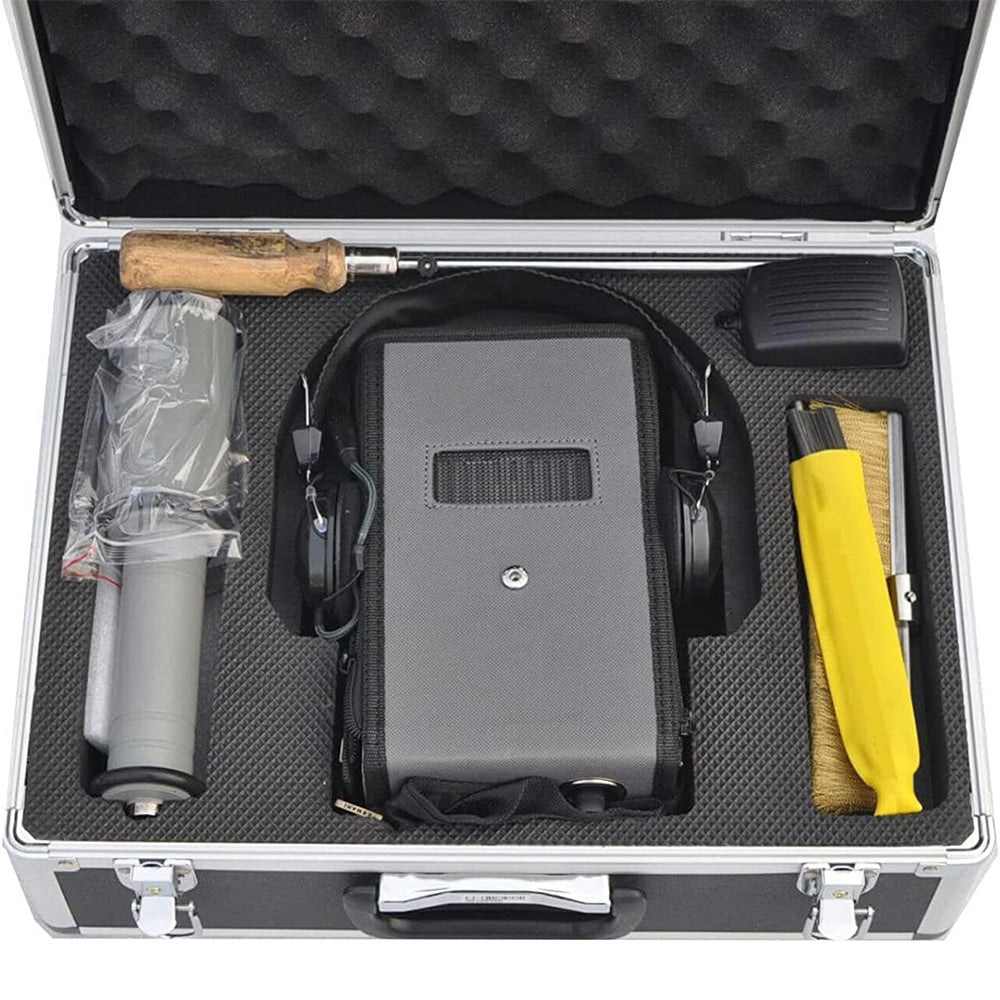

Packing List:

⑴ Type Holiday Detector 1set

⑵ High-voltage probe 1 piece

⑶ Probe brush 2 pieces

⑷ Connecting rod 1 piece

⑸ Earphone 1 piece

⑹ Backstrap 1 piece

⑺ Fuse 2 piece

⑻ Manual 1 copy

⑼Certificate of Conformity 1 copy

⑽ External packing box 1 piece

⑾ Earthing wire 1 piece

⑿ Charger 1 set
