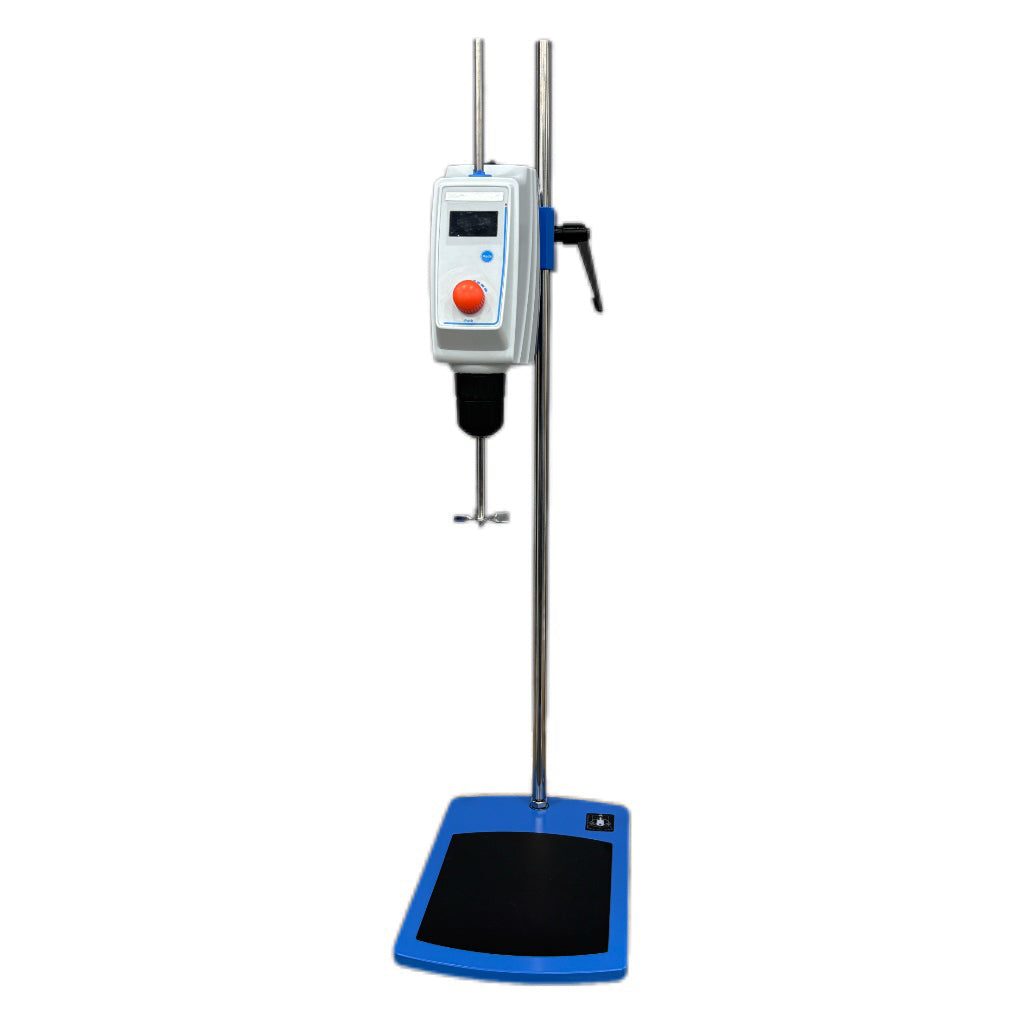

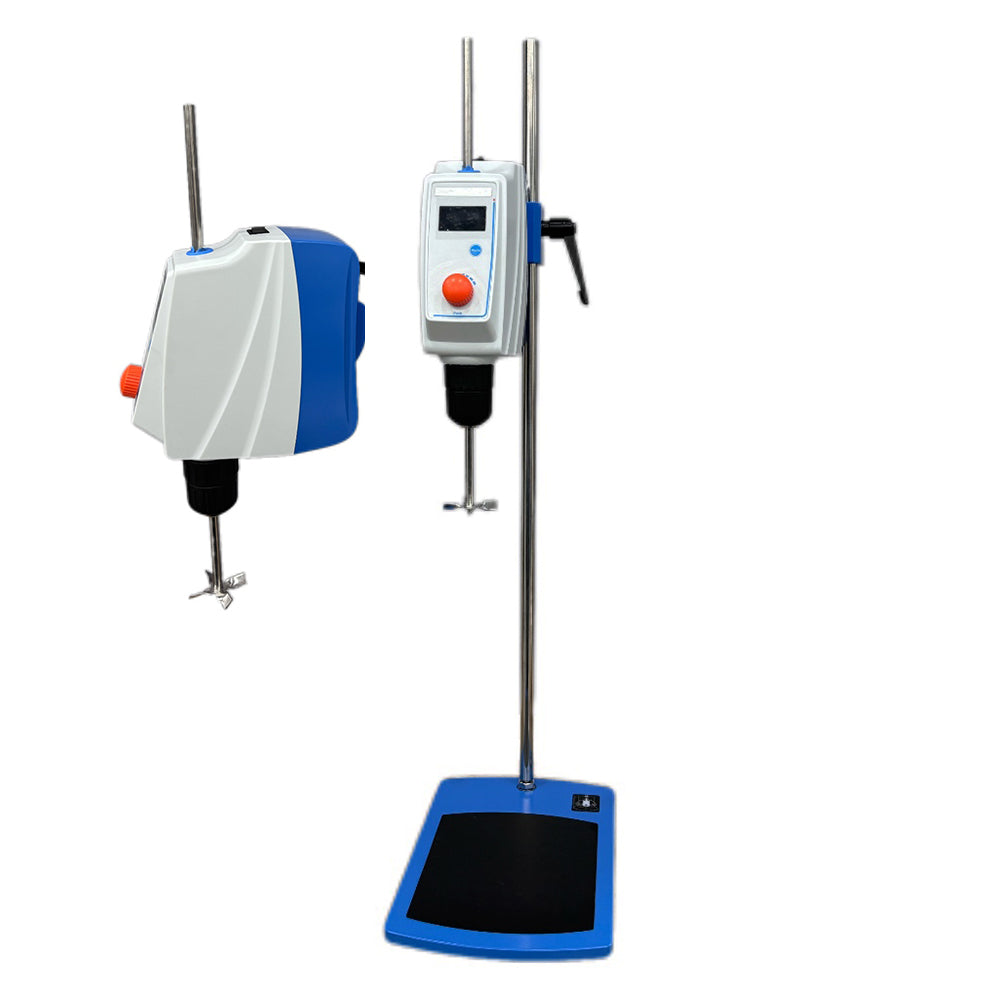

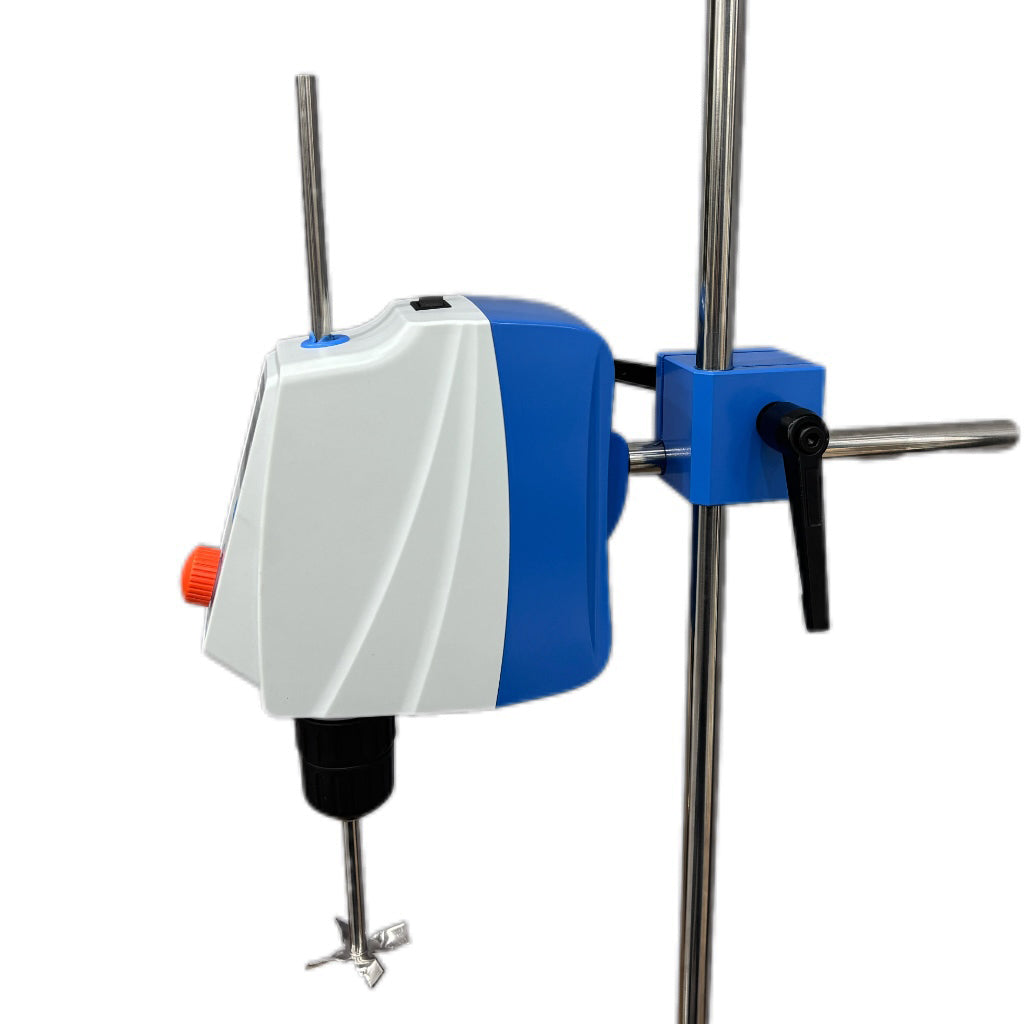

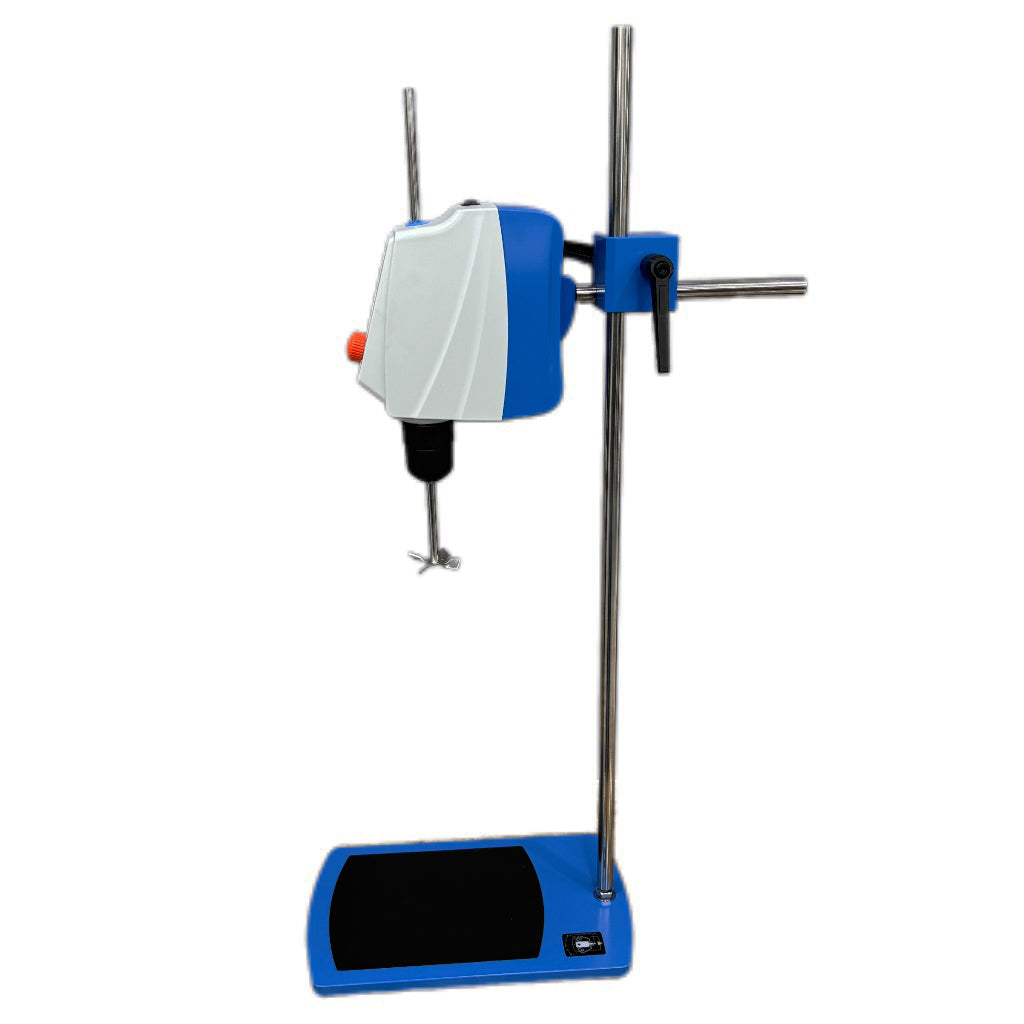

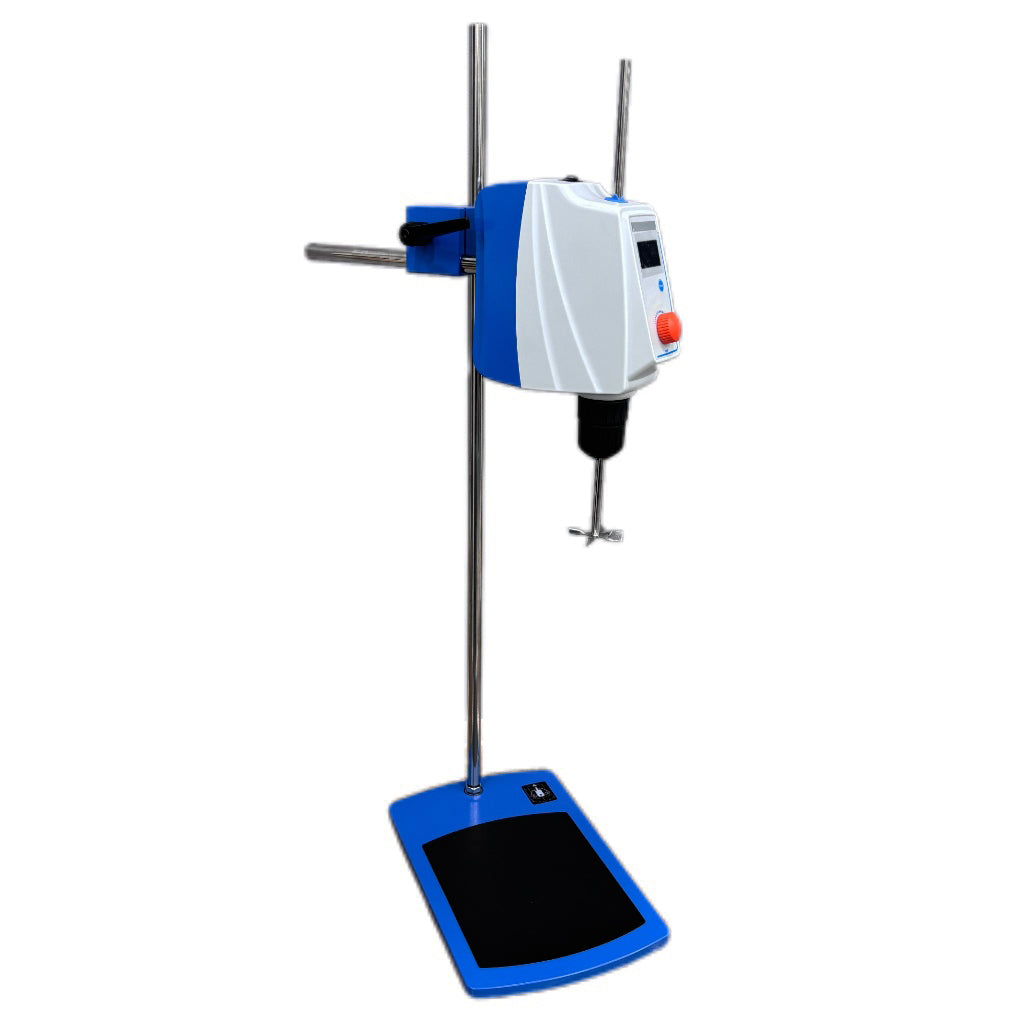

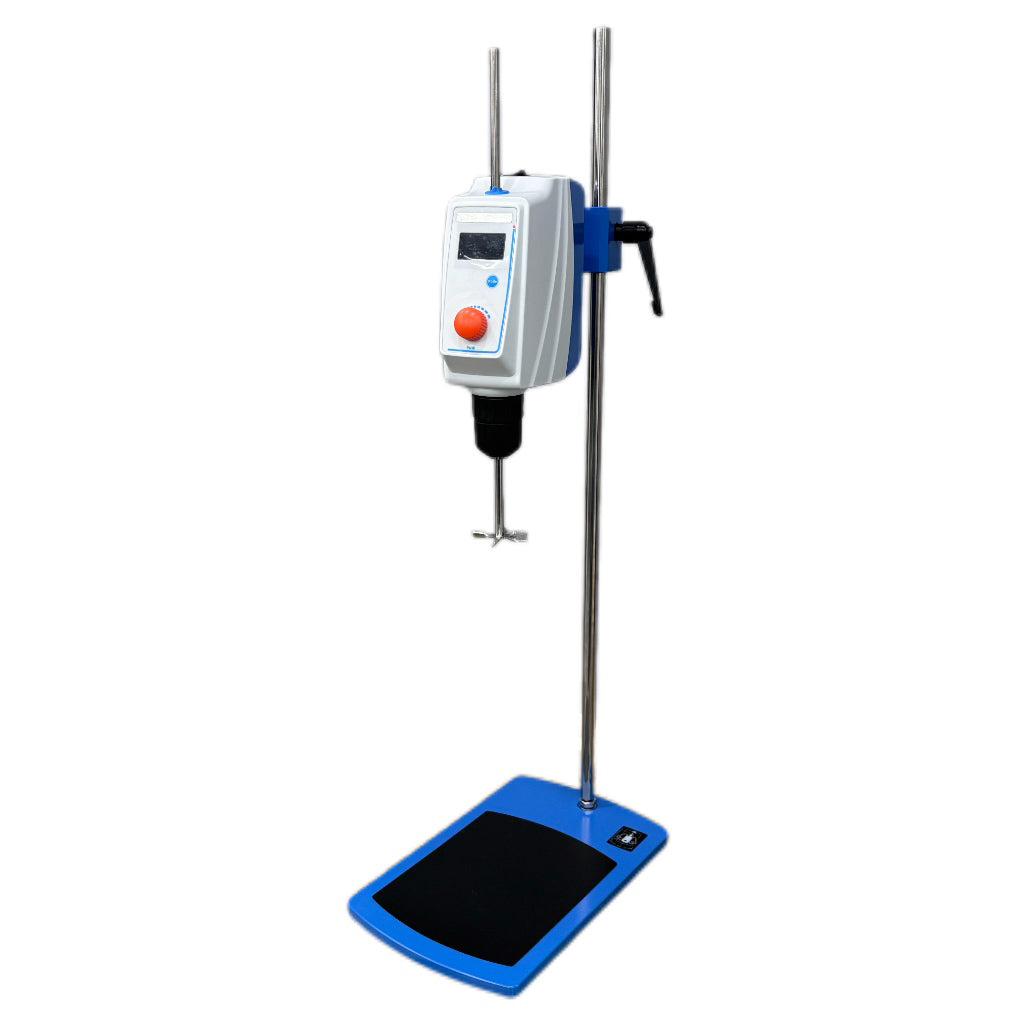

CNYST Laboratory Digital Overhead Stirrer OverHead Stirrers with Speed Range 30-1600rpm Max Capacity 100L Speed Accuracy ±1rpm Timing Range 1~9999min Coarse Adjustment + Fine Adjustment Speed Mode

Main Features：

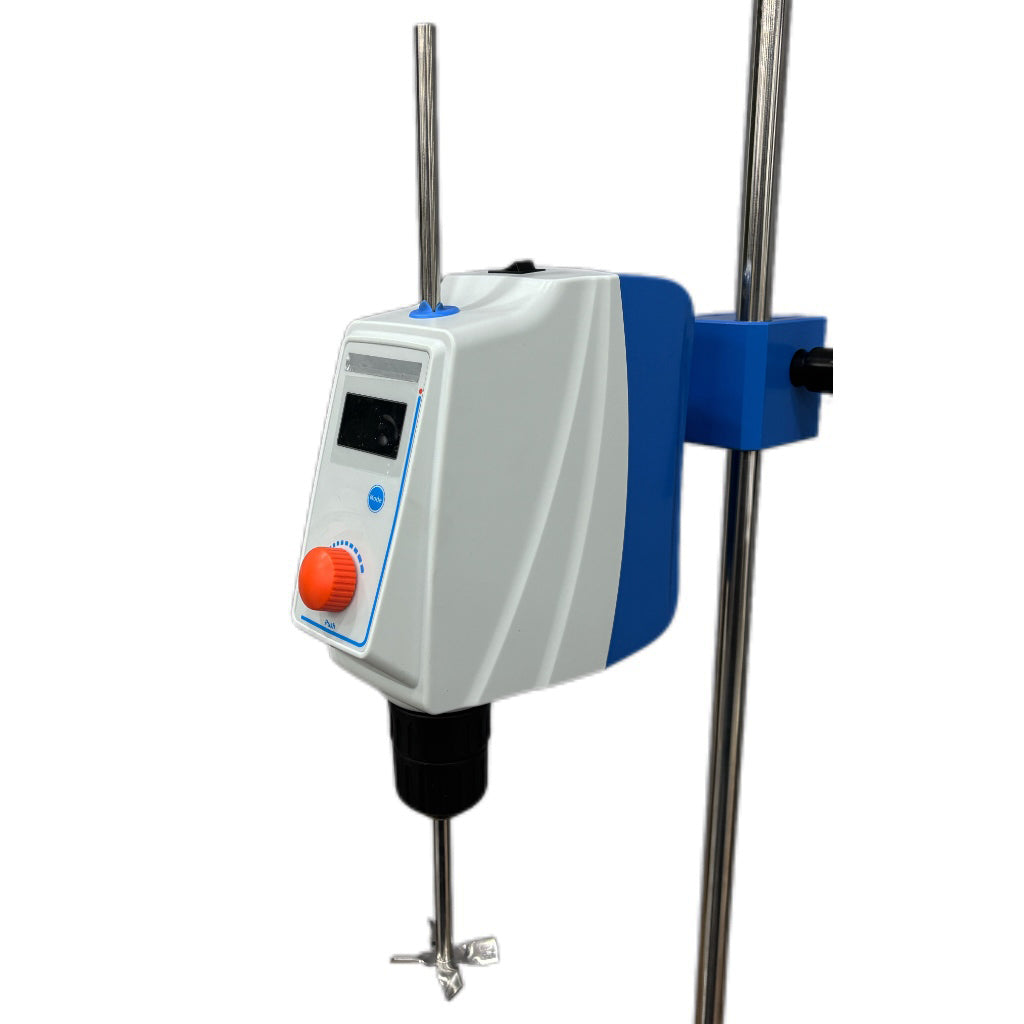

LCD screen display, the speed and time can be roughly adjusted, and the working time can also be fine-tuned under working conditions;

The speed is 30-1600rpm, the speed can be constant, and the high and low speeds are controllable;

DC brushless motor, which can run safely for a long time with outstanding performance;

Overload and motor protection, in case of overload, short circuit or abnormality, it will automatically cut off the circuit and alarm to ensure the safety of the experiment;

With a stirring paddle through hole, users do not need to adjust the installation height of the instrument; they only need to adjust the installation position of the stirring rod.

The torque can be automatically adjusted according to the viscosity change of the sample, which is convenient for experimental operation;

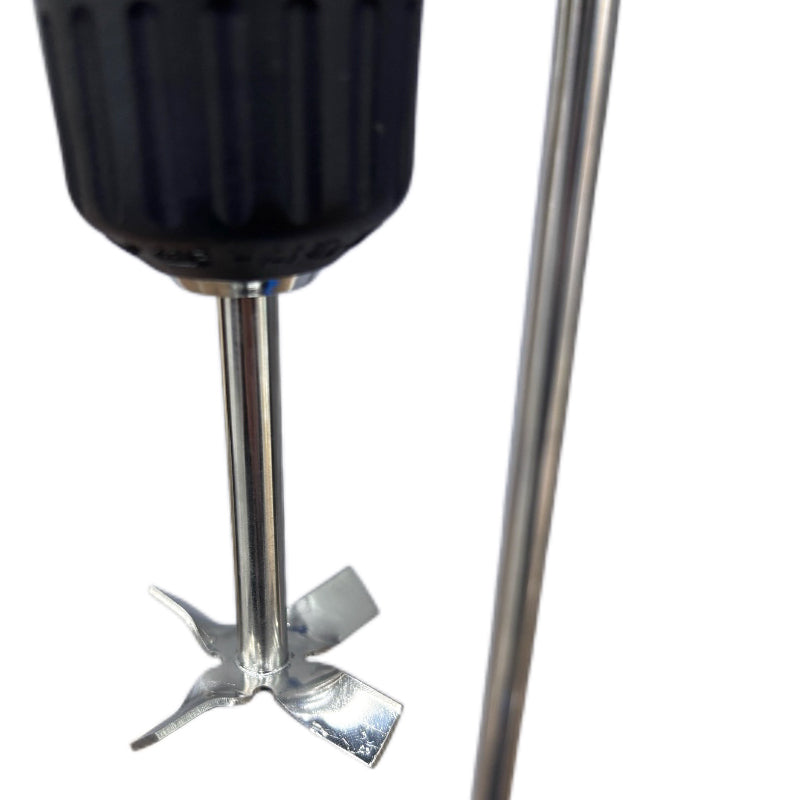

Various stirring propellers and supports are optional.

Technical Parameters：

Max capacity [L]: 100

Speed range[rpm]: 30-1600

Speed display: LCD

Speed accuracy(rpm): ±1

Speed mode: Coarse adjustment + fine adjustment

Timing range(min): 1~9999

Time display: LCD

Maximum torque(N.cm): 100

Maximum viscosity(mpa.s): 100000

Input power(W): 400

Output power(W): 200

Protection level: IP42

Motor protection: Display failure automatic stop

Overload protection: Display failure automatic stop

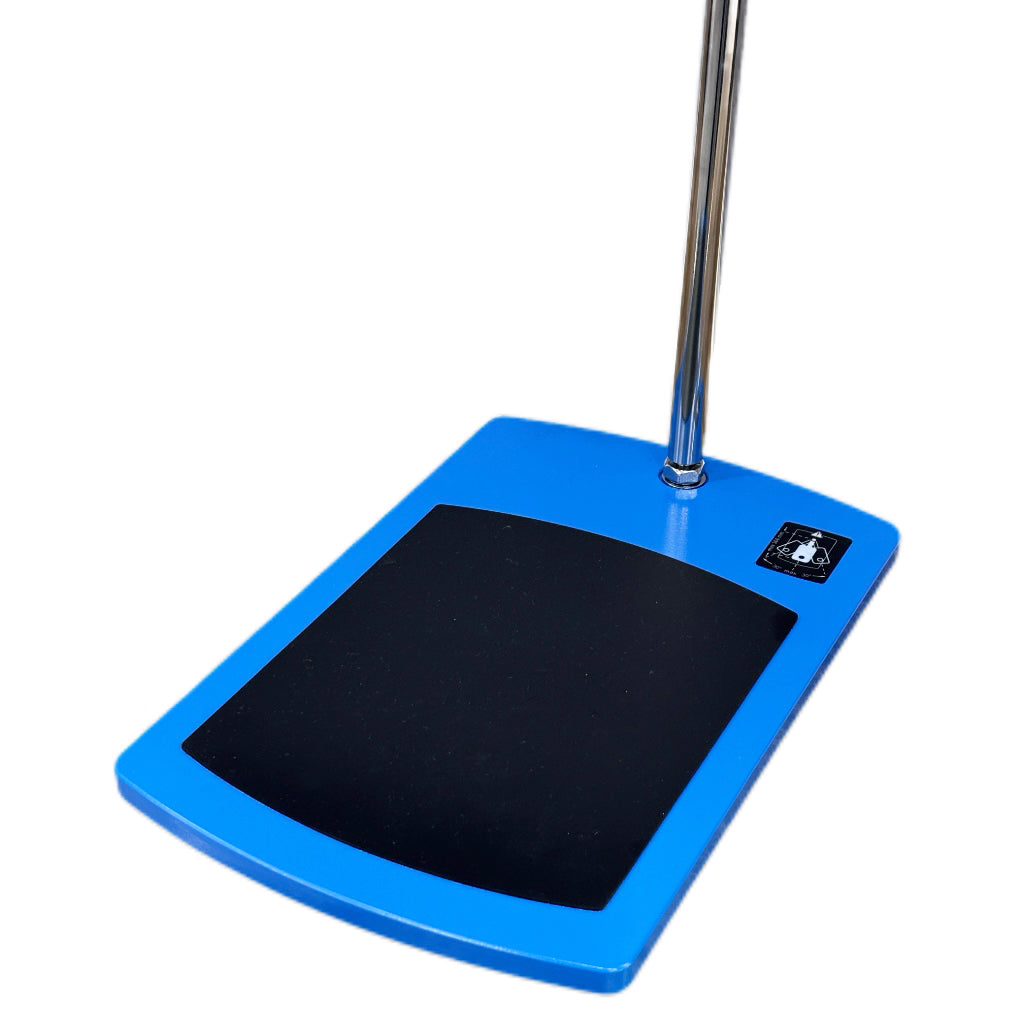

Safety protection: Chuck Protector + Anti-Slip Pad

Allowable ambient temperature(℃): 5~40

Allowable ambient humidity(%): 80

Host instrument size(mm): 315*200*780

Host packaging size(mm): 475*340*200

Package size(mm): 803*400*140

Host instrument NW(kg): 6

Host package GW(kg): 6.5

Set NW(kg): 9

Set GW(kg): 13.1
