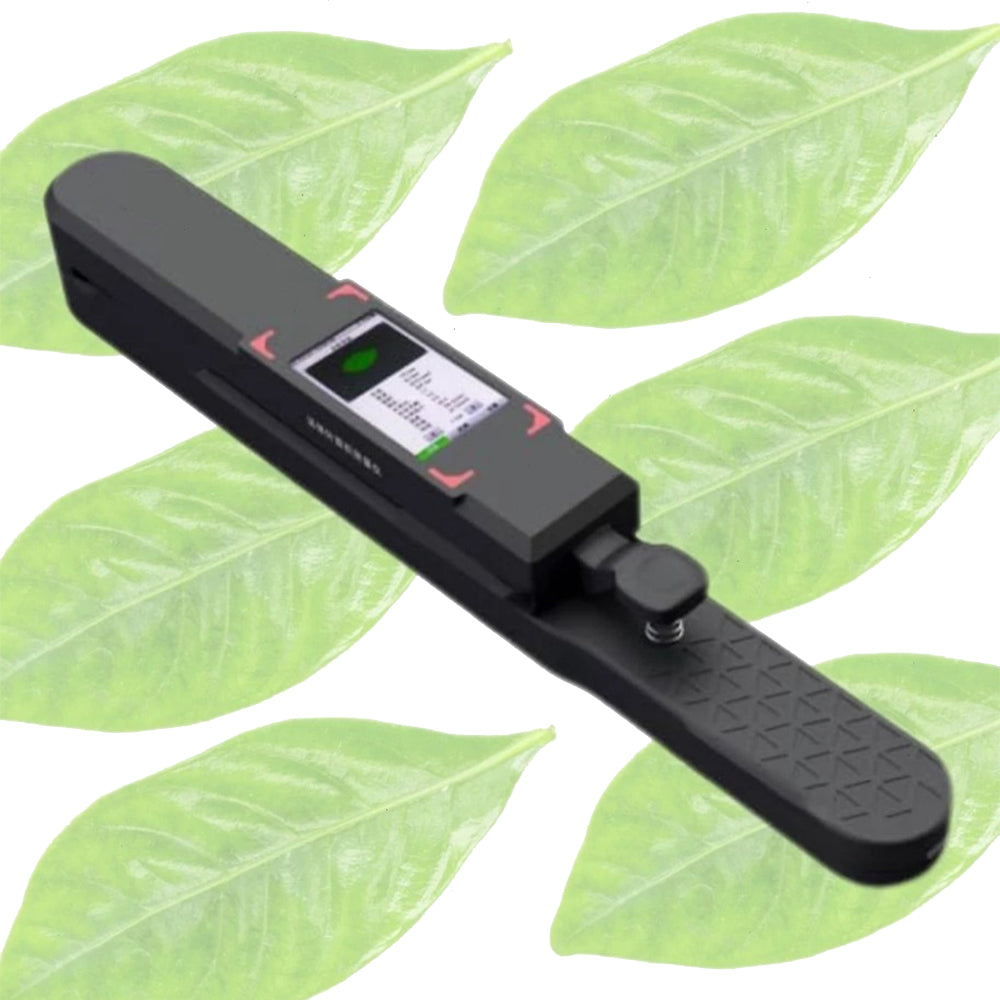

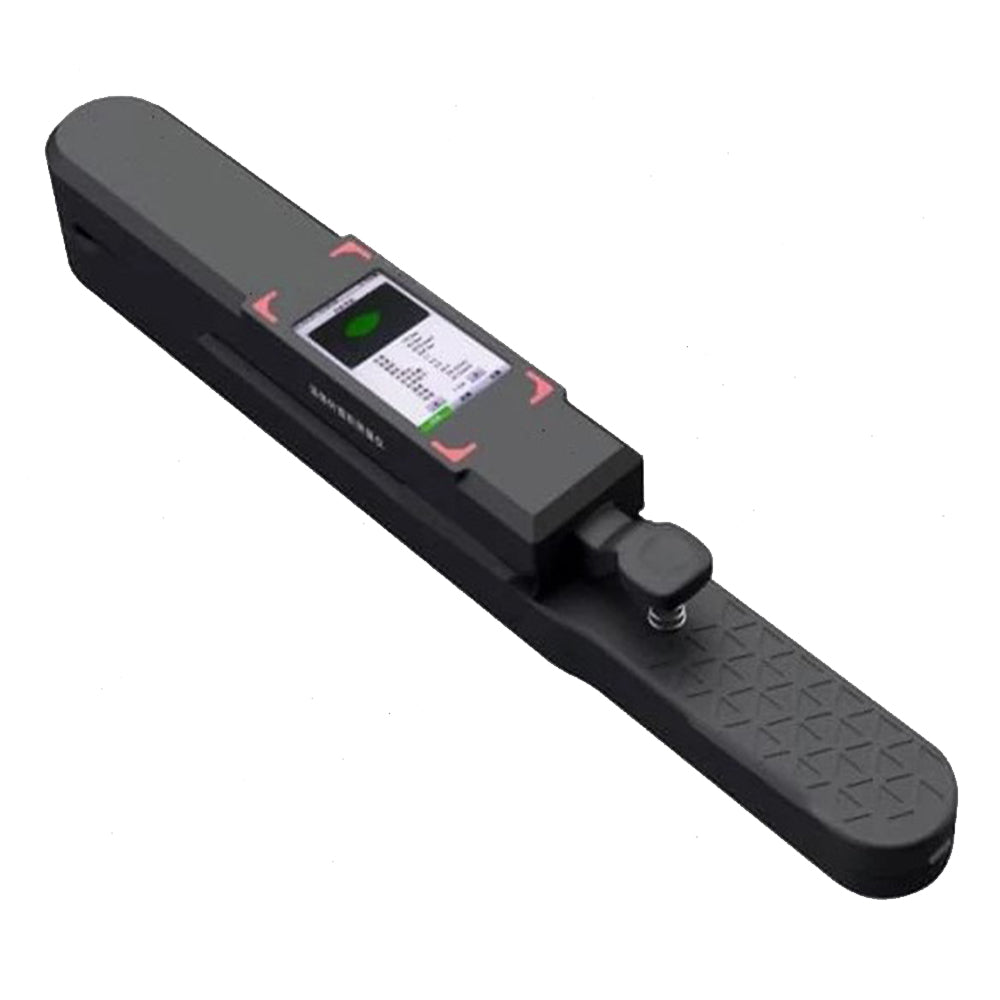

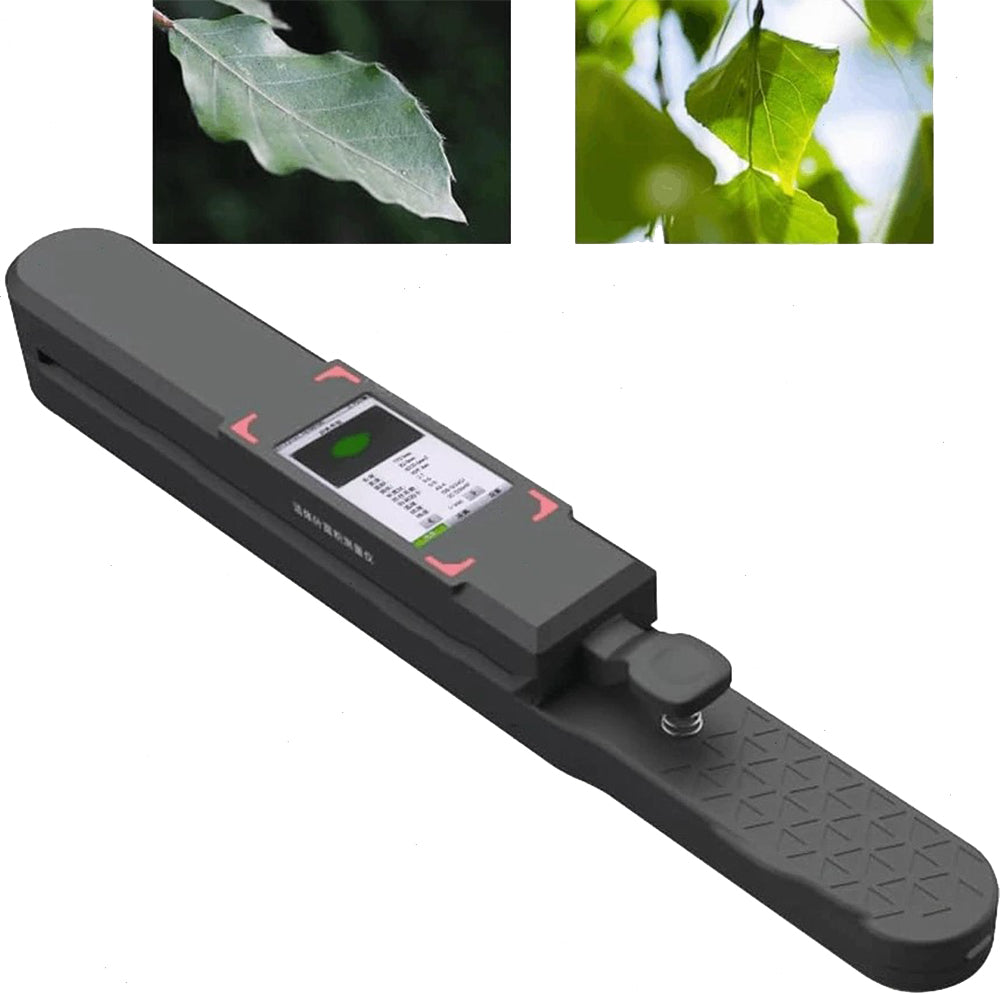

CNYST Leaf Area Meter Portable Living Leaf Area Meter with Maximum Measured Thickness≤ 6.5mm Maximum Scanning Length 3000mm Maximum Scanning Width 210mm Maximum Measurement Area 3000 * 210mm² Area Measurement Accuracy <±2%

About this item：

Maximum scanning width: 210mm; Maximum measured thickness: ≤ 6.5mm

Performance parameters: maximum scanning length: 3000mm

Maximum measurement area: 3000 * 210mm²； area measurement accuracy: < ± 2% full

The calculation of the entire leaf area is the accumulation of several subdivided small-sized areas; Other measurement items can also be obtained and calculated with similar principles

It is widely used in agriculture, forestry, animal husbandry, grass and other fields

Application range:

Widely used in agriculture, forestry, animal husbandry, grass and other fields

Characteristics

Using contact image sensor (CIS) to scan the width of its sliding blade

The length of its sliding path is subdivided into several equal parts

The calculation of the entire leaf area is the accumulation of several subdivided small-sized areas; Other measurement items can also be obtained and calculated with similar principles

Technical parameters:

Performance parameters: maximum scanning length: 3000mm

Maximum scanning width: 210mm

Maximum measured thickness: ≤ 6.5mm

Maximum measurement area: 3000 * 210mm²； area measurement accuracy: <± 2% full

Scanning speed: 150mm / s

Length resolution: 0.1mm

Width resolution: 0.1mm

LCD display: 480 * 854 RGB display Chinese interface display

Battery: 5Ah, rechargeable lithium-ion battery, battery life 16h

Working temperature: 0 ~ 40 ℃

Working humidity: 0% ~ 100% (no frost)

Internal memory: built-in storage area: 1000 groups of measurement data can be stored;

Expanded storage area: 29g, large storage space (≥ 1 million times)

Interface: type-C data / charging interface

Overall dimension: 420 * 50 * 54mm
