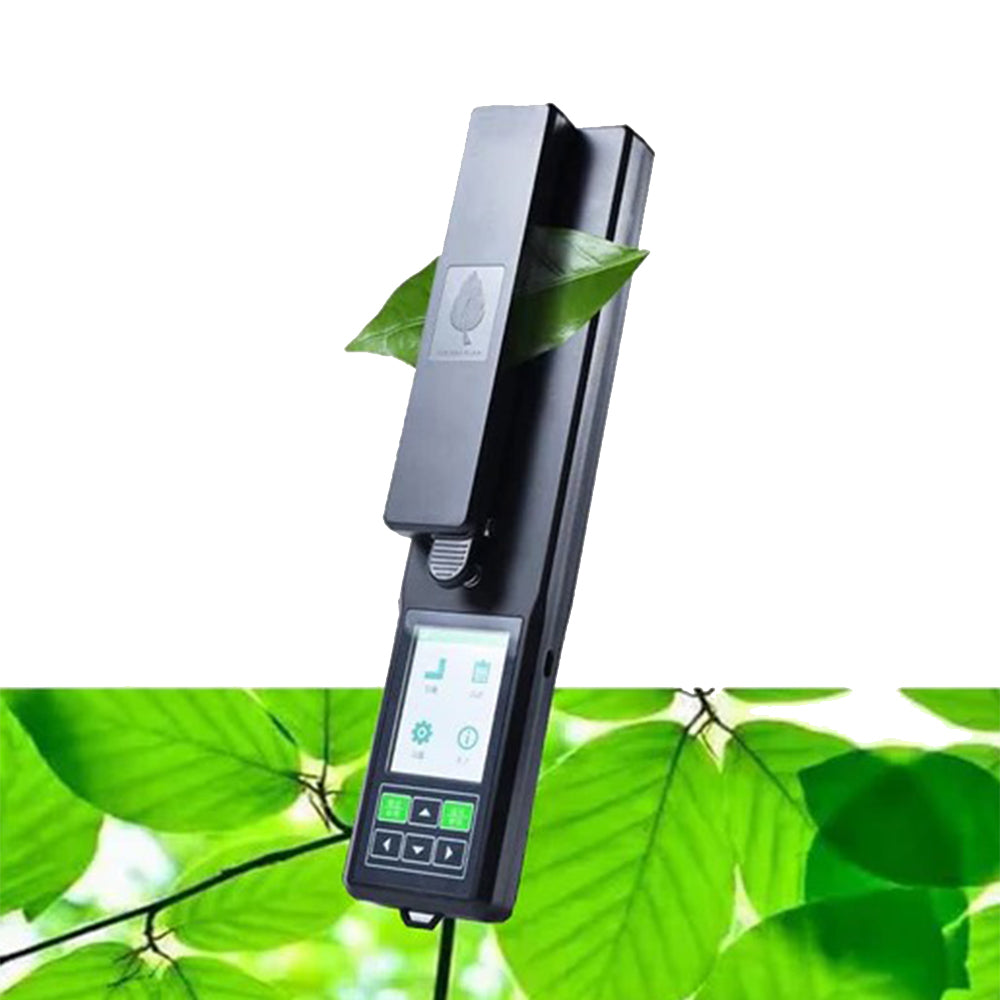

CNYST Leaf Length Width Area Meter Handheld Leaf Area Meter with Width Range 0–155mm Length Range 0–2000mm Accuracy ±2% 5000 Resolution 0.01cm² Measurement Error<5% A Computer 4G Wireless Transmission and A GPS Positioning Module

About this item:

Area unit: cm²; Resolution: 0.01cm²; Measurement accuracy: ±2%; Width range: 0～155mm; Length range: 0～2000mm; Data recording: 0～5000 groups

GPS positioning: integrated high-speed GPS positioning module, upload data are self-contained time, latitude and longitude information, convenient for more effective processing of data.

4G transmission: measurement data can be uploaded to the cloud platform in real time, you can view the measurement time, leaf area and other data, you can do histogram analysis of different parameters, support data export in the form of EXCEL tables, support data online printing, you can display data according to the selected time period, support data analysis in tables, histograms, etc., online download.

The instrument can directly measure the length, width and area of the blade, and an RS232 interface is added, and the measurement data can be imported into the computer to facilitate the further processing of the data by the majority of researchers.

The living leaf area measuring instrument is a newly developed product. It is a portable instrument that is easy to use and can work in the field. It can measure the leaf area and related parameters of leaves accurately, quickly and without damage, and can also measure the area of picked plant leaves and other sheet objects. It is widely used in agriculture, meteorology, forestry and other parts.

Features:

It is a portable instrument that is easy to use and can work in the field.

Communication interface: Type-C interface, which can import the data into the computer.

GPS positioning: integrated high-speed GPS positioning module, upload data with time and longitude information, onvenient and more effective data processing.

4G wireless transmission: measurement data can be uploaded to the cloud platform, can view the measurement time, blade area, can do bar chart analysis of different parameters, support data exported in the form of EXCEL form, support online printing data, according to the selected time period display data, support data to form, bar chart analysis, online download.

It can accurately, quickly and without damage to measure the leaf area and related parameters, and can also measure the area of the picked plant leaves and other sheet objects.

Widely used in agriculture, meteorology, forestry and other parts. The instrument can directly measure the length, width and area of the blade.

integrated design of host and probe, more convenient to operate.

Using microcomputer technology, LCD large liquid crystal display.

High performance and large capacity battery, no external power supply, low voltage display, sustainable measurement is more suitable for field measurement.

A large leaf area can be measured at one time (2000 * 155mm²)

can store 5000 sets of data (leaf area, leaf length, leaf width).

Various parameters of leaf can be measured: leaf area, average leaf area, leaf length and leaf width.

Built-in calibration module, users can calibrate according to different use environments.

Specification:

Area unit: cm²

Resolution: 0.01cm²

Measurement accuracy: ±2%

Width range: 0～155mm

Length range: 0～2000mm

Data recording: 0～5000 groups

Power supply: lithium battery (built) 3200 mA + (external replaceable) 1400 mA

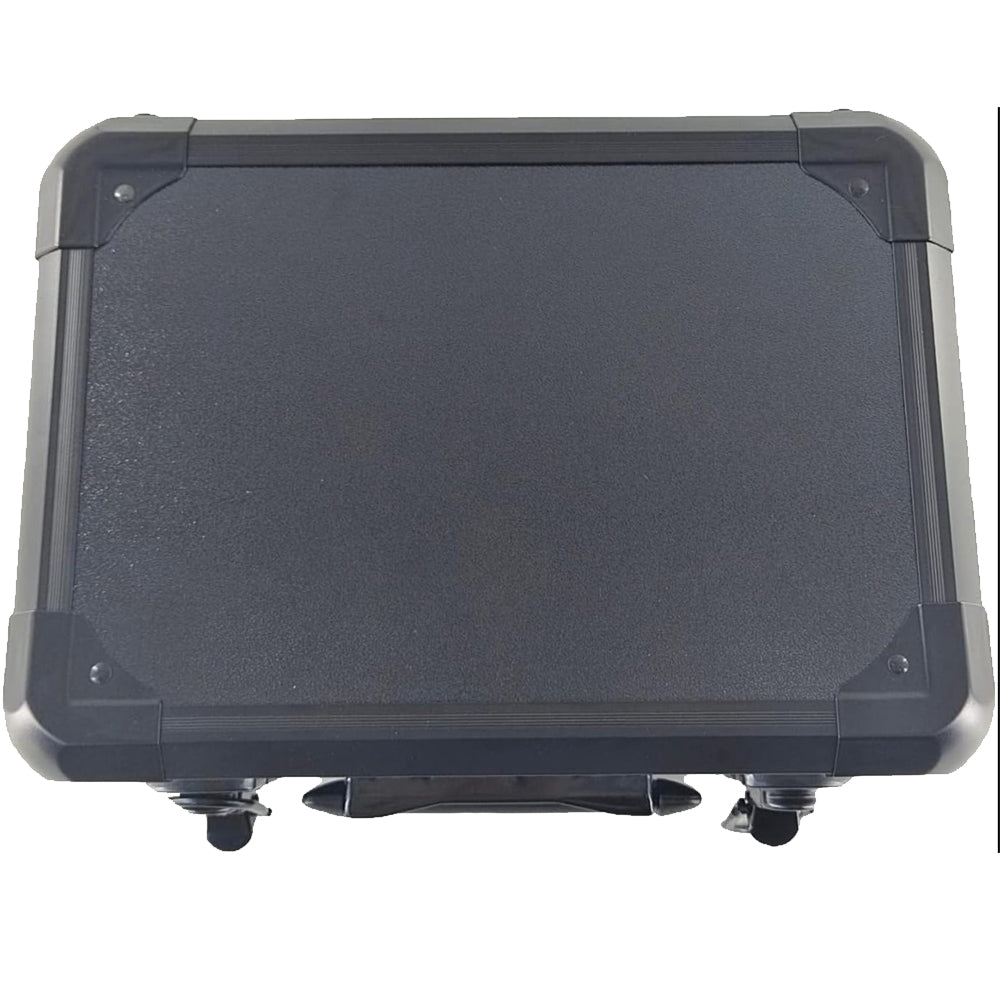

host, aluminum box, data cable, charger, U disk (upper computer software, operation video, electronic version manual), 4G Internet of Things card (2 years), rope, manual, close
