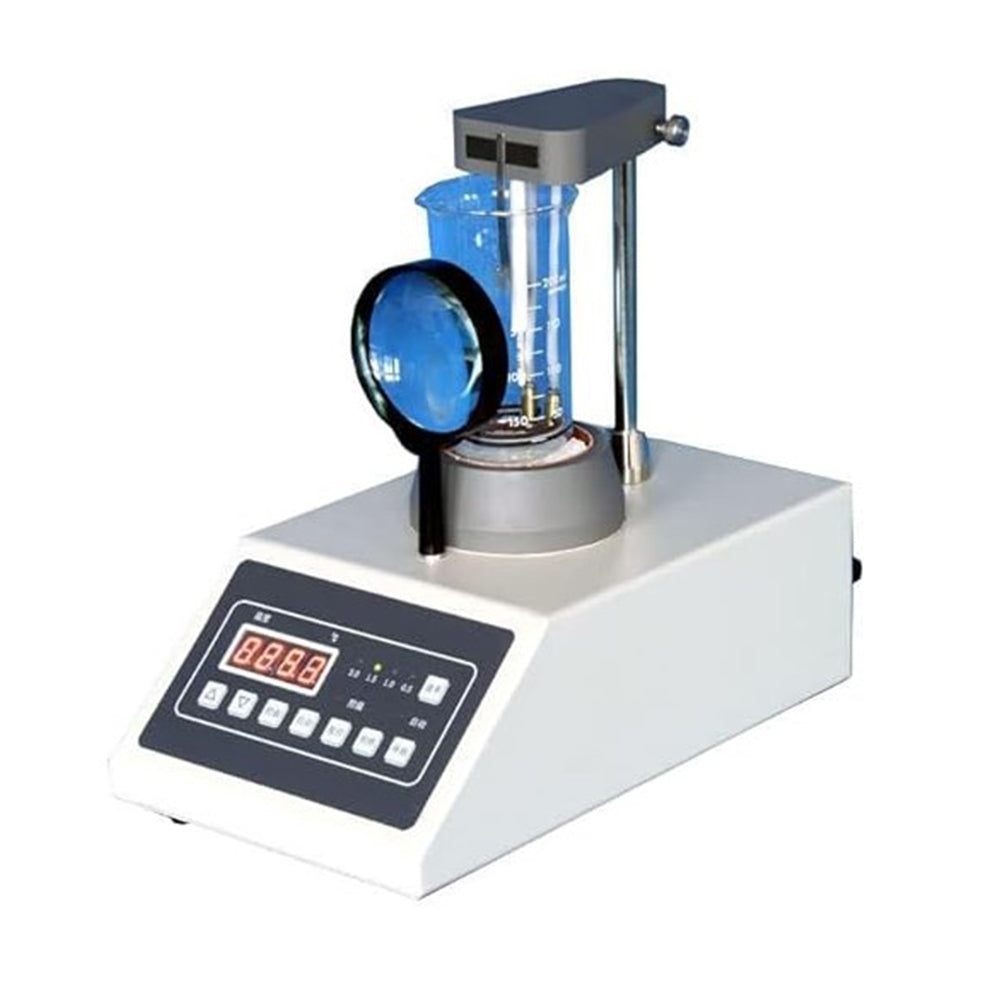

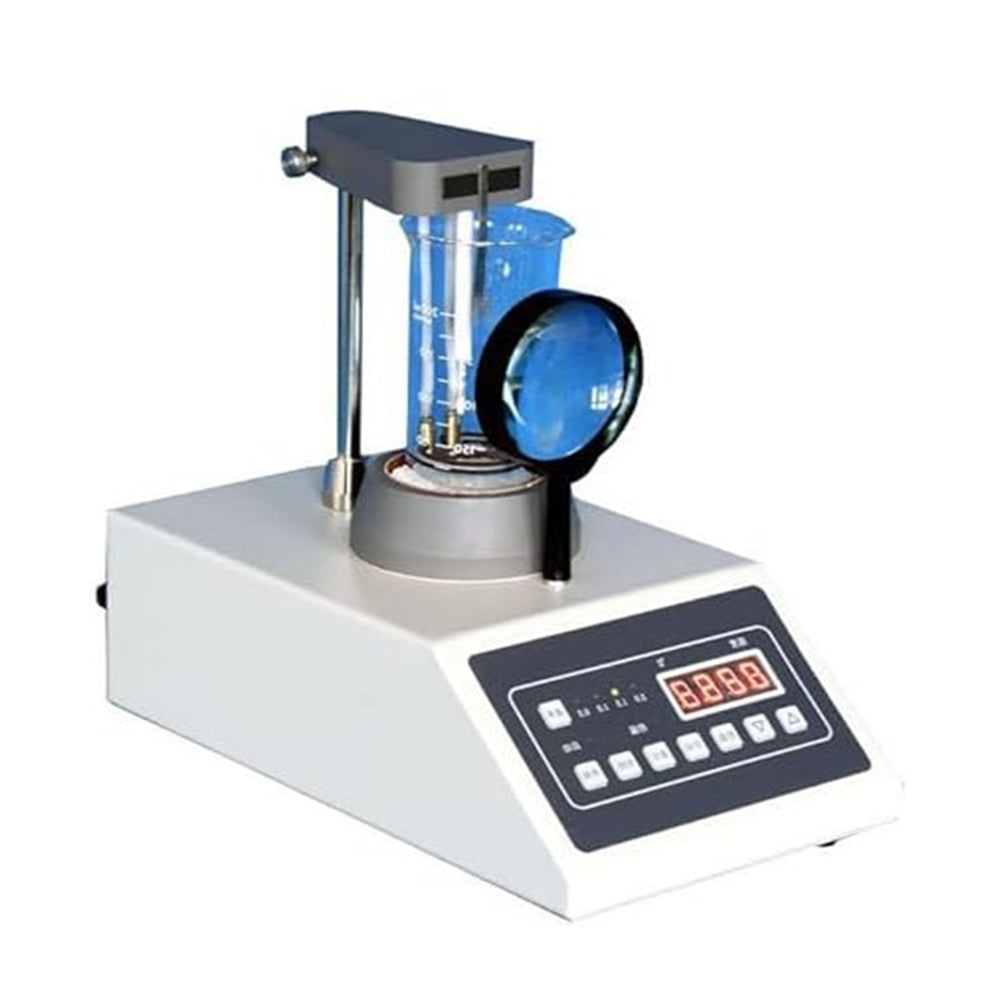

CNYST Melting Point Test Apparatus Melting Point Measuring Device with Melting Point Test Accuracy ≯±0.5°C for <200°C ≯±1.0°C for ≥200°C Range of Melting Point Test (50-270)°C Operating Ambient Temp (15-35)°C

About this item:

High precision temperature sensors measure temperature and automatically correct for non-linear errors.

Fully automatic frequency control technology, high accuracy of temperature control, linear temperature rise rate Small error.

Automatic storage and recording of preset values and melting point values without loss of power.

Automatic magnetic stirring system with uniform oil bath temperature.

Automatic temperature presetting, automatic temperature rise test; time-sharing display of preset and real time values.

Introduction:

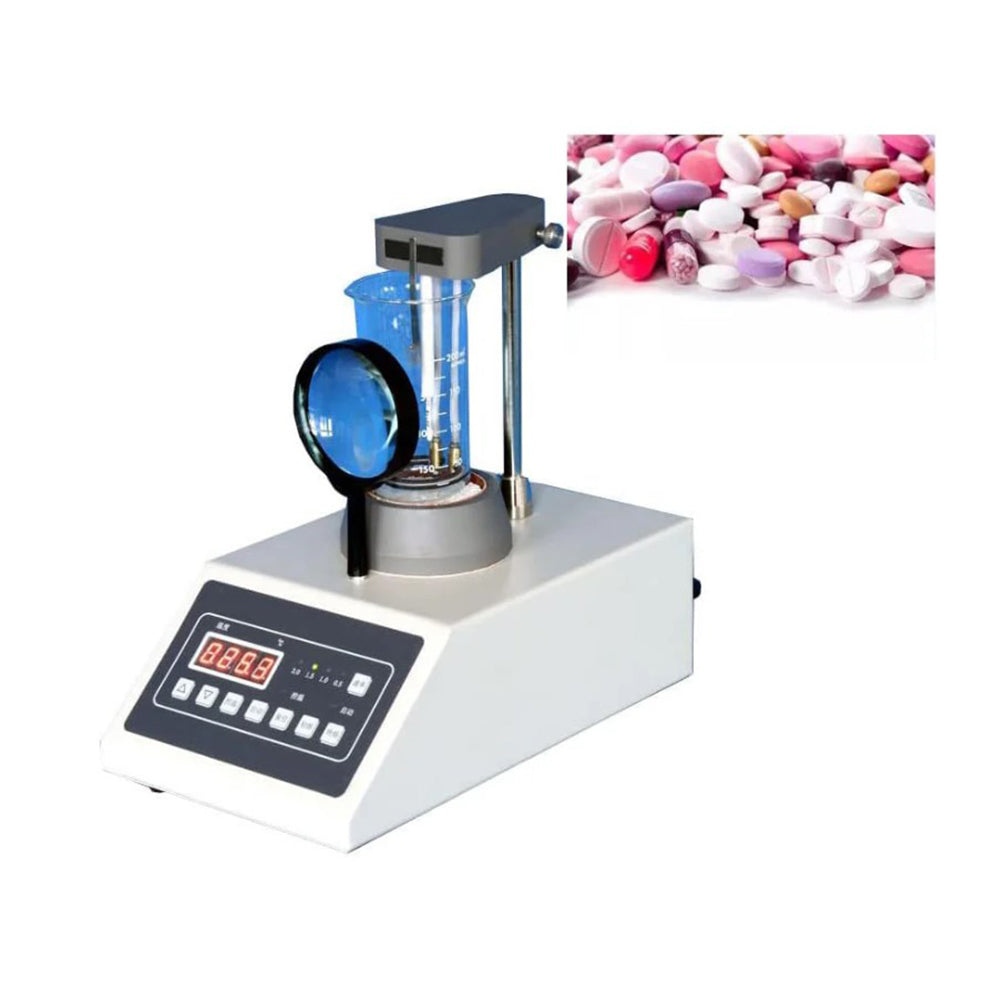

The melting point is the temperature at which a substance changes from a solid to a liquid state and is an important method for determining substances and their It is one of the most important methods for determining substances and their purity. Melting point testers are used to test the melting points of drugs, reagents, spices, dyes and other organic crystalline substances. spices, dyestuffs and other organic crystalline substances.

Main features:

High-precision temperature sensor measures temperature and automatically corrects for non-linear errors.

Fully automatic frequency conversion control technology, high accuracy of temperature control, linear temperature rise rate Low error.

Automatic storage and recording of preset and melting point values, no loss in power failure.

Automatic magnetic stirring system, uniform temperature of oil bath.

Automatic preset temperature, automatic temperature rise test; time-sharing display of preset and real time values.

Automation, automatic detection, automatic diagnosis and automatic alarm.

Technical specifications:

Range of melting point test: (50-270)°C

Melting point test accuracy:≯±0.5°C for <200°C　≯±1.0°C for ≥200°C

Operating ambient temperature: (15-35)°C

Temperature presetting range:(50～260）℃

Temperature transfer medium: Methyl silicone oil

Temperature transfer cup: 250ML high beaker

Temperature rise rate：（0.5、1.0、1.5、3.0）℃／min

Rate of temperature rise accuracy: ≤10%

Heater power : 200W

Size：（32＊18＊31）cm3

Weight: 6kg
