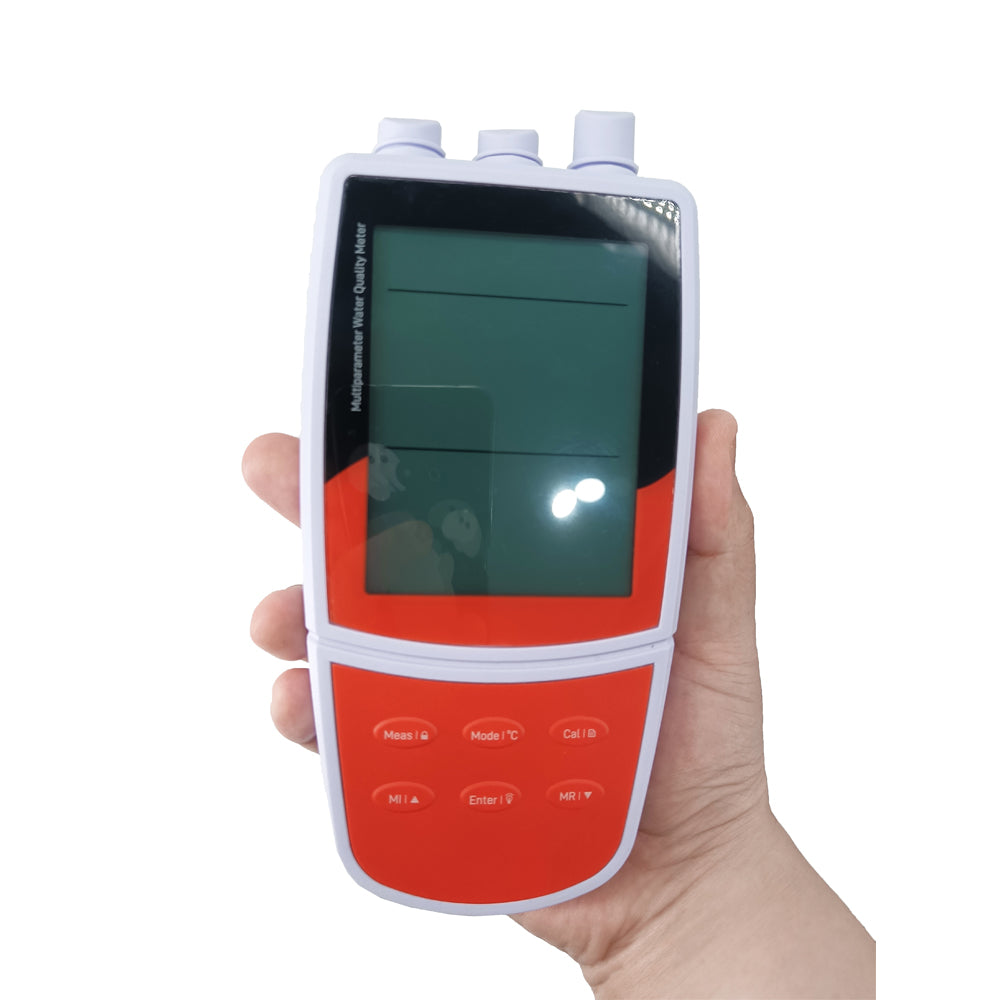

CNYST Multiparameter Water Quality Meter Laboratory Multiparameter Water Quality Analyzer for pH mV Relative mV Conductivity TDS Salinity Resistivity °C/°F Resistivity Range 0~10.00 MΩ Max. 20.00 MΩ with Standard Solutions

$712.00
$712.00

Features

pH
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and zero offset.
ORP
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.

Conductivity/TDS/Salinity/Resistivity
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Automatic electrode diagnosis shows the calibration points and factor.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear and pure water compensations, seawater and practical salinity measurement modes.

More about it

• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-read function senses and locks the measurement endpoint.
• Calibration due alarm reminds user to calibrate the meter regularly.
• Auto-power off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc.
• Reset function automatically restores all settings to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface enables easy data transfer to a PC.
• DAS software is capable of receiving data, recording measurements at specified intervals, exporting data to Excel.
• Multimode power scheme (batteries, power adapter, USB port) ensures the smooth operation of the meter.

Parameters

pH
Range -2.000 to 20.000 pH
Resolution 0.001 / 0.01 / 0.1, selectable
Accuracy ±0.002 pH
Calibration 1 to 5 points
pH Buffer Options USA / NIST / DIN / 2 custom buffers
ORP
Range -1999.9 to 1999.9 mV
Resolution 0.1 / 1, selectable
Accuracy ±0.2 mV
Calibration 1 point
Measurement Modes Relative / Absolute mV
Conductivity
Range 0.01 µS/cm to 200.0 mS/cm
Resolution 0.001, 0.01, 0.1, 1, automatic
Accuracy ±0.5% F.S.
Calibration 1 to 5 points
Calibration Solutions 10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS
Temperature Coefficient 0.0 to 10.0%/°C
Pure Water Compensation Yes
Reference Temperature 20 / 25°C
Cell Constant K=0.1 / 1 / 10 / Custom
TDS
Range 0.01 ppm to 200.0 ppt
Resolution 0.01, 0.1, 1, automatic
Accuracy ±1% F.S.
TDS Conversion Factor 0.1 to 1.0 (default 0.5)
Salinity
Range 0.00 to 80.00 ppt / 0.00 to 42.00 psu
Resolution 0.01
Accuracy ±1% F.S.
Resistivity
Range 0.00 to 20.00 MΩ
Resolution 0.01
Accuracy ±1% F.S.
Temperature
Range 0 to 105°C / 32 to 221°F
Resolution 0.1
Accuracy ±0.5°C / ±0.9°F
Calibration 1 point
Calibration Range Reading ±10°C/°F
Other Specifications
Temperature Compensation 0 to 100°C / 32 to 212°F, manual or automatic
Hold Function Manual / Auto-read measurement endpoint
Stability Criteria Low / High
Calibration Due Alarm 1 to 31 days or off
Auto-Power Off 10 / 20 / 30 minutes after last key pressed
Memory Stores up to 500 data sets

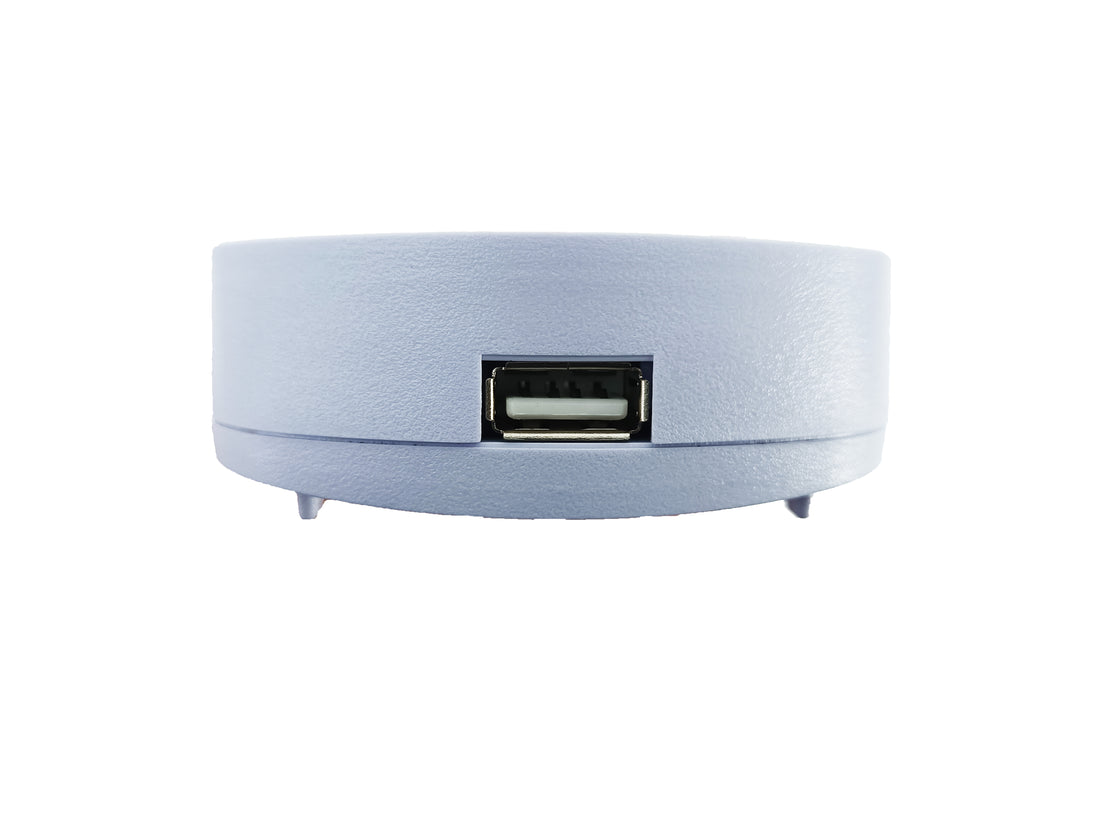

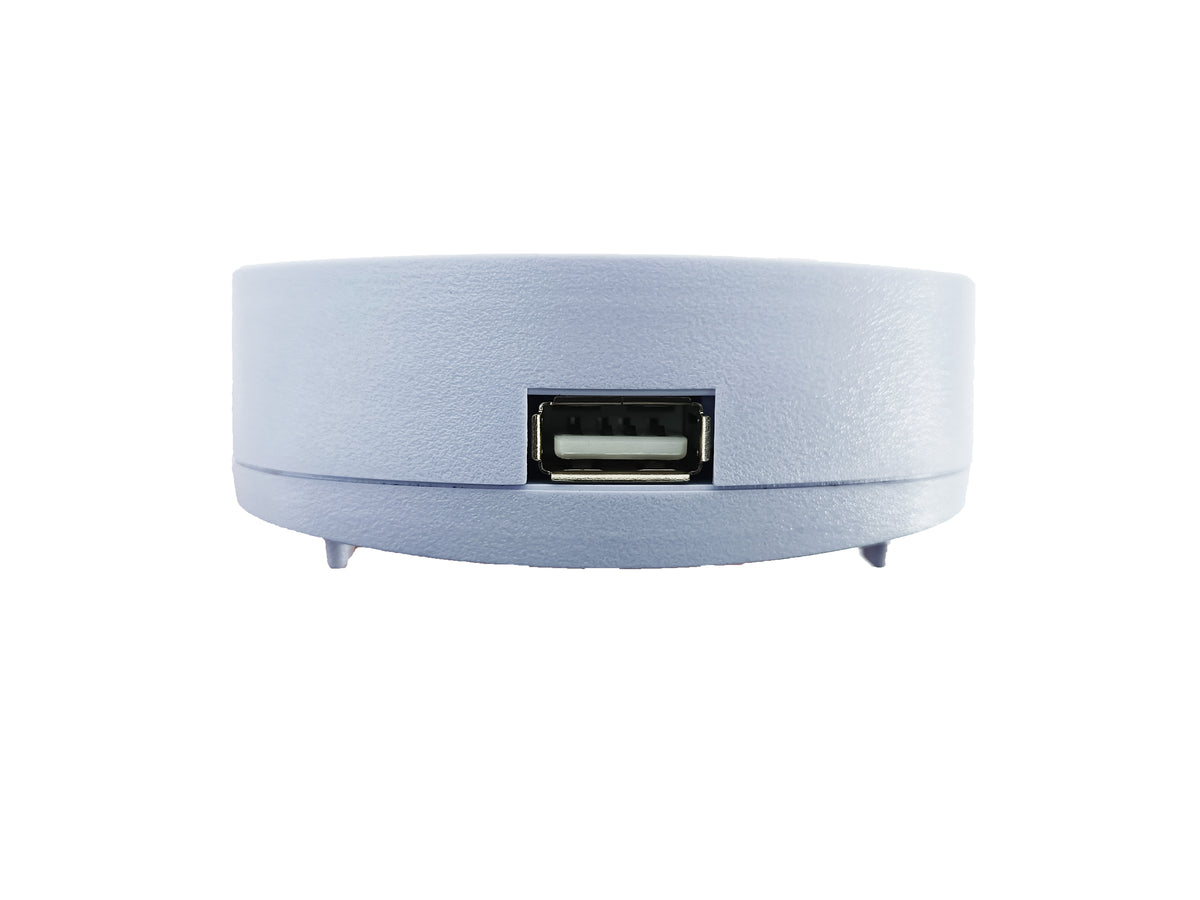

Output USB communication interface

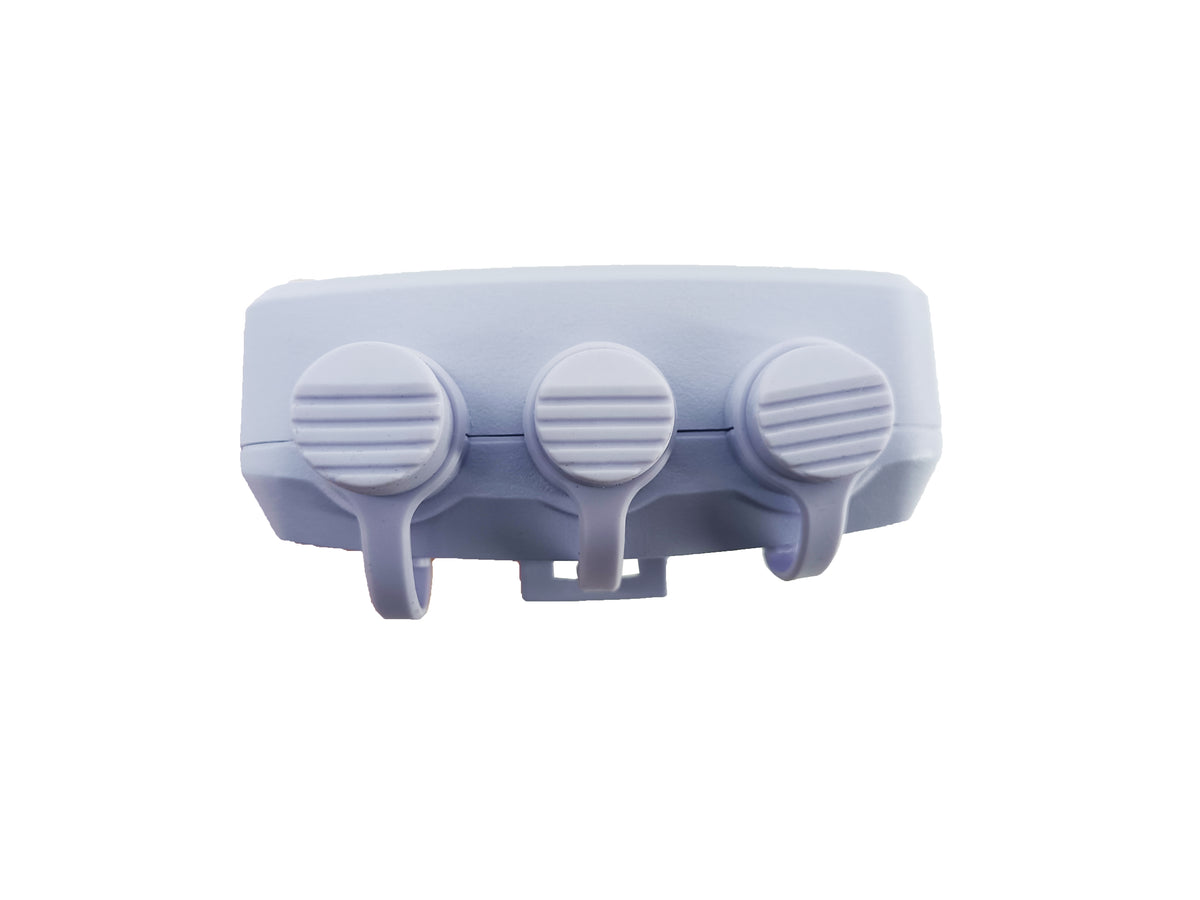

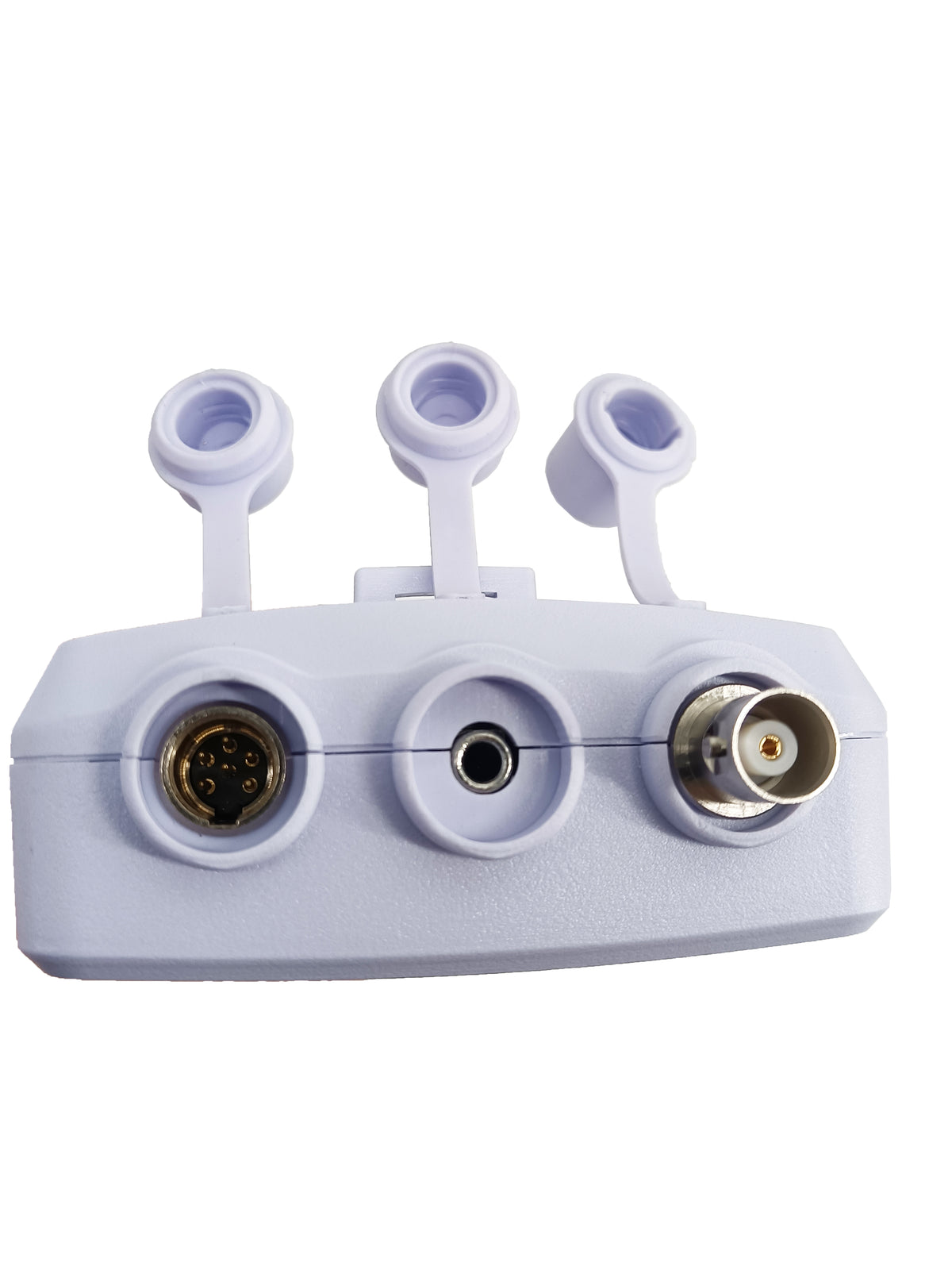

Connector BNC, 6-pin mini-DIN, 3.5 mm jack socket
Display Custom LCD (80 × 60 mm)

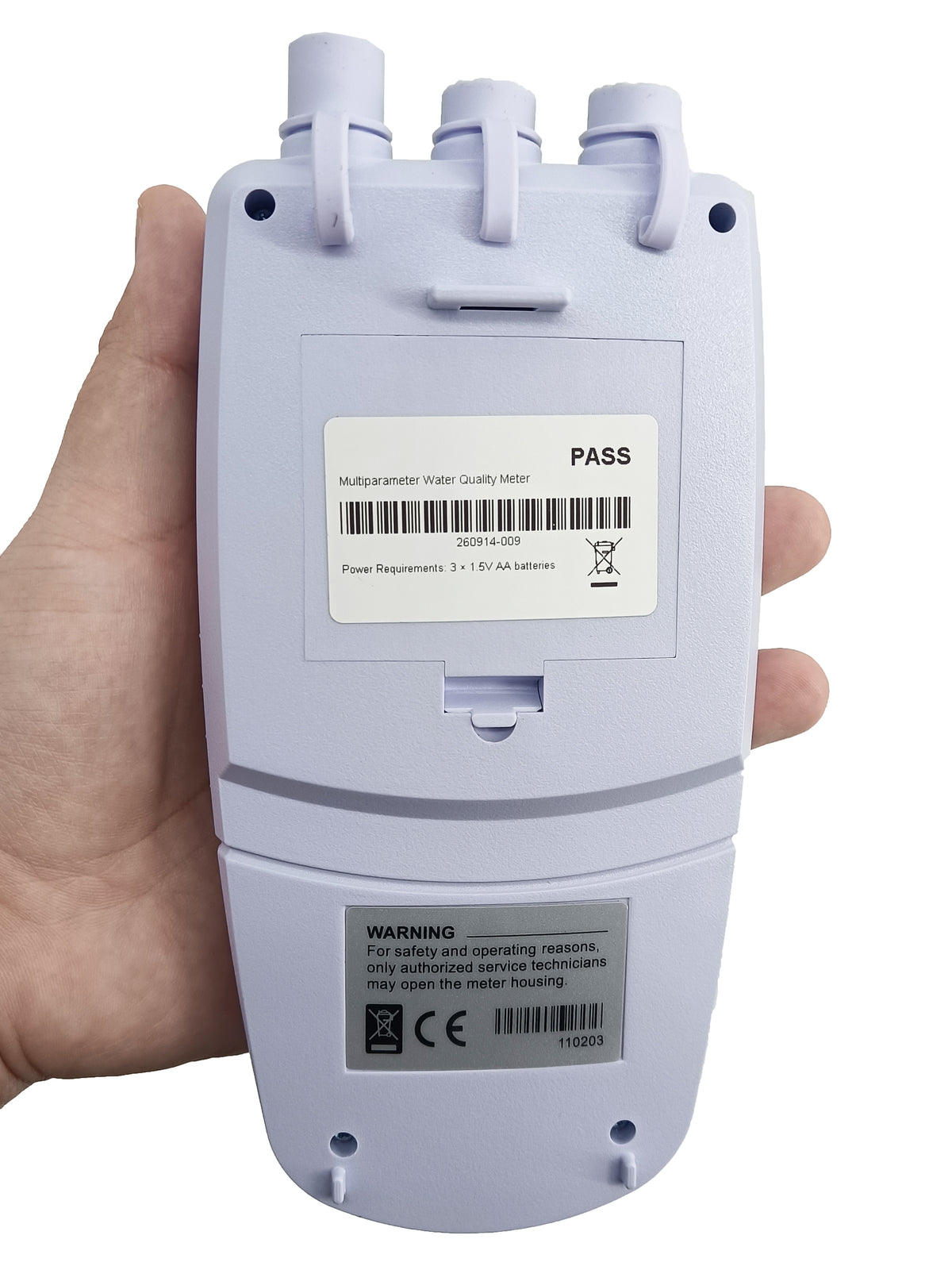

Power Supply 3 × 1.5V AA batteries or 5V DC power adapter
Battery Life Approximately 150 hours without backlight
Environmental Conditions 0 to 50°C / 32 to 122°F, relative humidity < 80%
Dimensions 170 × 85 × 30 mm
Weight 300 g

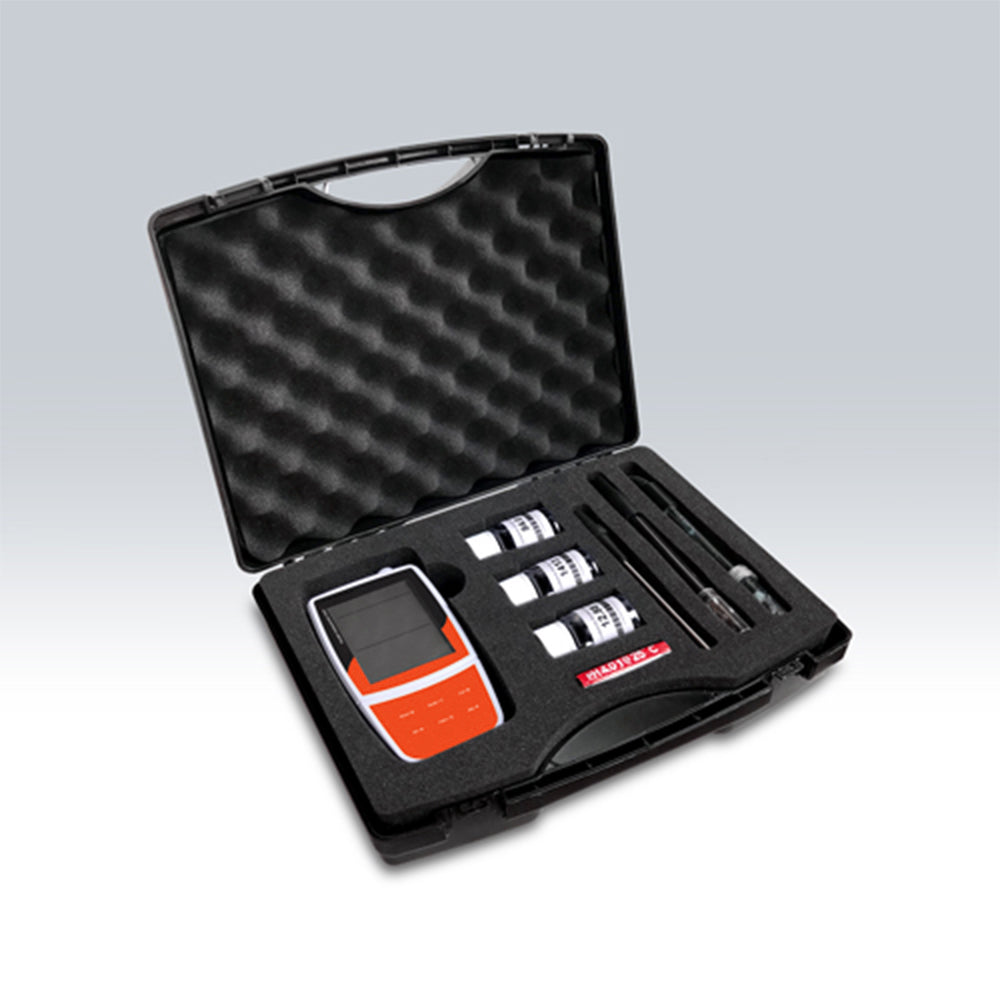

Accessories

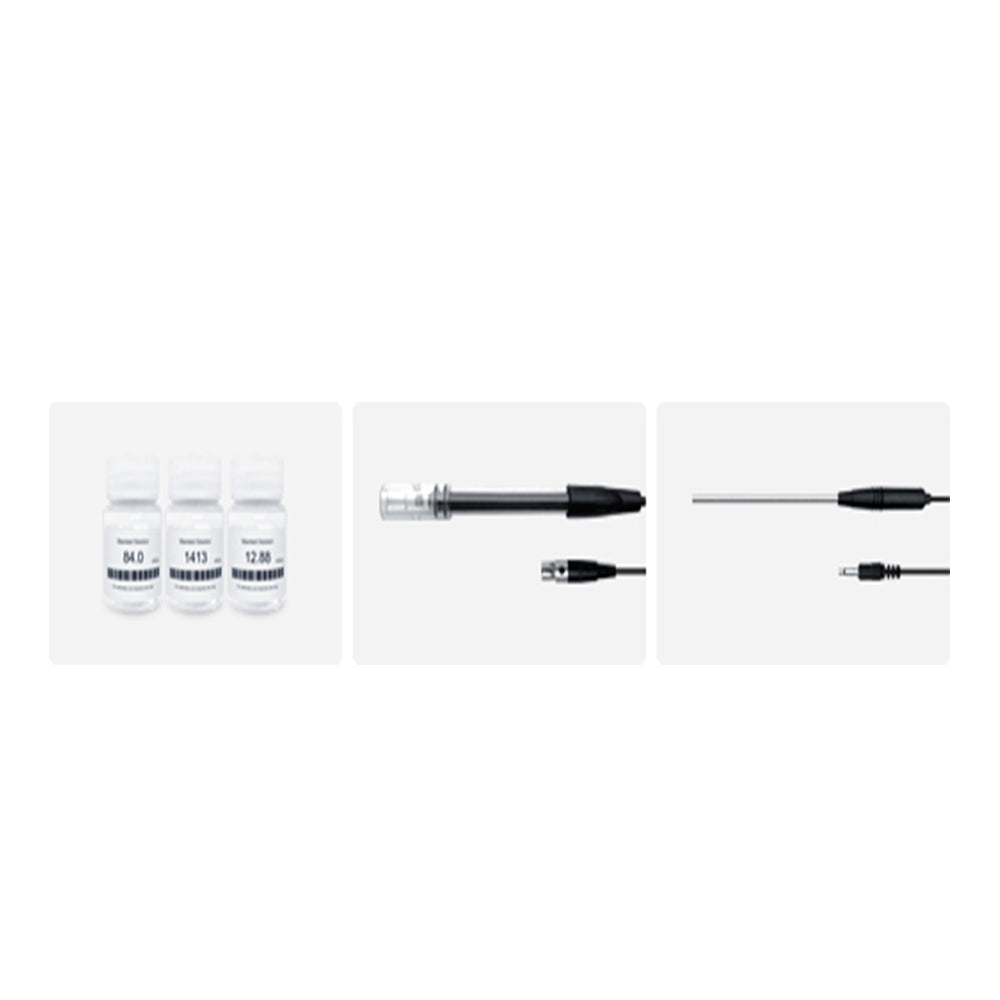

Meter Includes E201-BNC pH electrode
CON-1 conductivity electrode
TP-10K temperature probe
pH 4.01, 7.00, 10.01 buffer reagents
Conductivity standard solutions 84 µS/cm, 1413 µS/cm, 12.88 mS/cm
Electrode clip

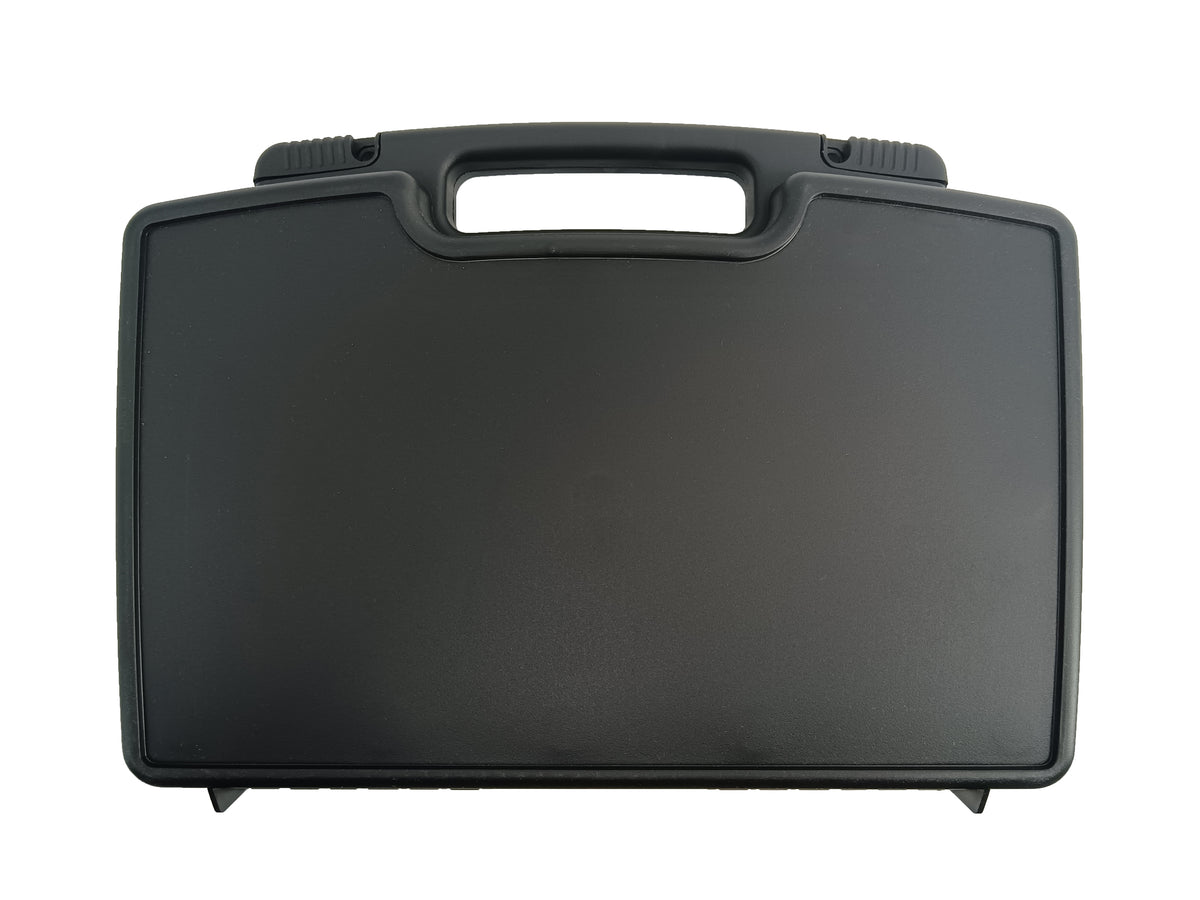

Carrying case
