CNYST

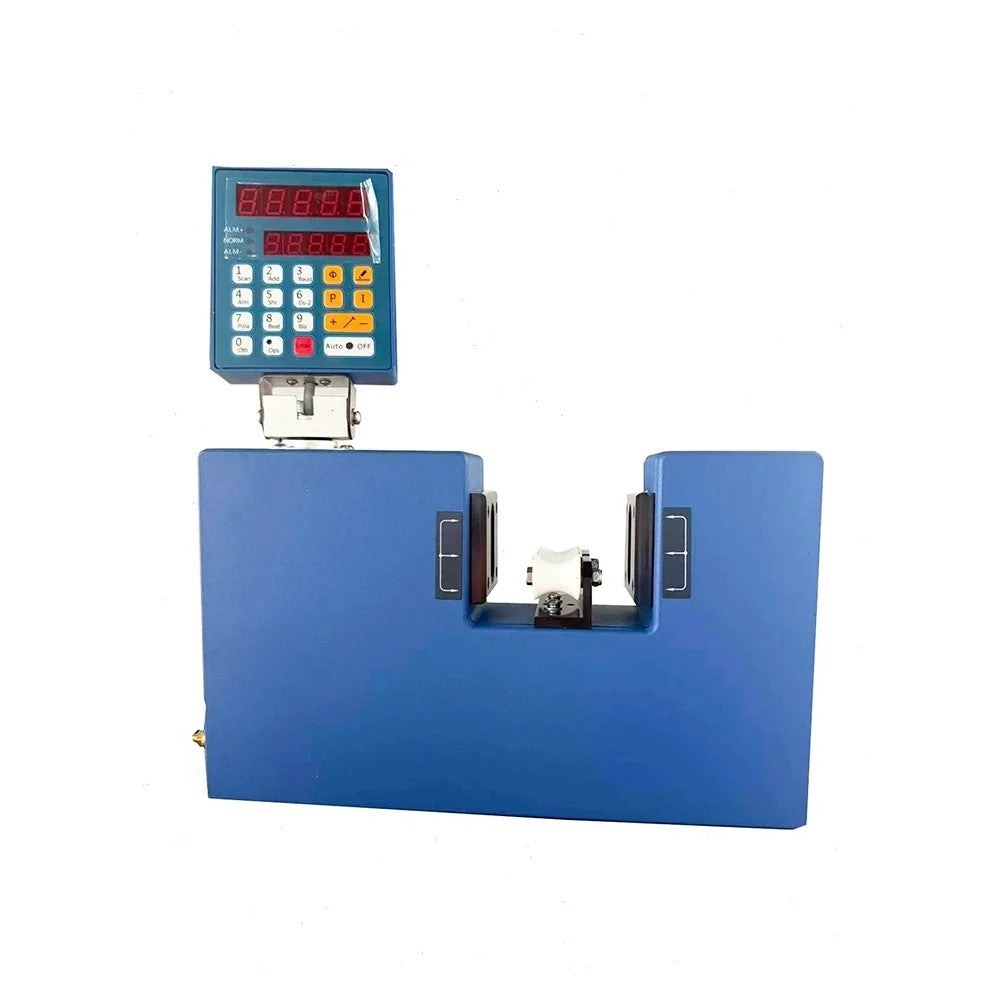

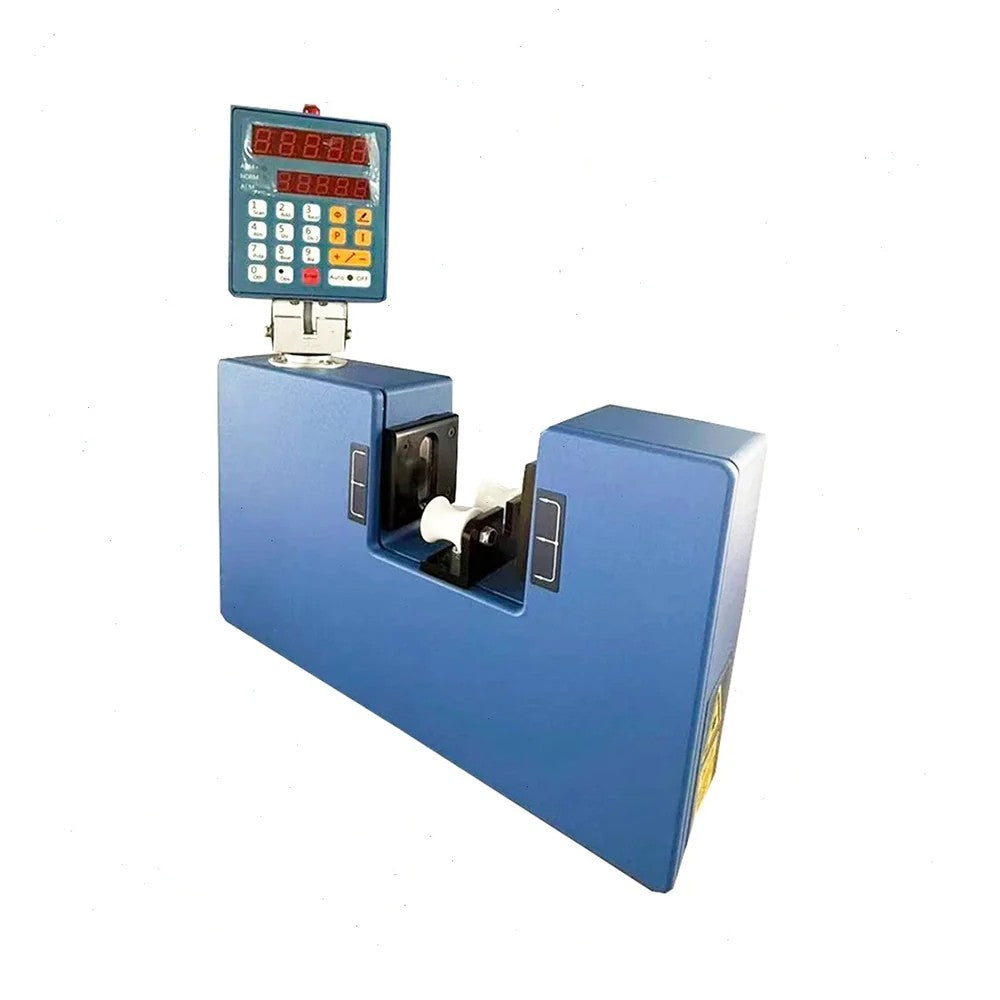

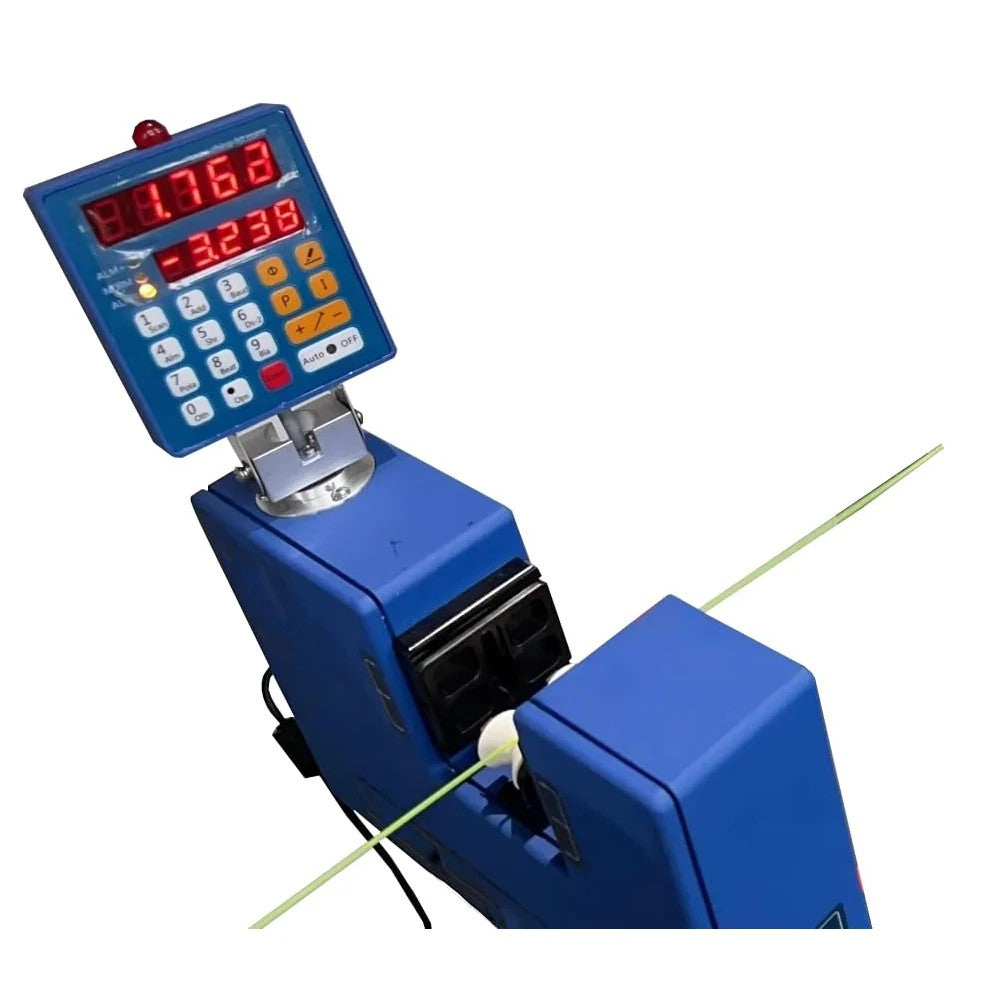

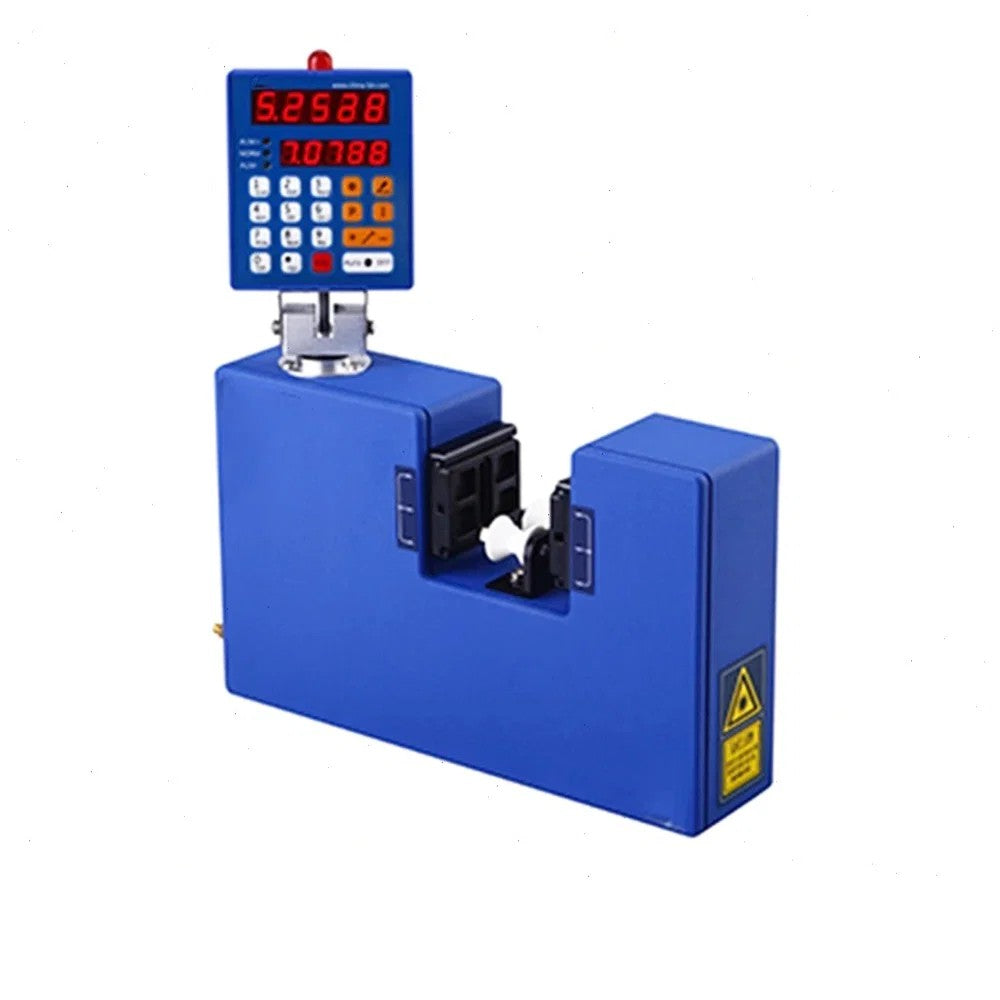

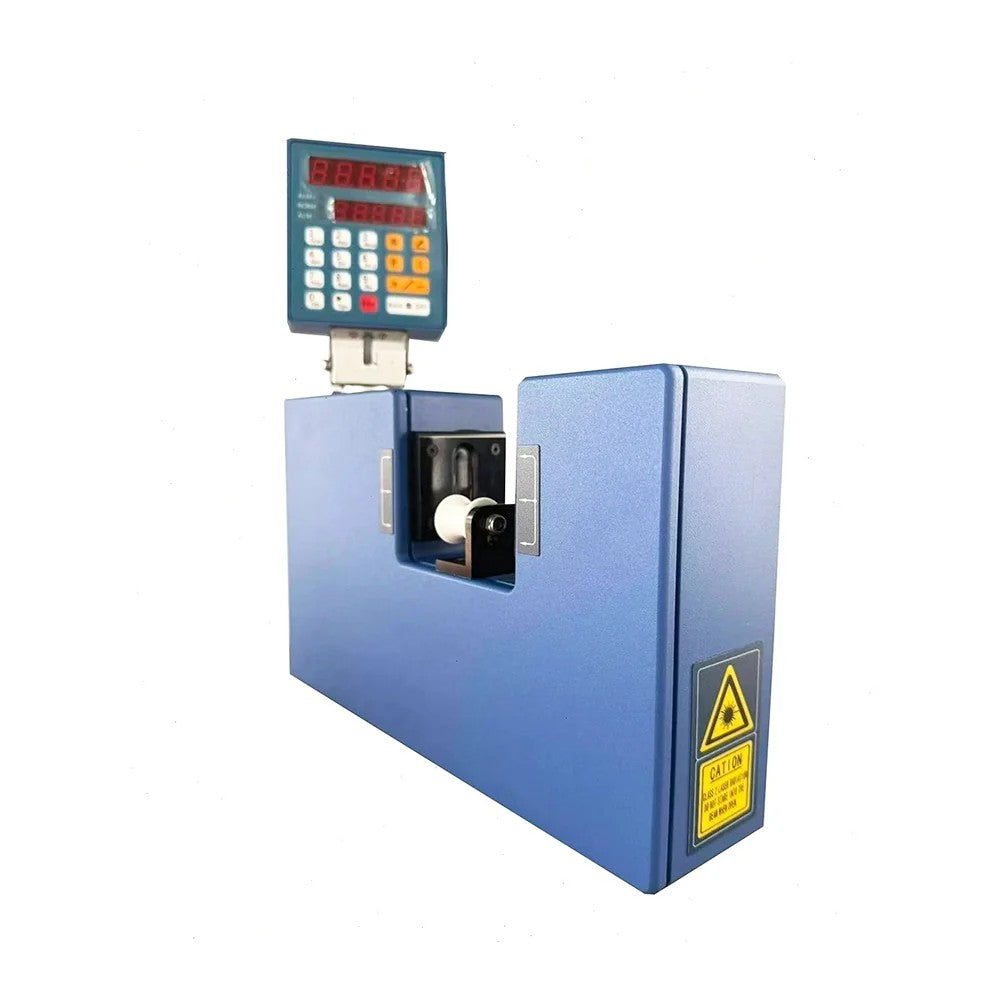

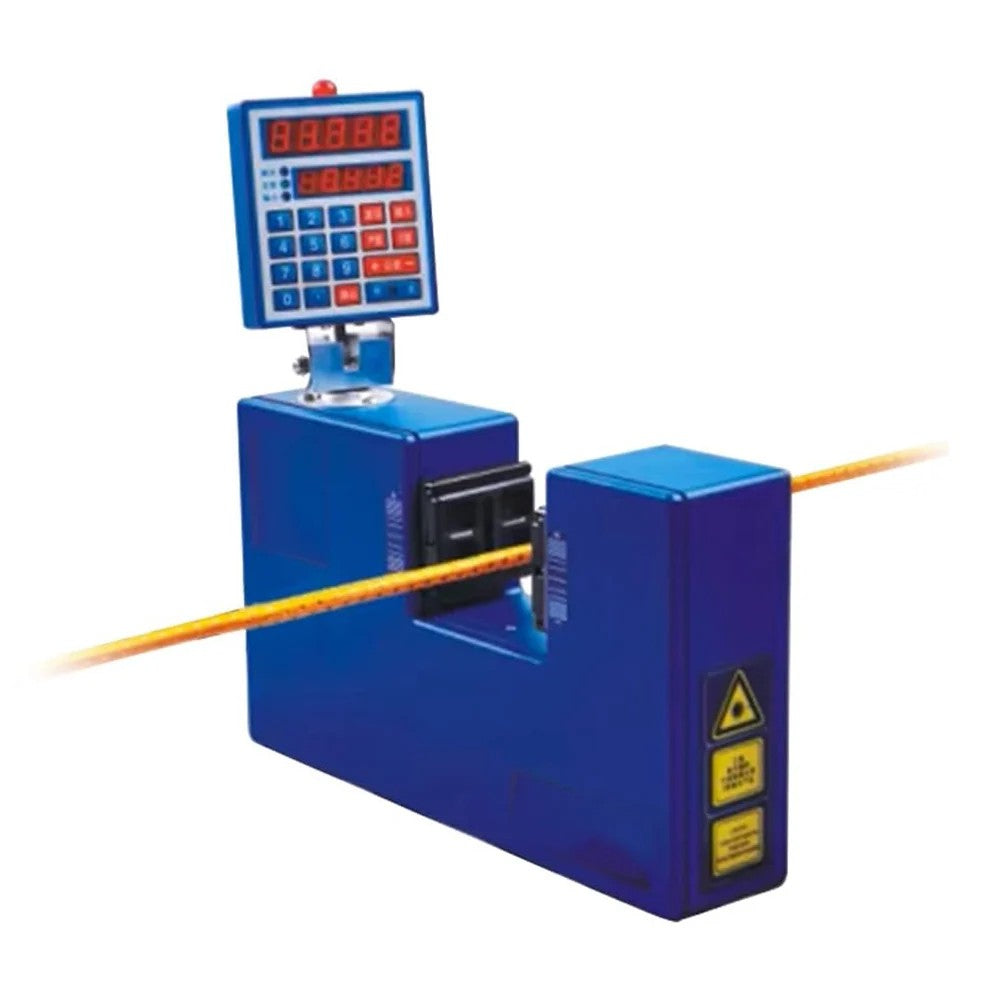

CNYST Non-Contact Diameter Gauge Laser Diameter Gauges with Scanning Speed 600N/S Resolution 0.001mm Measuring Range 0.10--25.00mm Multifaceted High Precision Standard Prism for Testing Pipe Tube Wire Etc

$2,780.00
$2,780.00

Features:

◆High-speed brushless motor scanning

◆Multifaceted high precision standard prism

◆High speed dual DSP processing chip

◆Excellent signal quality, high precision, high resolution

◆Has the ability to measure diameter, position,beating and multiple roots

◆Conventional body, micro body, transparent body, allotrope measurement

◆RS485, TCP/IP, PROFINET communication options

Applications:

◆Equipment: All kinds of plastic extrusion unit,wire and cable extrusion unit, wrappingunit, plastic tube and medical tube extrusion unit, etc.

◆Product categories: wire and cable,optical fiber and cable,plastic pipe,medical pipe,glass pipe,3D consumables,metal wire,wire and other--circular product measurement.

Technical specifications:

◆Measuring range: 0.10--25.00mm

◆Resolution:0.001mm

◆Accuracy:±0.002mm

◆Scanning speed:600N/S

◆Weight:10.5KG

◆Packaging specification host:60X40X20.5CM
