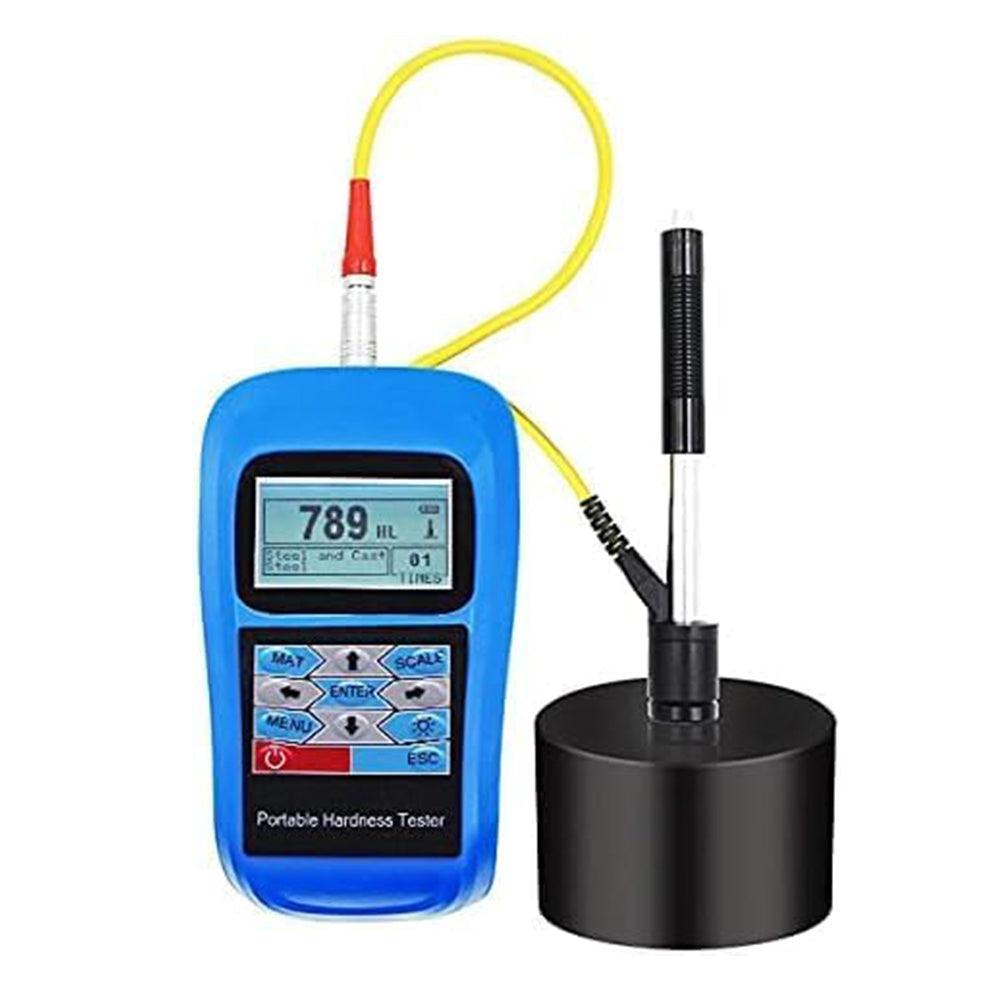

CNYST Portable Leeb Hardness Tester Digital Leeb Durometer with D Type Impact Device Hardness Scale HL HB HRB HRC HRA HV HS Segment LCD Display Measuring Direction 360° RS232 Communication interface

$325.00
$325.00

About this item:

◆ Measuring range: (170-960)HLD, (17-68.5)HRC, (19-651)HB,(80-976)HV, (30-100)HS, (59-85)HRA, (13-100)HRB

◆ Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

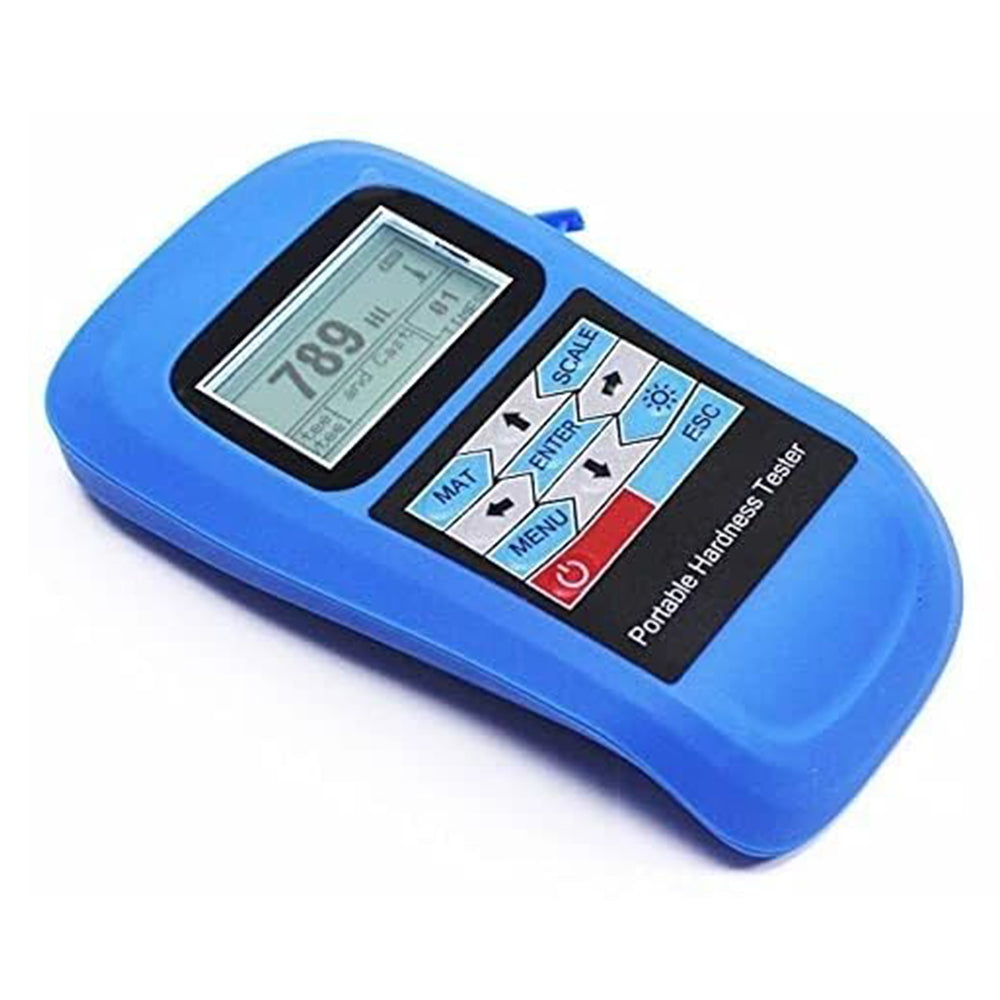

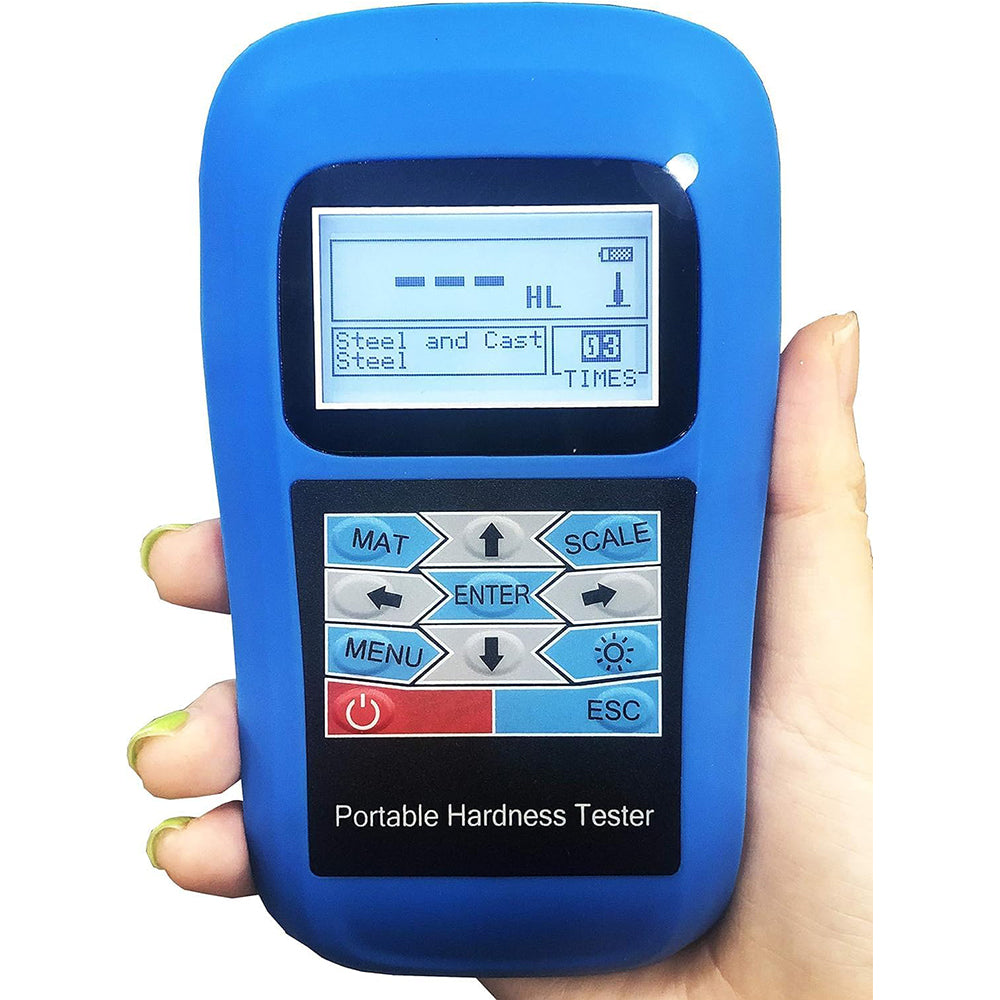

◆ Large screen (segment LCD), showing all functions and parameters. With EL background light.

◆ Large capacity memory could store 100 groups information.

◆ Compact plastic case, suitable for use under poor working conditions. Test at any angle, even upside down.

Features:

Compact plastic case, suitable for use under poor working conditions. Test at any angle, even upside down.

Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

Large screen (segment LCD), showing all functions and parameters. With EL background light.

Large capacity memory could store 100 groups information.

Technical Specifications:

Measuring range: (170-960)HLD, (17-68.5)HRC, (19-651)HB,(80-976)HV, (30-100)HS, (59-85)HRA, (13-100)HRB

Measuring direction: 360°（↓↖↗↘↙→←↑）

Hardness Scale: HL、HB、HRB、HRC、HRA、HV、HS

Display: segment LCD

Data memory: max. 100 groups（relative to impact times 32～1）

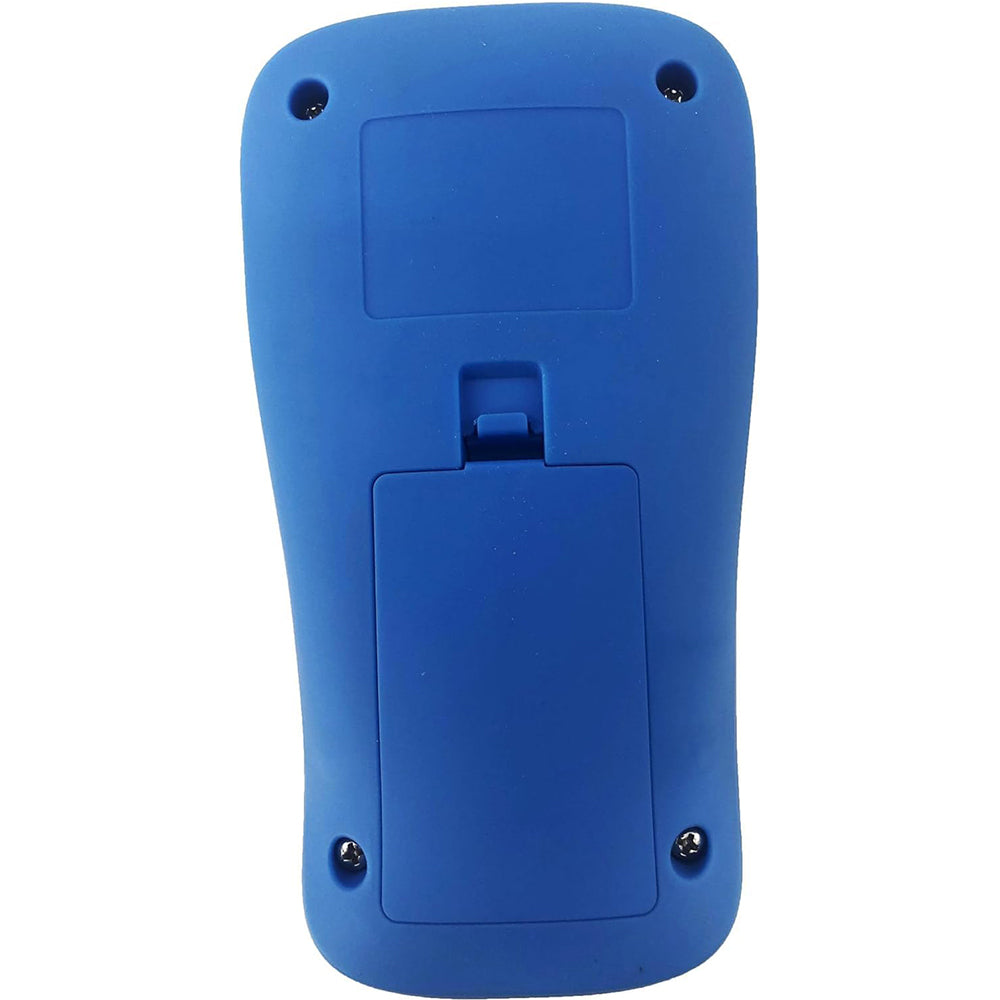

Working voltage: 3V（2 AA size alkaline battery）

Continuous working period: about 100 hours（With backlight off）

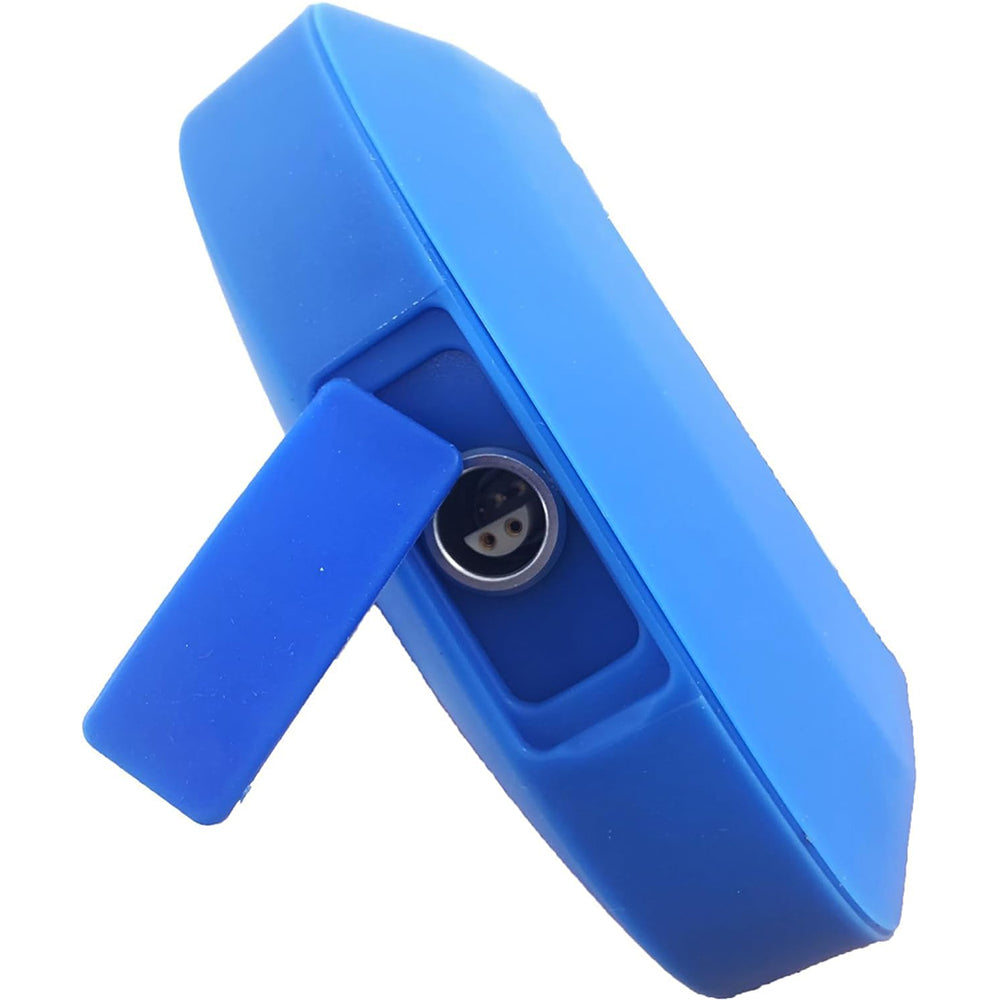

Communication interface: RS232

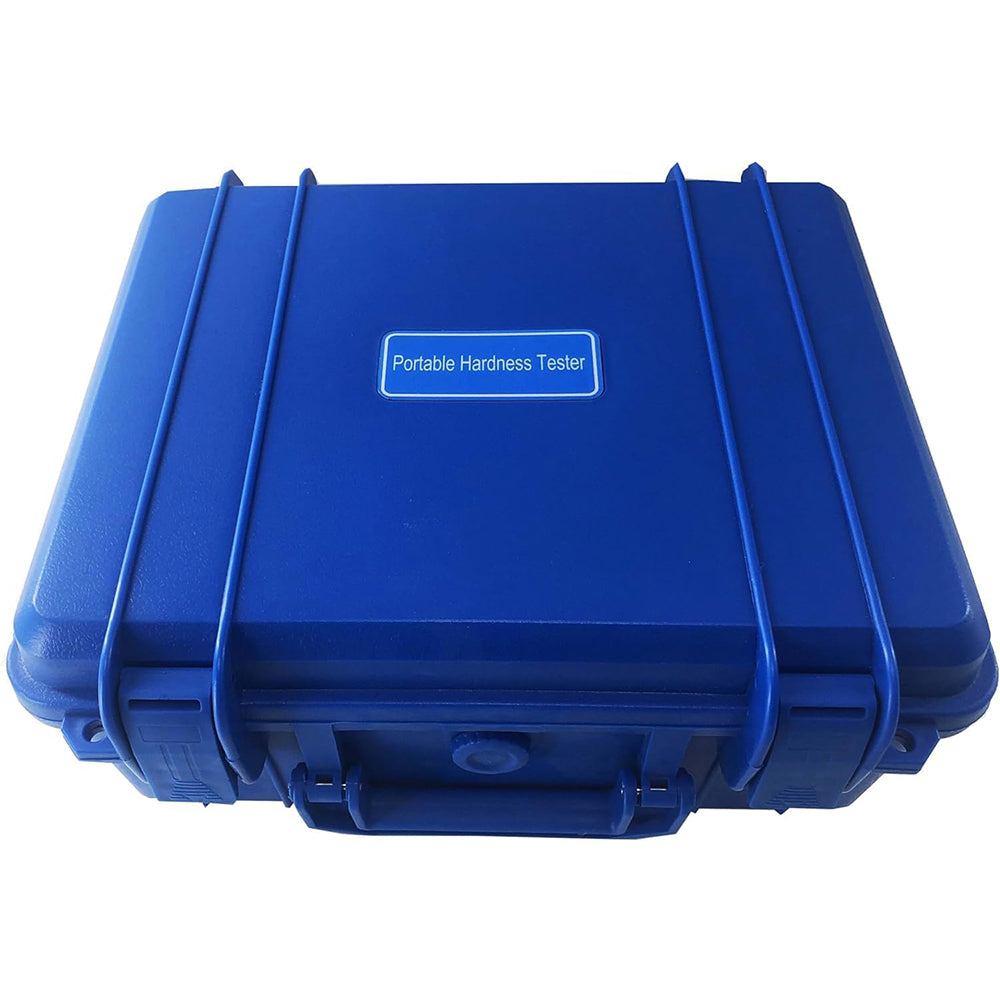

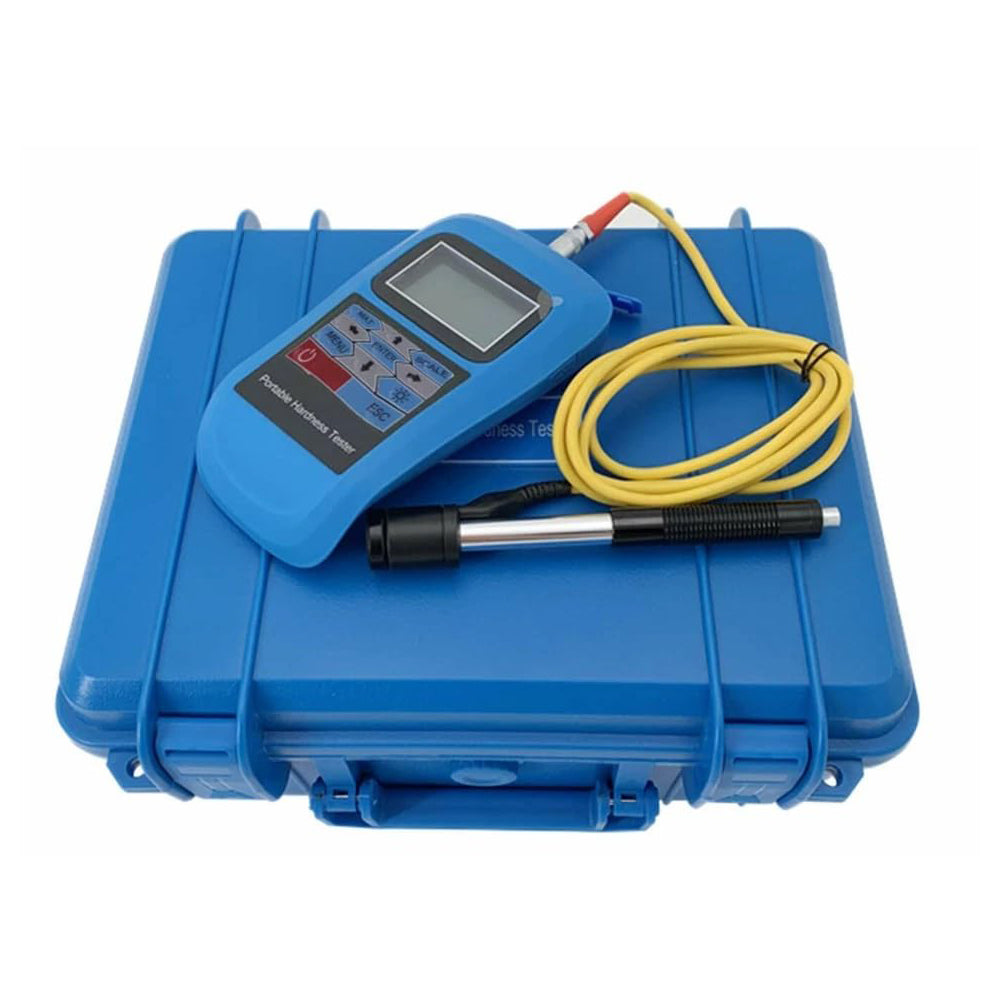

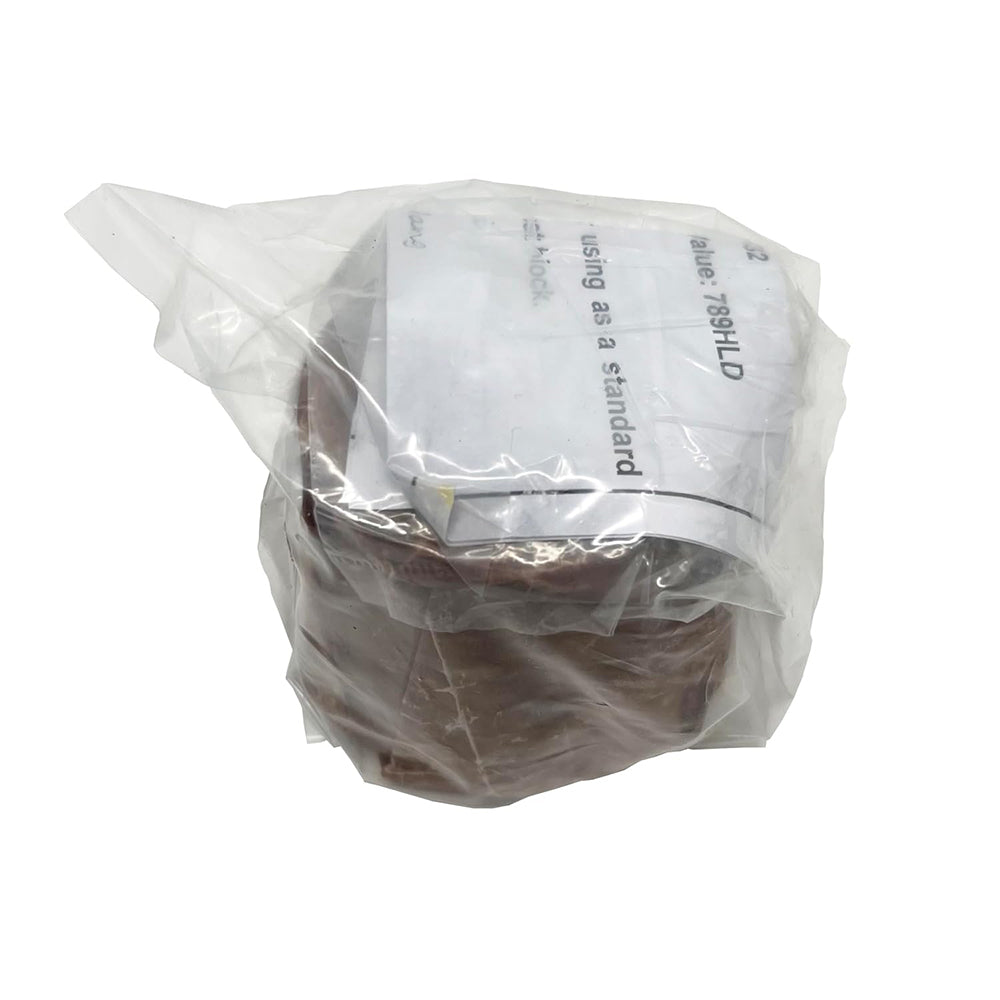

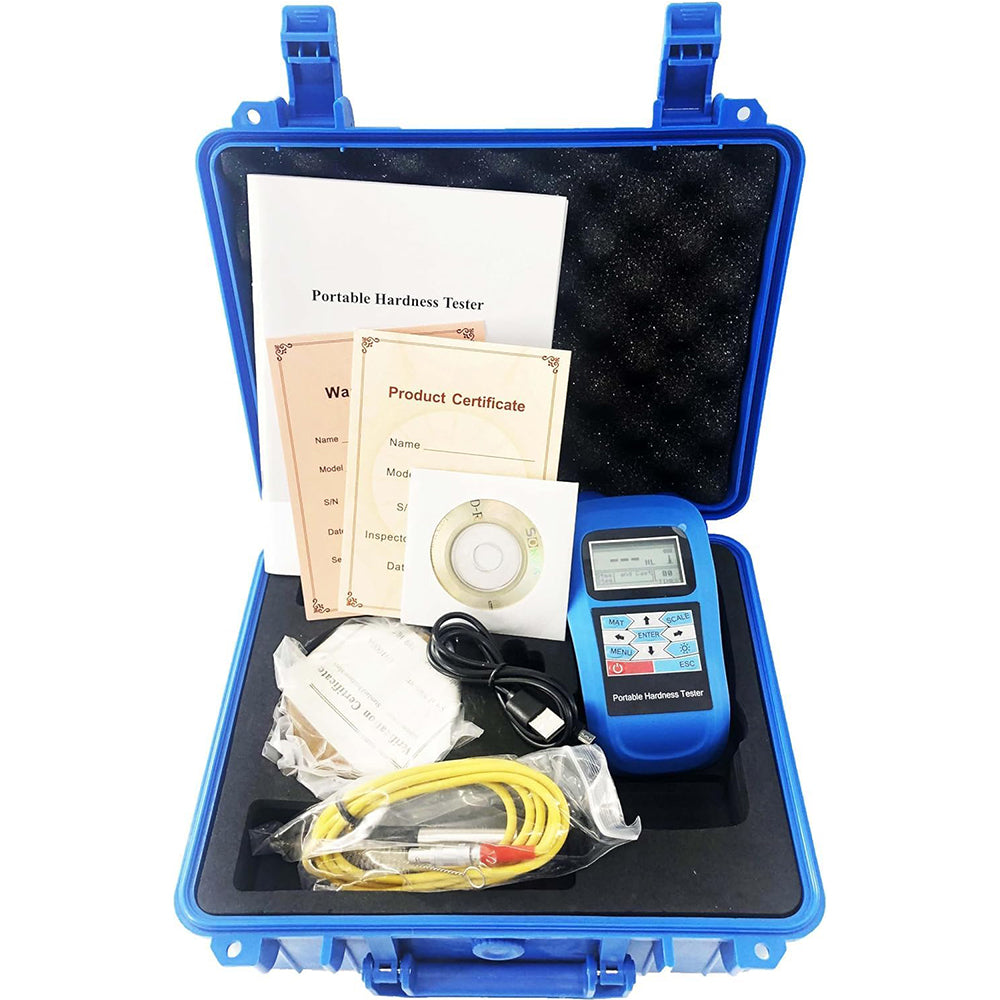

Standard Accessories: Main unit,D type impact device,Standard test block,Cleaning brush (I),Small support ring, Manual, Instrument package case

Main Application:

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts.

Testing surface of a small hollow space

Material identification in the warehouse of metallic materials

Rapid testing in large range and multi-measuring areas for large-scale work piece
