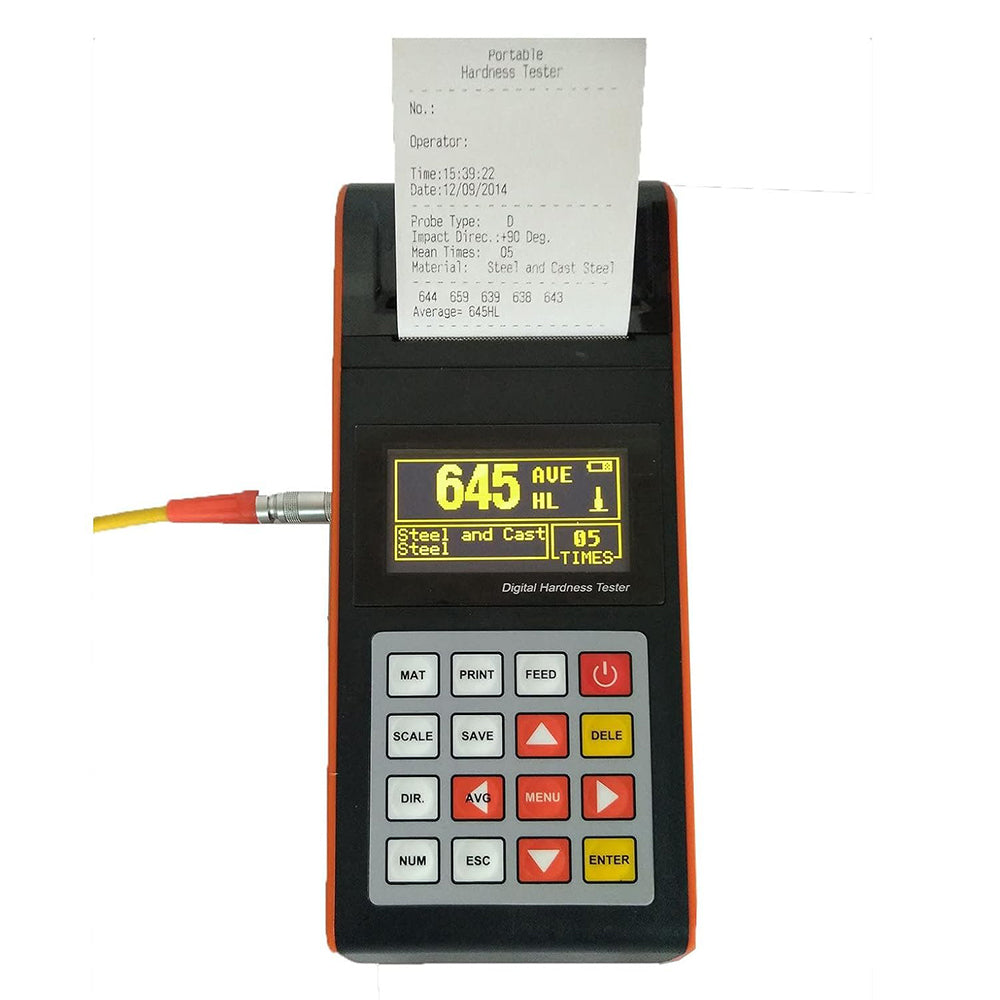

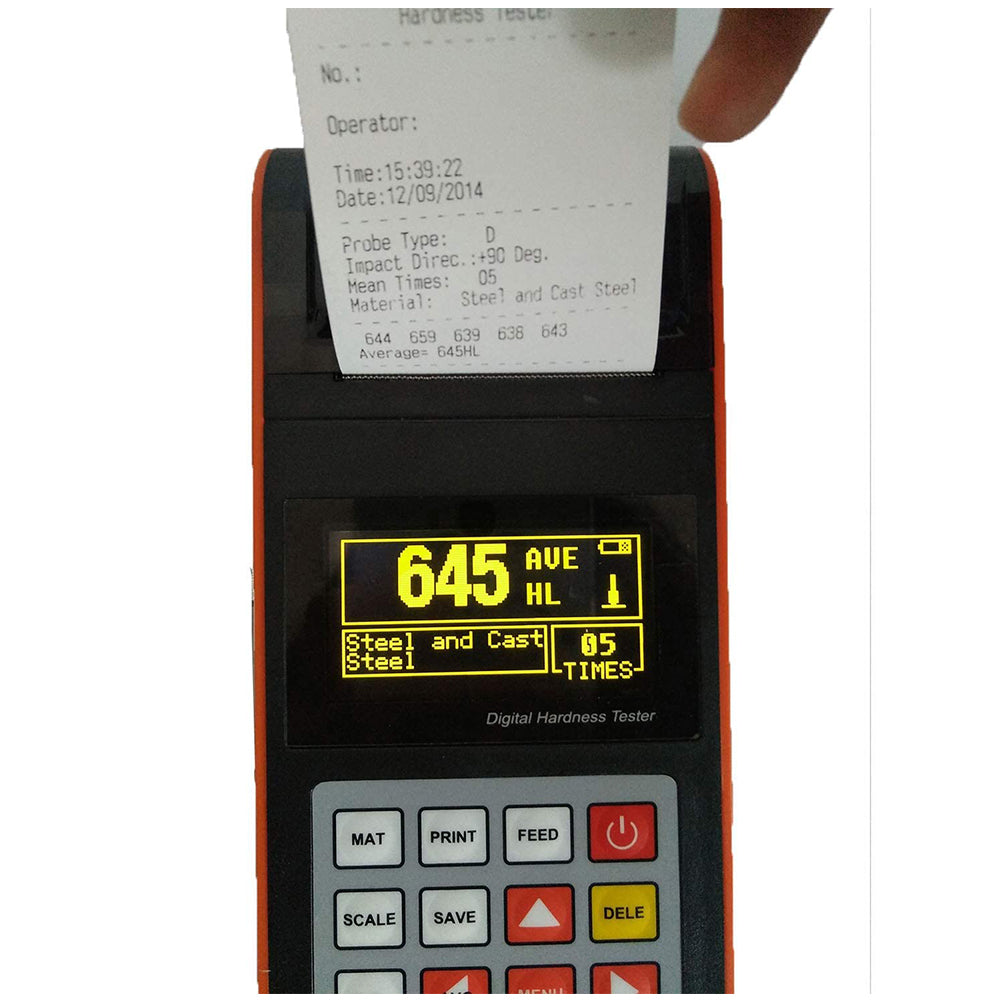

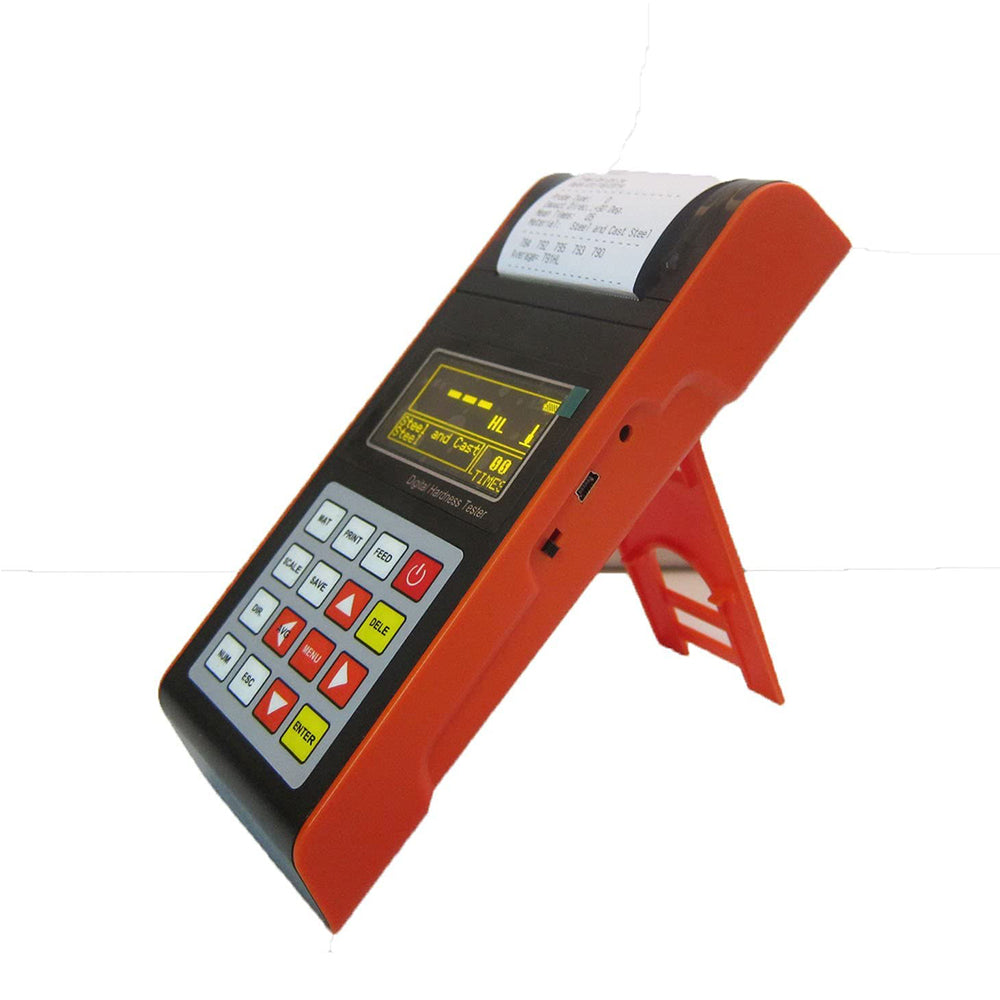

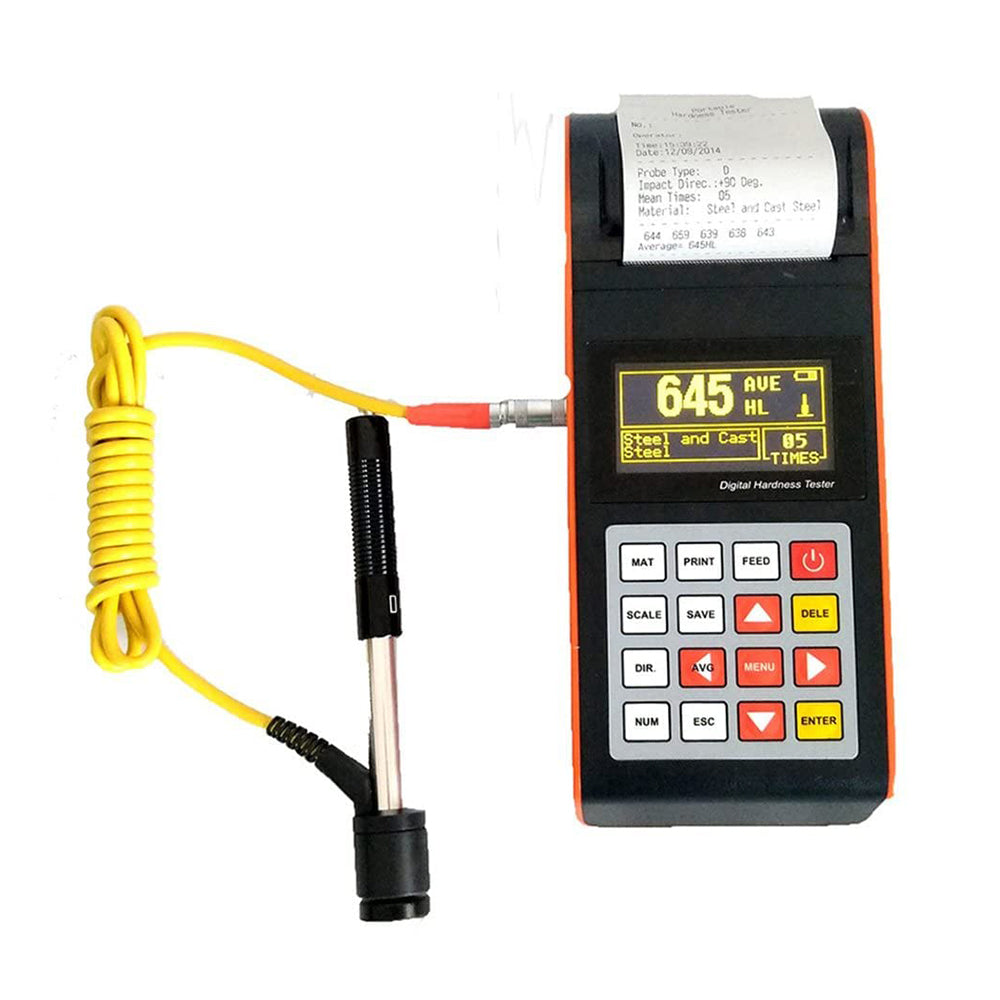

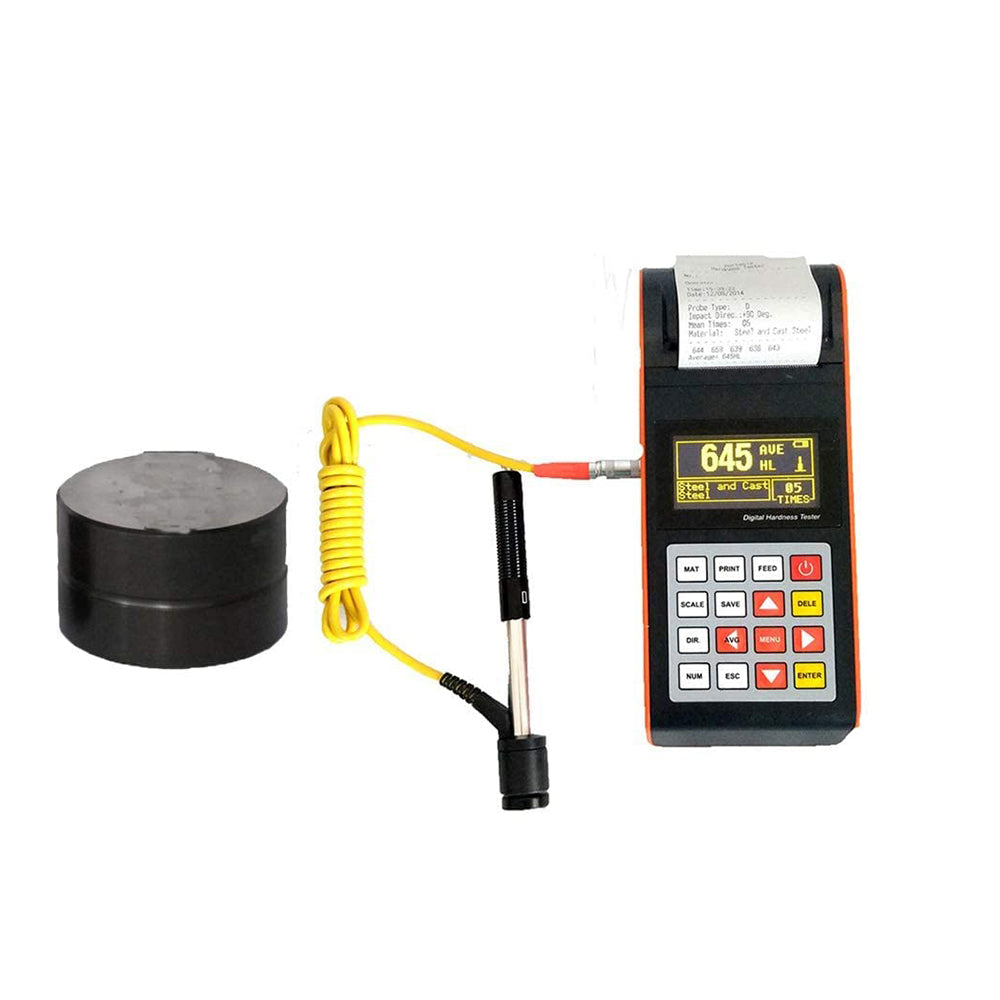

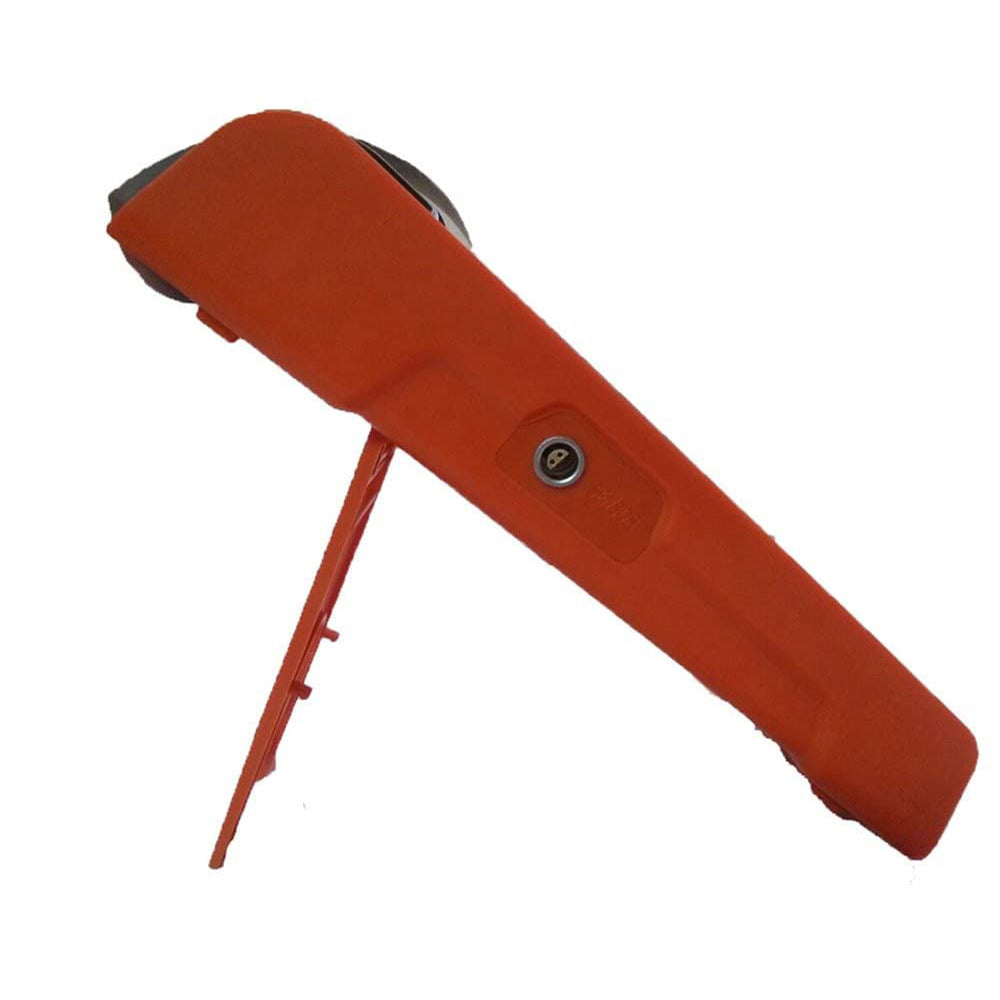

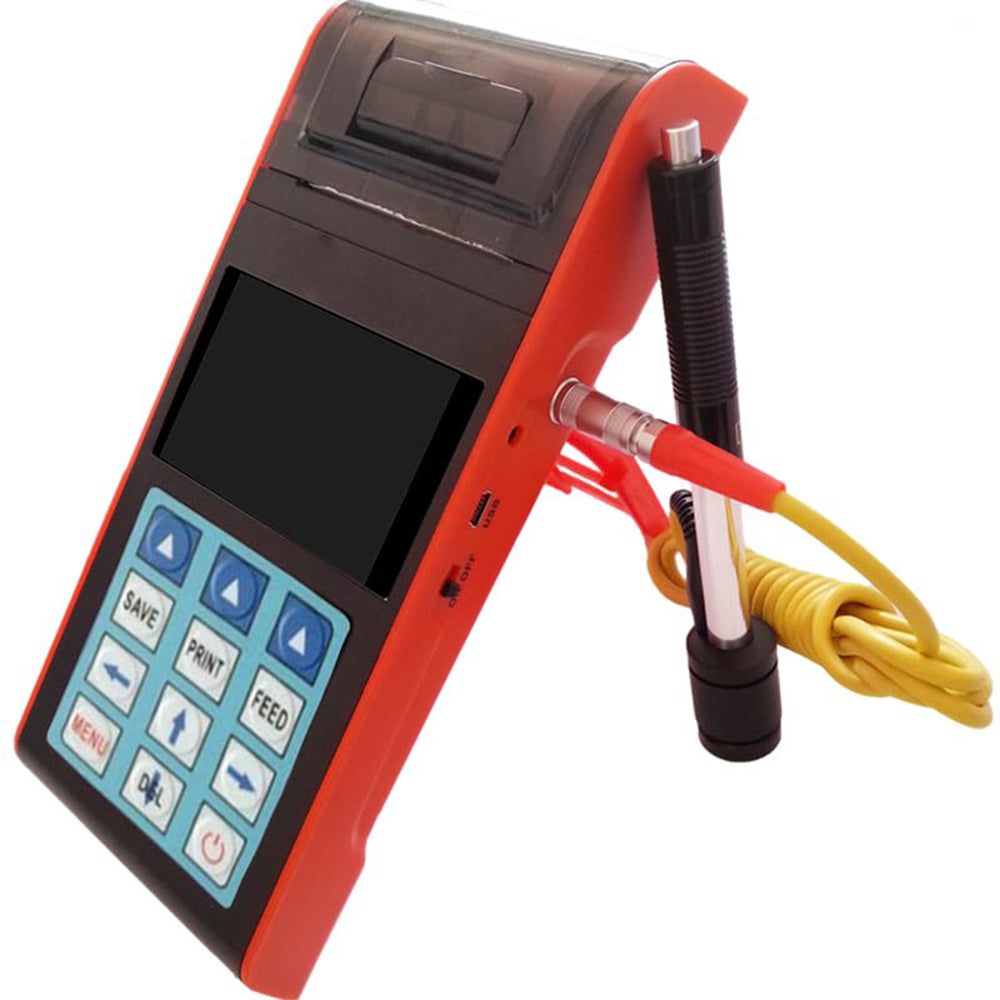

CNYST Portable Leeb Hardness Tester Leeb Durometer with Built-in Printer Measuring Direction 360° Data Memory Max 600 Groups Hardness Scale HL HB HRB HRC HRA HV HS Indication Error ±6HLD

About this item:

◆ Large screen(128×64 dot matrix LCD), showing functions and parameters.Measuring range: HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)

◆ Test at any angle, even upside down; Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values.

◆ Original imported high speed thermal printer support the printing function; Battery information indicates the rest capacity of the battery and the charge status; Auto power off to save energy.

◆ Large capacity memory could store 600 groups (Relative to average times32～1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

◆ It can save data .Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh operating environment, vibration, shock and electromagnetic interference.

Protable Hardness Tester Main Application:

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts

Testing surface of a small hollow space

Material identification in the warehouse of metallic materials

Rapid testing in large range and multi-measuring areas for large-scale work piece.

Main feature:

Support "forged steel (Steel)" material, when using the D impact device test "forged" sample, can read HB value directly, without the need for manual checking table.

Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

Technical Specifications:

Measuring range: HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)

Measuring direction: 360°

Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS

Data memory: 100- max 600 groups. (relative to impact times 32～1)

Printing paperwidth: is (57.5±0.5)mm, diameter is 30mm

Battery pack: 6V NI-MH； Battery charger: 9V/500mA.

Continuous working period: about 200hours (With backlight off, no printing)

Interface: USB2.0

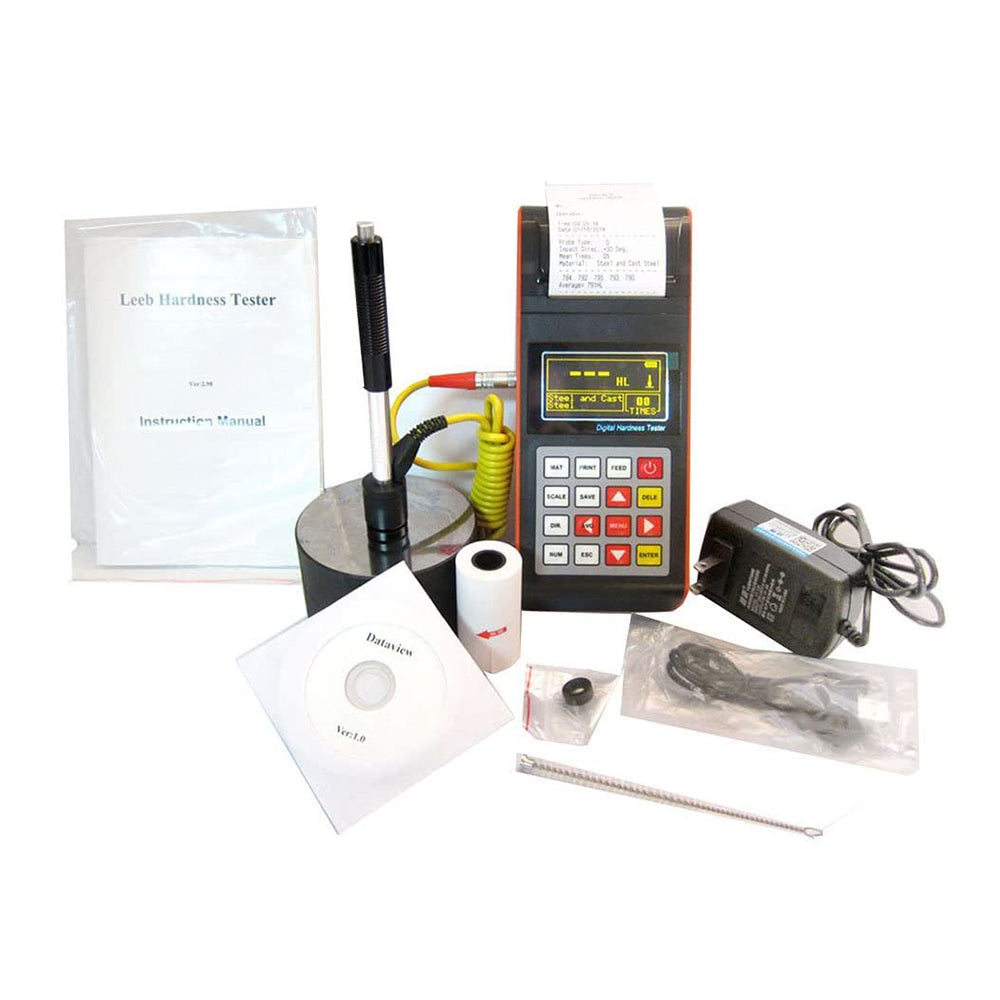

Standard Accessories: Main Unit, D type impact device, Standard test block, Cleaning brush (I), Small support ring, Battery Charger, Paper for printing, Manual, Data Pro software, Communication cable, Instrument case)
