CNYST Sonic Tension Meters Sonic Belt Tension Tester with Tension Range 0.01-99900N Frequency Range 10Hz-5000Hz Automatic Sensitivity Calibration 500 Groups Storage Data Variable Frequency Range Filters

About this item:

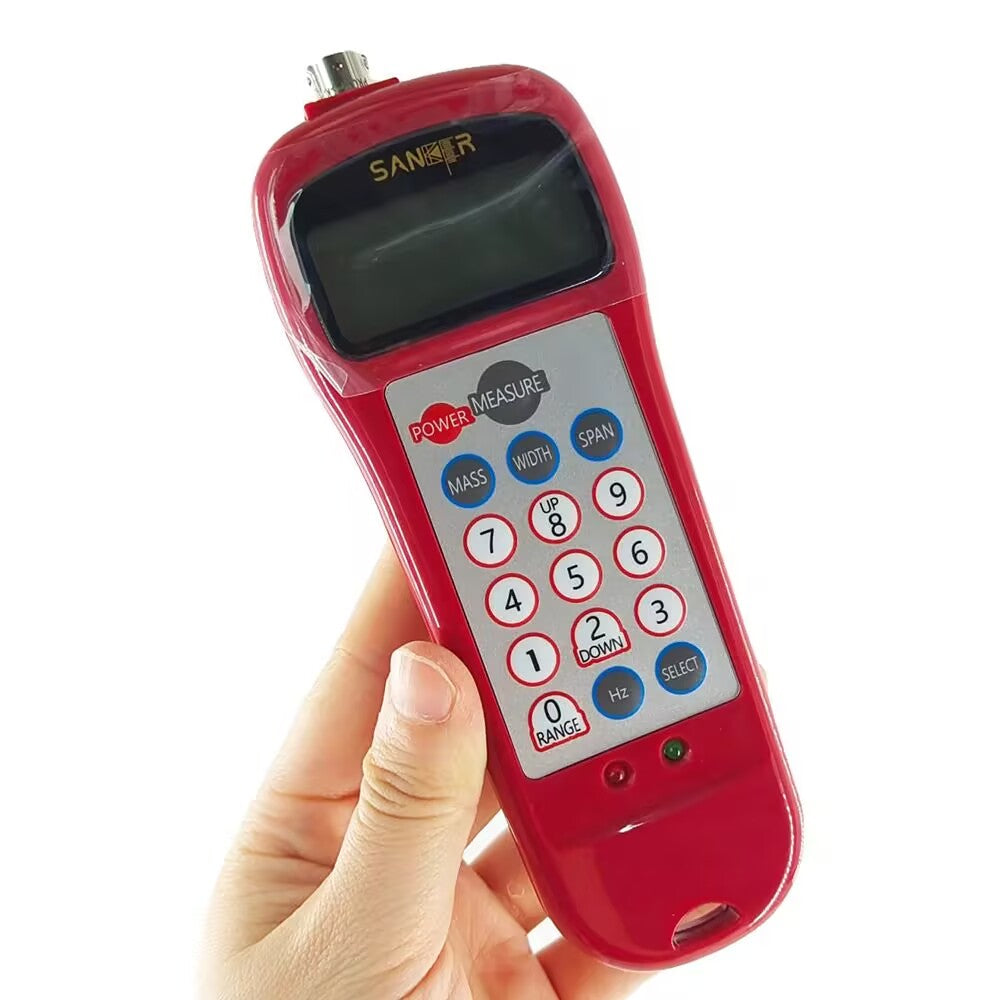

LCD screen display with backlit.

Variable frequency range filters.

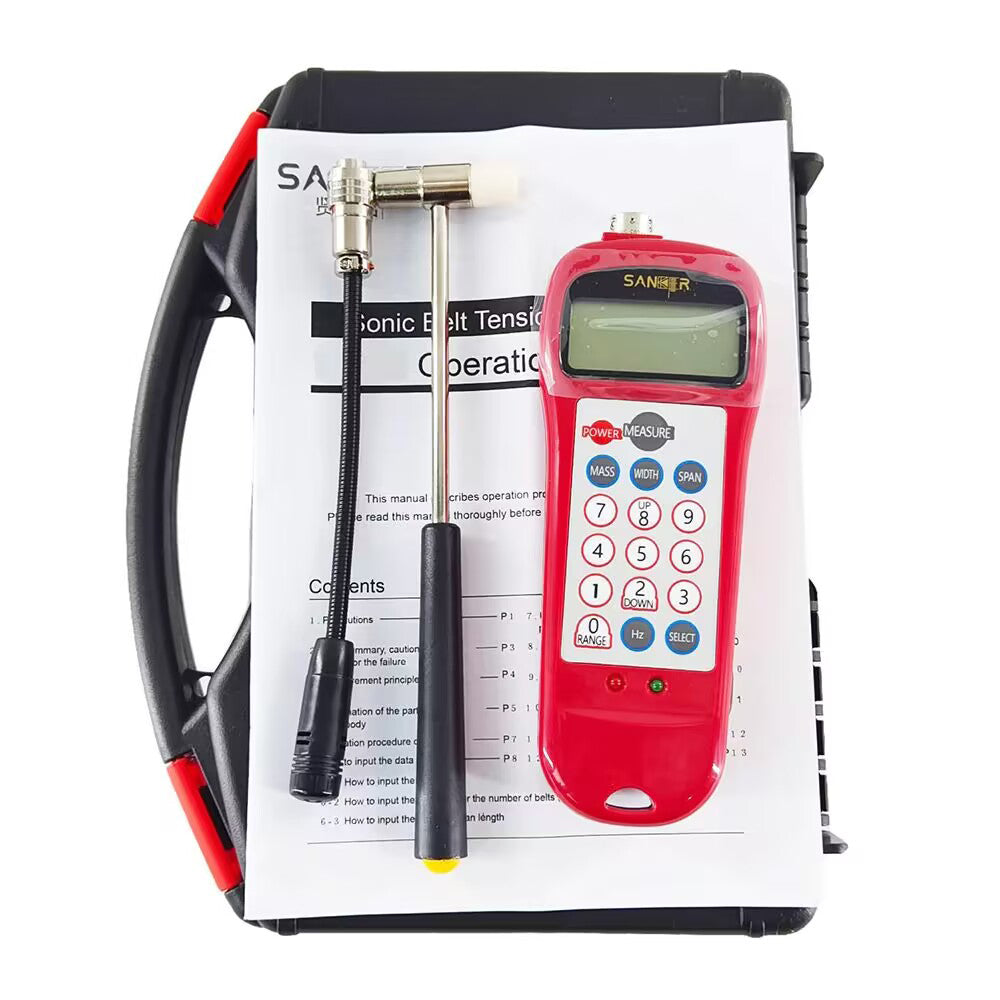

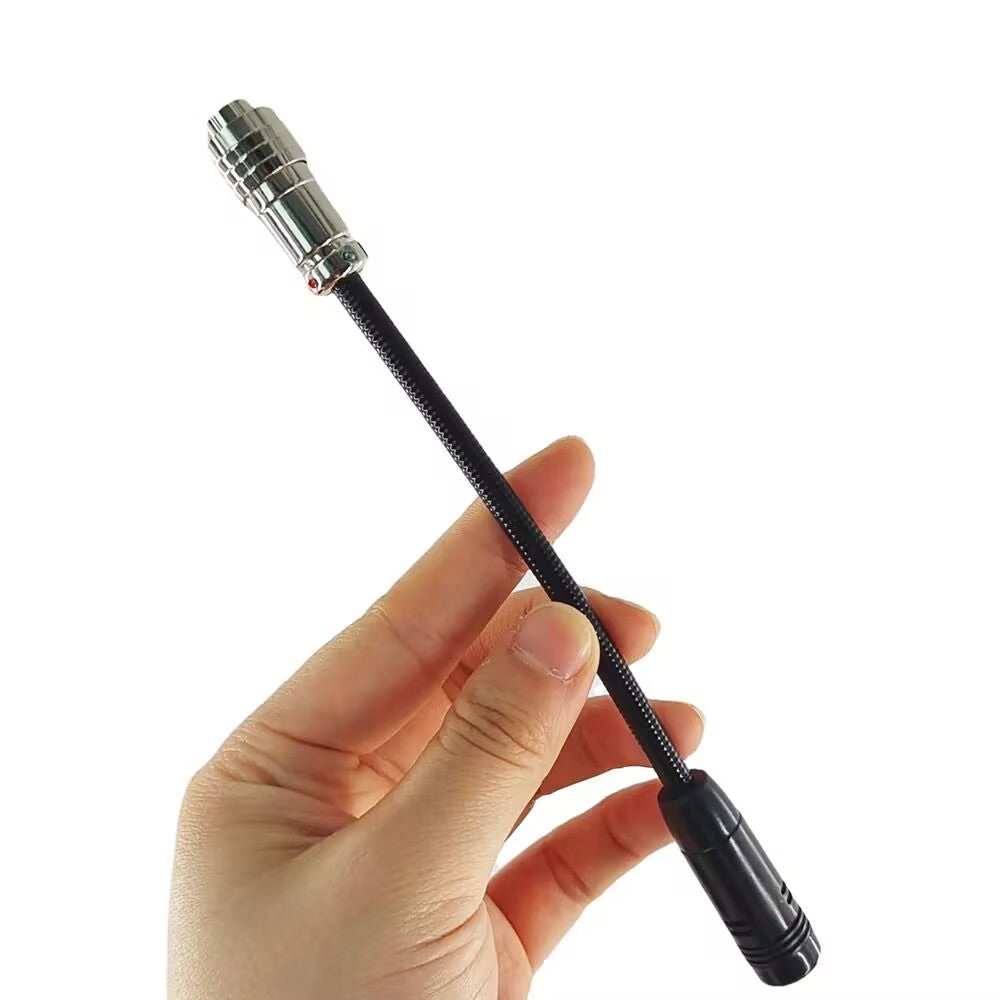

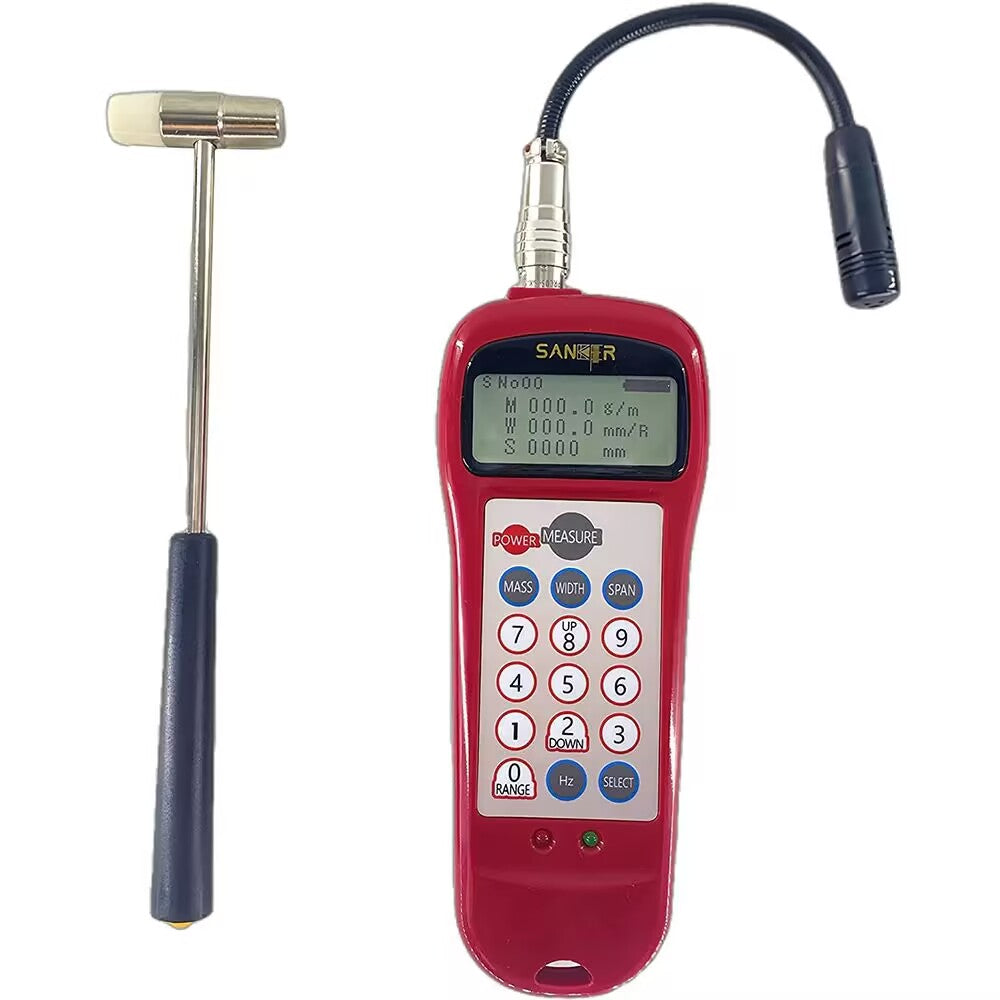

Comes with Standard Cord Sensor.

20 memory registers for belt constant.

Tension range: 0.01-99900N; Frequency range: 10Hz-5000Hz.

Output readings measuable in Hertz, Pounds, Kilograms and Newtons.

Introduction:

Our meter measures belt tensioning by analyzing harmonic properties and by measuring the vibration frequency, you will be able to determine if your belt tension is correct.

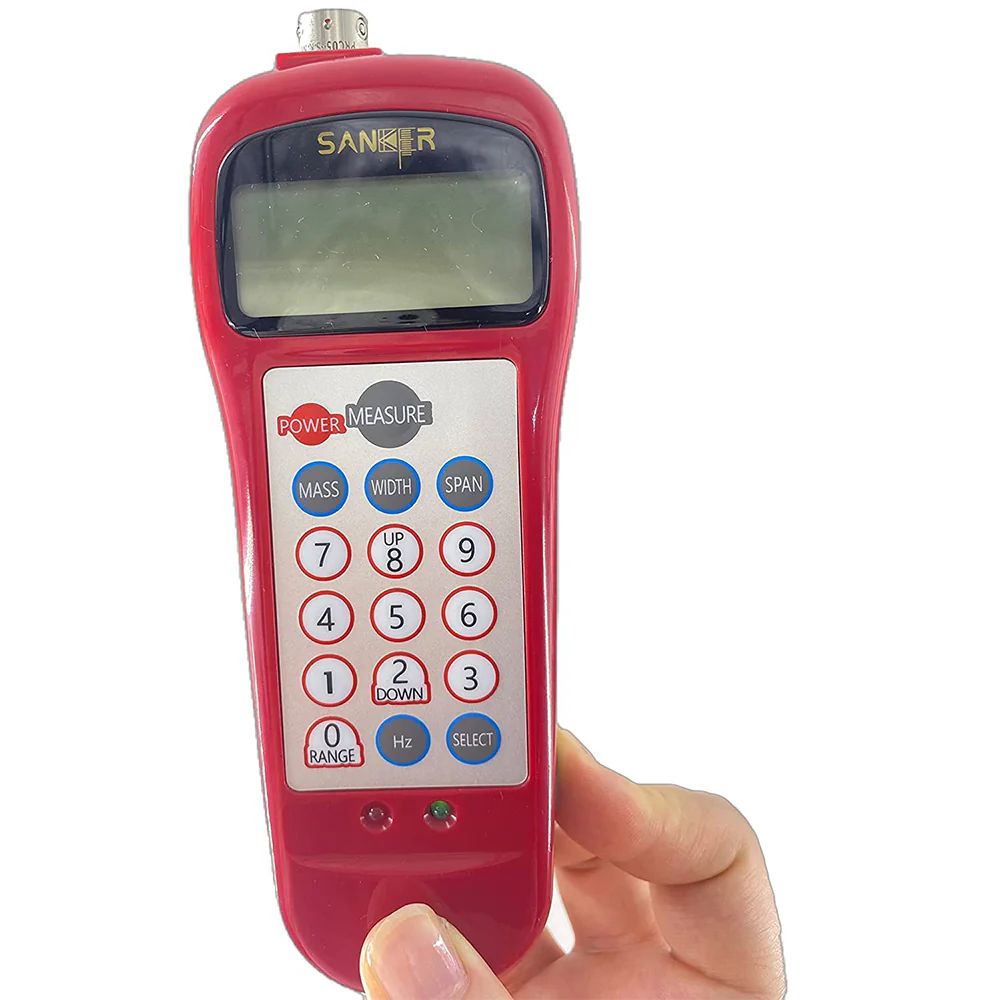

About the size of a cellular telephone, the Sonic Tension Meter can easily be operated by one person for fast, accurate readings on all types of synchronous belt drive systems and V belt drives.

Use the standard cord sensor to reach inside cramped compartments where conventional measurements would be impossible.

With the Sonic Tensioner, you can get consistent, accurate tension test data without the need to press down hard. The Sonic Tensioner measures the tension of a belt by the frequency of the sound waves that vibrate through the belt. All you need to do is gently pluck the belt, like a guitar string, and you can easily read the data.

Incorrect belt tension can lead to: bearing damage, belt runout and overheating, shortened belt and component life, and energy consumption.

Application:

The Sonic Belt Tensioner can test most types of belts, such as v-belts (V-belt series), fabric covered belts, toothed edge belts, multi-vinged belts, interlocking belts, timing belts and power transmission belts, helping you to measure belt tension quickly, reliably and accurately.

Specification:

Tension range: 0.01-99900N

Frequency range: 10Hz-5000Hz

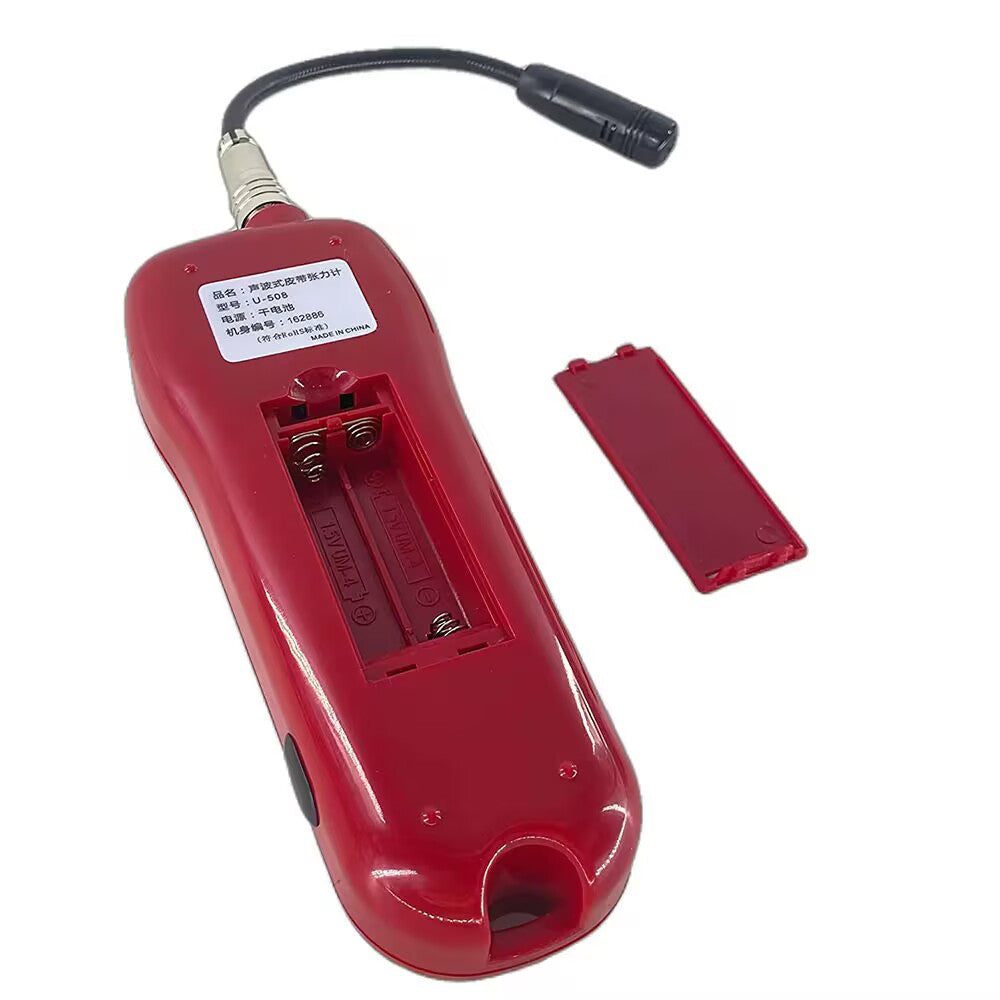

Power: 2x AAA battery (NOT include)

Storage data: 500 groups

Net weight: 120g

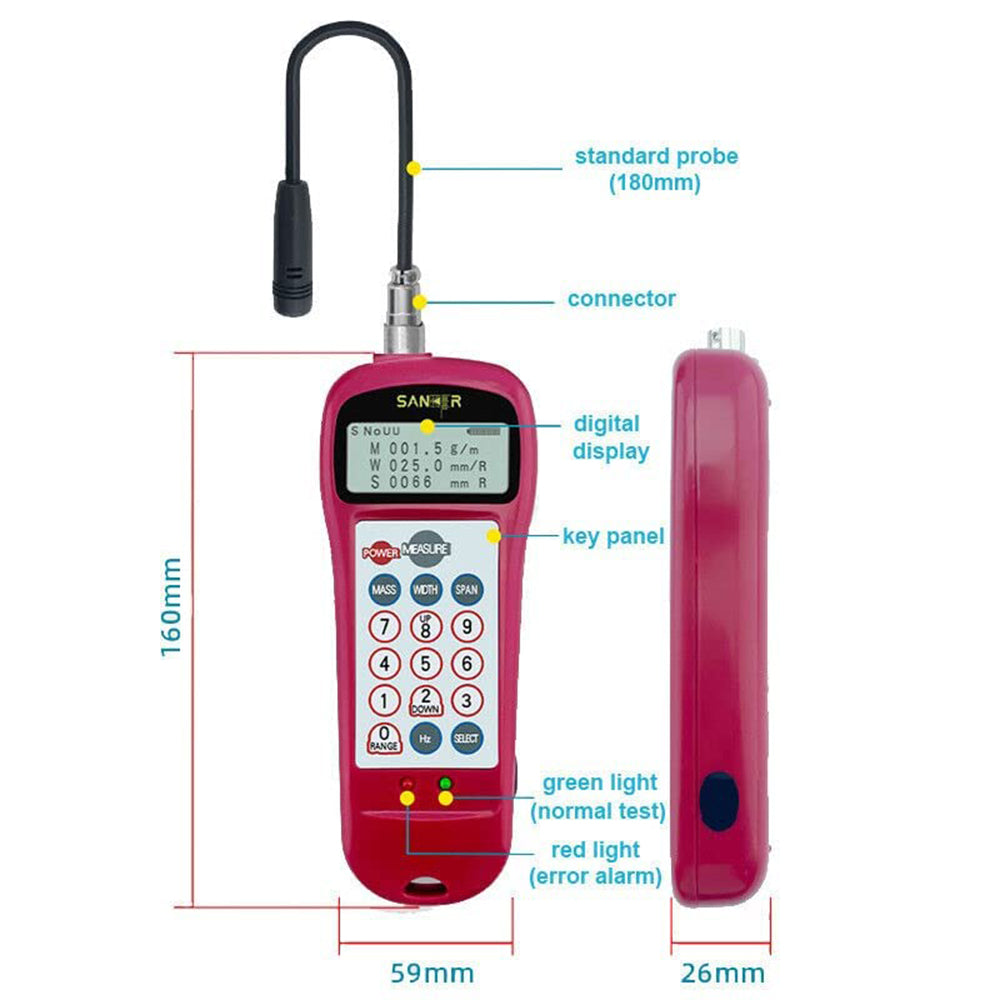

Dimension: 160x59x26mm
