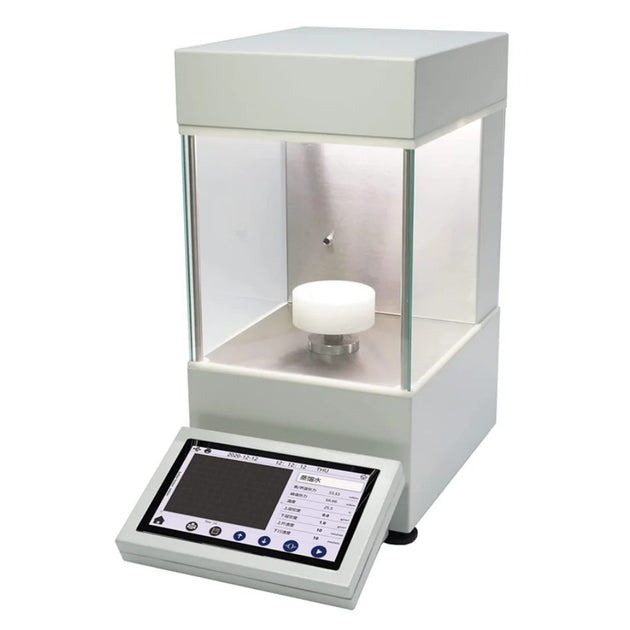

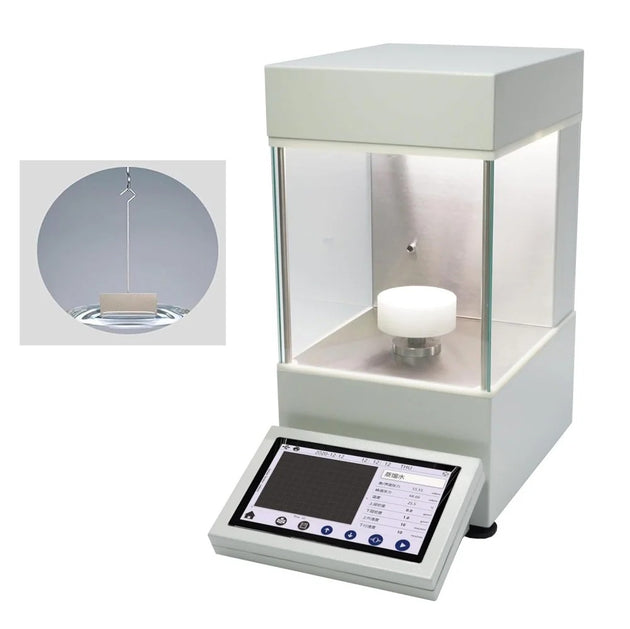

CNYST Surface Tension Meters Digital Liquid Tensiometer with Pt Plate Method Accuracy 0.01mN/m Test Range 0-1000mN/m 4.3-inch Touch Screen Built-in Memory Real-time Measurement Automatic Measurement

$3,240.00
$3,240.00

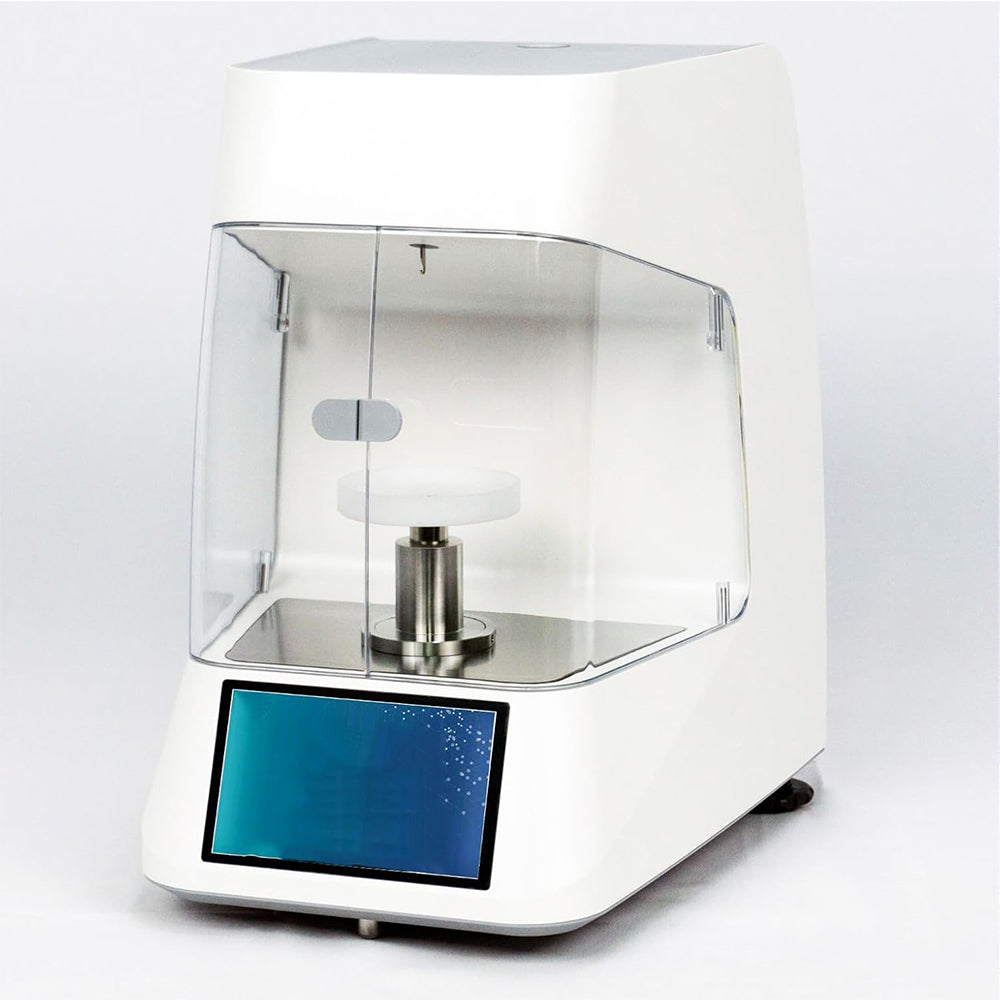

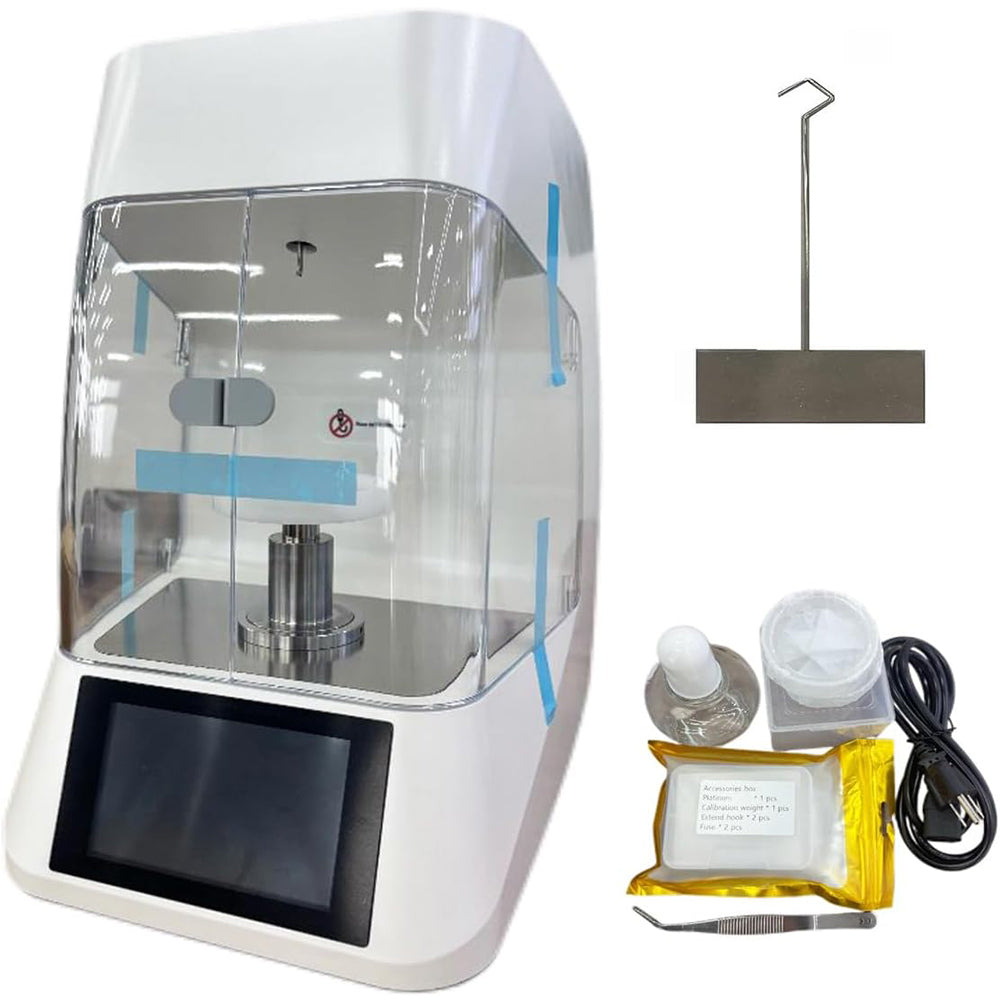

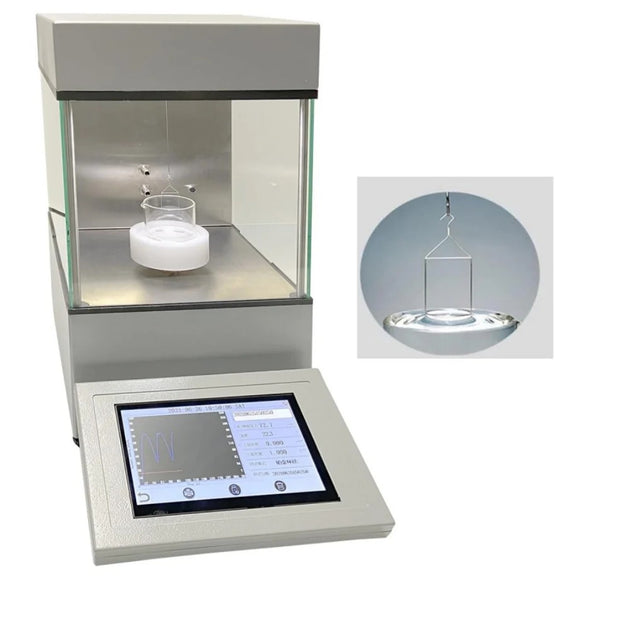

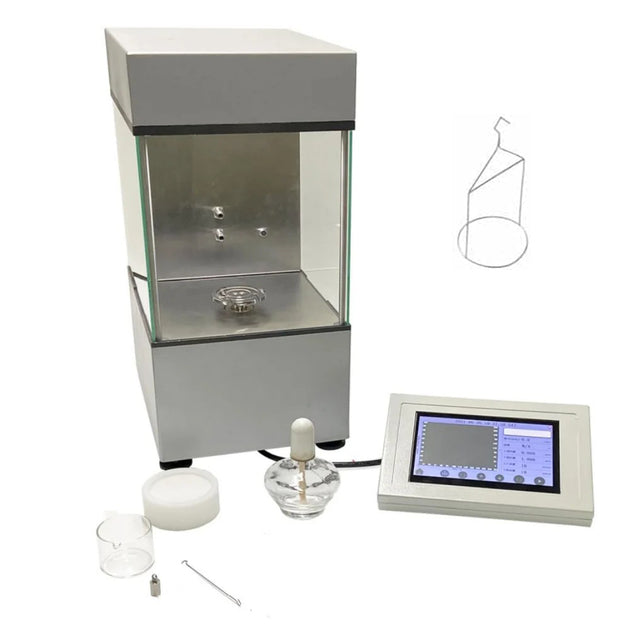

CNYST Interfacial Tensiometer Digital Interfacial Tension Meter with Wilhelmy Plate Method Test Range 0-1000mN/m Accuracy 0.01mN/m 4.3-inch Touch Screen Automatic Measurement Real-time Measurement

About this item:

1.With 4.3-inch touch screen, all operations and information are done or displayed on the screen. All operations and information are done or displayed on the screen

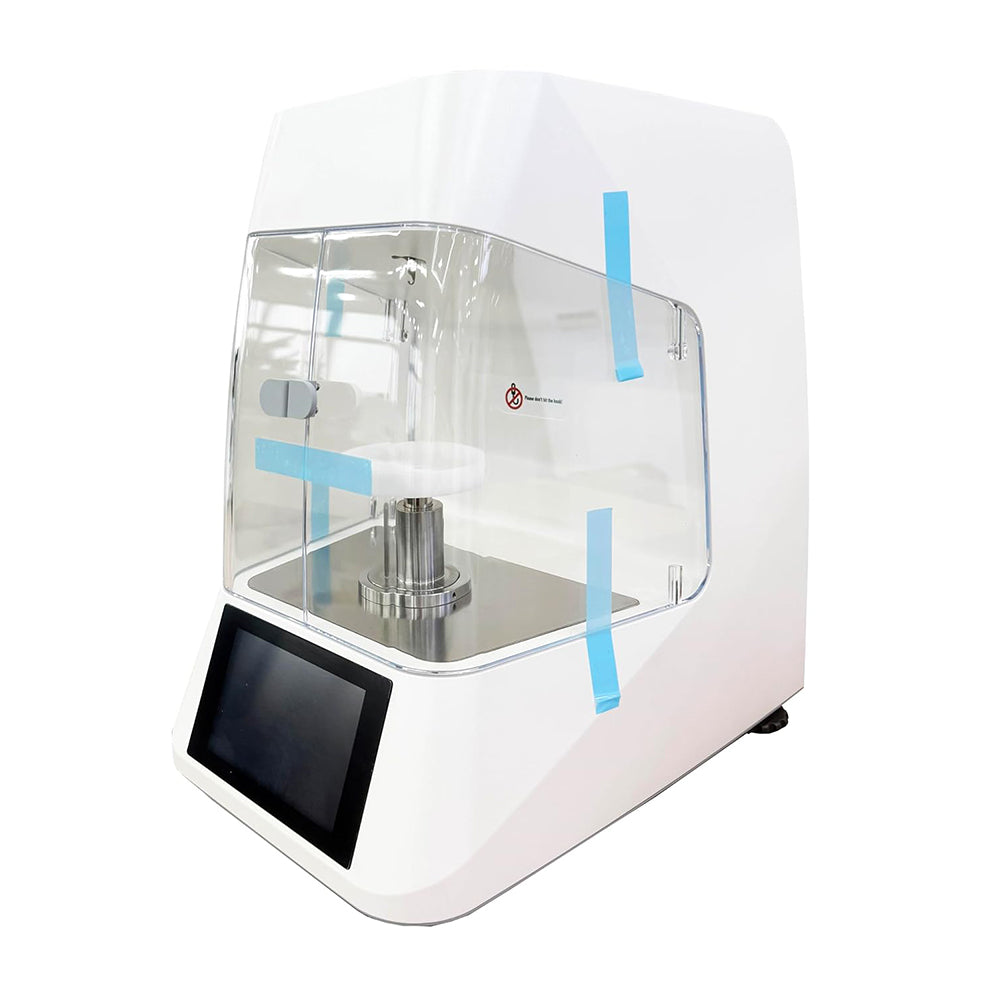

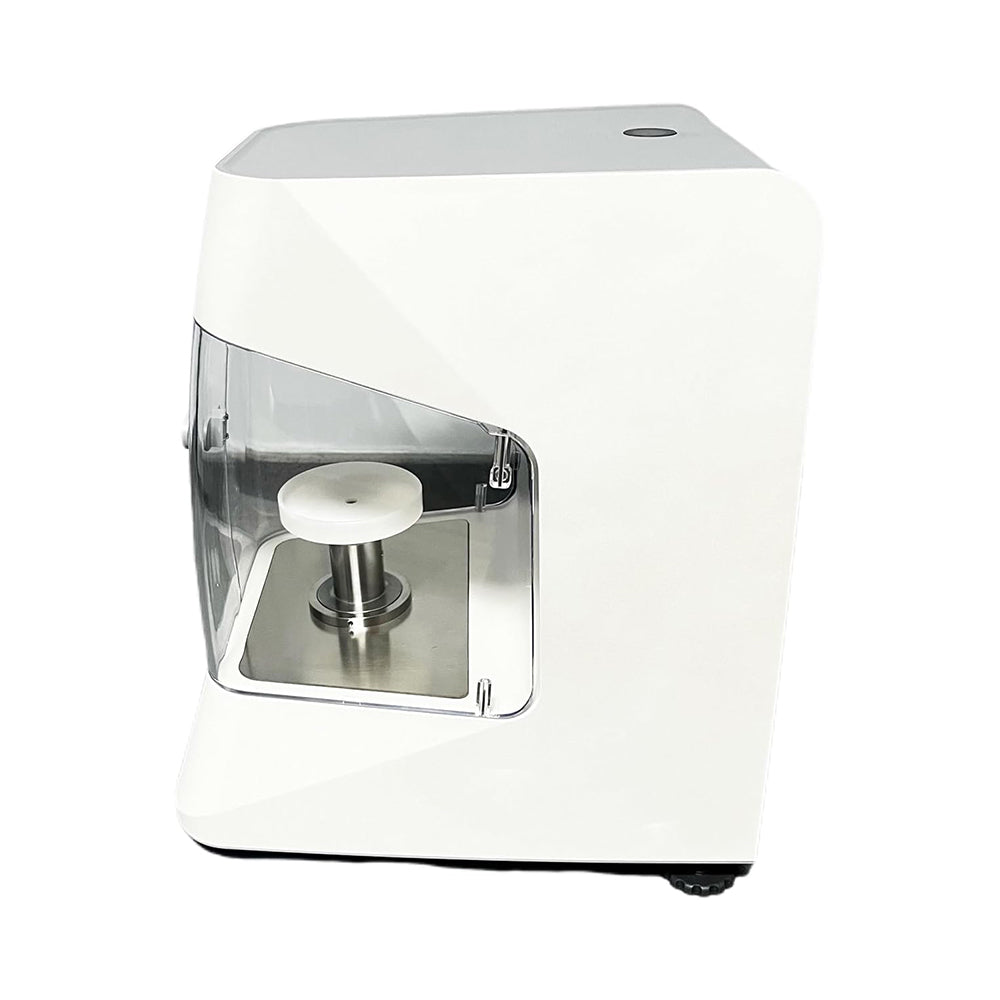

2. The open sample area is spacious and equipped with a sample table with smooth and precise displacement, which makes measurement preparation very convenient when using. Equipped with a magnetic locking air shield to prevent disturbing airflow during measurement from affecting the measurement.

3. The built-in measurement program can control the motorized sample stage to ensure that the measurement process is not artificially interfered with and can be accurately repeated. The sample stage is automatically lifted, and other stored measurement parameters can also be adjusted as needed.

4. Password management function to ensure data traceability and prevent prevent data modification and mistaken deletion

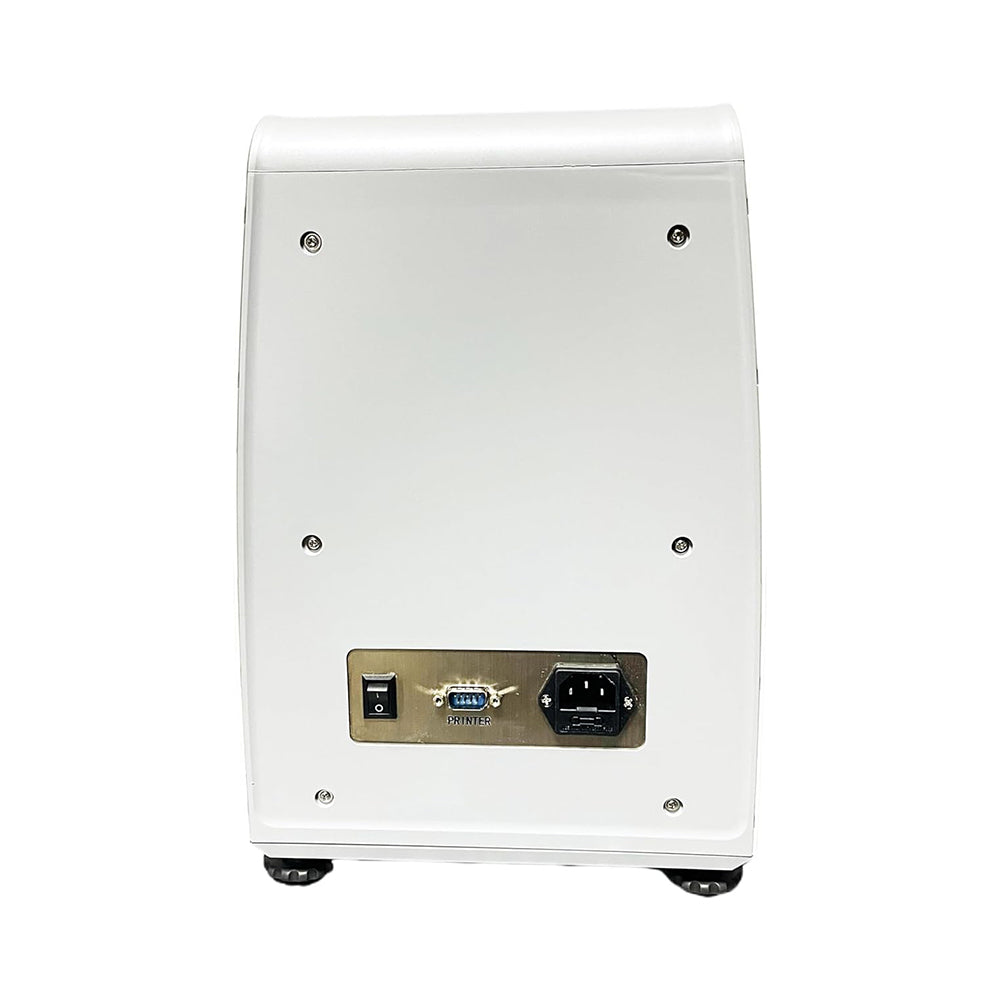

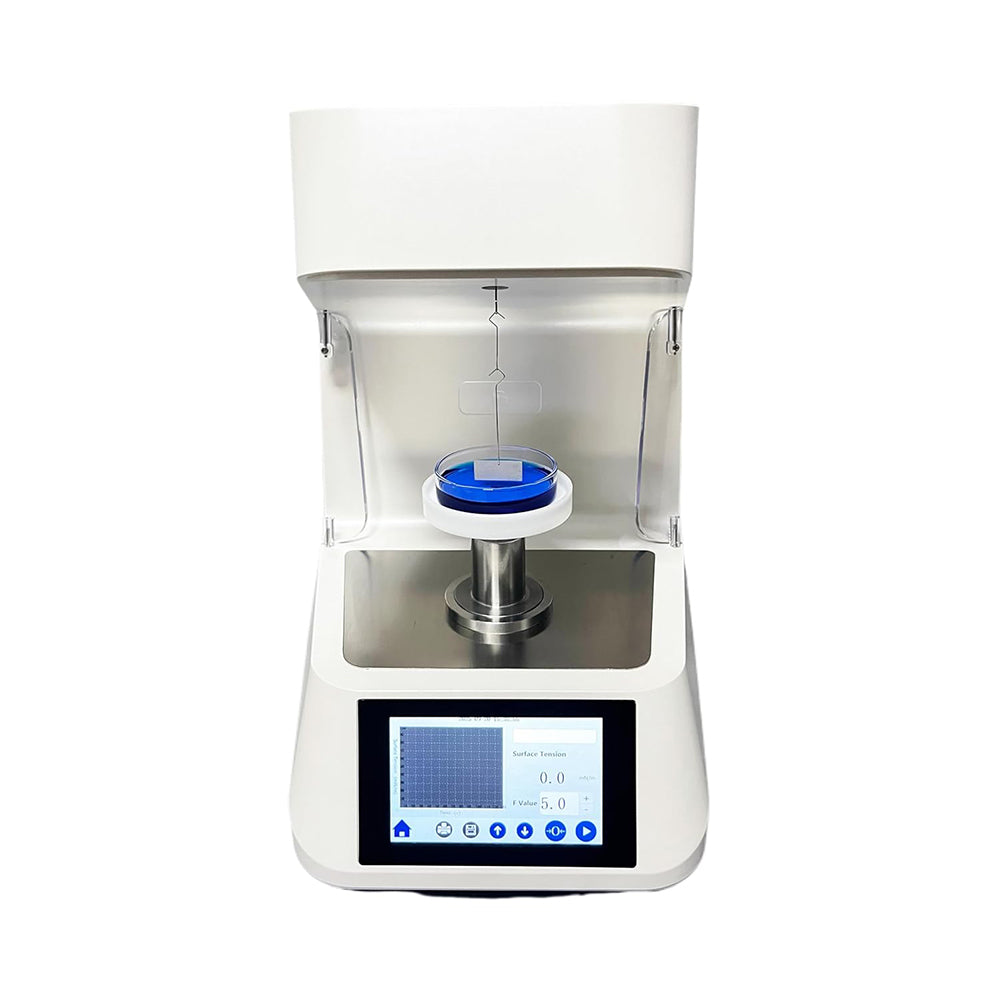

5. Real-time measurement curve, can save multiple groups of data, support external printer, support Chinese/English interchangeable operation

Applications:

Oil aging testing, especially for transformer oils

Determining the effectiveness of surfactants in wetting agents and detergents

Testing surfactant solution concentrations

Tank approval and cleaning verification in the food industry

Quality control and optimization of emulsifiers

Interfacial tension measurements for quality control and optimization of emulsifiers

Cooling lubricant testing

Features:

Adopt 4.3 inch touch screen, all the operation and information are done or displayed on the screen

Easy and fast operation for measuring the surface tension of liquids

Automatic measurement with high repeatability for set measurement conditions

Machine built-in memory, easy to save multiple sets of data

Password management function to ensure data traceability and prevent prevent data modification and mistaken deletion

Real-time measurement curve, can save multiple sets of data data, support external printer, support Chinese/English English interchangeable operation

Product technical parameters:

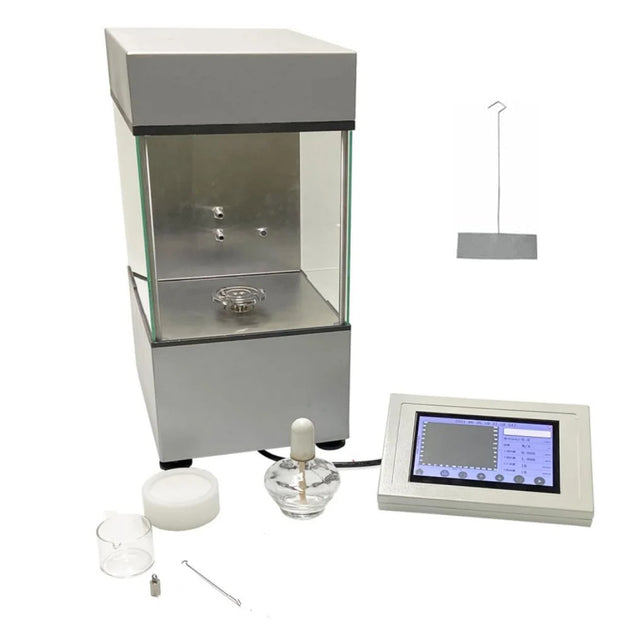

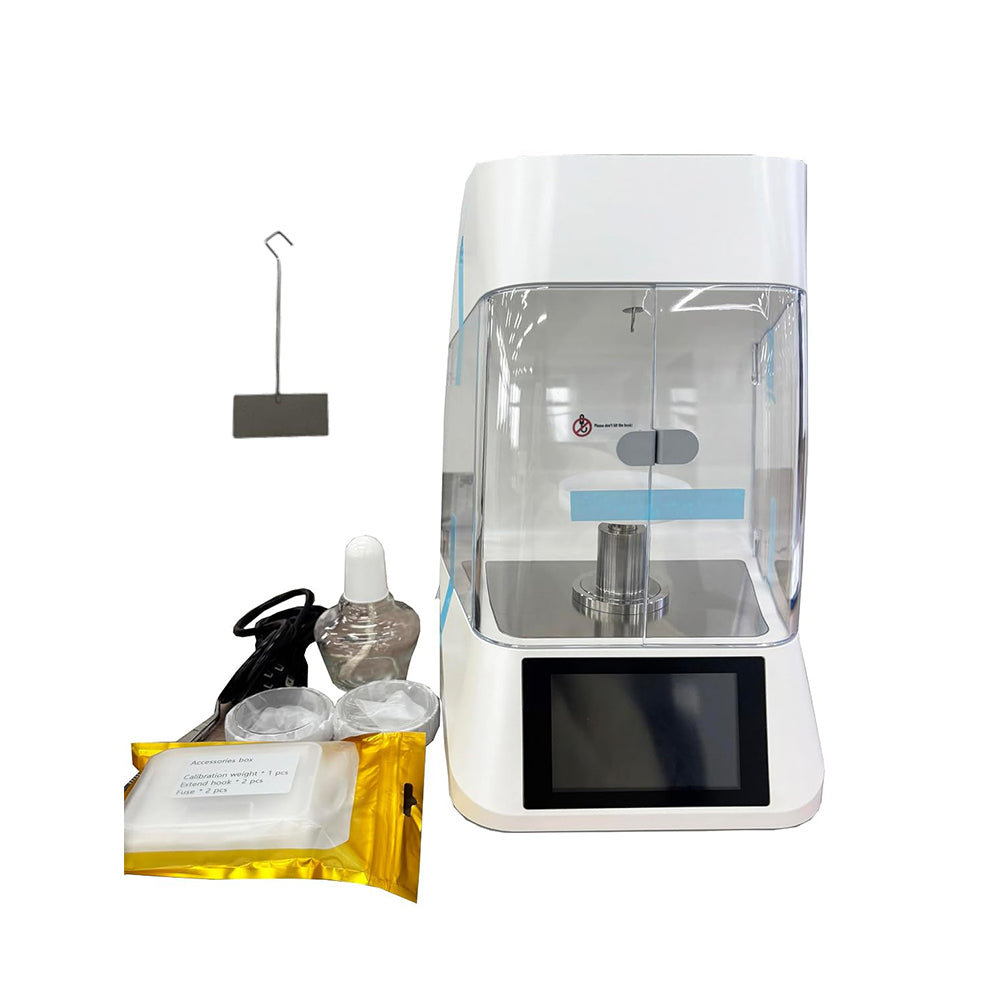

Test method: Platinum plate method

Test range：0－1000mN/m

Accuracy: 0.01mN/m

Operation mode: automatic lifting of the sample table Automatic measurement

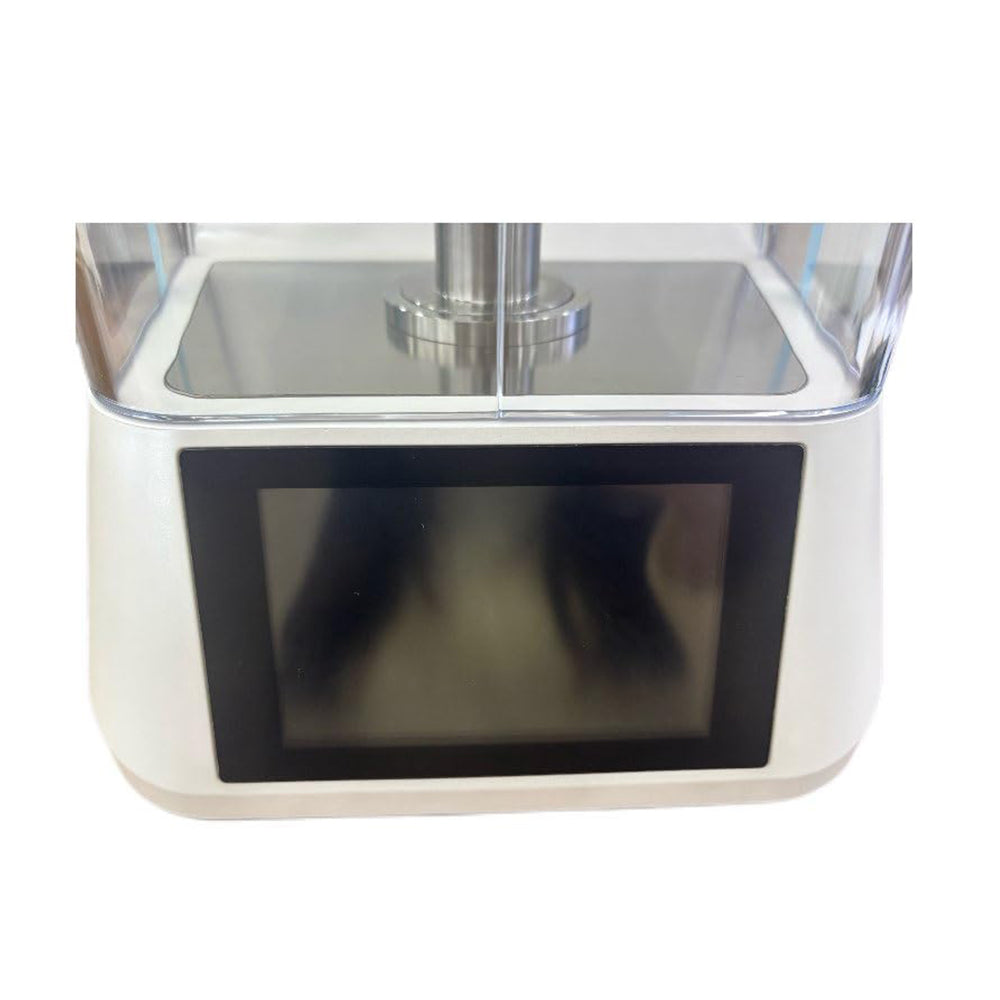

Display mode: 4.3-inch touch screen, direct data reading

Data mode: support data storage / view / print (printer standard configuration does not include, according to demand for additional options)

Measurement time: within 60 seconds

Dimension: 28*20*36cm (L*W*H)

Net weight: 8kg

Power supply: 110V or 220V, 30W (we will ship for you according to your country, if you have other requirements, please tell us)
