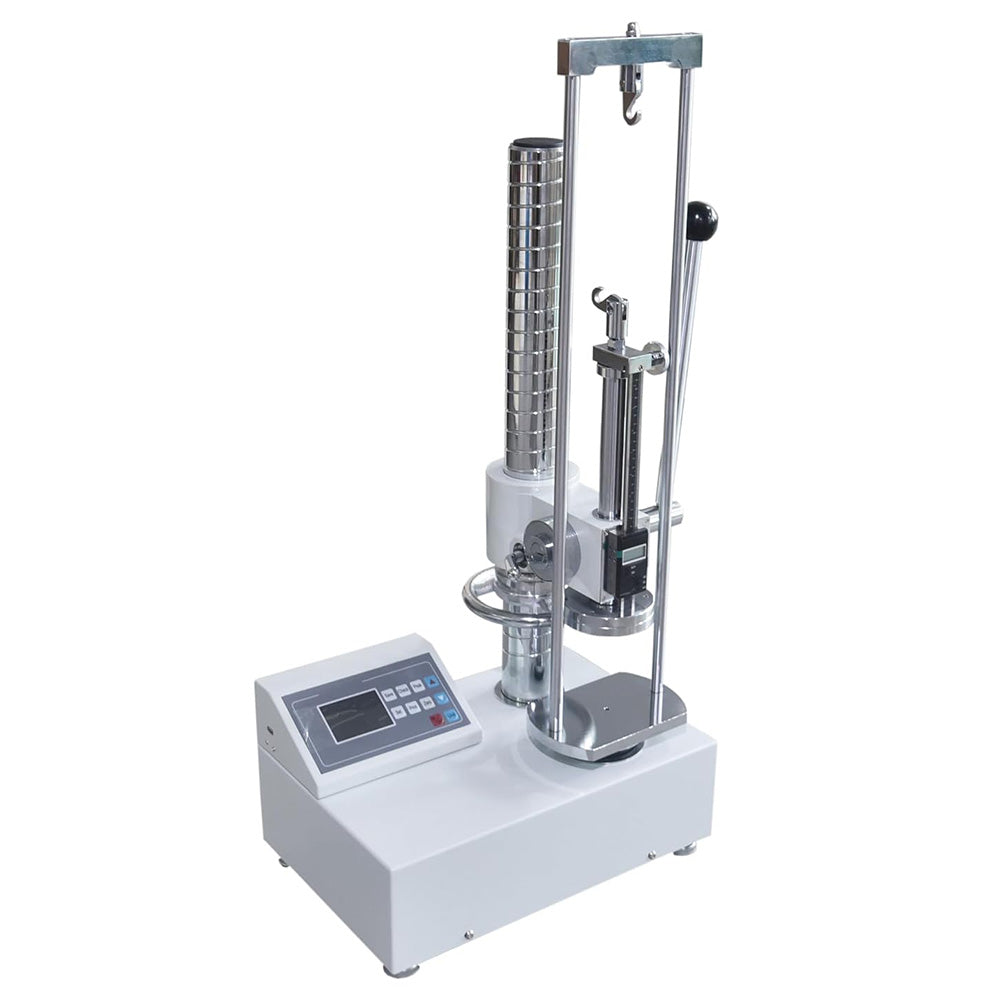

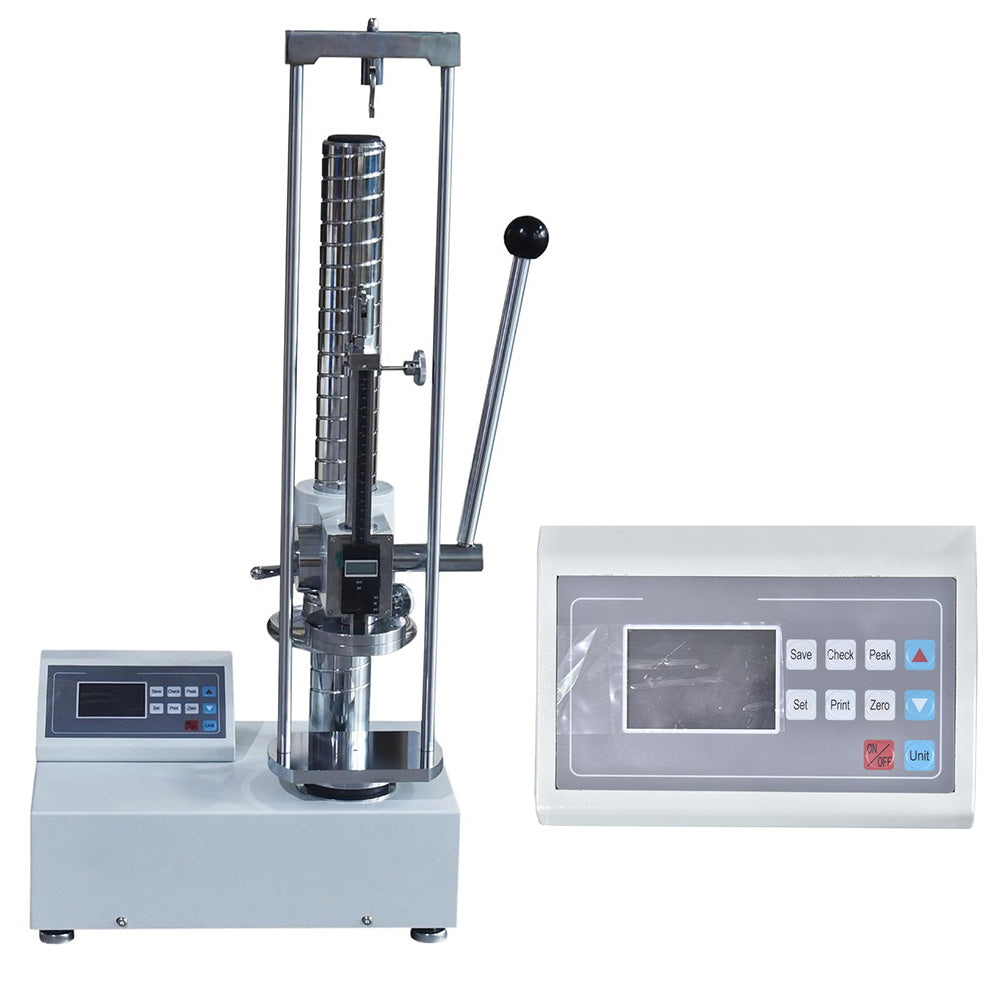

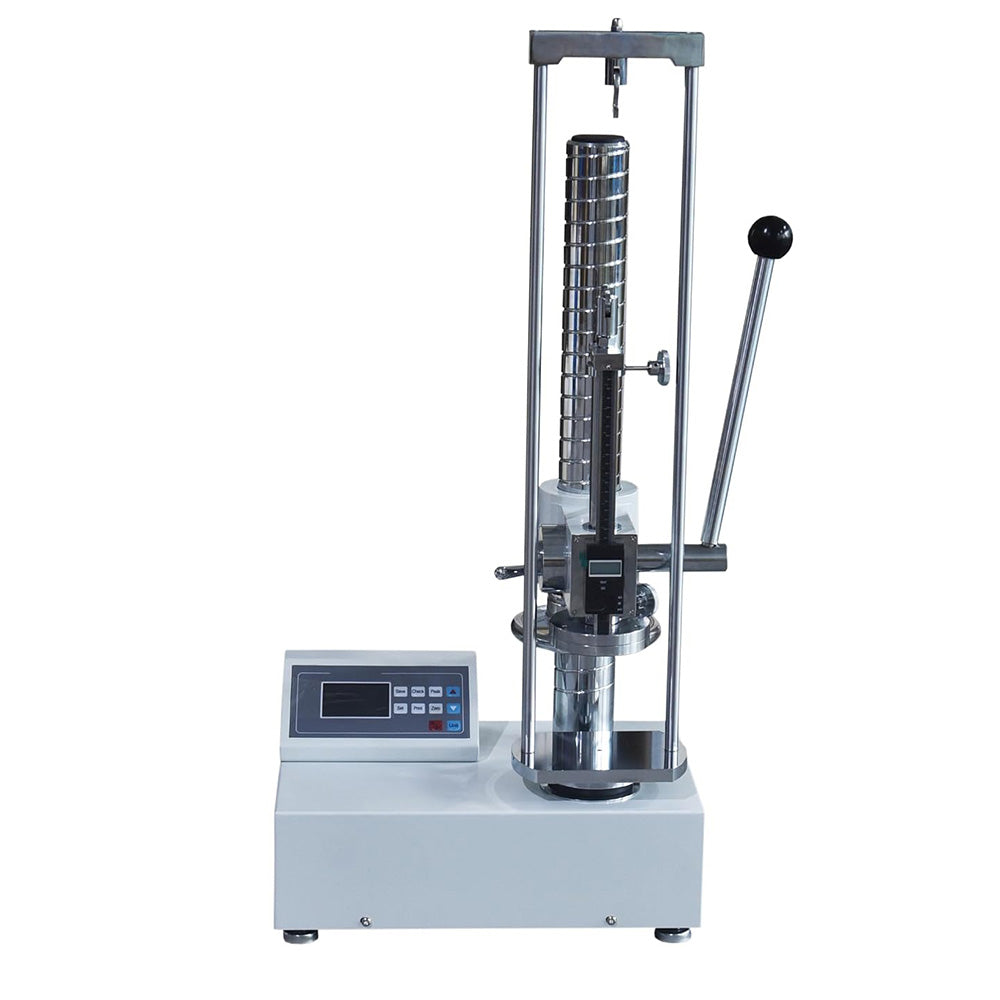

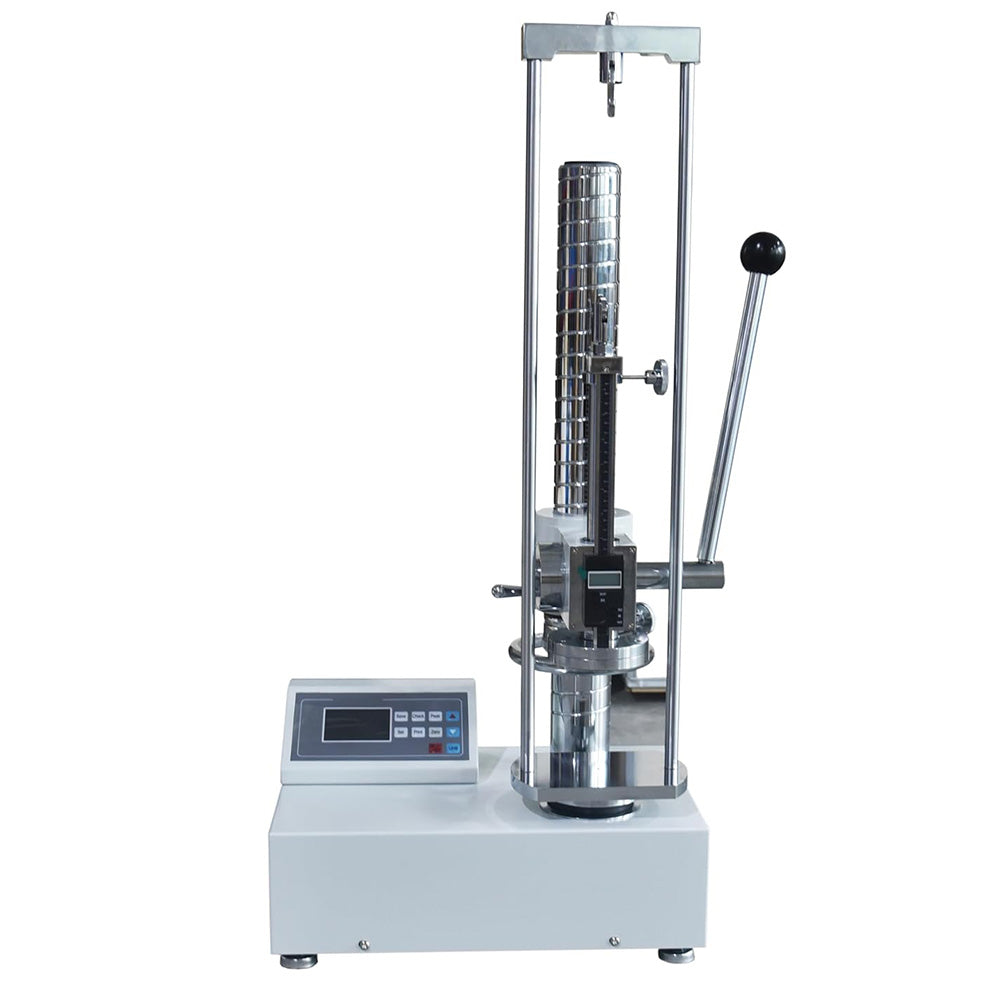

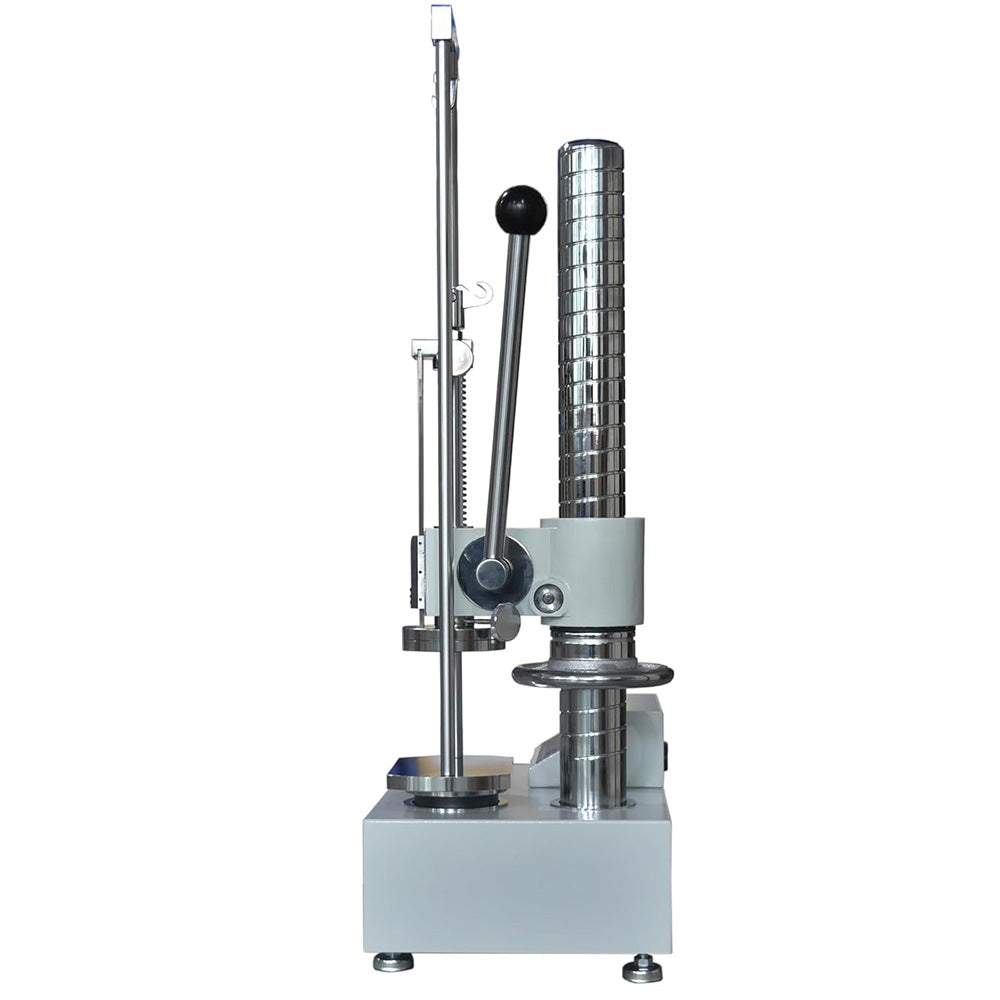

CNYST Valve Spring Pressure Tester Tension & Compression Force Testing Machine with Print with Maximum Test Load 2000N 200KG 450Lb Minimum Resolution 0.1N 0.01KG 0.01Lb USB Interface 99 Sets Mass Storage

Overview:

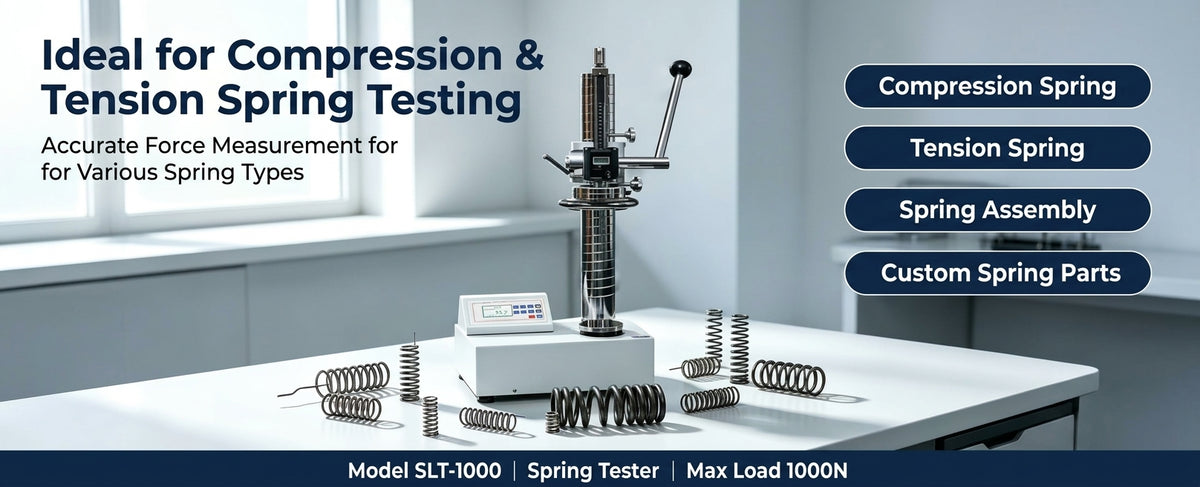

As a special-purpose instrument, this testing machine is used to test amount of deformation and characteristic of load relation of extension and compression springs. It can be applied to the testing of working load of extension and compression springs under certain working length. Advanced and highly integrated chip microprocessor is adopted by this machine, which also has liquid crystal display (English) and metal enclosure.

Technical Specifications

• Maximum testing load: 2000N/ 200Kg/ 450Lb
• Minimum resolution:0.1N/0.01Kg/0.01Lb
• Diameter of the platen:108mm
• Maximum free length of measurable spring: 200mm
• Length of travel of the displacement scale:150mm
• Division value of the displacement scale: 0.01mm
• Indication error: ±1%
• Power Supply: AC 110-220V, 50HZ-60HZ
• Working temperature: 20±10℃; Relative temperature: 15%～80%RH
• Temperature of storage and transportation: -27℃～+70℃
• Size:790x610x320mm

Functional Features:

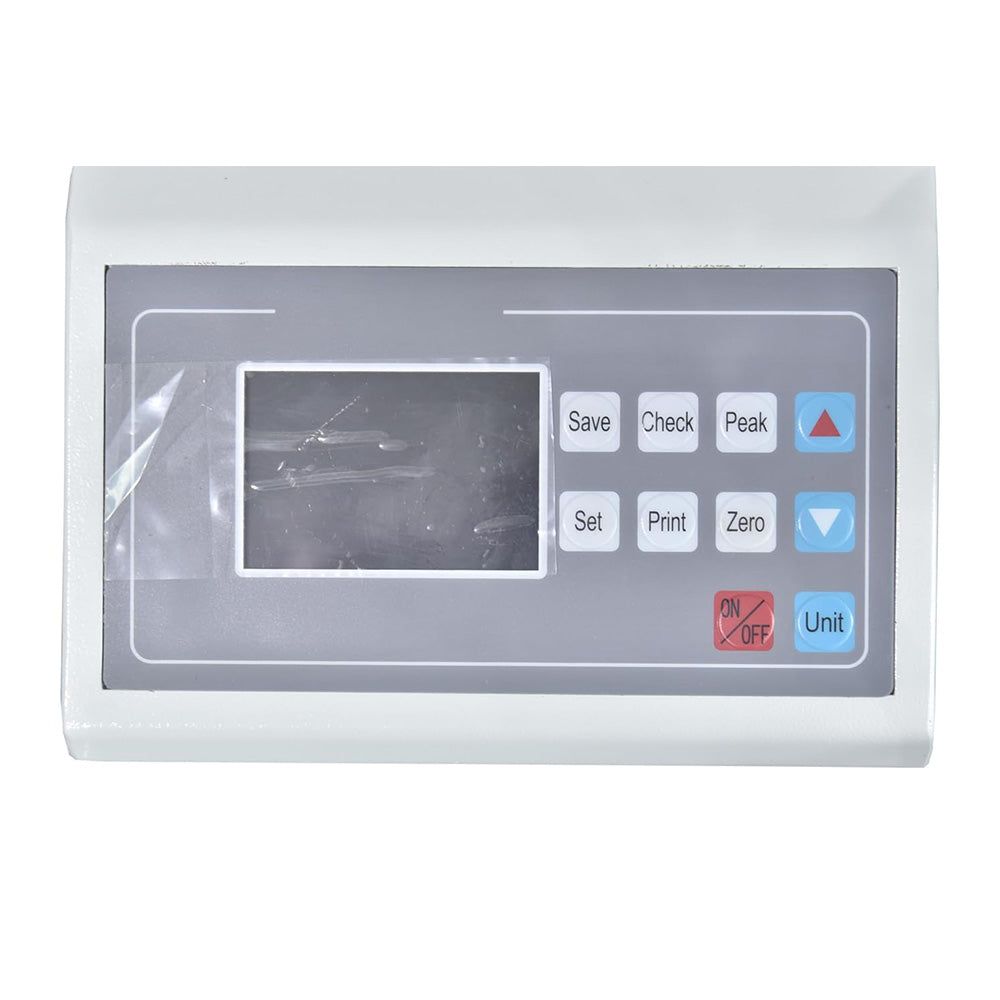

• Liquid crystal display (English); better Human Machine Interface (HMI)
• Three kinds of measurement units can be selected(N, Lb and Kg); inter-conversion is available
• The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate
• The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value
• It has the function of client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non-operation), etc
