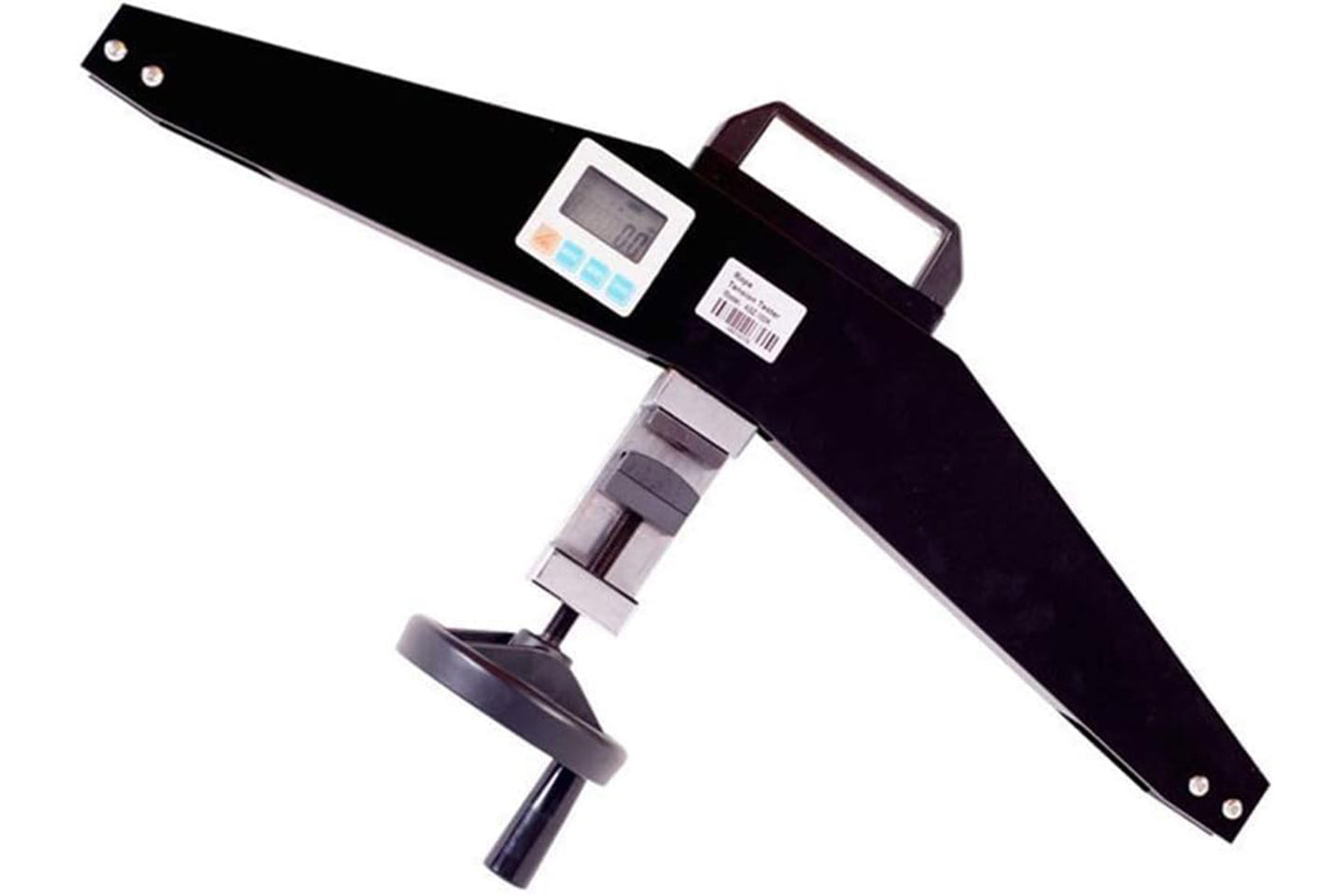

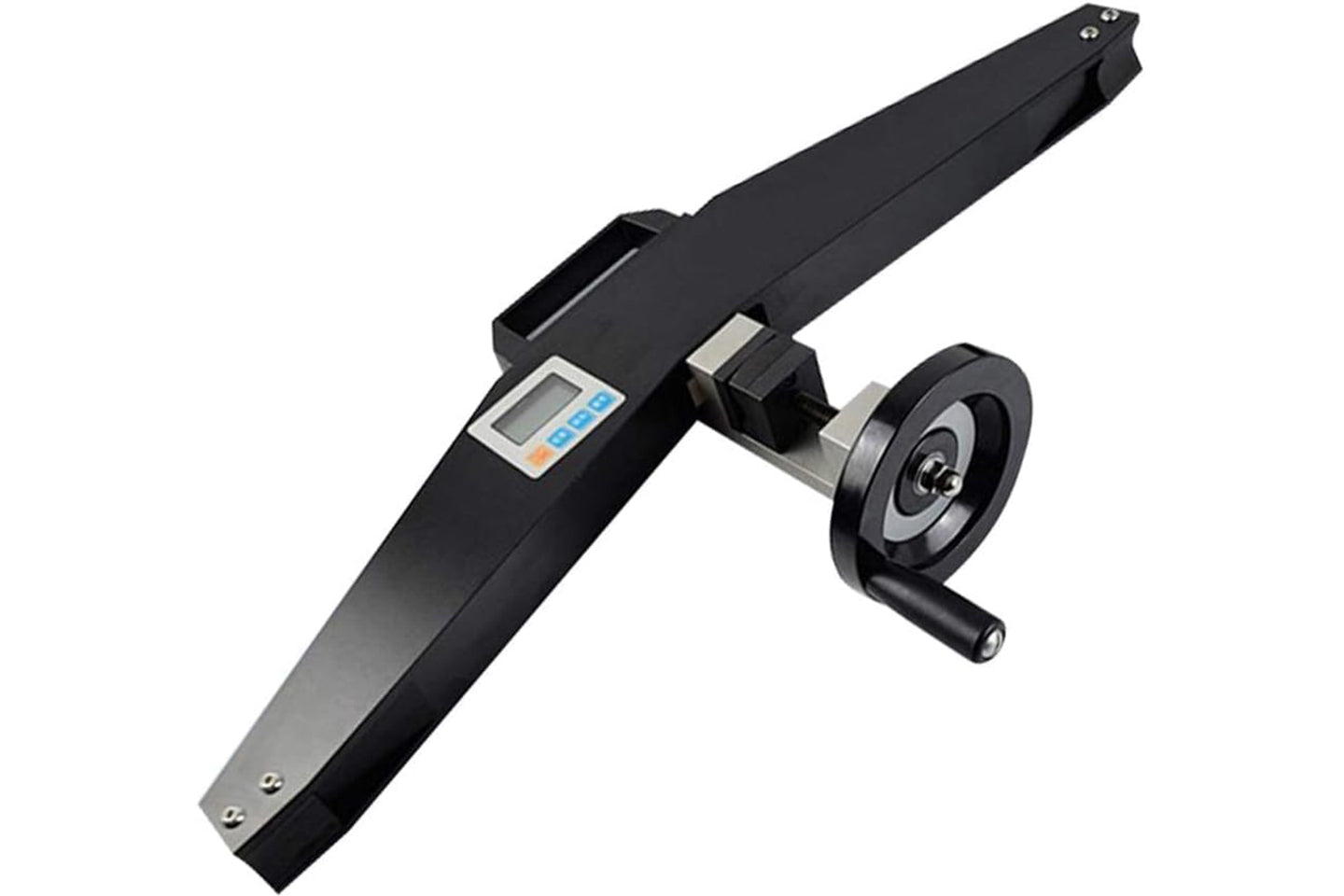

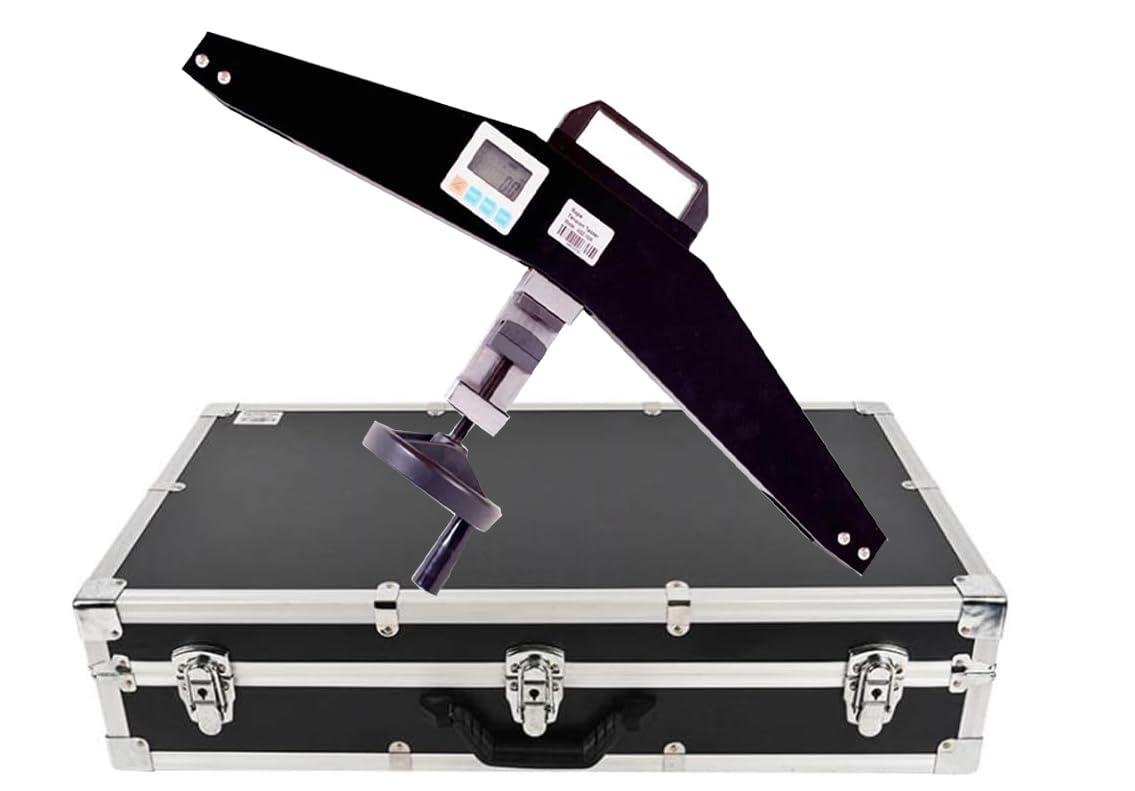

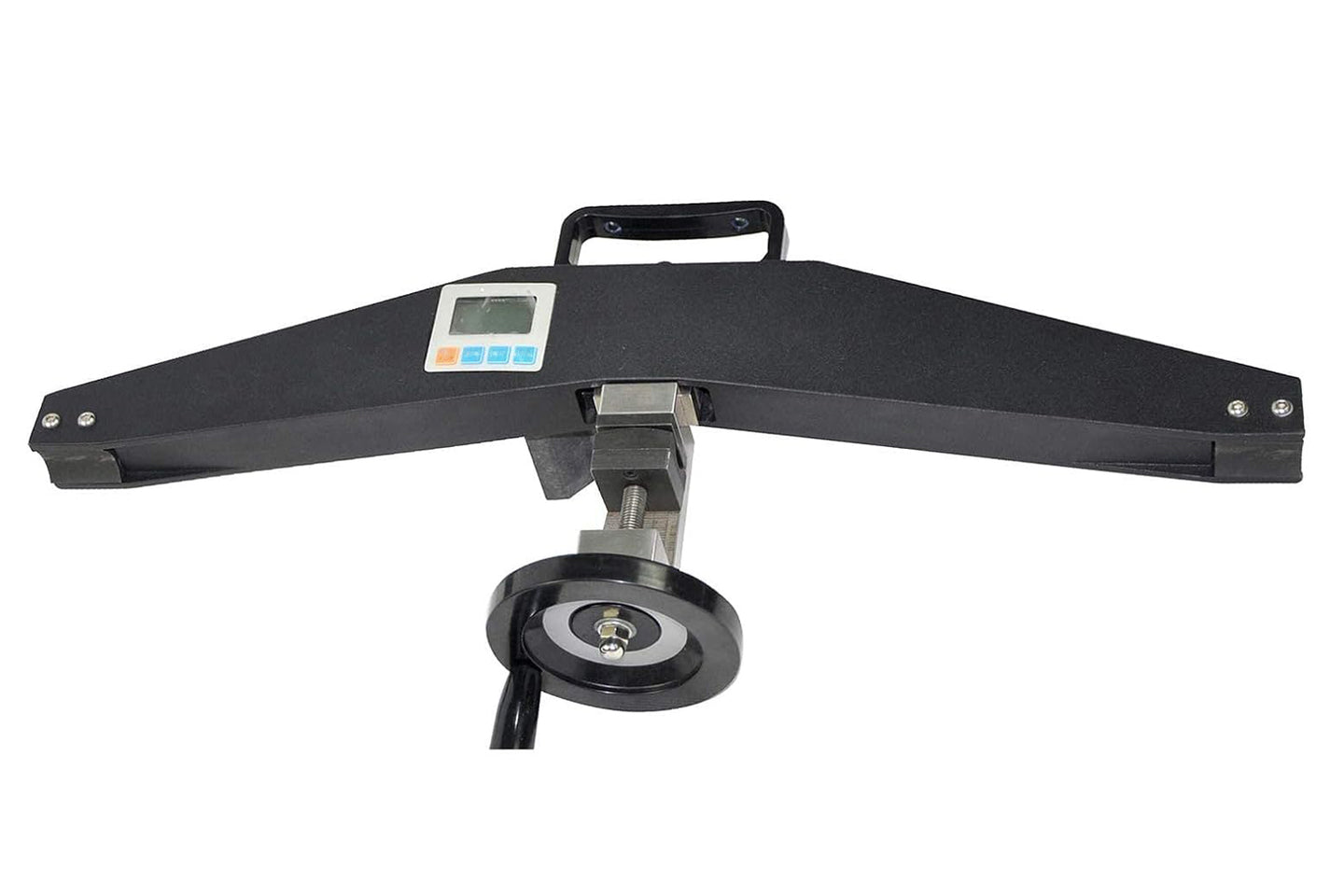

CNYST Wire Tension Measurement Device Digital Cable Tensiometer with Measuring range Φ20~Φ34mm Maximum Load Value 100KN RS232 Output Automatic System Compensation Function Divided load value 0.1KN

About this item:

◆ Stable performance, high measurement accuracy, with automatic system compensation, when the measured cable specifications and dynamometer cable specifications are the same, the accuracy within the rated range of up to 2%.

◆ Warnings: do not exceed the maximum range to use the instrument.Failure to do so may result in damage to the sensor or even accidents; When the test value exceeds the measuring range, the buzzer will continuously sound. In this case, quickly remove the applied load or reduce the load.

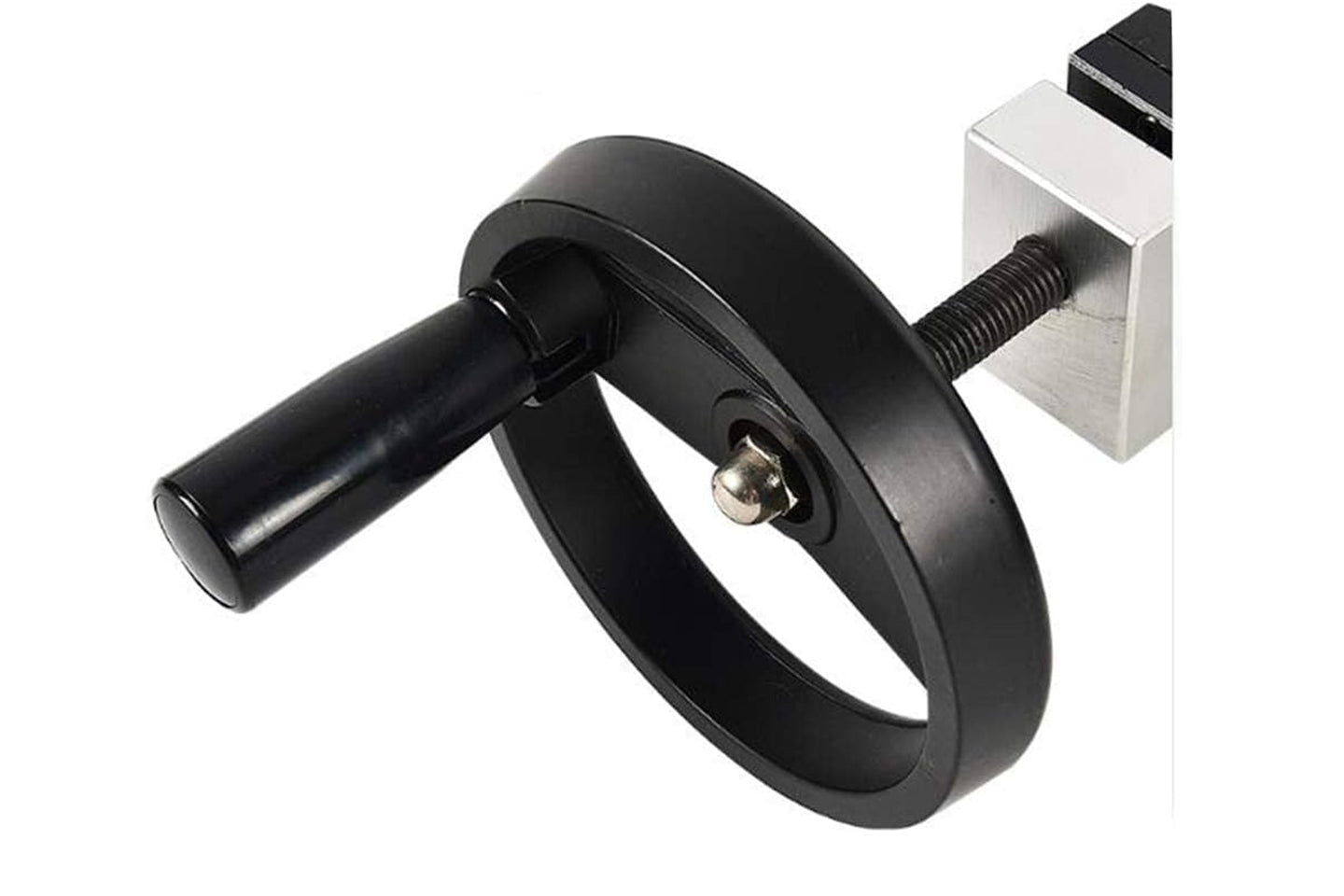

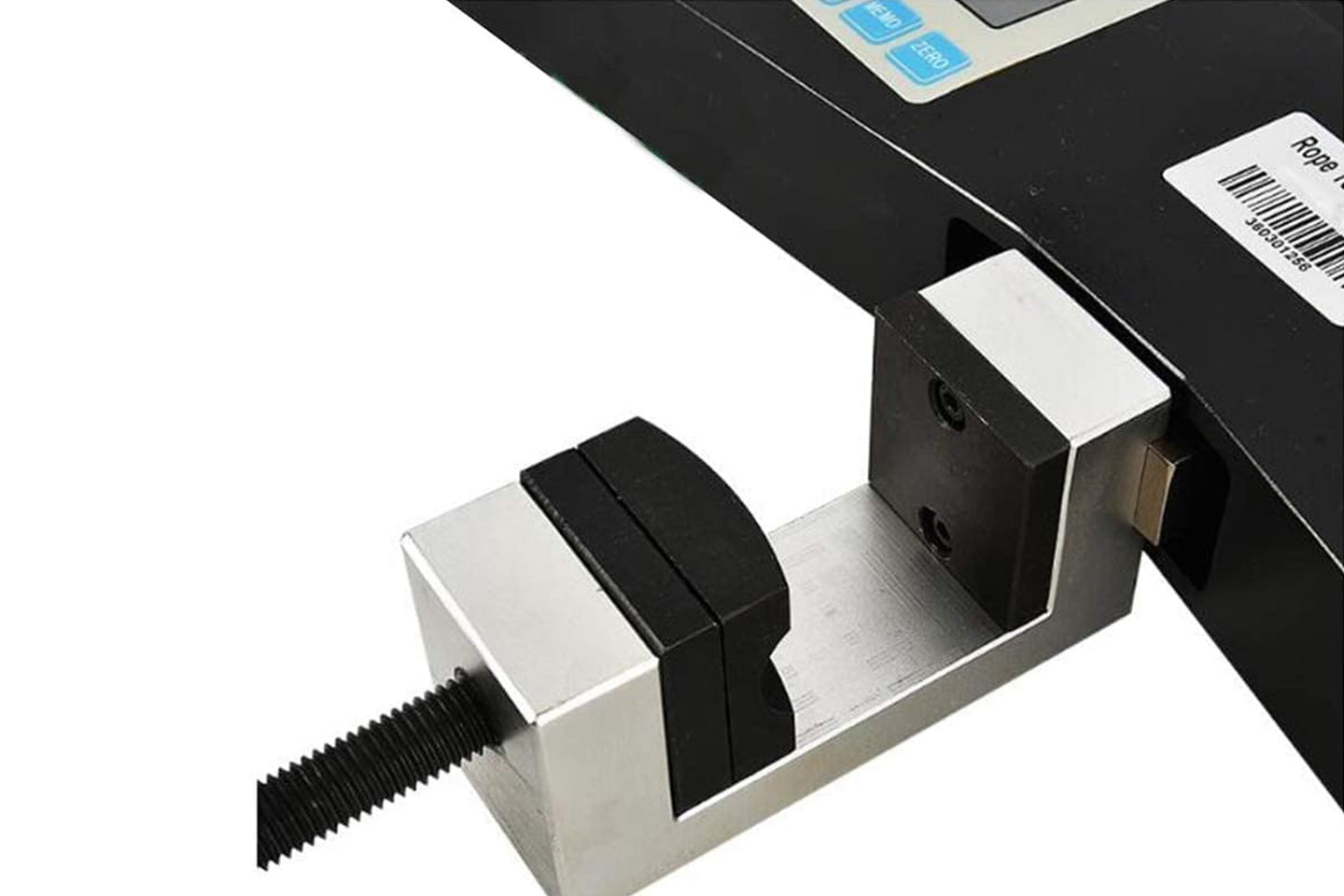

◆ Note: During the test, align the highest point of the rope with the positioning block and press the rope to be measured on the positioning block.Loosen the locking handle and the measured rope passes between the locking block and the positioning block. The two supporting seats are in complete contact with the rope. Tighten the locking handle and press the measured rope tightly on the positioning block. The displayed value is the actual tension force value of the measured rope.

◆ Rope Tension Meter can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.

Applicable occasions

This type rope tension meter is suitable for electric power industry, communication industry, transportation industry, glass curtain wall decoration industry, ropeway operation industry, construction industry, playground, tunnel construction, fishing and major scientific research institutes and teaching institutions, testing agenciesAnd related to rope and wire rope tension.

Functional characteristics

* The rope structure with tensioning force can be directly measured without disassembly.

* Light weight, simple structure, easy operation, suitable for any occasion.

* Stable performance, high measurement accuracy, with automatic system compensation, when the measured cable specifications and dynamometer cable specifications are the same, the accuracy within the rated range of up to 2%.

* With 15 kinds of wire diameter measurement function, a wider measurement range.

* The use of: suitable for flexible, stretched cable.Such as various steel ropes, high strength ropes and so on.

* Accuracy level: 2 to 6% of the max function (depending on the rope form and characteristics).

Technical Specifications

Model: Rope tension meter 100KN

Max Load Value (KN): 100

Divided load value (KN): 0.1

Measuring range(mm): Φ20~Φ34

Output connector: Rs232 9-hole socket

Power: rechargeable battery charger (charging voltage 100V~240V)

Operating temperature: 5~35;

Transport temperature,-10~60;

Relative humidity: 15%~80%RH

Operation: No vibration focus and corrosive media around

Net weight: 5kg

Dimensions:650×375×100mm
