CNYST Belt Tension Meter Belt Tensiometer with Measuring Range 0~750N Resolution ±1N for The Tension of Timing and Auxiliary Belts Fitted to Motor Vehicles and Other Machines

$345.00
$345.00

CNYST Belt Tension Meter Belt Tensiometer with Measuring Range 0~750N Resolution ±1N for The Tension of Timing and Auxiliary Belts Fitted to Motor Vehicles and Other Machines

About this item

◆ Tension Indicator: Colored LED Indication of High,Low and OK

◆ Measuring range: 0~750N(Newtons), 0~120lb(Pounds), 0~77kg(Kilograms), 0~114 Seems

◆ Accuracy: ±5% of full-scale, Resolution: ±1N (or1 least significant digit of other units)

◆ Belt Width: Up to 36 mm, Overload alarm: 750N, Max. load: 850N, Tension checking should always be carried out in accordance with the vehicle manufacturers' instructions.

◆ Main used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.

Shipping Policy : Battery Not Included During the Shipping

Feature Main used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.

Specification

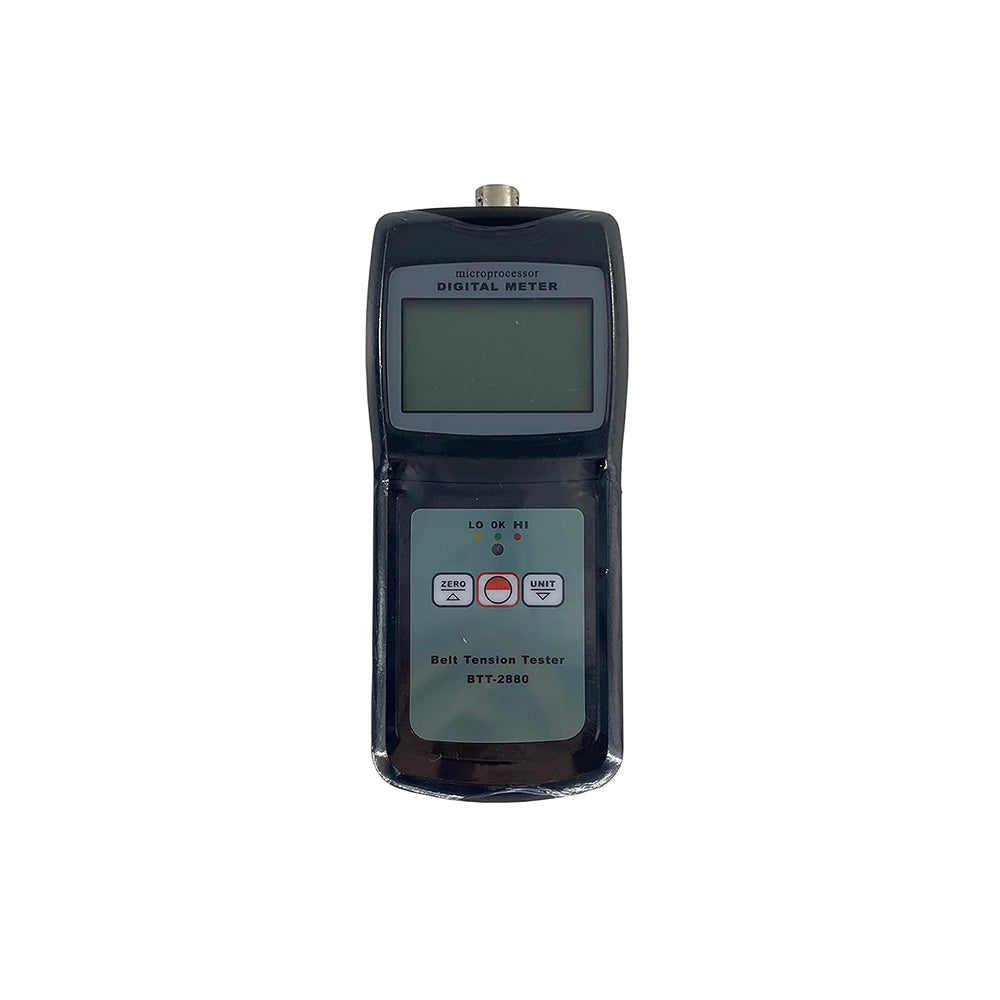

Display: LCD

Tension Indicator: Colored LED Indication of High,Low and OK

Measuring range:0~750N(Newtons); 0~120lb(Pounds); 0~77kg(Kilograms), 0~114 Seems

Accuracy: ±5% of full-scale

Belt Width: Up to 36 mm

Resolution: ±1N (or1 least significant digit of other units)

Overload alarm: 750N

Max. load: 850N

Audible Warning: Piezoelectric Sounder

Power Supply: 4x1.5V AAA(UM-4)Battery(Battery not included in package)

Dimensions: 135x62x33 mm

Weight: 335g(Not Including Batteries)

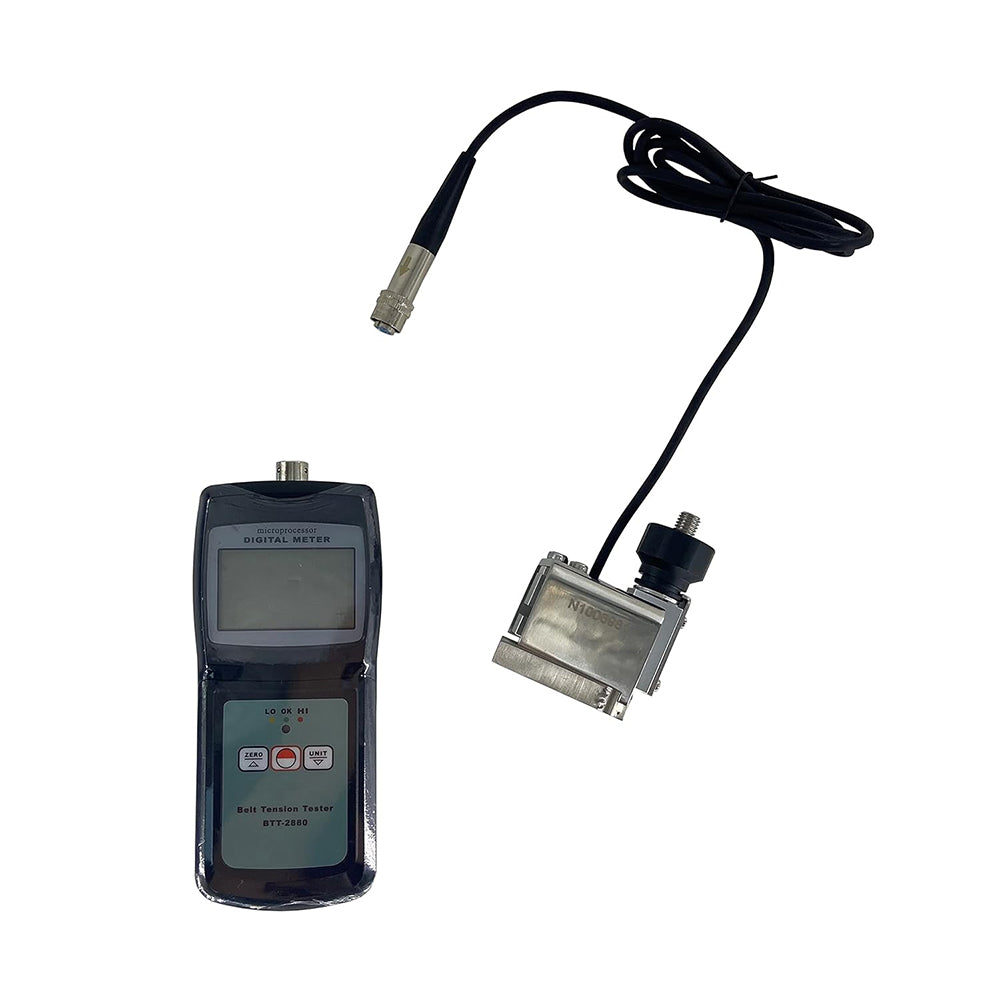

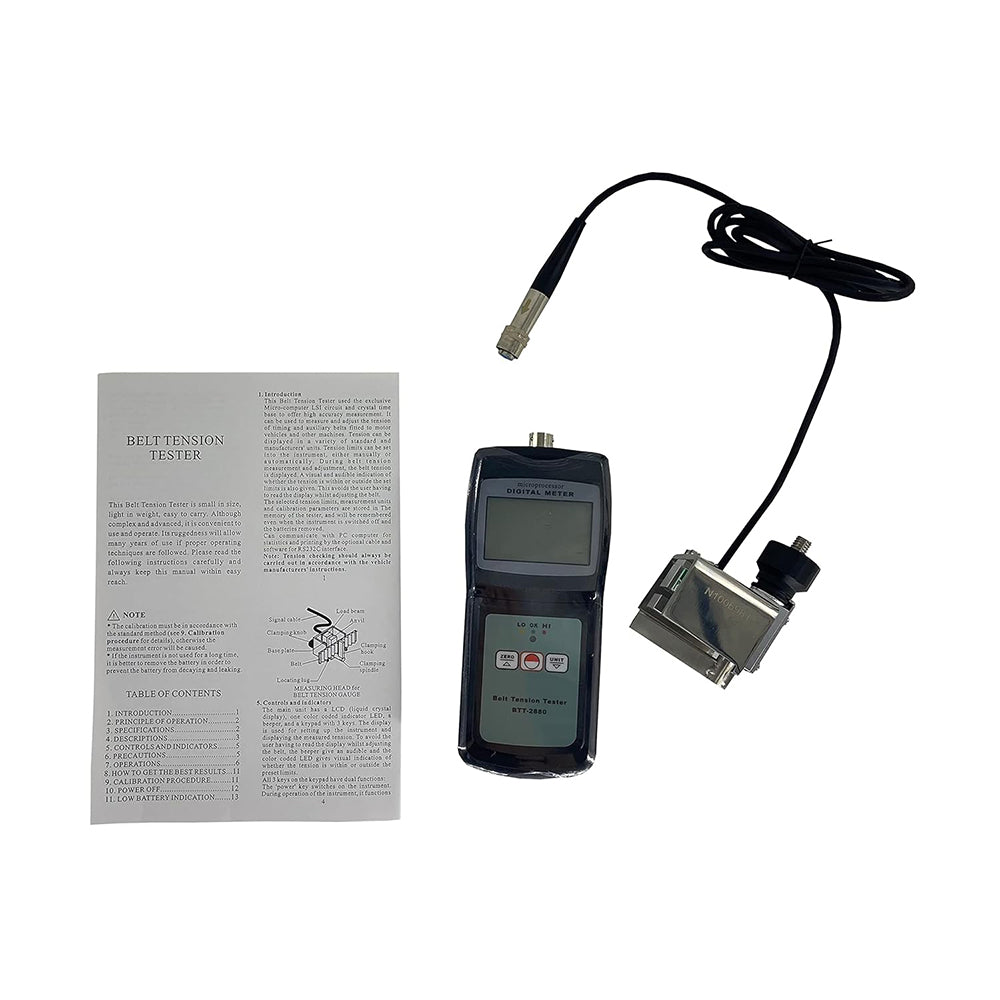

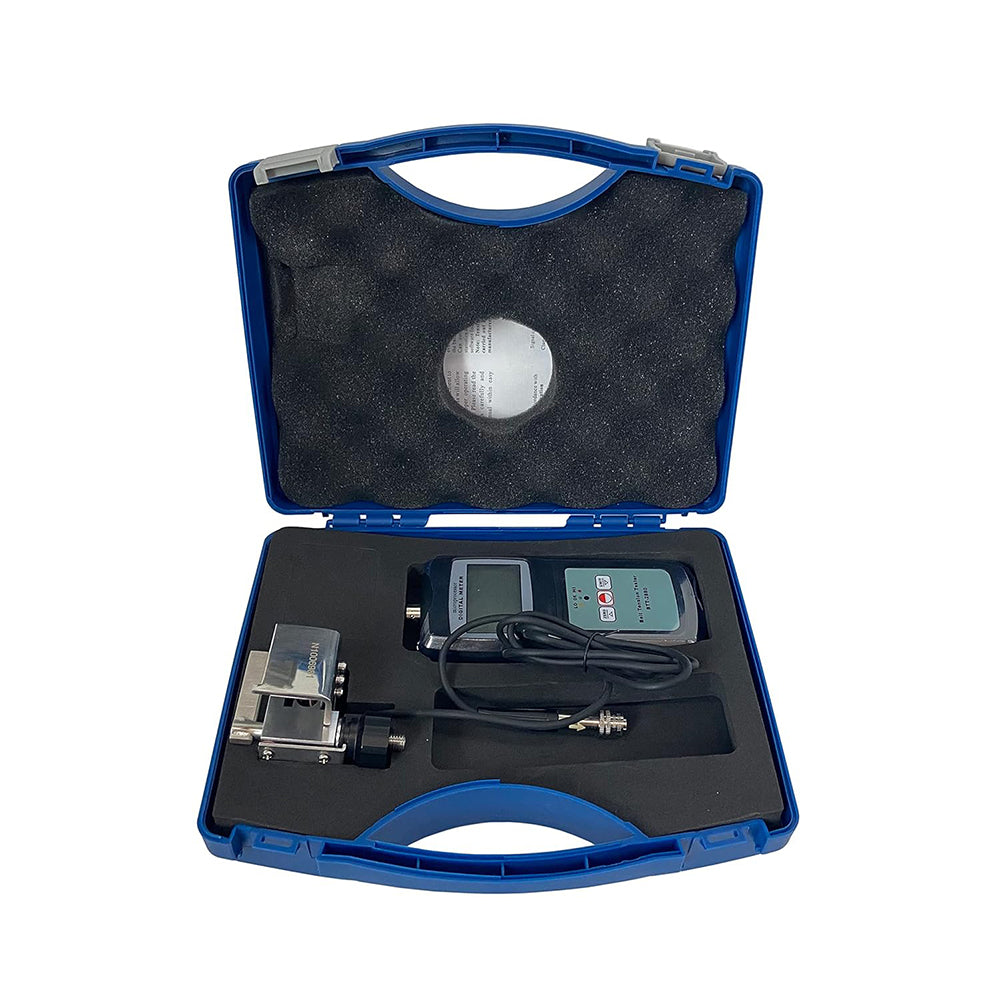

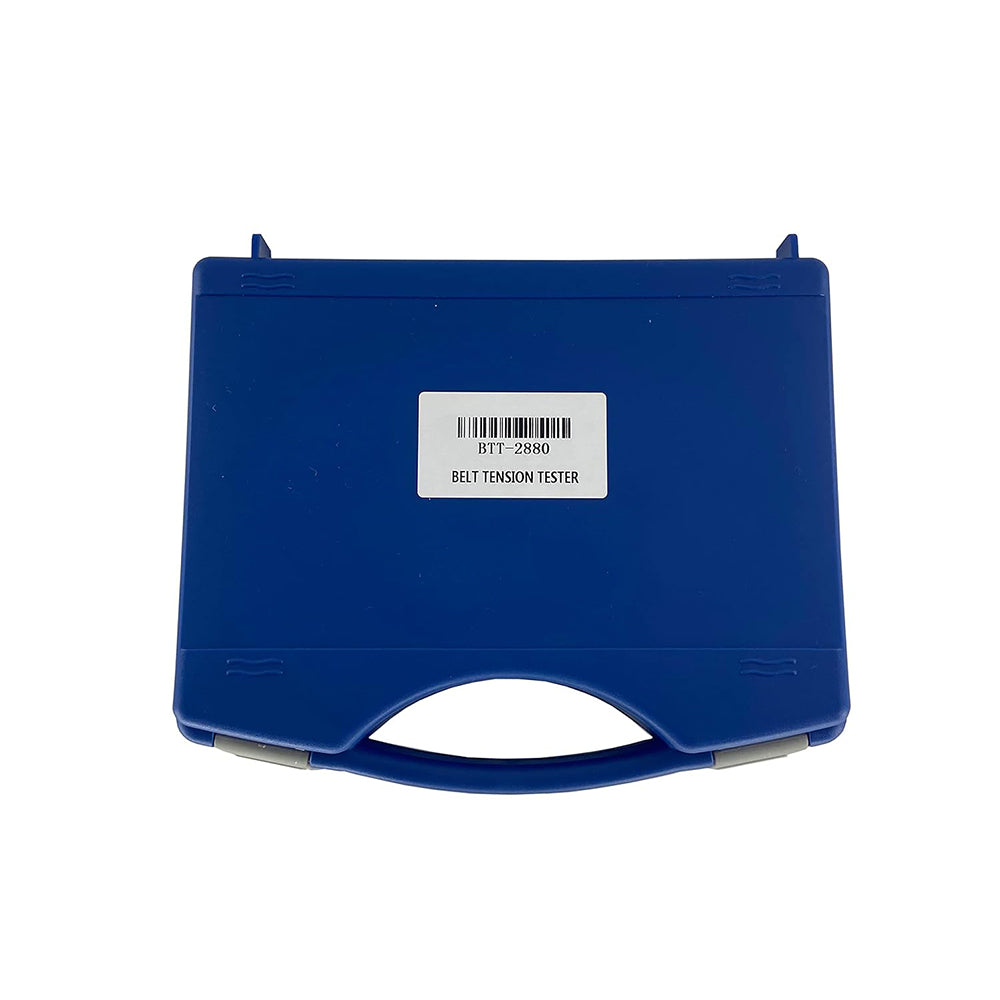

Standard Accessories: Main Unit, Measuring Head, Carrying Case(B04), Operation Manual

Features

This Belt Tension Tester used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.

It can be used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines.

Tension can be displayed in a variety of standard and manufacturers' units.

Tension limits can be set into the instrument, either manually or automatically. During belt tension measurement and adjustment, the belt tension is displayed. A visual and audible indication of whether the tension is within or outside the set limits is also given. This avoids the user having to read the display whilst adjusting the belt.

The selected tension limits, measurement units and calibration parameters are stored in The memory of the tester, and will be remembered even when the instrument is switched off and the batteries removed.
