CNYST

CNYST 3-axis Fluxgate Magnetometer 3 Axis Magnetic Field Meter with Range 0~2000μT Accuracy 1% Unit Switch μT MG +/- Polarity Display USB Interface Measuring XYZ Component Vector Synthetic Value

$2,550.00
$2,550.00

About this item:

(1)【1% Accuracy】: please note that of this Triaxial Fluxgate Magnetometer measurement accuracies is +/-1% .

(2)【Range Switch】: You can Choose mT(mite) or mG(gauss).

(3)【Wide Range of Application】:◆1.Earth's magnetic field measurement, environmental magnetic field detection; ◆2.Detection of weak magnetic fields in small ferromagnetic bodies or rocks; ◆3.Measurement of residual magnetism in metal parts processing, package/wrap inspection; ◆4.Evaluation of the attenuation characteristics of magnetic shielding; ◆5.Detection of NMR or electron microscopes; ◆6.Detection of magnetic field drift of precision instruments; ◆7.Calibration of weak magnetic field sources (solenoids/Helmholtz coils) for laboratory use

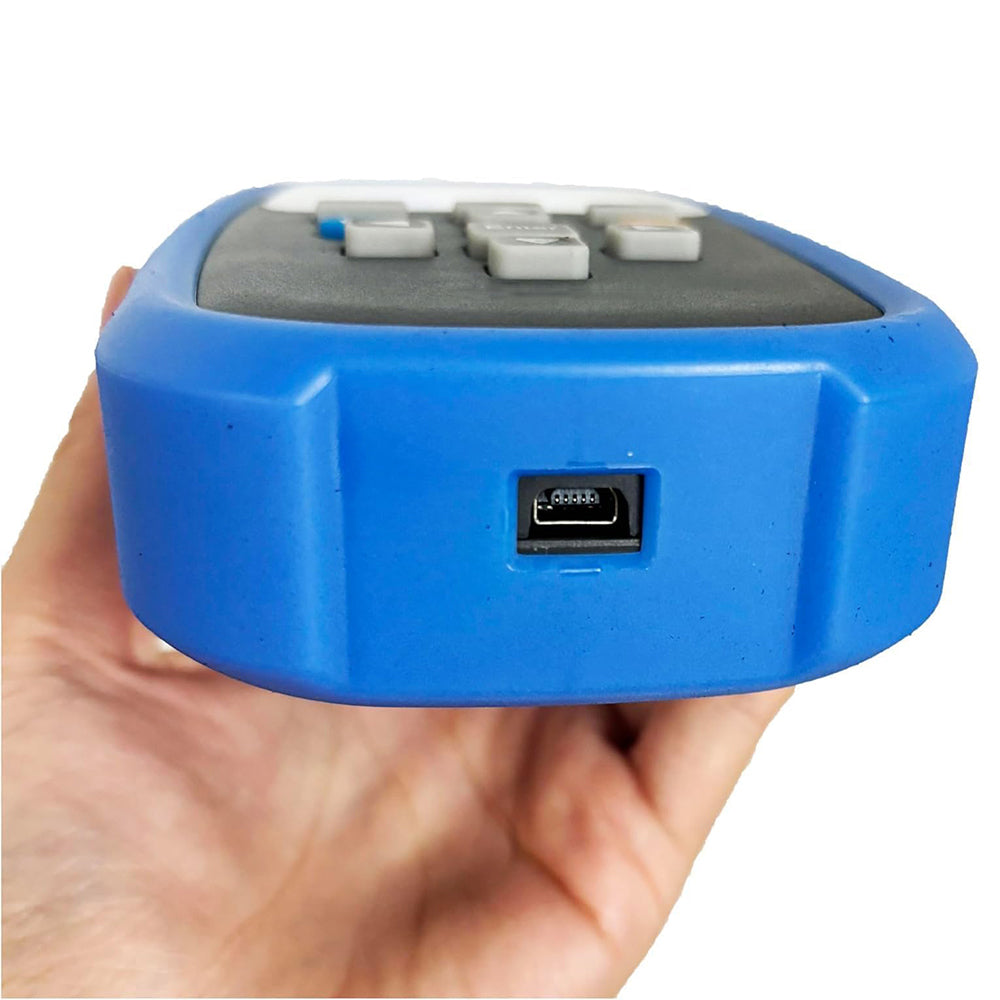

(4)【USB interface】: USB charging AND Communication interface

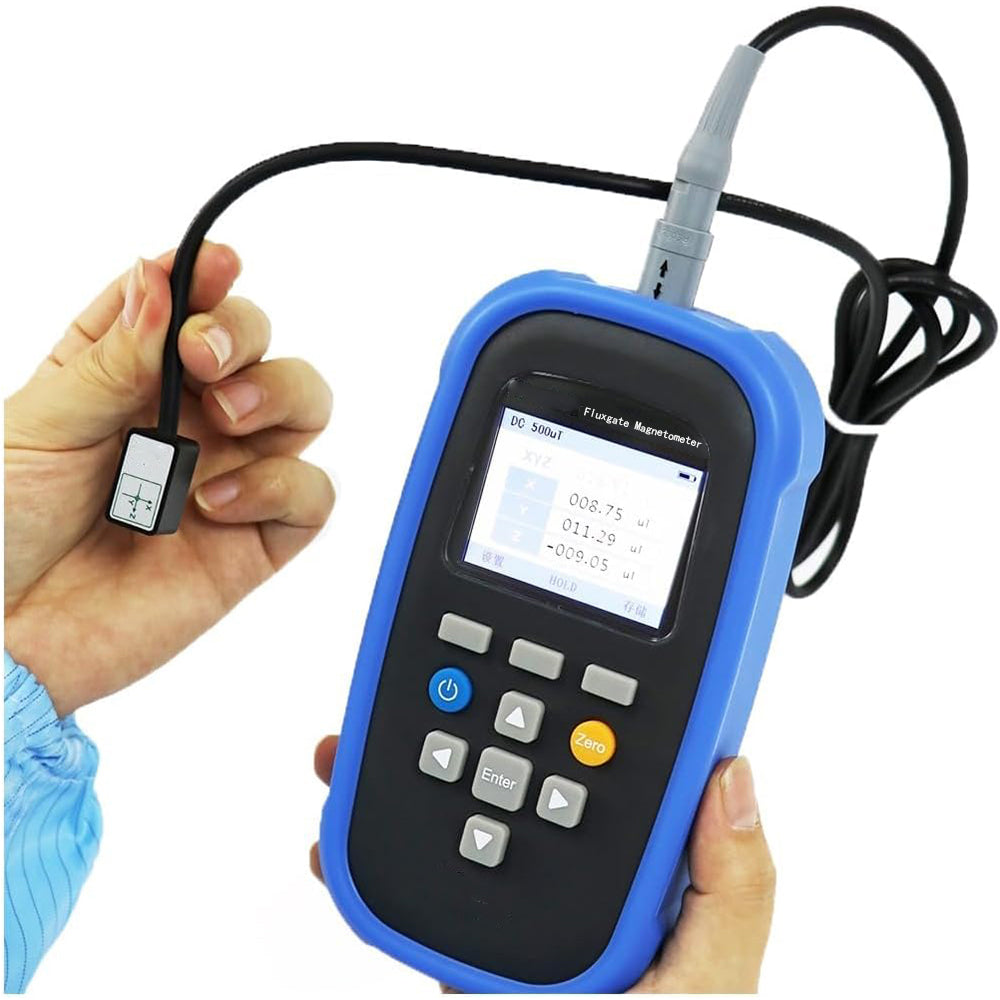

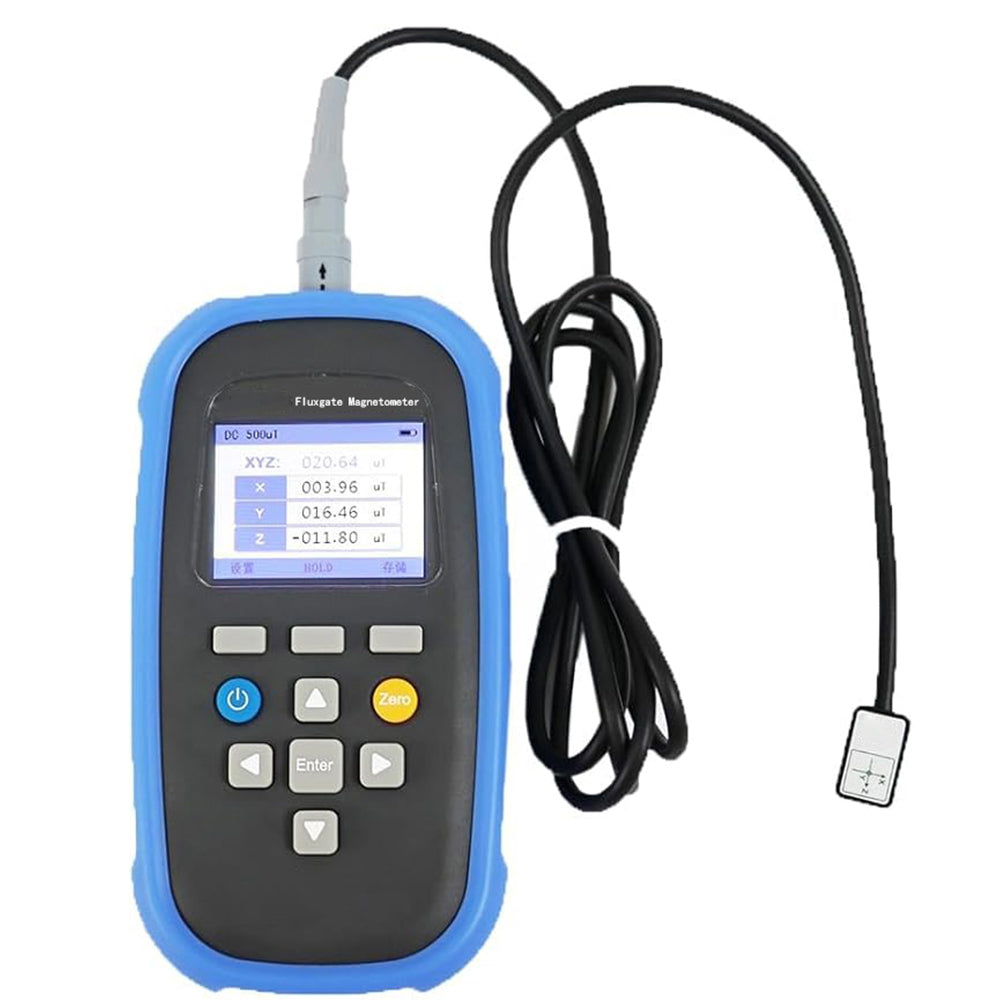

(5)【Tri-axis Fluxgate Magnetometer】:Measuring XYZ component, vector synthetic value.

Introduction:

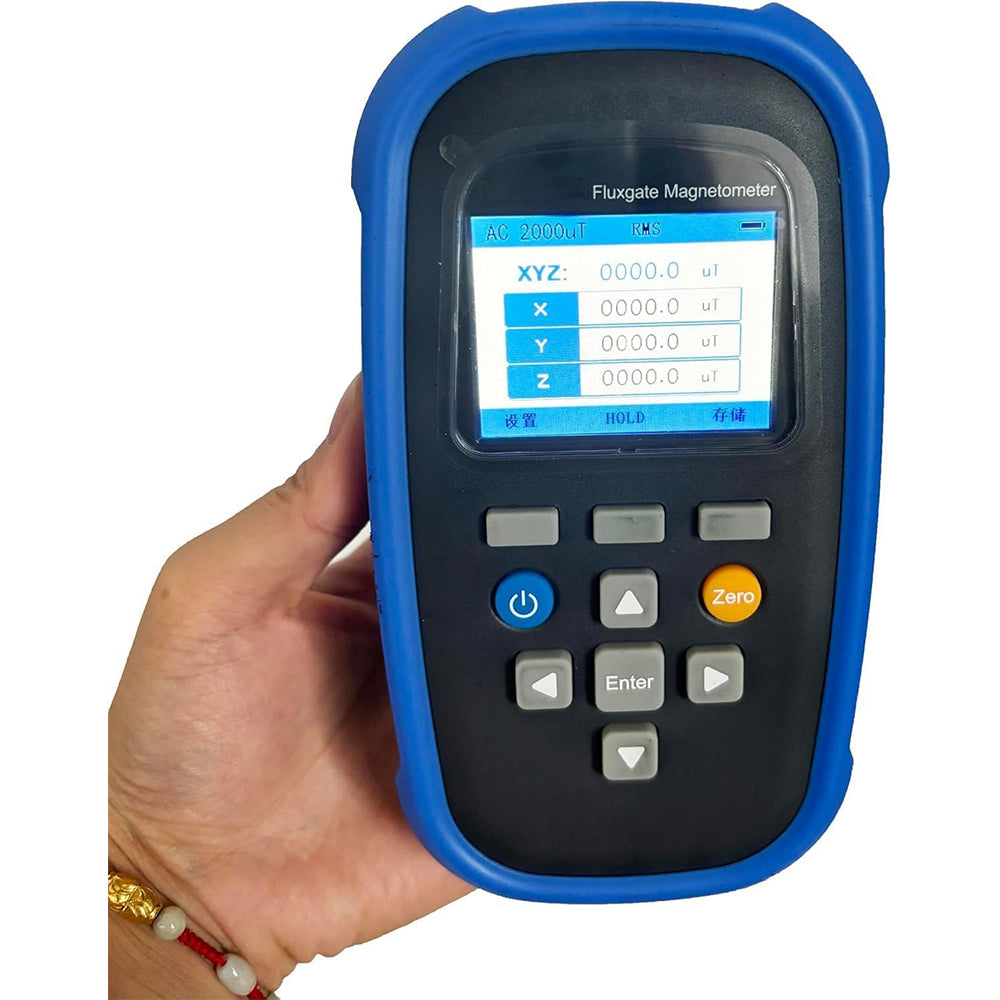

  • The handheld tri-axis fluxgate magnetometer is a portable, multi-functional weak magnetic measurement instrument equipped with a high sensitivity, high linearity, and low drift tri-axis fluxgate sensor for more accurate and convenient measurement of weak magnetic fields in space compared to Hall effect type magnetic measurement instruments.

Features:

  • Unit switch: μT, mG.
  • +/- polarity display.
  • Relative measurement mode.
  • Max. hold function.
  • USB interface.
  • Measuring XYZ component, vector synthetic value.
  • Alarm function of exceeding the upper / lower limit.
  • Display support backlight and battery power.
  • Magnetic measurement data storage.
  • Lithium battery, remaining power display.

Application:

  • Measuring low magnetic field.
  • Geological prospecting.
  • Fragmentation processing, security check.
  • Fault location, research experiment.
  • Magnetic shielding evaluation.
  • Calibrating low magnetic field sources.
  • Detecting magnetic resonance meter.
  • Detecting electron microscope.
  • Detecting Magnetic field drift.

Technical Specifications:

  • Range: (μT):2000
  • Resolution (nT):100
  • Accuracy(k=2):1%.
  • Temperature coefficient (%/°C):0.1
  • Noise: <20nTrms @ 1Hz
  • Power supply: 4000 mAh lithium battery power, USB charging
  • Operating temperature: 0°C~45°C; Storage temperature: -20°C~70°C
  • Operating humidity: 20%~80% R. H non-condensing
  • Storage humidity: <85% R.H, non-condensing
  • Weight: approx. 500 g
  • Communication interface: Magnetic fluxgate probe input interface, USB interface
  • Dimension: 90 mm(W) X 40 mm(D) X 165 mm(H)

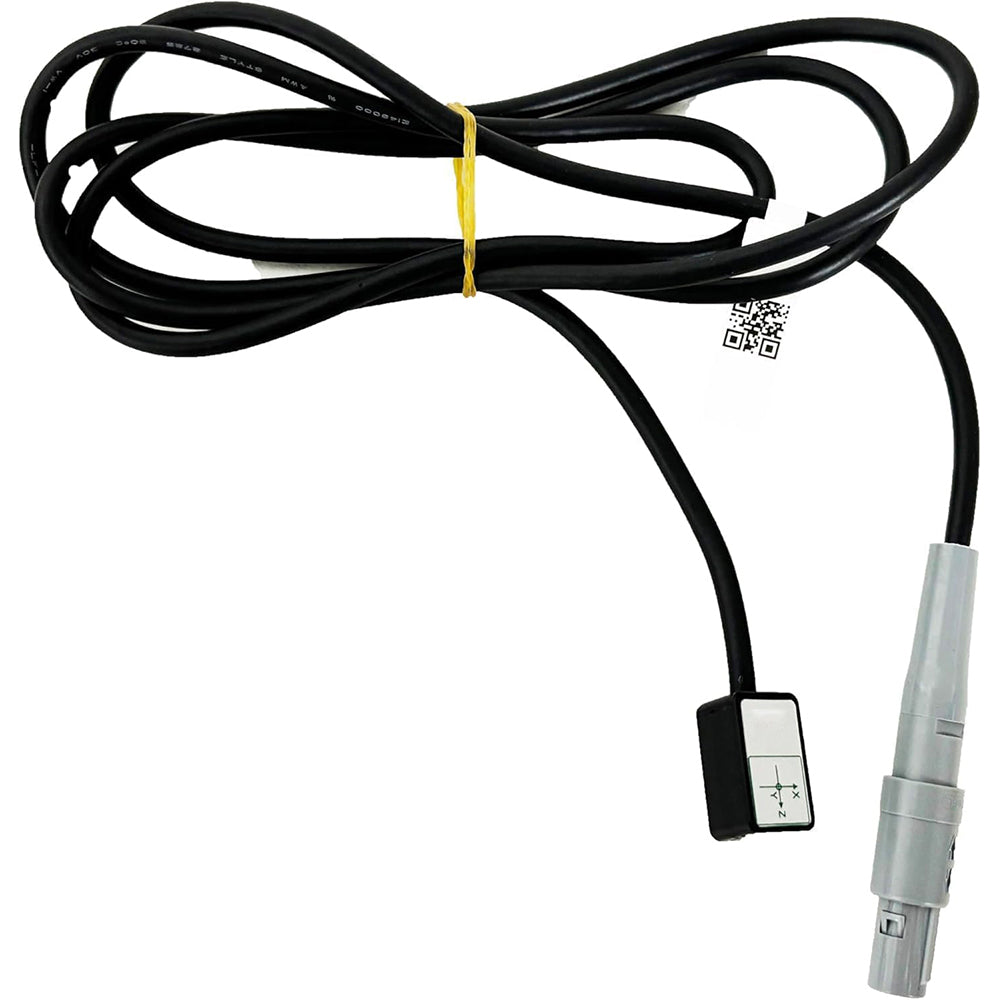

  • Probe size: 20 mm(L) X 14 mm(W) X 12 mm(H)
