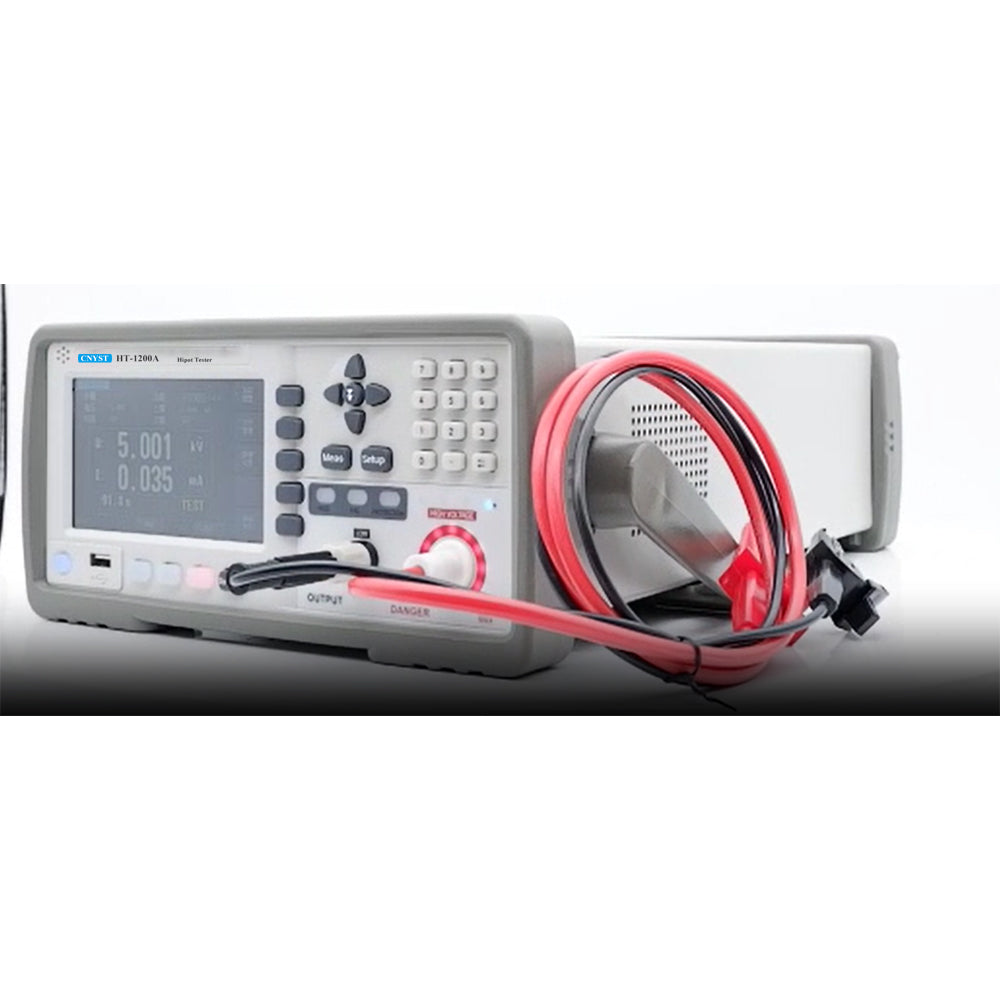

CNYST AC/DC Hipot Tester AC/DC Withstand Voltage Tester with Measurement Functions AC/DC Withstanding Voltage AC 5.000kV/10mA DC 6kV/5mA Discharge Function 5’’ LCD+Touch Panel Resolution 1V

$1,310.00
$1,310.00

OVERVIEW:

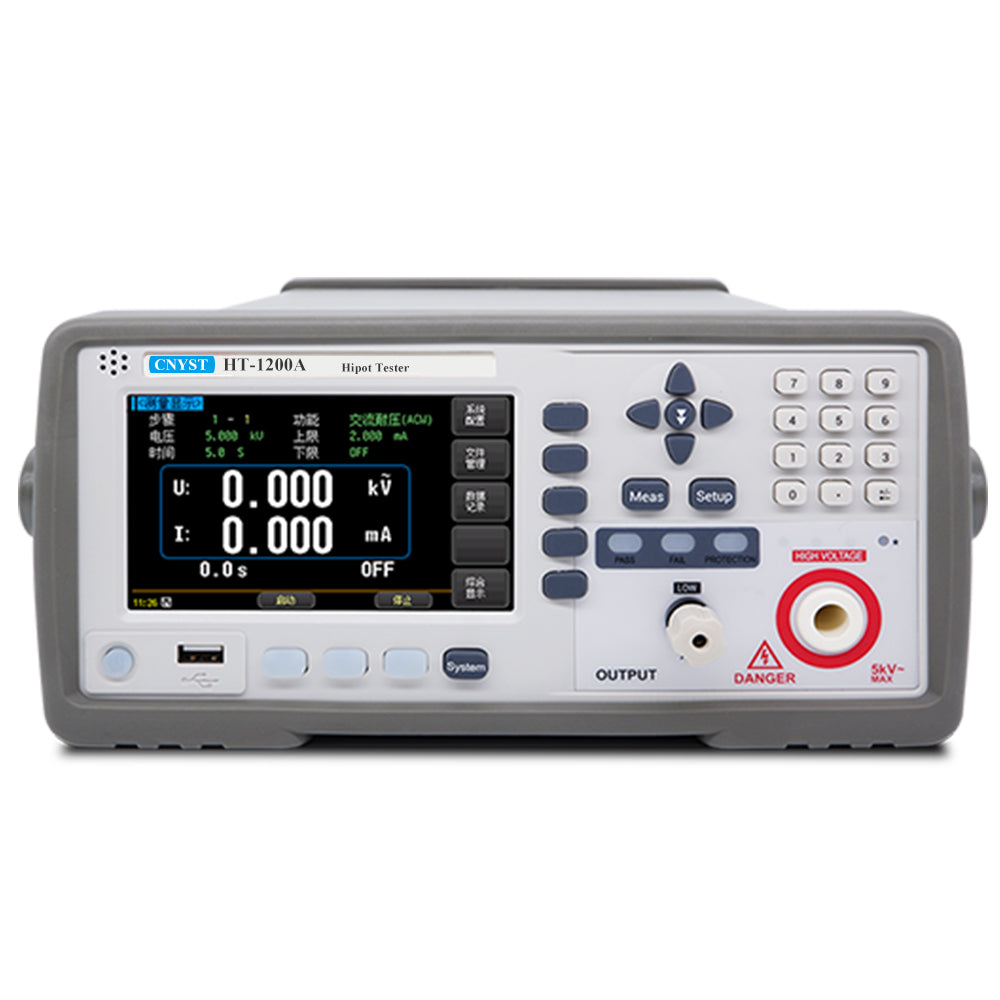

This AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, a 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

This series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the reqVERVIEWuirements of automated testing and improve production efficiency.

FEATURES:

  • It can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage test.
    Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage.
  • Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.
  • Output voltage closed loop control.
  • Single-machine AC withstand voltage test, DC withstand voltage test, and project settings that can pass the test plan, perform multi-item sequential testing.
SPECIFICATIONS:
Measurement Functions AC/DC Withstanding Voltage

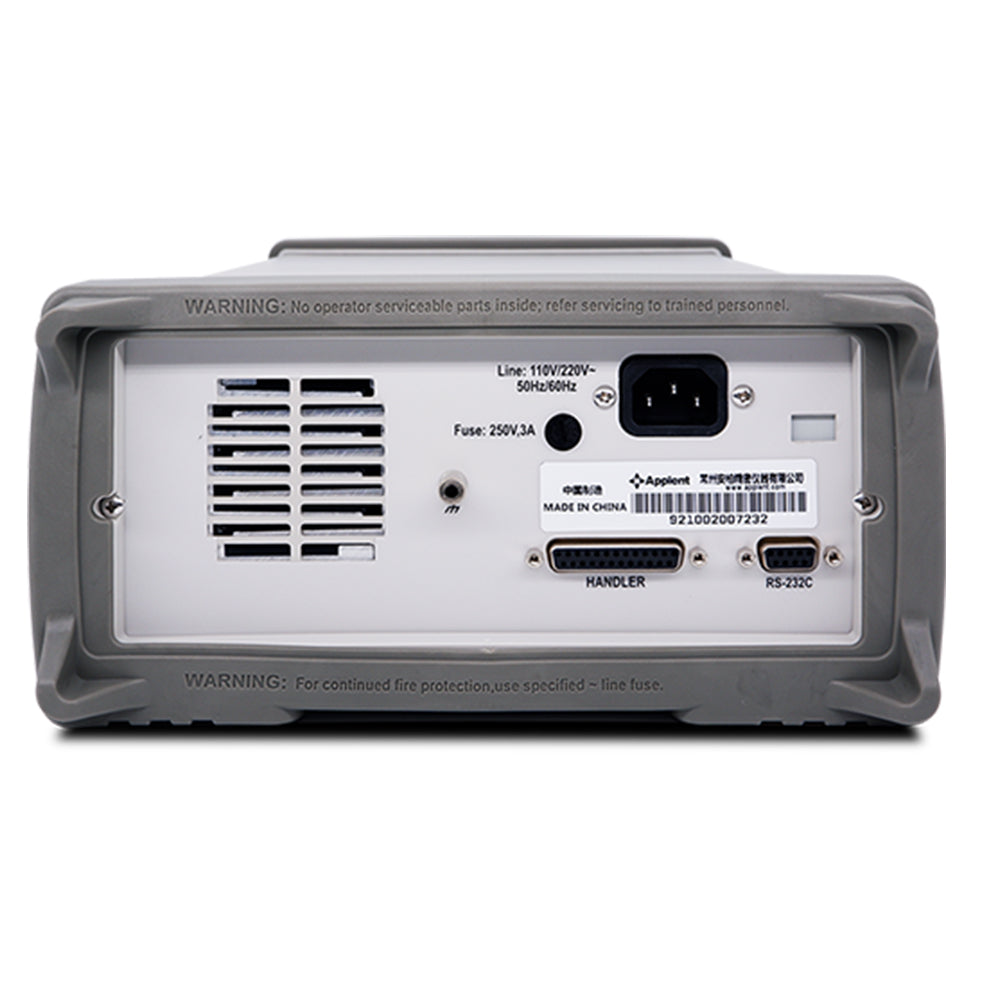

Interface RS232/Handler
Arc Detection 9 Levels (AC/DC)
Other Functions LIST Edit
Discharge Function
5“ LCD + Touch panel
AC Withstand Voltage ●
    Rate Ouput AC 5.000kV/10mA
    Output Voltage 0.050kV-5.000KV AC
Resolution: 1V
    Voltage Accuracy 2% of reading + 5 digits
    Output Regulation 2% of reading +5V
    Output Frequency 50Hz/60Hz
    Measurement Current 0.001mA-10.00mA
Resolution: 0.001 / 0.01
    Current Accuracy 2% of reading + 5 digits
    Rising Time 0.1s-999.9s
    Testing Time 0.2s-999.9s
    Falling Time 0.1s-999.9s
DC Withstand Voltage ●
    Rate Output DC 6kV/5mA
    Output Voltage 0.050kV-6.000kV DC
Resolution: 1V
    Voltage Accuracy 2% of reading + 5 digits
    Output Regulation 2% of reading +5V
    Current Measurement 0.1μA-5.000mA
    Current Accuracy 2% of reading +5 digits
    Rising Time 0.1s-999.9s
    Testing Time 0.2s-999.9s
    Falling Time 0.1s-999.9s
Power Supply 110V ~ 220V 47~63Hz
300VA
Dimension & Weight 270mm( W )x130mm( H )x450mm ( D )
8kg

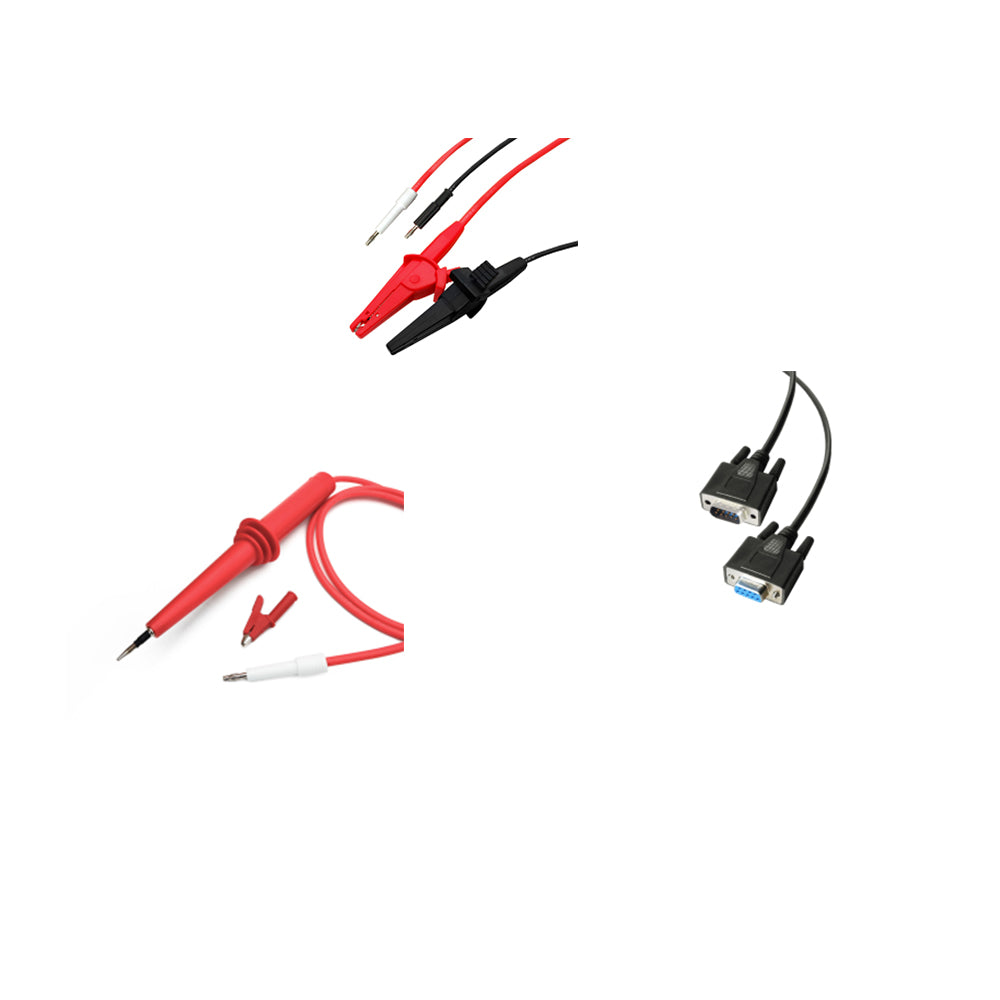

Accessories High voltage test rod
Withstand voltage test line
RS232 Communication
