CNYST AC/DC Hipot Tester with Insulation Resistance AC DC IR Withstand Voltage Tester for Electric Vehicles Power Grids Photovoltaics Home Appliances Information Equipment Medical Equipment Industry

$1,545.00
$1,545.00

OVERVIEW:

This series AC and DC Hipot tester adopts a 5-inch color LCD display (with touch control), and is equipped with a mainstream high-performance 32-bit ARM processor. Small size, light weight (8kg), super cost-effective, easy to operate.

This series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.

FEATURES:

Rated output AC: 0.050 kV, 5.000 kV

Rated output DC: 0.050 kV, 6.000 kV

Touch button controls display in both Chinese and English operation standard RS232 interface, the Handler interface

SPECIFICATIONS

Measurement Functions AC/DC Withstanding Voltage & IR
Interface RS232/Handler
Arc Detection 9 Levels (AC/DC)
Other Functions LIST Edit
Discharge Function

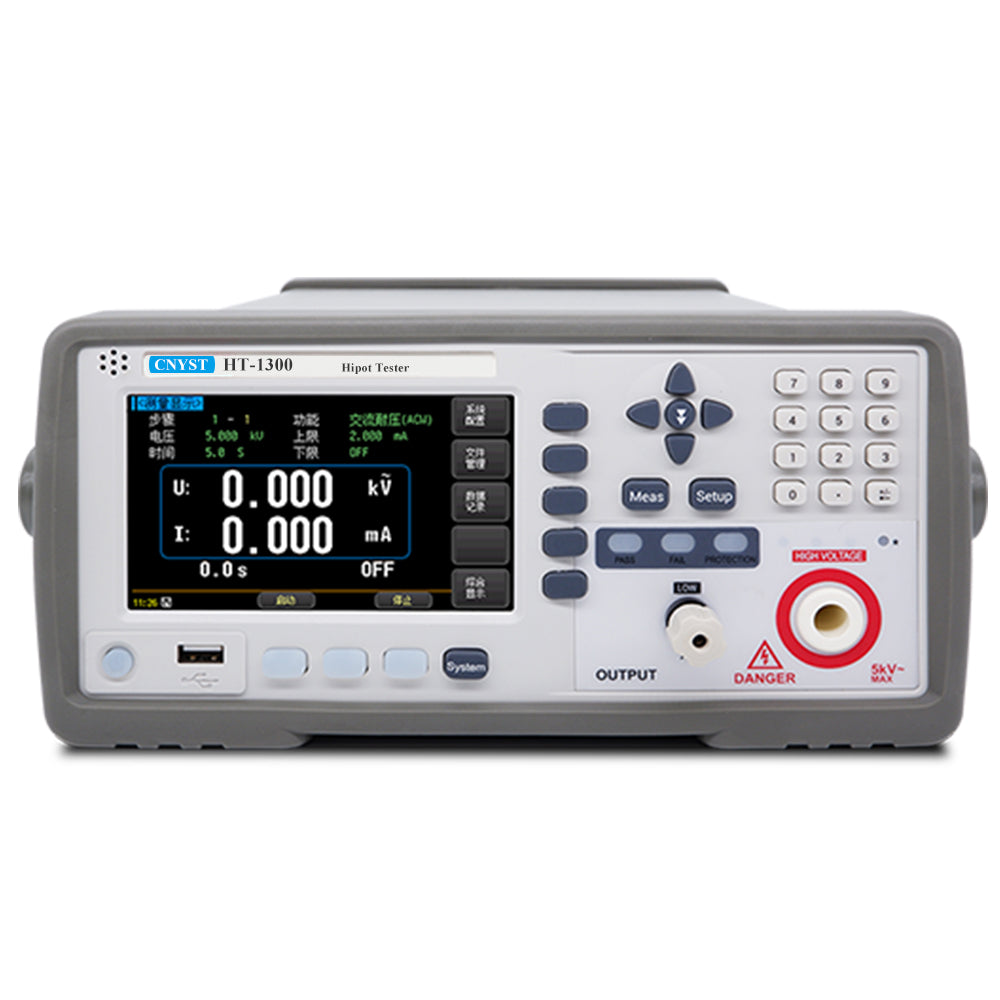

5“ LCD + Touch panel
AC Withstand Voltage ●
Rate Ouput AC 5.000kV/10mA
Output Voltage 0.050kV-5.000KV AC
Resolution: 1V
Voltage Accuracy 2% of reading + 5 digits
Output Regulation 2% of reading +5V
Output Frequency 50Hz/60Hz
Measurement Current 0.001mA-10.00mA
Resolution: 0.001 / 0.01
Current Accuracy 2% of reading + 5 digits
Rising Time 0.1s-999.9s
Testing Time 0.1s-999.9s
Falling Time 0.1s-999.9s
DC Withstand Voltage ●
Rate Output DC 6kV/5mA
Output Voltage 0.050kV-6.000kV DC
Resolution: 1V
Voltage Accuracy 2% of reading + 5 digits
Output Regulation 2% of reading +5V
Current Measurement 0.1μA-5.000mA
Current Accuracy 2% of reading +5 digits
Rising Time 0.1s-999.9s
Testing Time 0.2s-999.9s
Falling Time 0.1s-999.9s
Insulation Resistance ●
Rate Output DC 1kV/10GΩ
Output Voltage 0.050kV-1.000kV DC
Resolution： 1V
Voltage Accuracy 1% of reading + 2 digits
Measurement Range 0.1MΩ-10GΩ
IR Accuracy <500V：
0.1MΩ-1GΩ， Accuracy：±(10% of reading +5 digits )
1GΩ-10GΩ , For reference only, no accuracy requirement
≥ 500V：
1MΩ-1GΩ， Accuracy：±（5% of reading +5 digits）
1GΩ-10GΩ， Accuracy：±（10% of reading +5 digits）
Testing Time 0.2s-999.9s
Power Supply 198V ~ 242V AC, 50/60Hz
400VA
Dimension & Weight 270mm( W )x130mm( H )x450mm ( D )
10kg

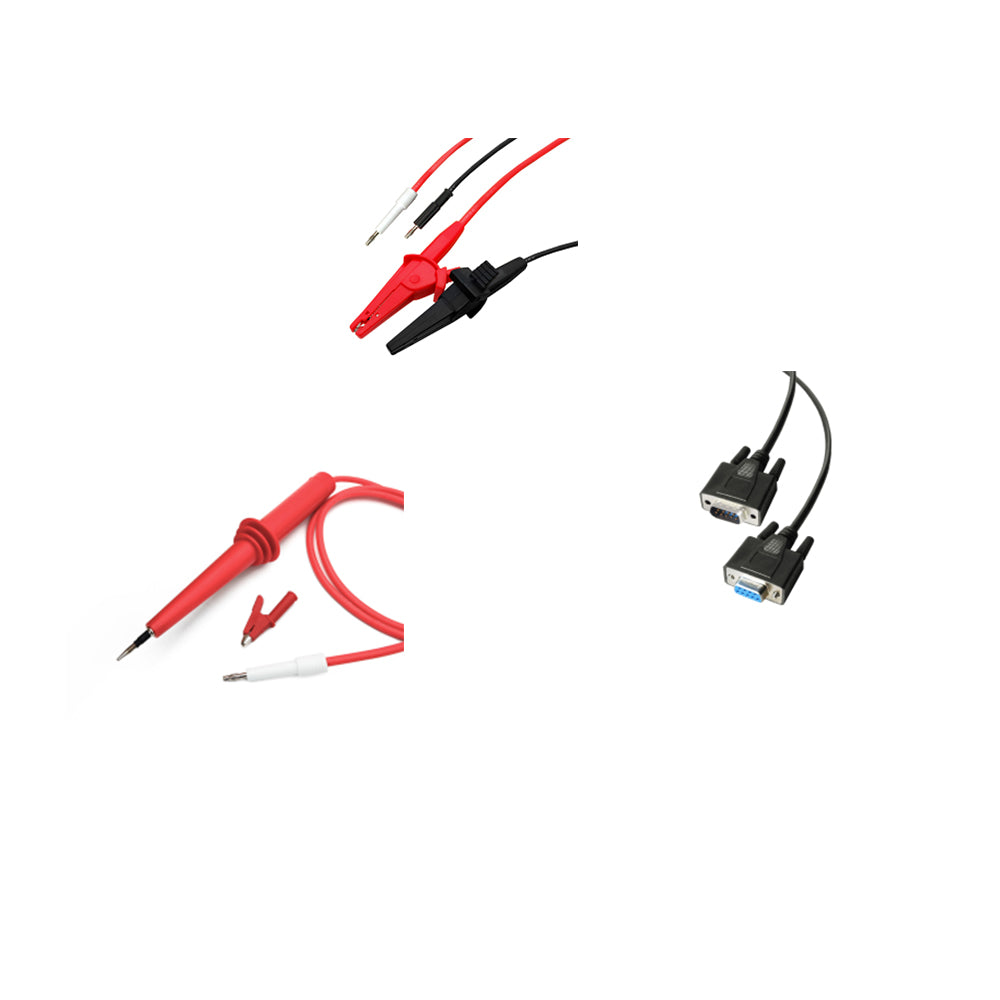

Accessories High voltage test rod
Withstand voltage test line
RS232 Communication
