CNYST AC/DC Hipot with Insulation Resistance Benchtop AC/DC/IR Hipot Tester with AC Withstand Voltage Rate Ouput AC 5.000kV/20mA DC Withstand Voltage Rate Output DC 6kV/10mA Touch Screen

$1,654.00
$1,654.00

OVERVIEW:

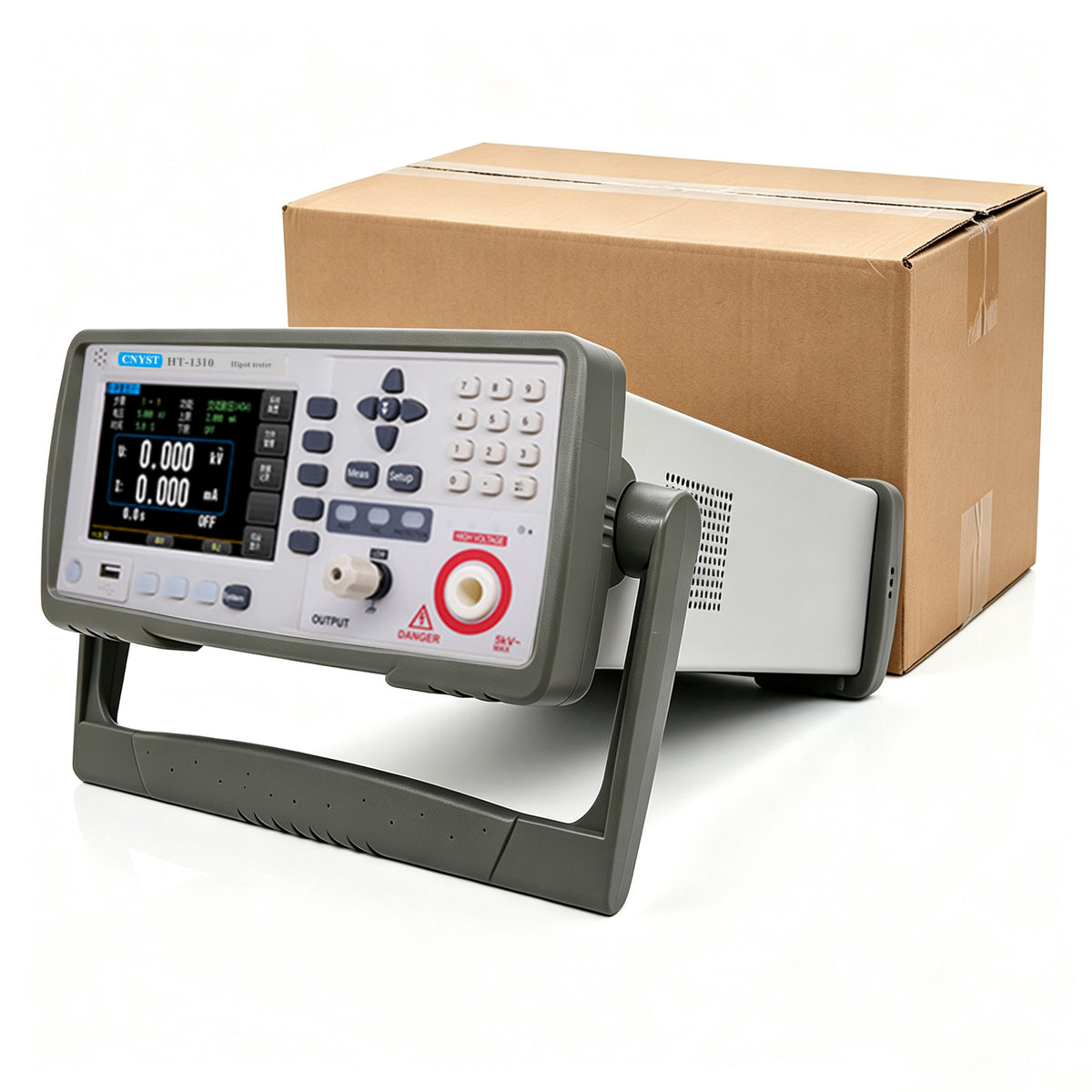

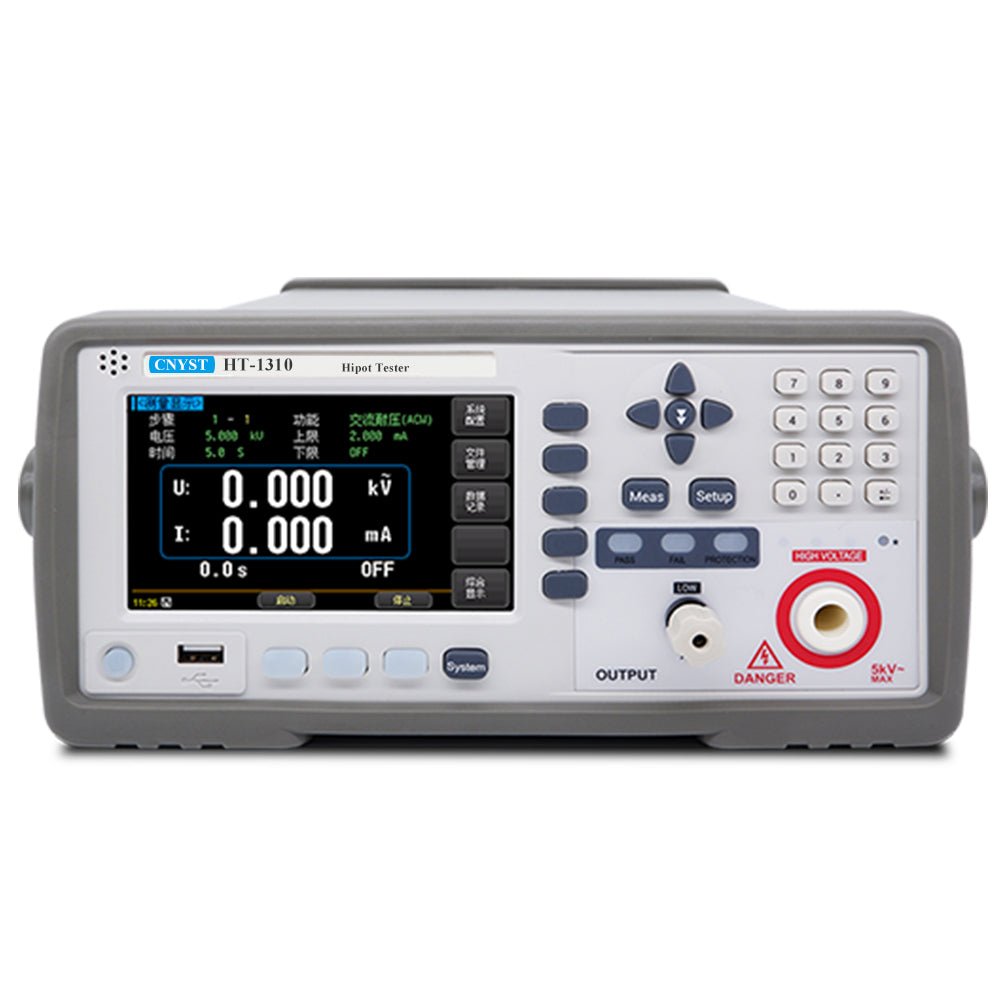

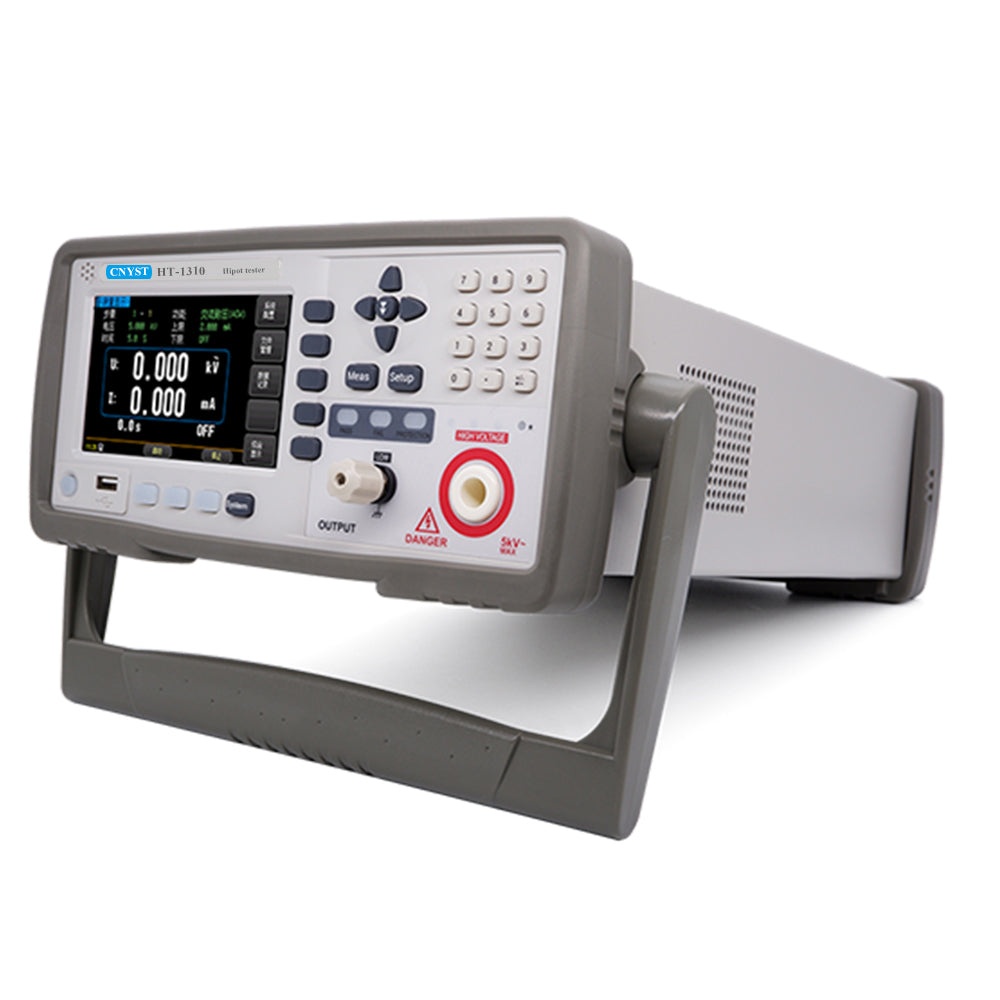

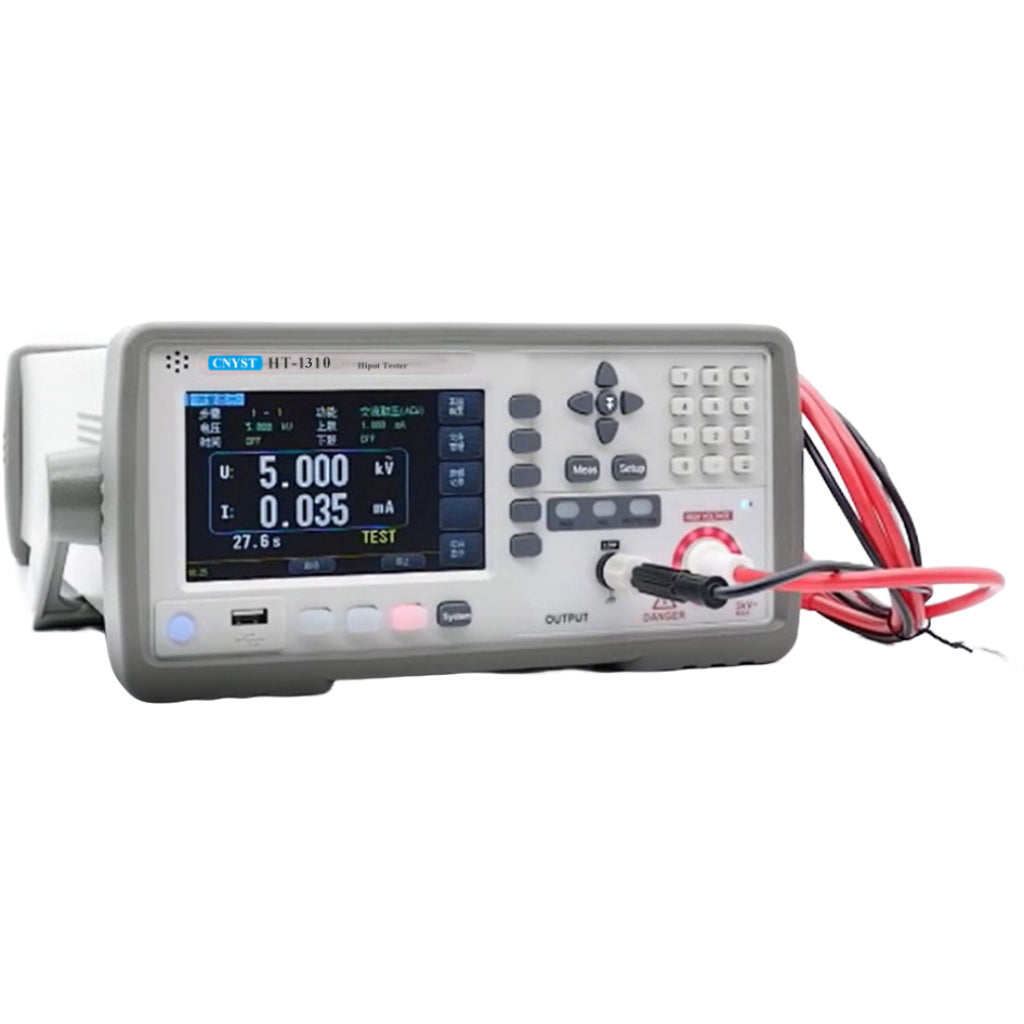

HT-1310 AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

HT-1310 series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.

FEATURES:

HT-1310 can provide 5kVAC/20mA withstand voltage, 6kVDC/10mA withstand voltage, insulation resistance test.

Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage;

Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.

Output voltage closed-loop control: to ensure that the load adjustment rate is small and the test data is reliable.

It can independently perform AC withstand voltage test, DC withstand voltage test, and insulation resistance test, and can pass the test

Project setting of trial plan, multi-project sequential test.

SPECIFICATIONS:

Measurement Functions AC/DC Withstanding Voltage & IR

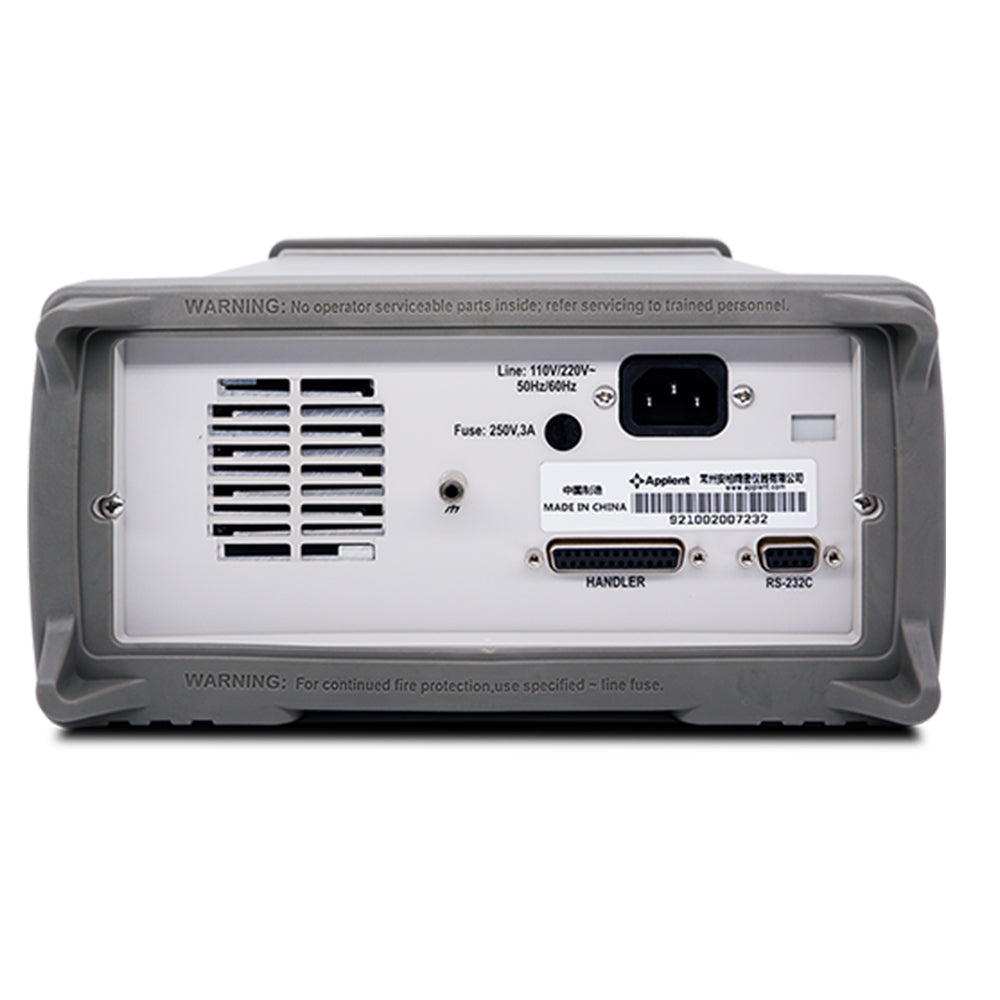

Interface RS232/Handler
Arc Detection 9 Levels (AC/DC)
Other Functions LIST Edit
Discharge Function
5“ LCD + Touch panel
AC Withstand Voltage ●
Rate Ouput AC 5.000kV/20mA
Output Voltage 0.050kV-5.000KV AC
Resolution: 1V
Voltage Accuracy 2% of reading + 5 digits
Output Regulation 2% of reading +5V
Output Frequency 50Hz/60Hz
Measurement Current 0.001mA-20.00mA
Resolution: 0.001 / 0.01
Current Accuracy 2% of reading + 5 digits
Rising Time 0.1s-999.9s
Testing Time 0.1s-999.9s
Falling Time 0.1s-999.9s
DC Withstand Voltage ●
Rate Output DC 6kV/10mA
Output Voltage 0.050kV-6.000kV DC
Resolution: 1V
Voltage Accuracy 2% of reading + 5 digits
Output Regulation 2% of reading +5V
Current Measurement 0.1μA-10.000mA
Current Accuracy 2% of reading +5 digits
Rising Time 0.1s-999.9s
Testing Time 0.2s-999.9s
Falling Time 0.1s-999.9s
Insulation Resistance ●
Rate Output DC 1kV/10GΩ
Output Voltage 0.050kV-1.000kV DC
Resolution： 1V
Voltage Accuracy 1% of reading + 2 digits
Measurement Range 0.1MΩ-10GΩ
IR Accuracy <500V：
0.1MΩ-1GΩ， Accuracy：±(10% of reading +5 digits )
1GΩ-10GΩ , For reference only, no accuracy requirement
≥ 500V：
1MΩ-1GΩ， Accuracy：±（5% of reading +5 digits）
1GΩ-10GΩ， Accuracy：±（10% of reading +5 digits）
Testing Time 0.2s-999.9s
Power Supply 110VAC~220VAC 47Hz~63Hz 300VA
Dimension & Weight 270mm( W )x130mm( H )x450mm ( D )
8kg

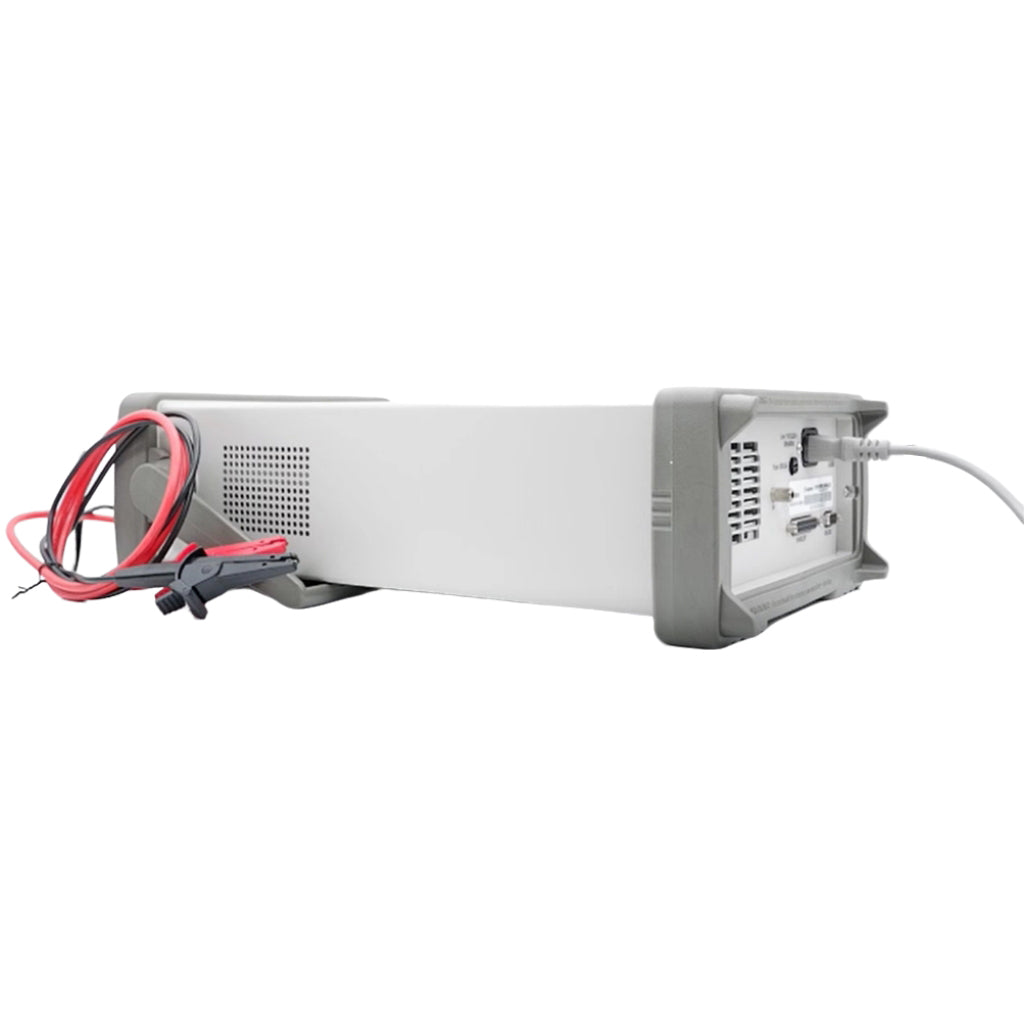

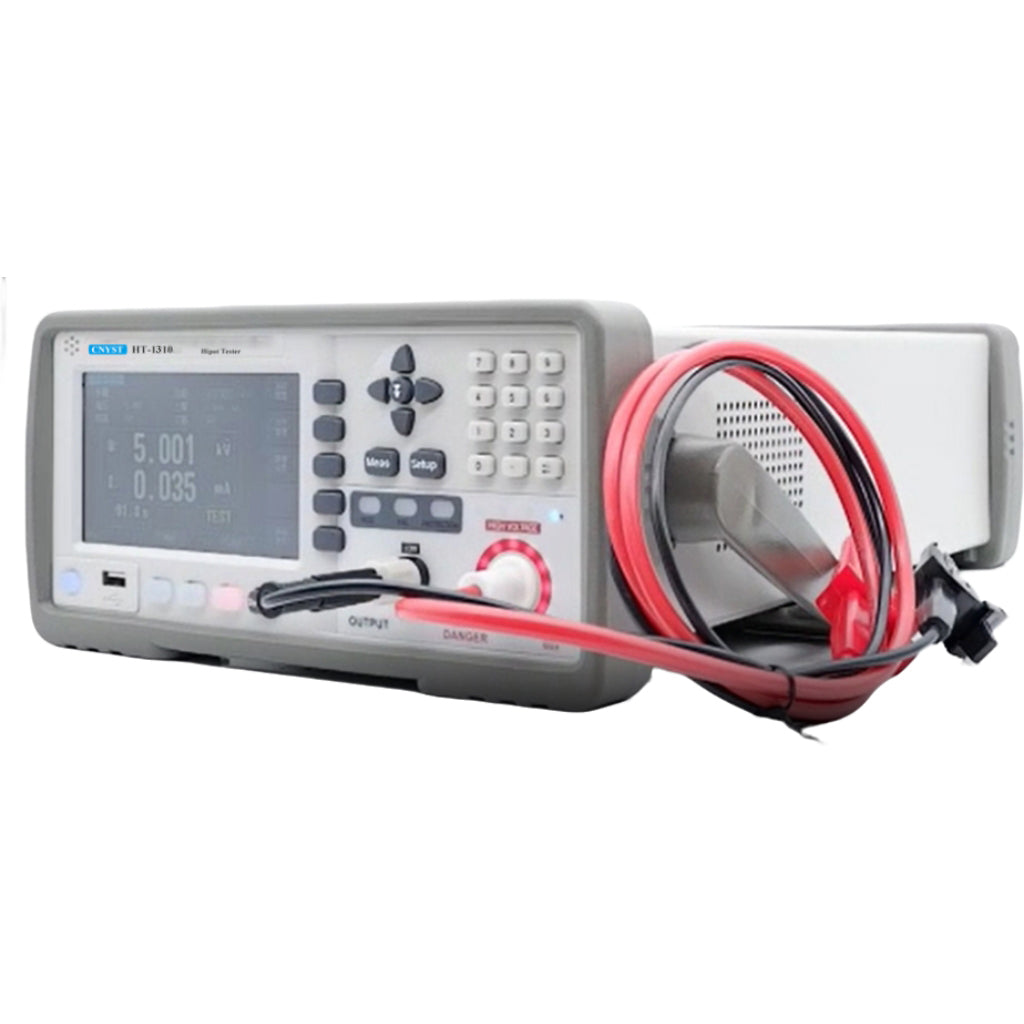

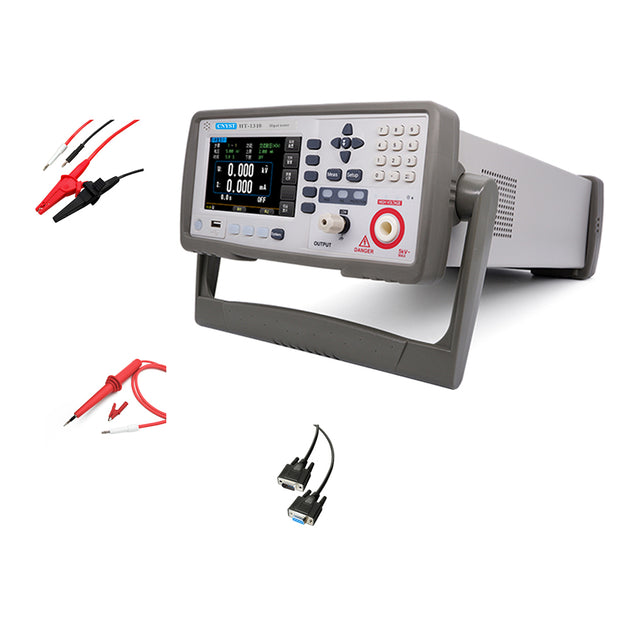

Accessories High voltage test rod
Withstand voltage test line
RS232 Communication
