CNYST AC DC IR Hipot Tester Digital AC/DC/IR Hipot Tester with Insulation Resistance 1kv/50GΩ 5kV AC/10mA Withstand Voltage 6kV DC/5mA Withstand Voltage RS232/Handler Interface 5’’ LCD + Touch Panel

Introduction:

• This AC/DC withstand voltage insulation tester is an instrument that integrates multiple testing functions such as electrical strength (AC/DC withstand voltage) and insulation resistance. It is an important testing equipment for various electrical manufacturers and quality inspection departments.
• It uses a high-speed microprocessor as the control core and can measure various safety and regulatory parameters of the tested object in real-time. It can complete three tests within 4 seconds, especially meeting the requirements of production lines for fast testing.

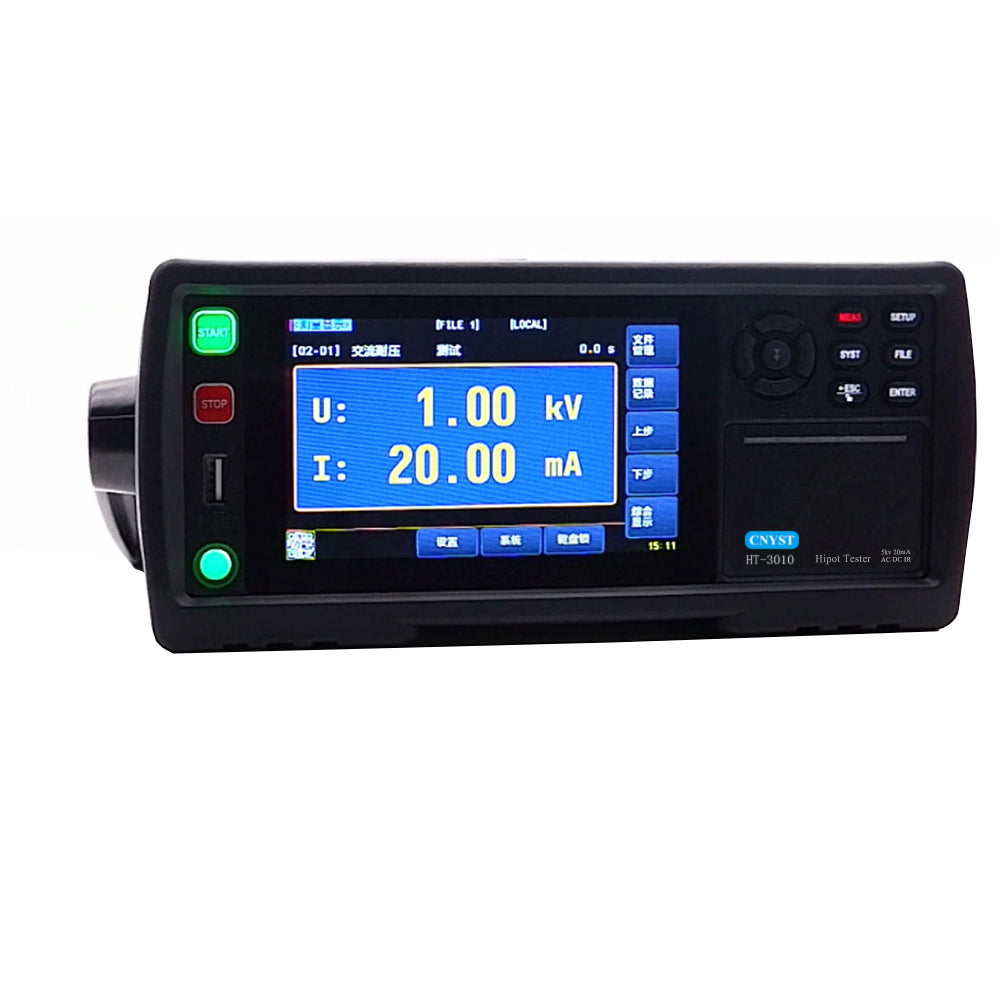

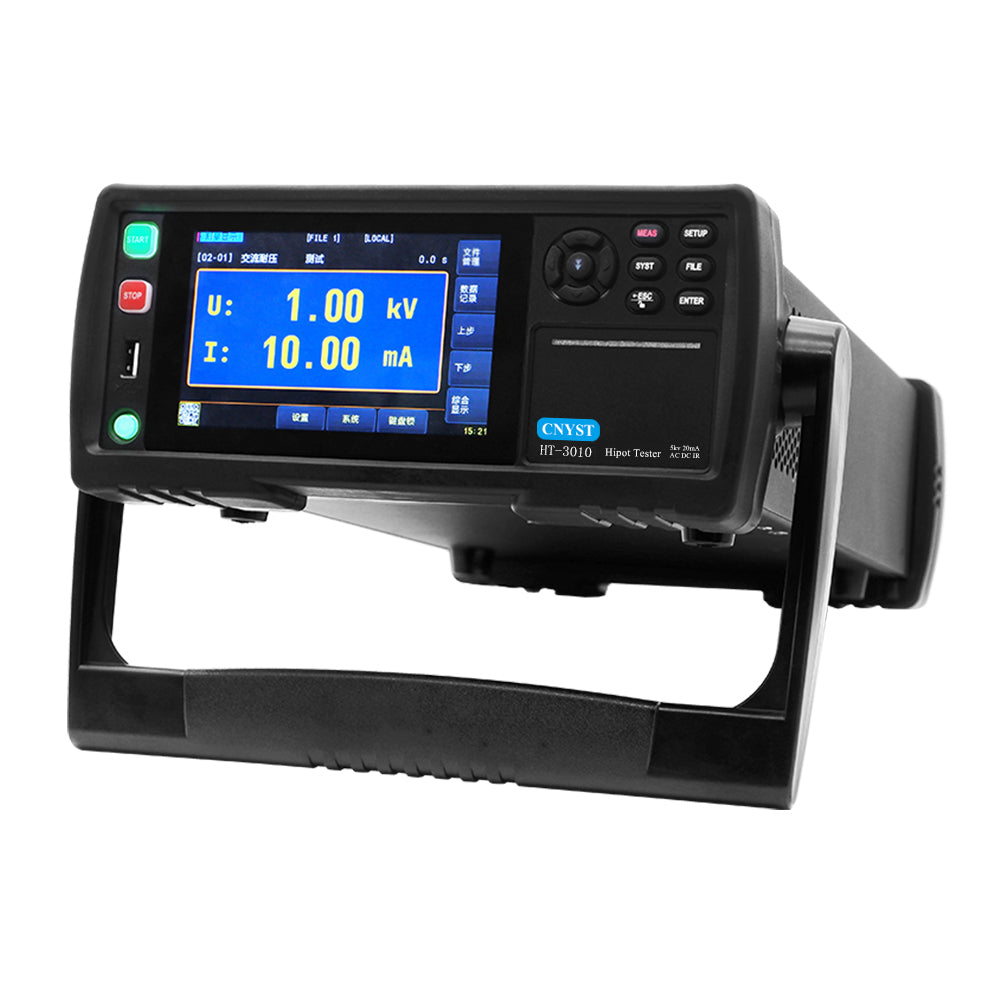

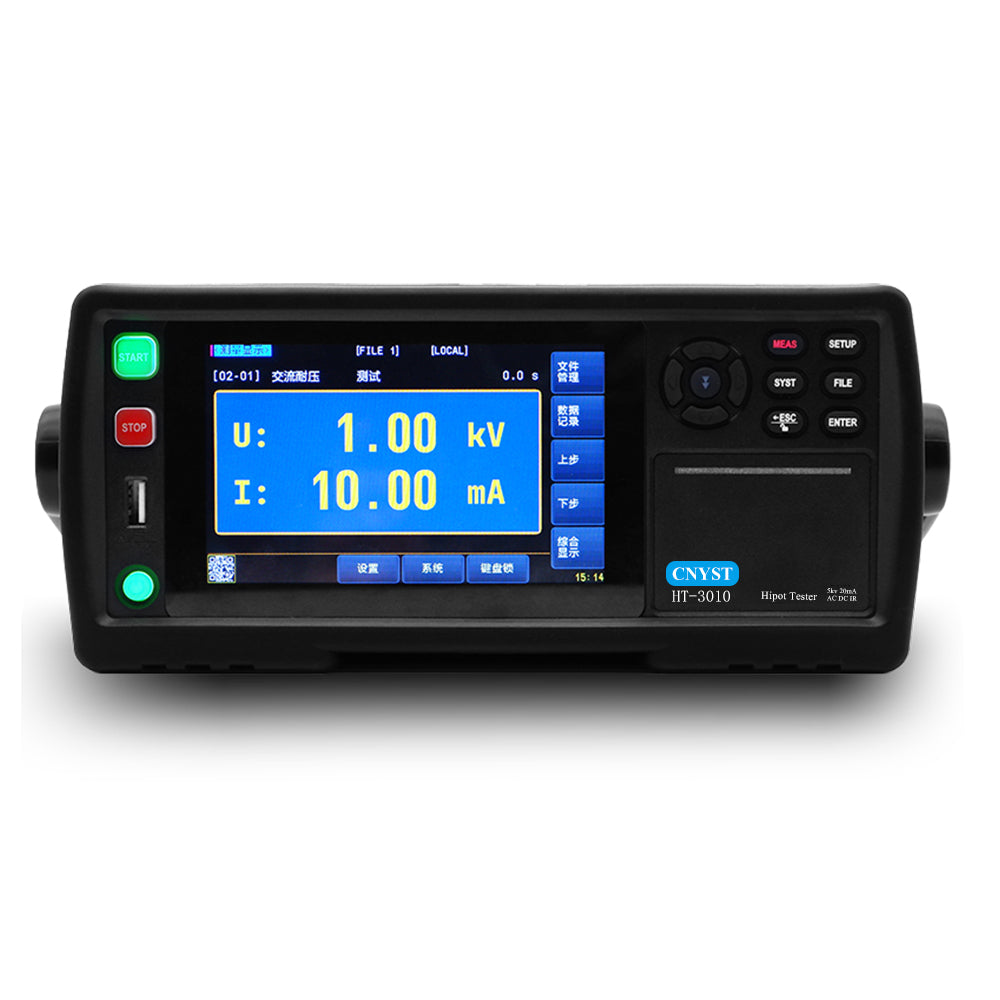

• It adopts a 5-inch color LCD touch screen, which is easy to operate; Equipped with intelligent upper and lower limit judgment function, it can automatically identify defective products. The entire circuit adopts various anti-interference measures, with strong anti-interference ability. It has both hardware and software protection, greatly improving the reliability of the instrument. Automatic overvoltage and overcurrent protection for safer use.

FEATURES:

It can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance 1kv/50GΩ testing.

Controllable sine generator: can be set to operate at 50 or 60Hz during AC output, no longer limited by line voltage;

Linear power amplifier: Low distortion of voltage waveform, simple control, and high reliability.

Anti electric shock protection/arc detection/short circuit protection

It can independently conduct AC withstand voltage test, DC withstand voltage test, and insulation resistance test, and can pass the test

Set up a trial project and conduct sequential testing of multiple projects.

SPECIFICATIONS:
