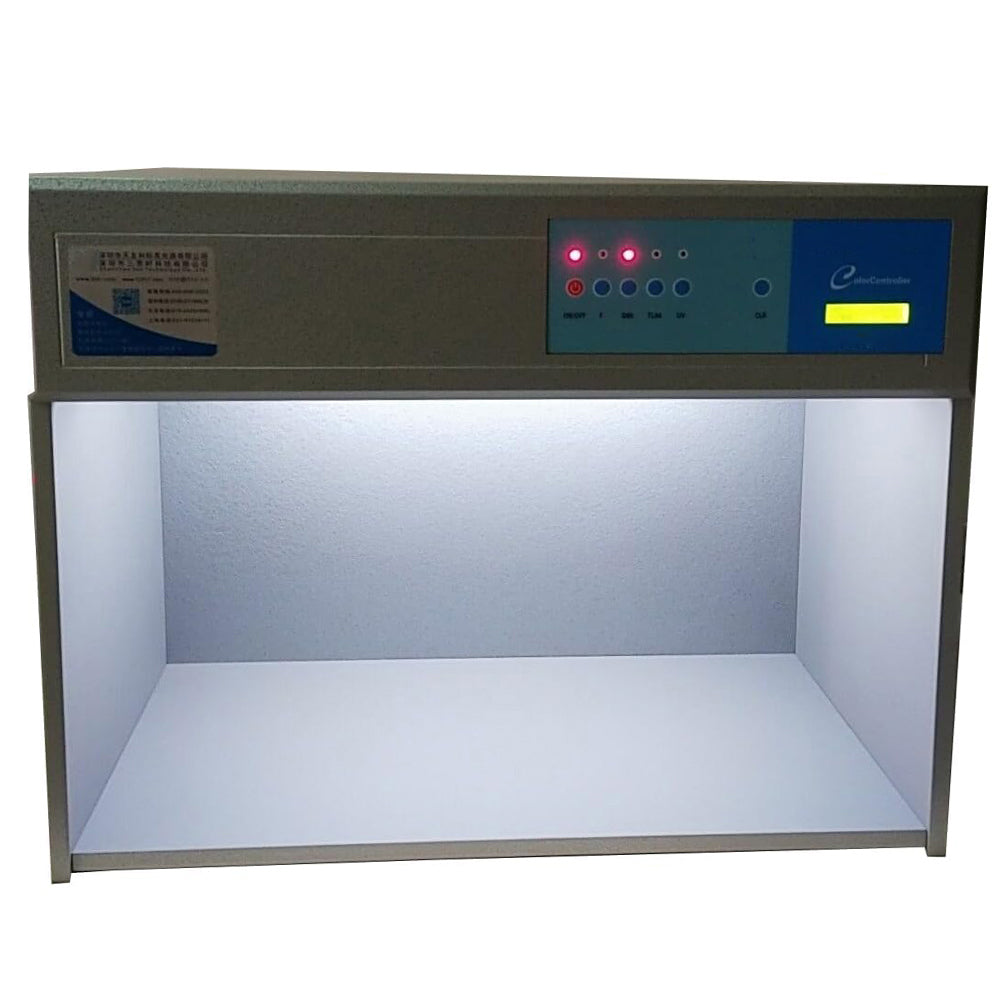

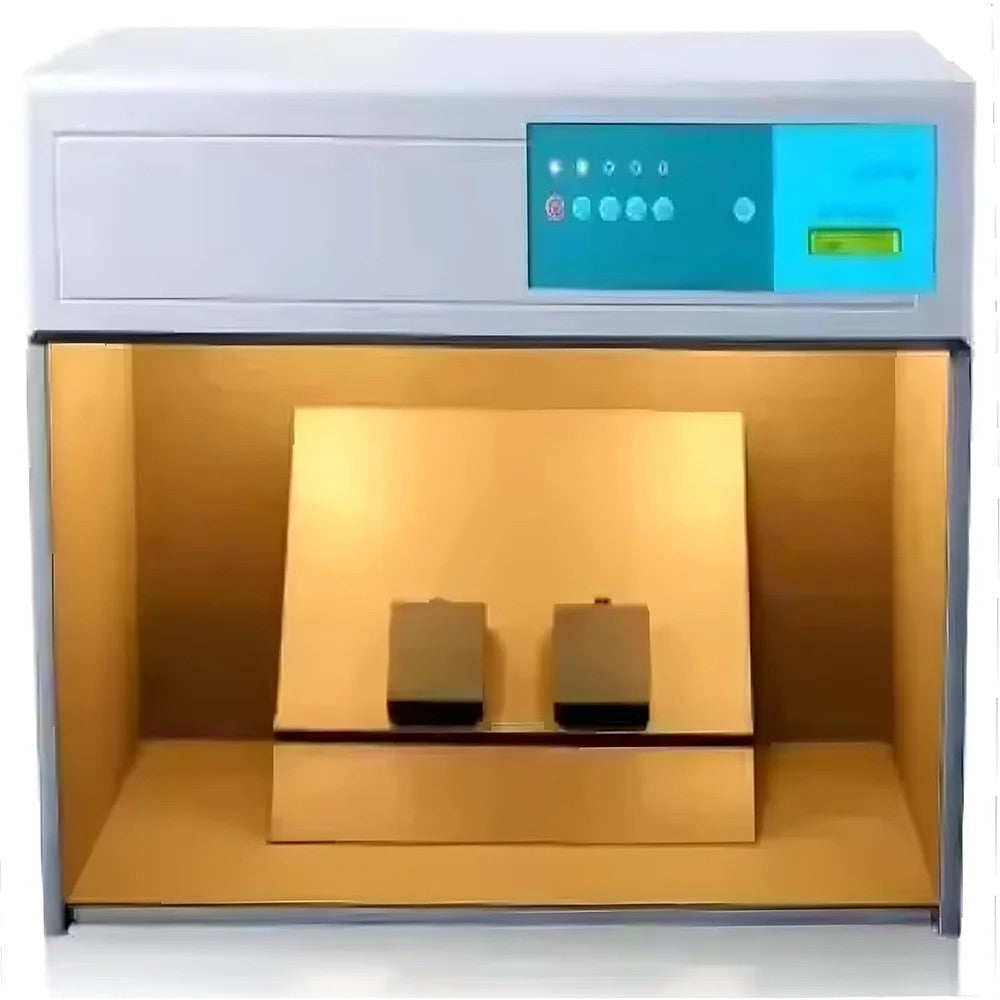

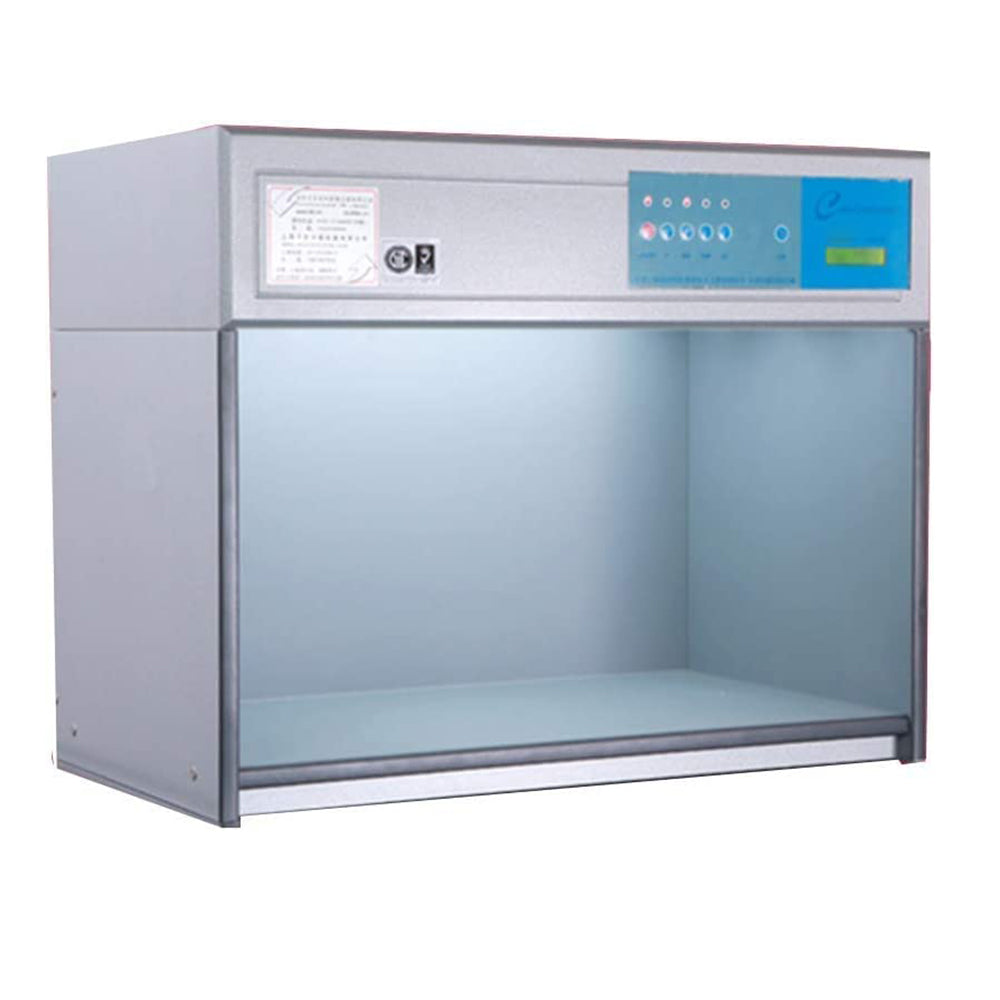

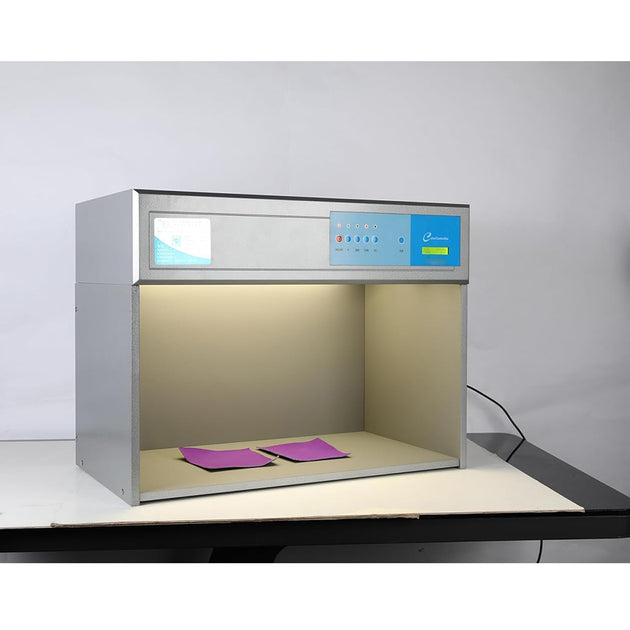

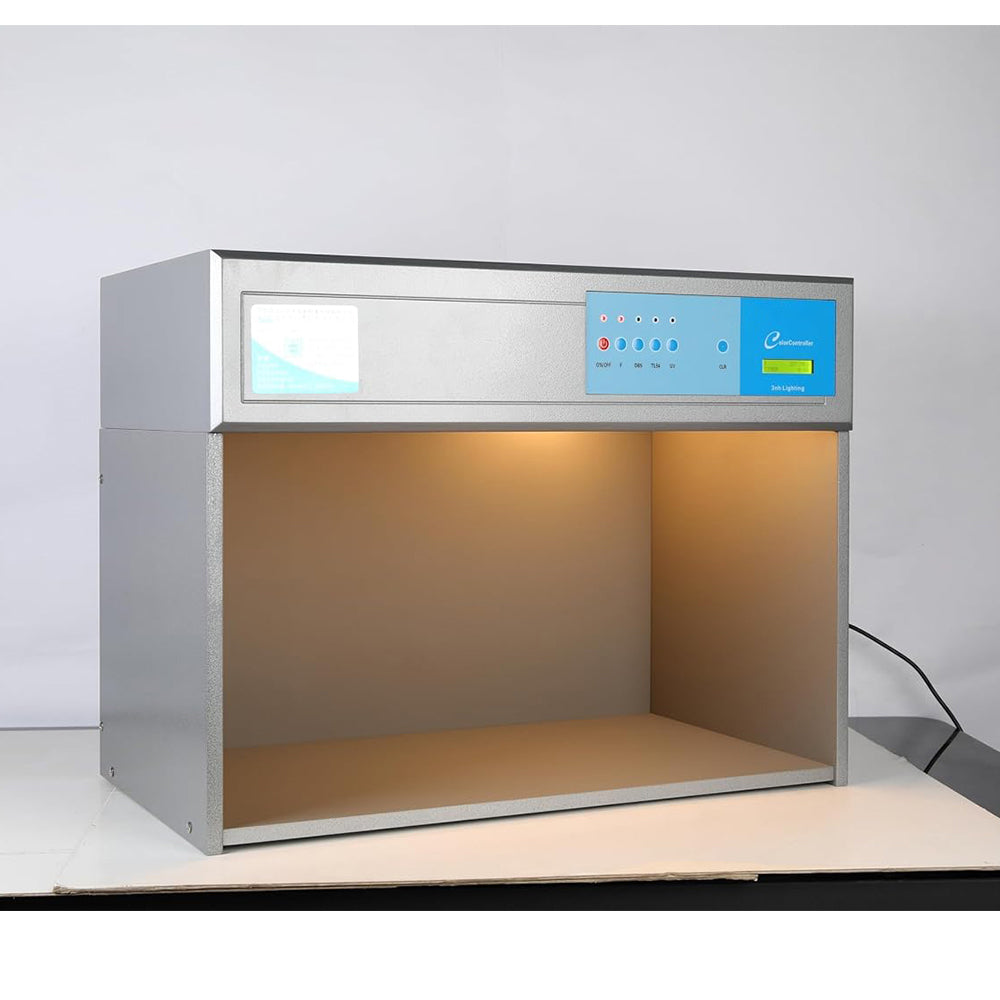

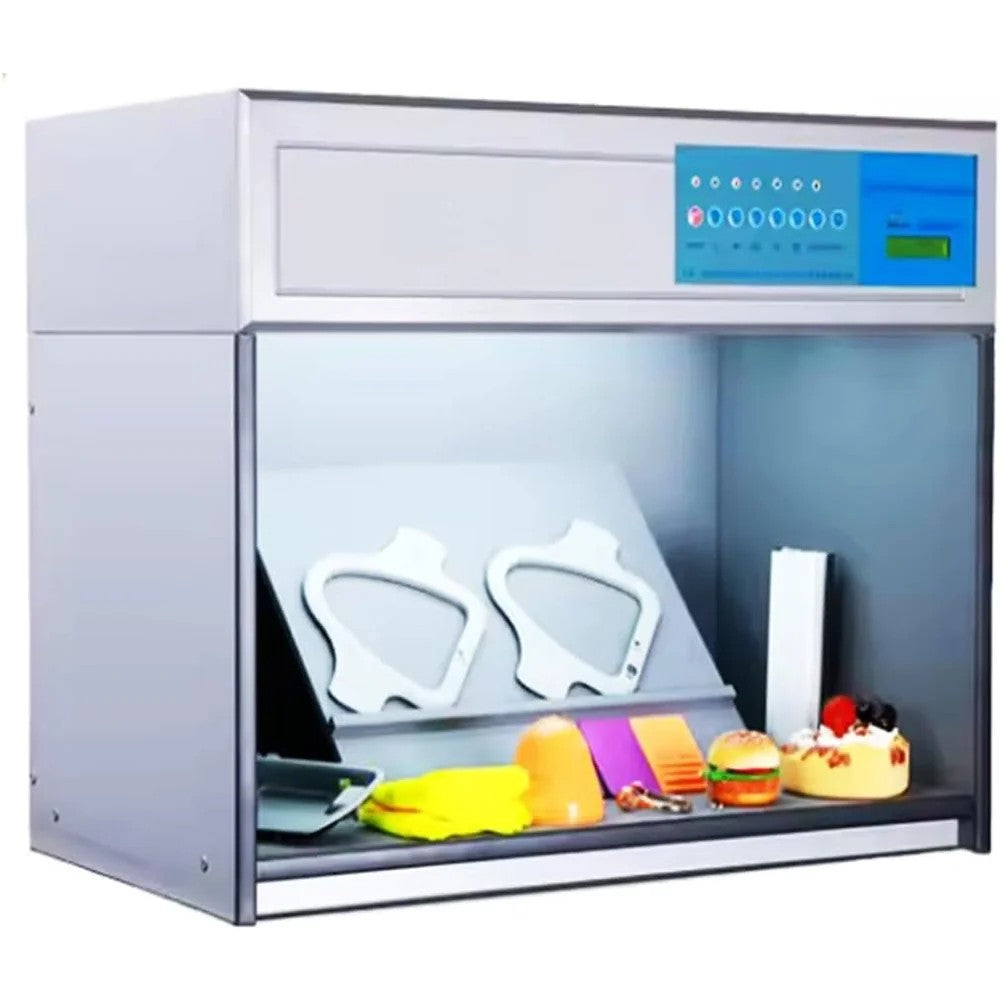

CNYST Color Assessment Cabinet 4 Light Color Matching Cabinet with 4 Light Sources D65 TL84 UV F ASTM D1729 ISO3664 DIN ANSI BSI Standard for The Graphic Arts Photographic Textile Dyeing Packaging

$1,470.00
$1,470.00

About this item

◆ color light box can accommodate up to 4 light sources(Configuration: D65, TL84, F, UV four light sources).

◆ Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

◆ Easy to operate by using individual switches for each light source.

◆ Economic power consumption and low heat generation for high light efficiency.

◆ The Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries

====Please Kindly Kotice that This Color Assessment Cabinet has 2 Voltages for choosing 110V or 220V.By Default We will Ship According to the Voltage of Your Country====

Product Introduction

* Color light box can accommodate up to 4 light sources(Configuration: D65, TL84, F, UV four light sources). Colors appear differently under different lighting sources.

* To avoid/reduce the assessment error when performing color contrast, we can make use of Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

Application:

The Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industry

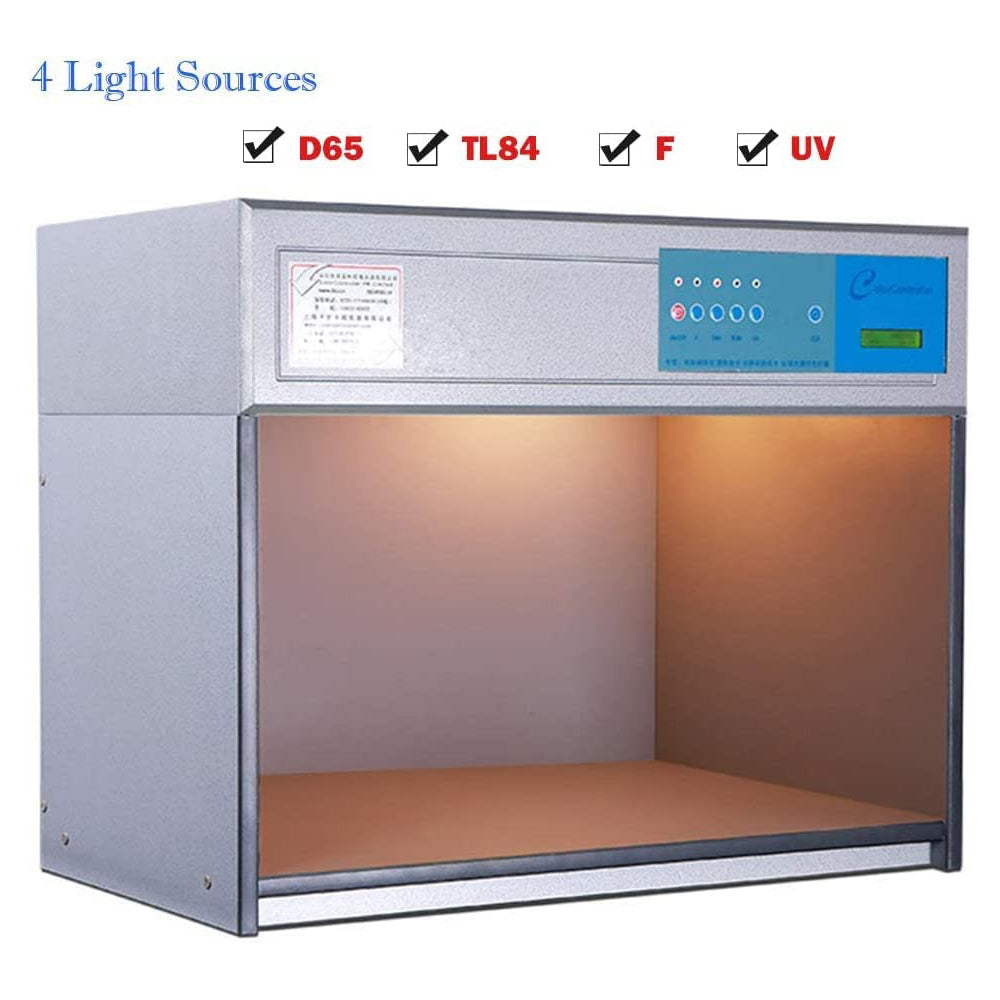

4 Light Sources

===D65===

International Standard Artificial Daylight with 2 pcs Lamps; Power, 18W; Color Temperature, 6500K;

===TL84===

Europe Japan commercial source with 2 pcs Lamps; Power, 18W ; Color Temperature, 4000K;

===UV====

Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments;

Wavelength:365nm; with 1 pcs Lamps; Power, 18W ;

====F====

light for family hotel, colorimetric reference source with 4 pcs Lamps; Power, 40W ; Color Temperature, 2700K;

* Size: 710*420*570mm

* Weight：23Kg

* Power: 220 V 110V/60Hz(2 Voltages for choosing 110V or 220V.By Default We will Ship According to the Voltage of Your Country)

Color light box Features:

* With 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.

* Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

* Elapsed time meter for tracking optimal lamp replacement.

* Automatically alternating among light sources.

* No warm-up time or flickering which insures quick and reliable color judgment.
