CNYST Hazemeter Transparency and Haze Meter Transmission Haze Meter with Test Aperture 21mm Resolution 0.1 USB Interface Touch Screen for Film Glasses Haze and Transmittance Test

$1,050.00

CNYST Hazemeter Transparency and Haze Meter Transmission Haze Meter with Test Aperture 21mm Resolution 0.1 USB Interface Touch Screen for Film Glasses Haze and Transmittance Test

About this item

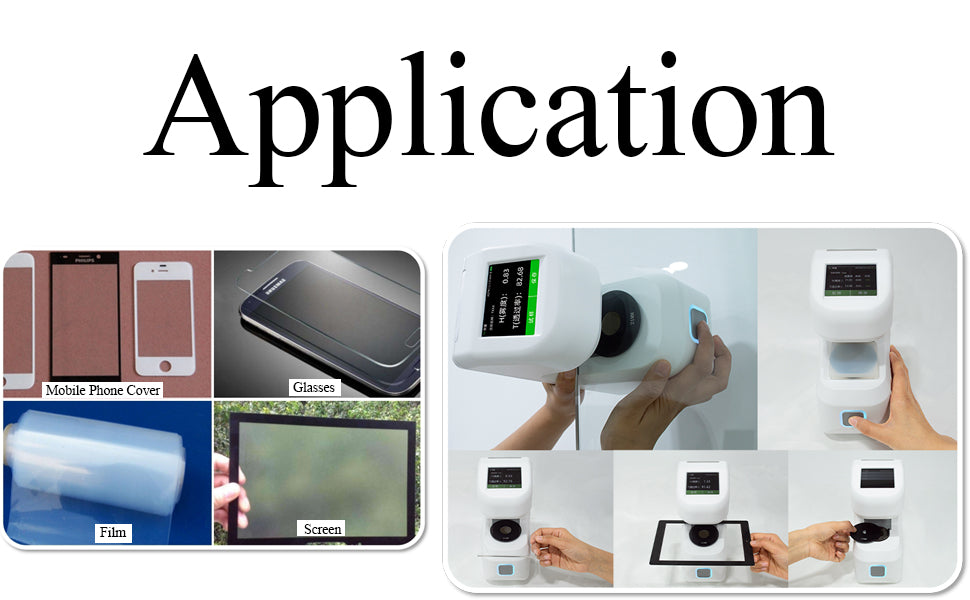

The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

High Accuracy: Display resolution 0.01; Good repeatability ≤0.02

What have we done to guarantee the instrument repeatability? a. Instrument will do self-check regularly when it is in standby mode.b. Dual Optical Paths Design

It supports 1 kinds of test apertures 21mm to measure the samples with different sizes.

The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.It contains three kinds of light source to measure the haze and transmittance of different standards.It adopts 2.8 inches touch screen

Feature:

Measure aperture:21mm

resolving power:0.1%

Repeatability:0.1

Light Source:CIE-A,CIE-C,CIE-D65

Standards:ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Parameter:ASTM-haze/transmittance

Spectral Response:CIE The spectrum function Y/V(λ)

Geometry:0/d

Test Aperture :21mm

Test Range:0-100%

Resolution:0.10%

Repeatability:0.1

Sample Size:Thickness ≤40mm

Display:2.8 inches touch screen

Data Storage:Mass Storage

Interface :USB

Power:DC 5V/2A

Working Temperature:5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature:-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

Size :133mm x 99mm x 224mm (length X width X height)

Weight:1.13 kg

Optional :Test Aperture with custom made size
