CNYST Single Axis Fluxgate Magnetometer Digital Single-axis Fluxgate Magnetometer with Range 0~2000μT Max. Hold Function Accuracy 1% Linearity ± 0.5% for Inspection Of MRI Scanners Or Electron Microscopes

About this item:

【1% Accuracy】: please note that of this Single-axis Fluxgate Magnetometer measurement accuracies is +/-1% .

【Range Switch】: You can Choose mT(mite) or mG(gauss).

【Zeroing Function】: Because of environmental difference, it may not be zero at first. In that circumstance, you can puch the zeroing button to solve it.

【Wide Range of Application】:It is suitable for measuring the residual magnetism of magnetic materials or metal parts, monitoring the attenuation characteristics evaluation of environmental magnetic field, geomagnetic detection and magnetic shielding, detecting magnetic field drift, package detection and geological exploration of precision instruments.

【Low Power Consumption】:This product displays the remaing baterry power and is of low power consumption.

Introduction:

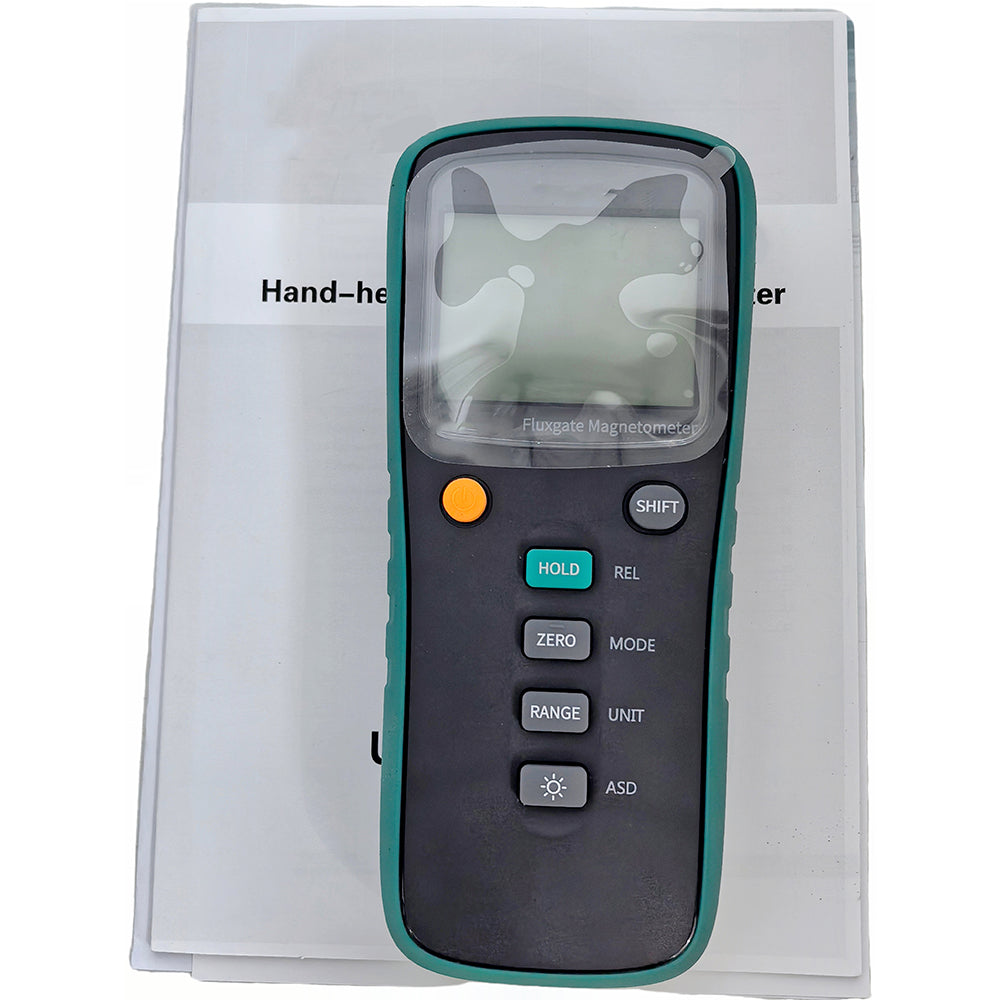

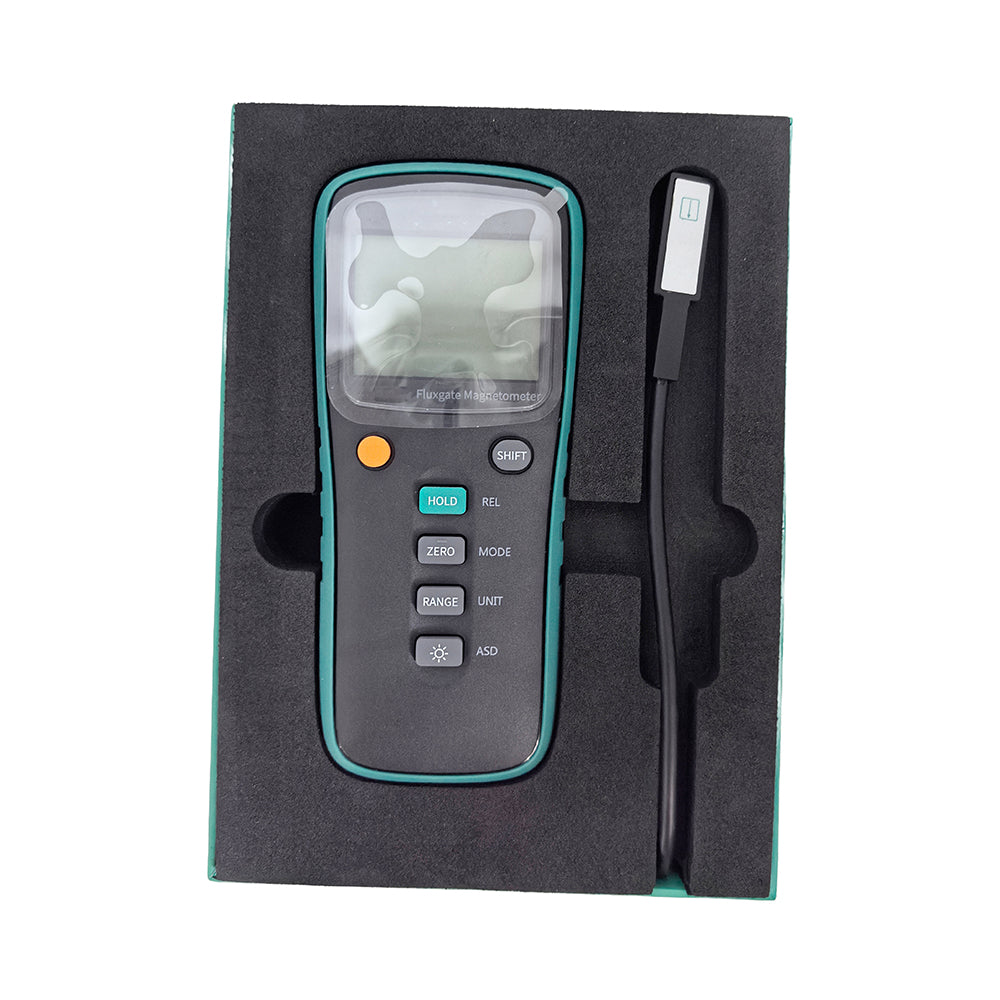

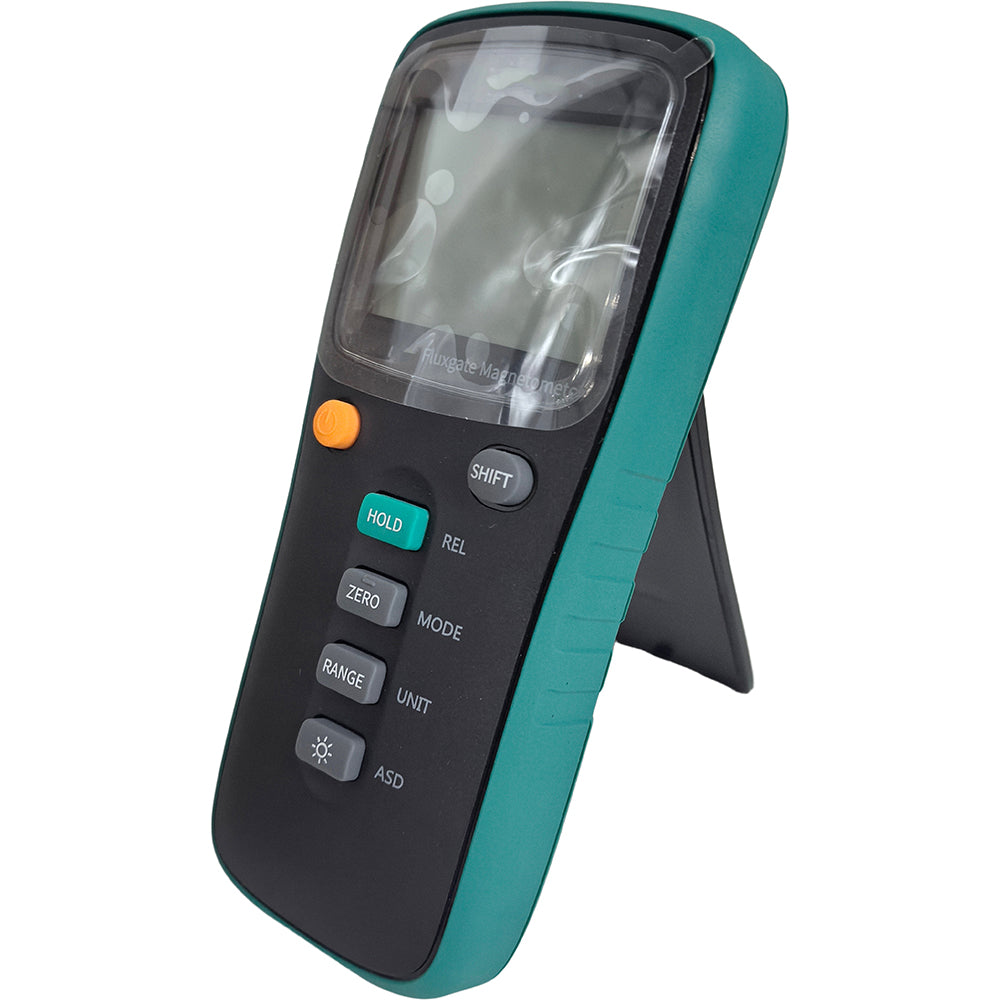

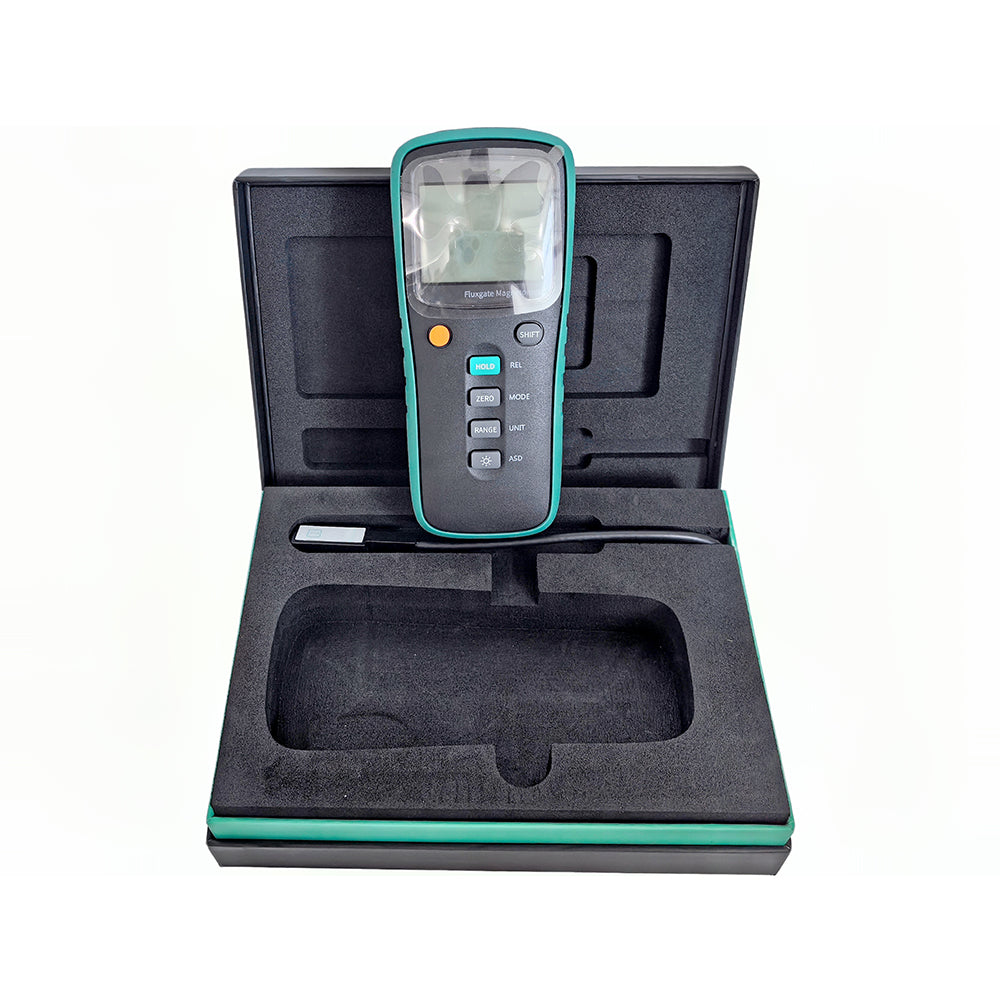

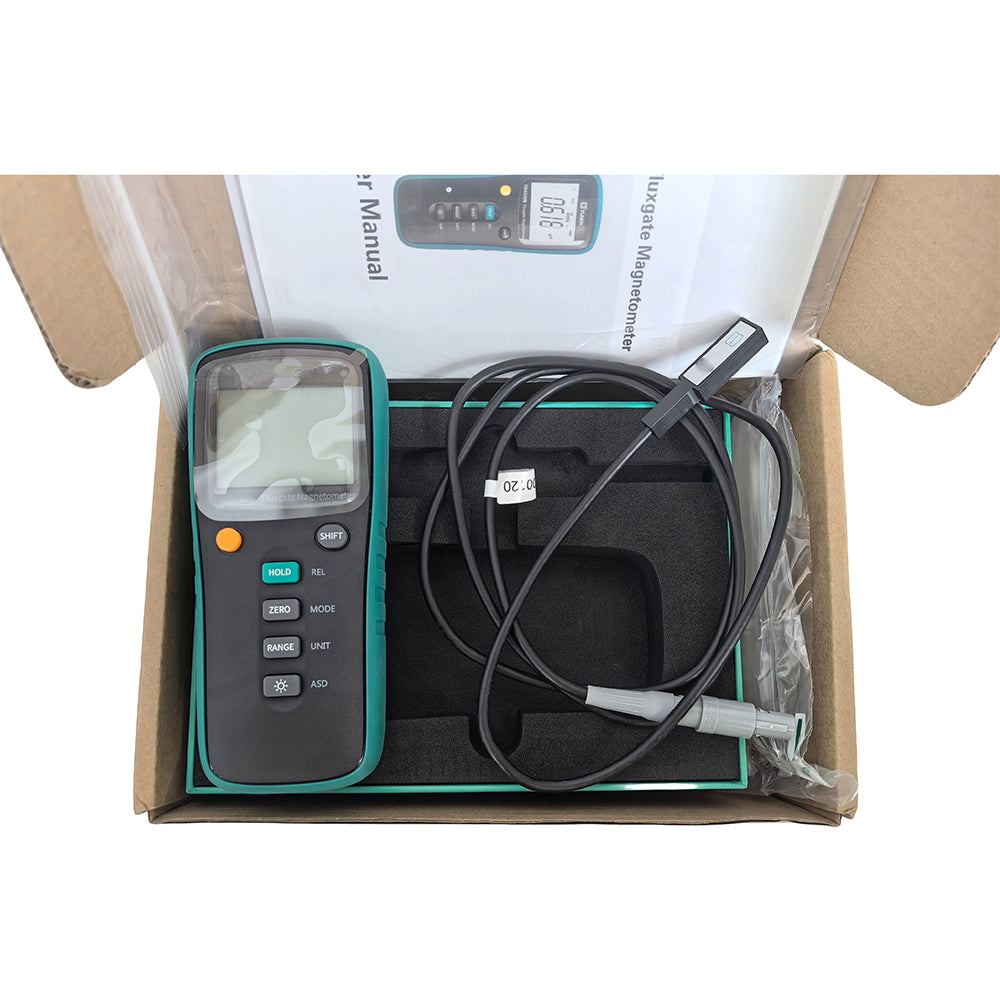

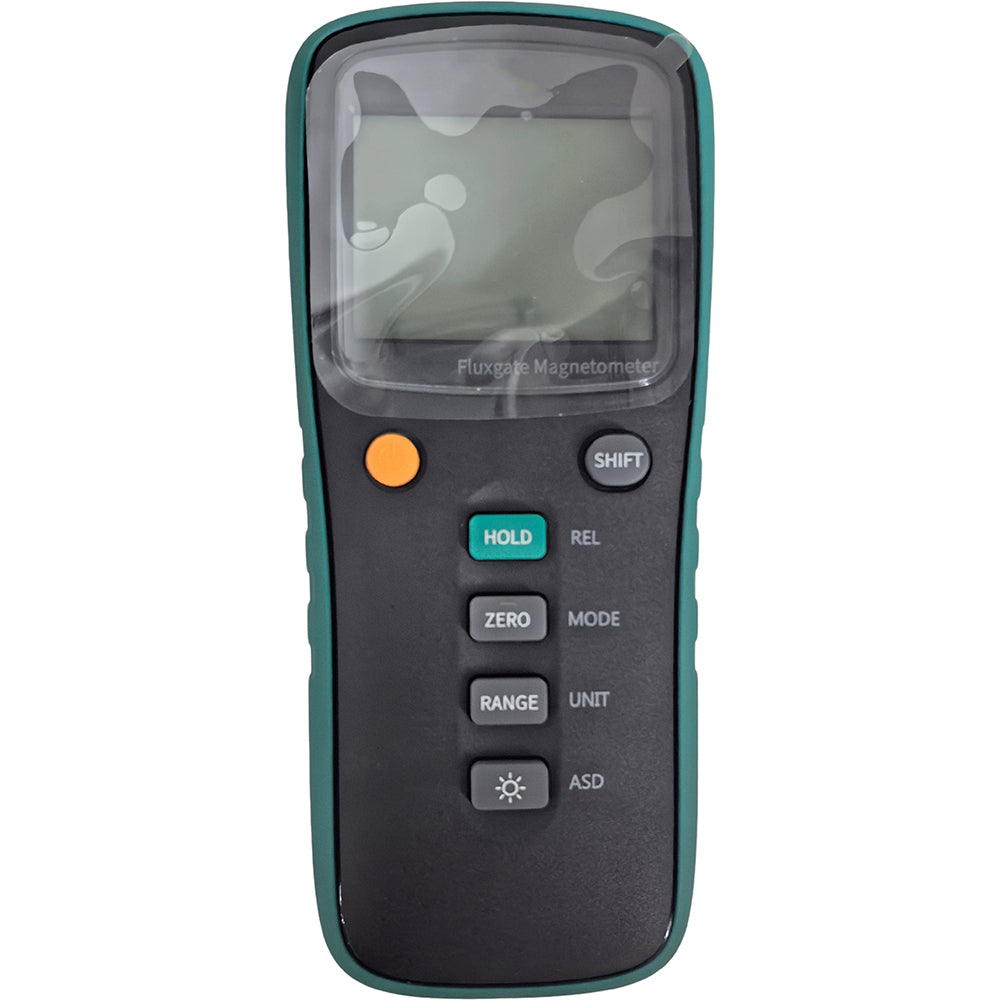

This is a portable instrument equipped with a high sensitivity, high linearity, low drift fluxgate sensor and advanced digital signal processing to measure the weak magnetic field more accurately.

It is suitable for measuring the residual magnetism of magnetic materials or metal parts, monitoring the attenuation characteristics evaluation of environmental magnetic field, geomagnetic detection and magnetic shielding, detecting magnetic field drift, package detection and geological exploration of precision instruments.

Features:

Magnetic field measurement range: 2000 μT, automatic range switching.

Accuracy: 1%

One-click unit switching: μT, mG, etc.

Maximum maintenance:It is convenient to record its maximum magnetic field value when the magnetic field is rapidly changed.

One-click zero:Effects of zero drift on zero drift before measurement.

Small size, light weight, low power consumption, easy to carry.

Technical Specifications

Range: 0～± 2000 μT.Accuracy:1%.Temperature coefficient (%/°C):0.1

Probe (μT):2000--Resolution (nT):100

Display digits: 5-digit decimal display

Frequency: DC～400 Hz

Linearity: better than ± 0.1%

Noise: <20nTrms @ 1Hz

Select the corresponding magnetic field probe according to the magnetic field strength to achieve the best accuracy

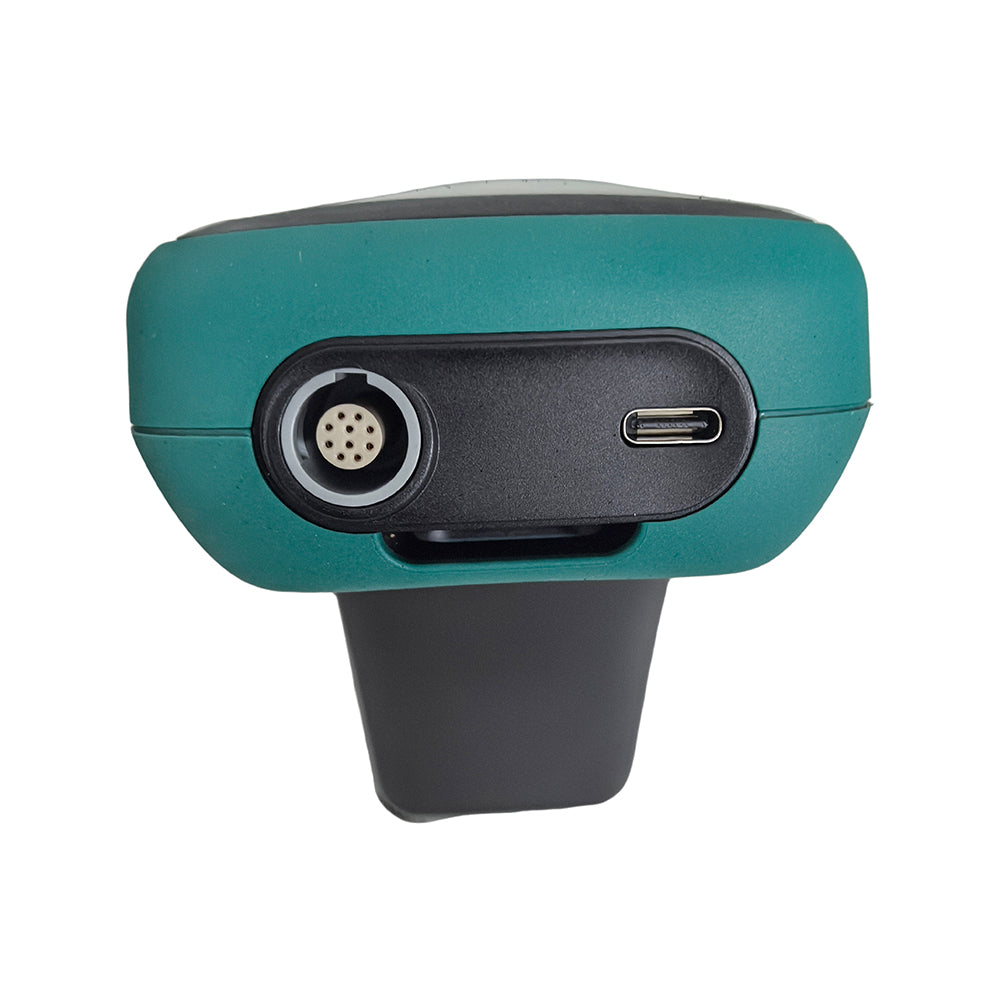

Line Power: Three AA dry(NOT INCLUDED) or USB batteries

Operating Environment: 0℃ ~ 40℃, R·H: 20% ~ 80%, No condensation

Storage Environment: −20℃ ~ 70℃, R·H: <85%, No condensation

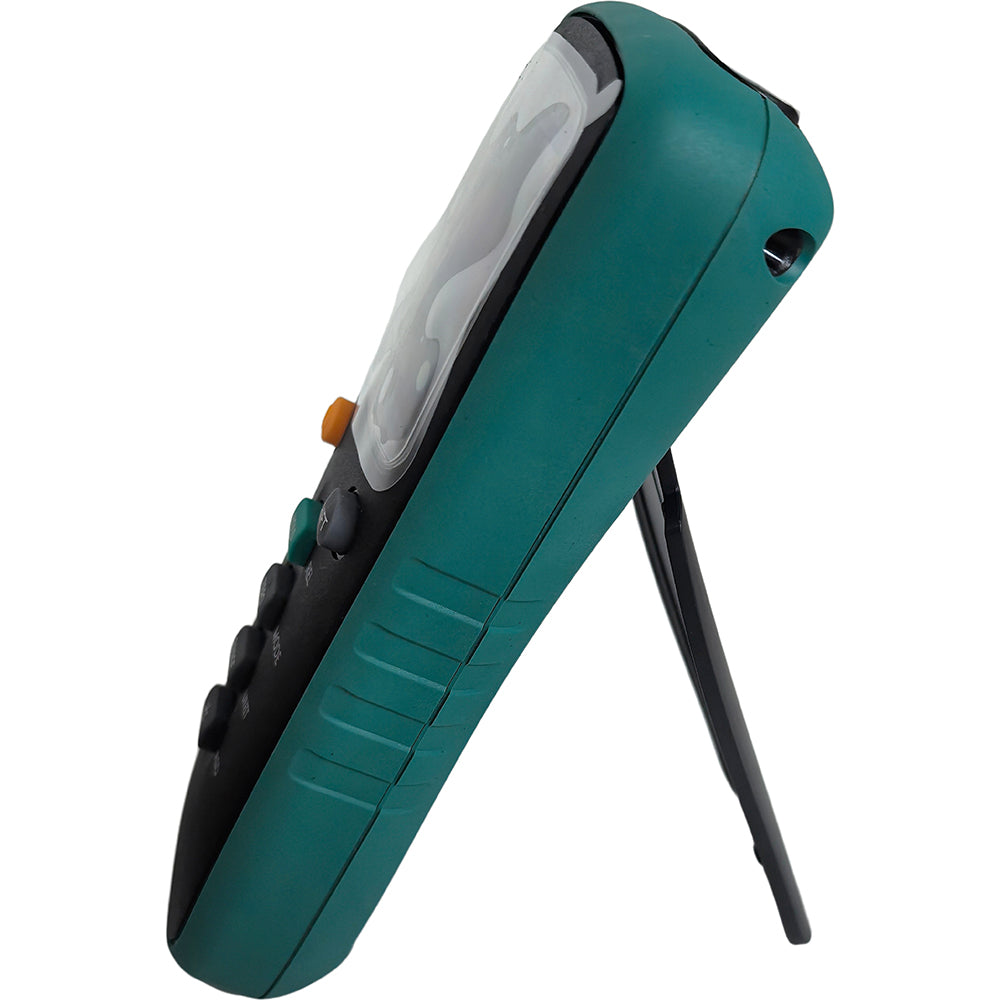

Mainframe Dimensions: 160 mm × 90 mm × 40 mm (W×L×H)

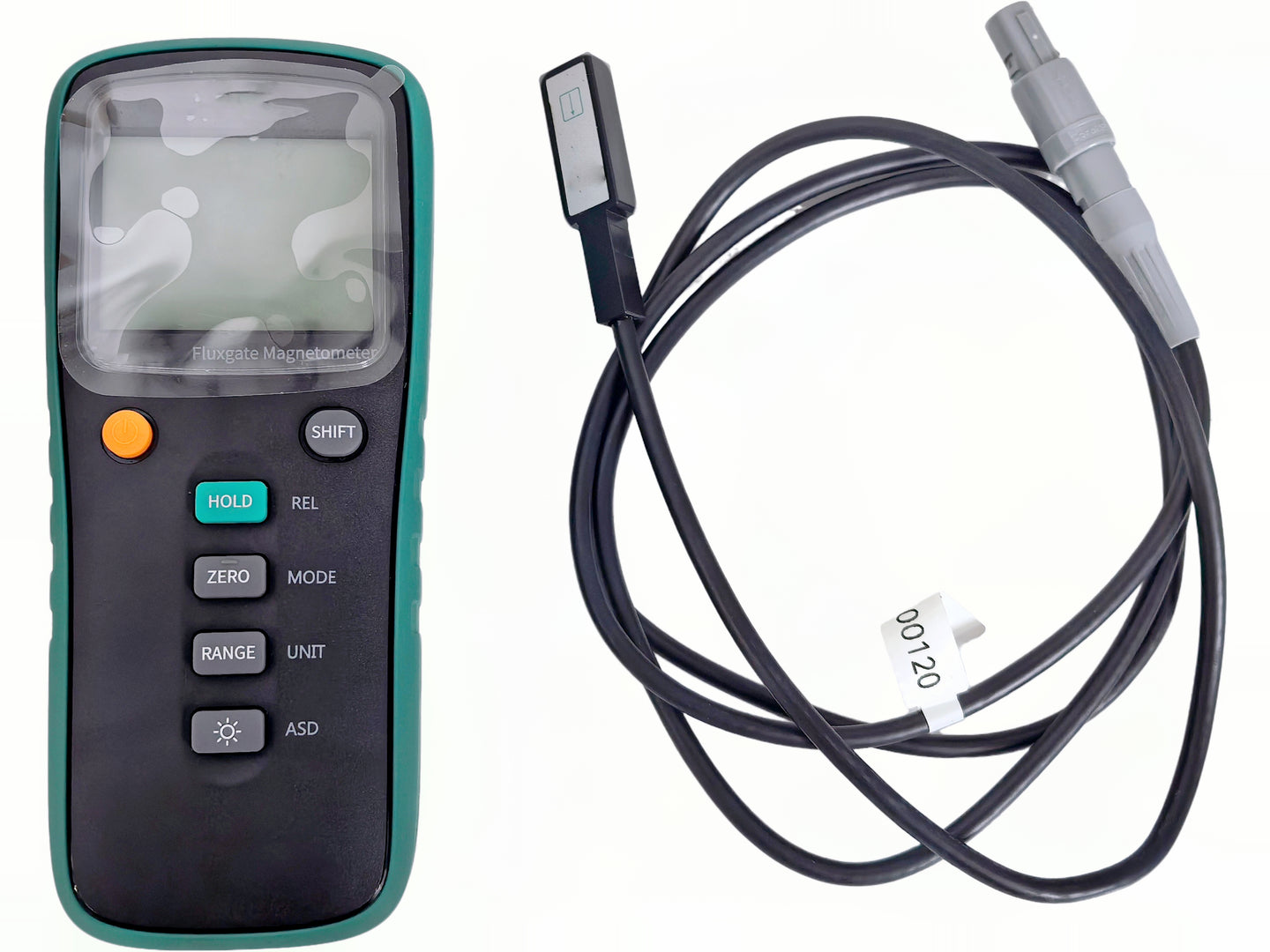

Probe Dimensions: 20 mm × 13 mm × 13 mm (W×L×H)

Weight: About 350 g
